Toyota YARIS Front Spring & Shock Absorber — Figure 4803

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 30 PNC and OE references.

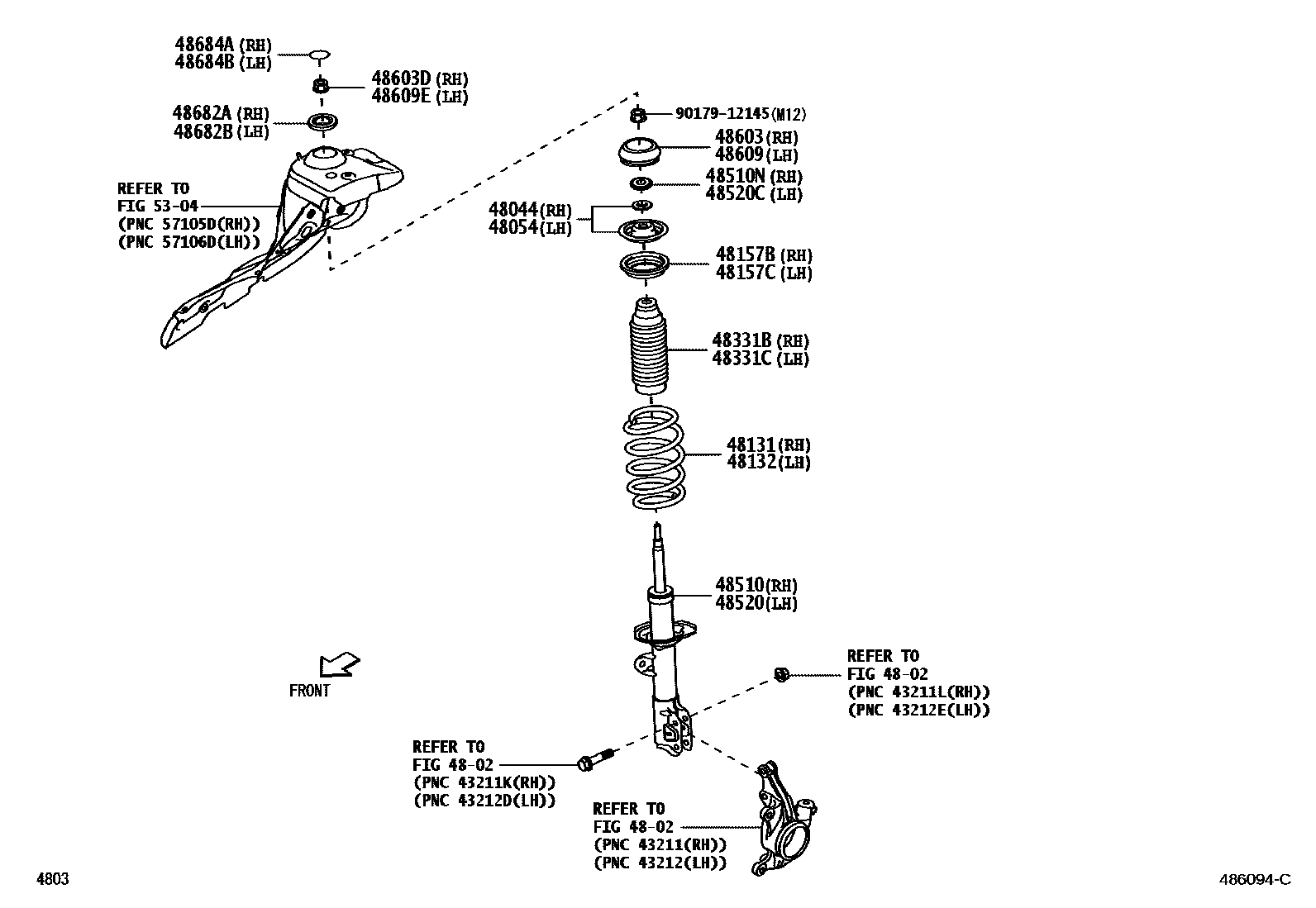

Toyota YARIS Front Spring & Shock Absorber EPC diagram — 486094C
Front Spring & Shock Absorber — 486094C (202510 – 999999)
Toyota YARIS Front Spring & Shock Absorber EPC diagram — 486095
Front Spring & Shock Absorber — 486095 (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
48044No. 1 front spring seat sub-assembly48044-BZ130
48054No. 2 front spring seat sub-assembly48044-BZ130
48131Right front coil spring48131-BZF00 · 48131-BZF10
48132Left front coil spring48131-BZF00 · 48131-BZF10
48157BFront coil spring upper right vibration isolation pad48157-BZ080
48157CFront coil spring upper left vibration isolation pad48157-BZ080
48331BRight front spring buffer block48331-BZ310
48331CLeft front spring buffer block48331-BZ310
48510Right front shock absorber assembly48510-BZJ70 · 48510-BZJ80
48510NBushing (for right front shock absorber)90043-89155
48520Left front shock absorber assembly48520-BZD70 · 48520-BZD80
48520CBushing (for left front shock absorber)90043-89155
48603Right front suspension bearing sub-assembly48609-BZ220
48603DNut (for front mount to right front shock absorber)90179-12145
48609Left front suspension bearing sub-assembly48609-BZ220
48609ENut (for front mount to left front shock absorber)90179-12145
48682ANo. 2 right front suspension support48682-BZ050
48682BNo. 2 left front suspension support48682-BZ050
48684ARight front suspension support dust cover48684-BZ090
48684BLeft front suspension support dust cover48684-BZ090
48810Left front stabilizer bar link assembly48820-BZ120
48811front stabilizer bar48811-BZ380
48815DRight front stabilizer bar bushing48815-BZ390
48815ELeft front stabilizer bar bushing48815-BZ390
48817DBolt (for front stabilizer bar)90105-T0176
48820ANut (for front stabilizer bar link)94151-21241
48820BRight front stabilizer bar link assembly48820-BZ120
48824ARight front stabilizer bar bracket No. 148824-BZ210
48826ABolt (for front stabilizer bar guard)90105-T0176
48829ALeft front stabilizer bar bracket No. 148824-BZ210
