Toyota YARIS 制动配管和卡箍 — Figure 4708

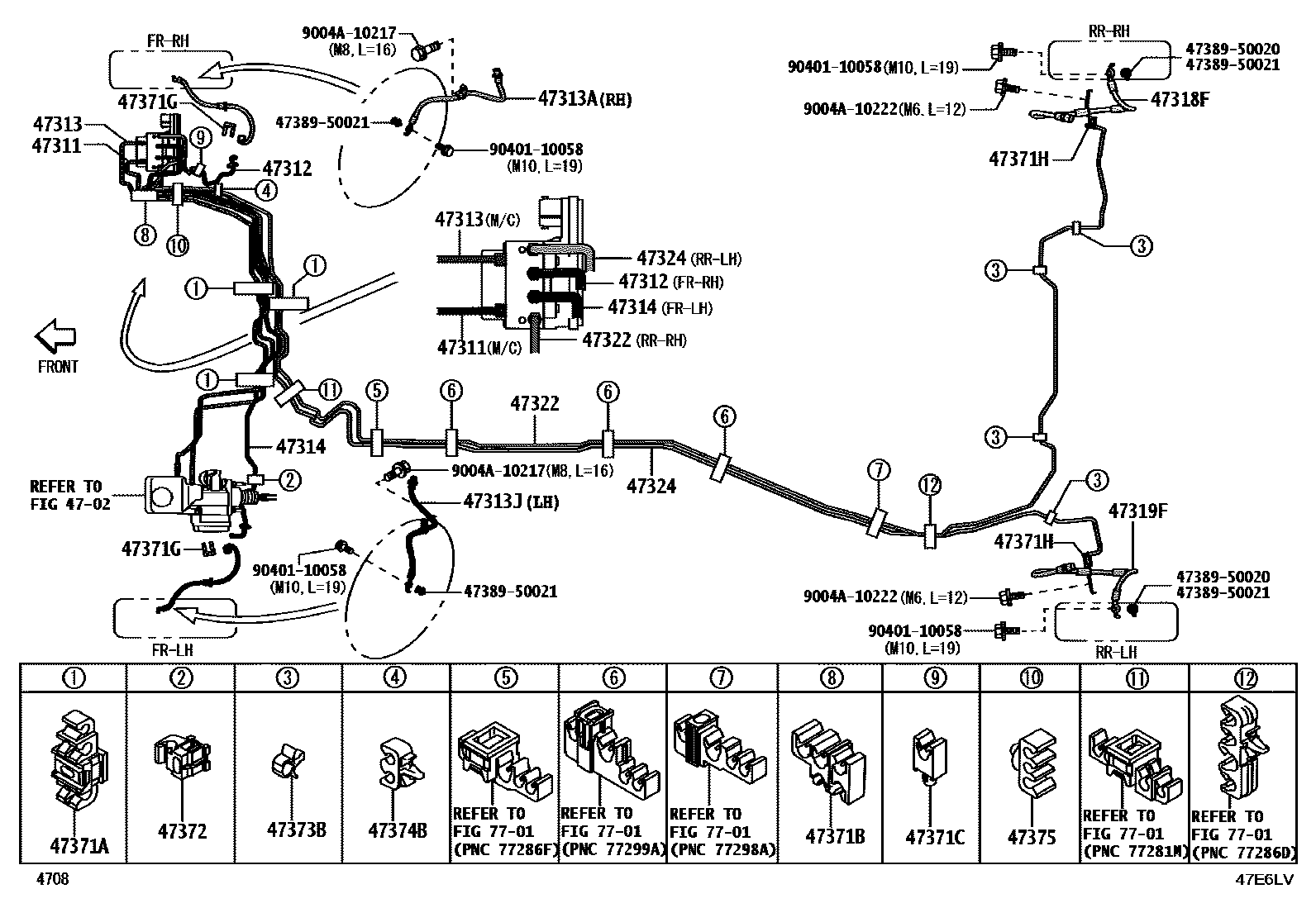

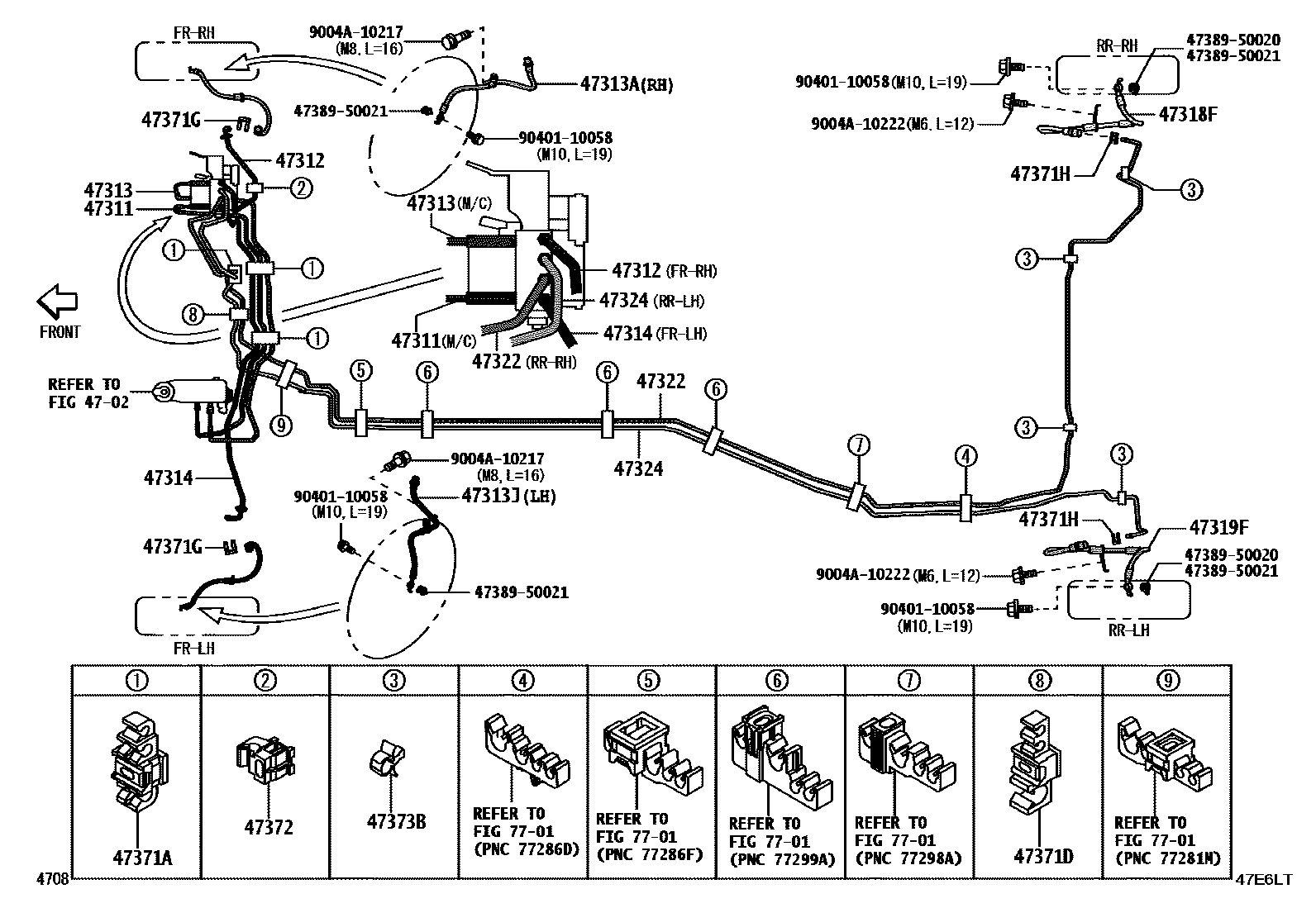

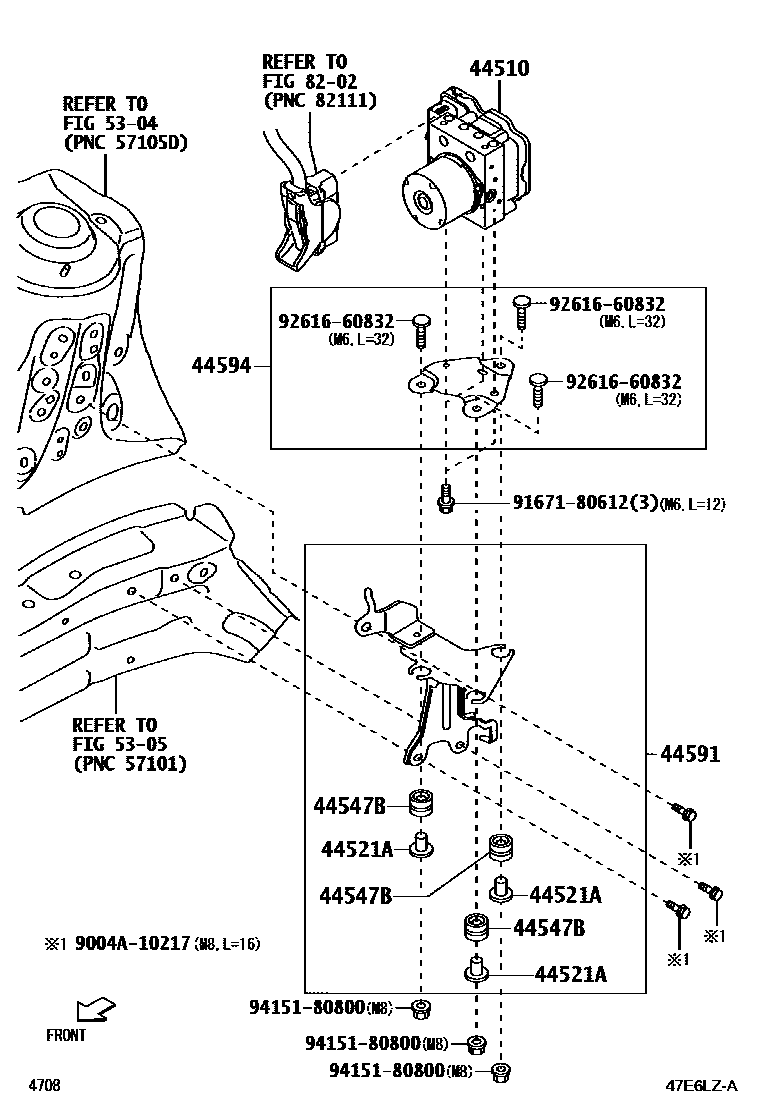

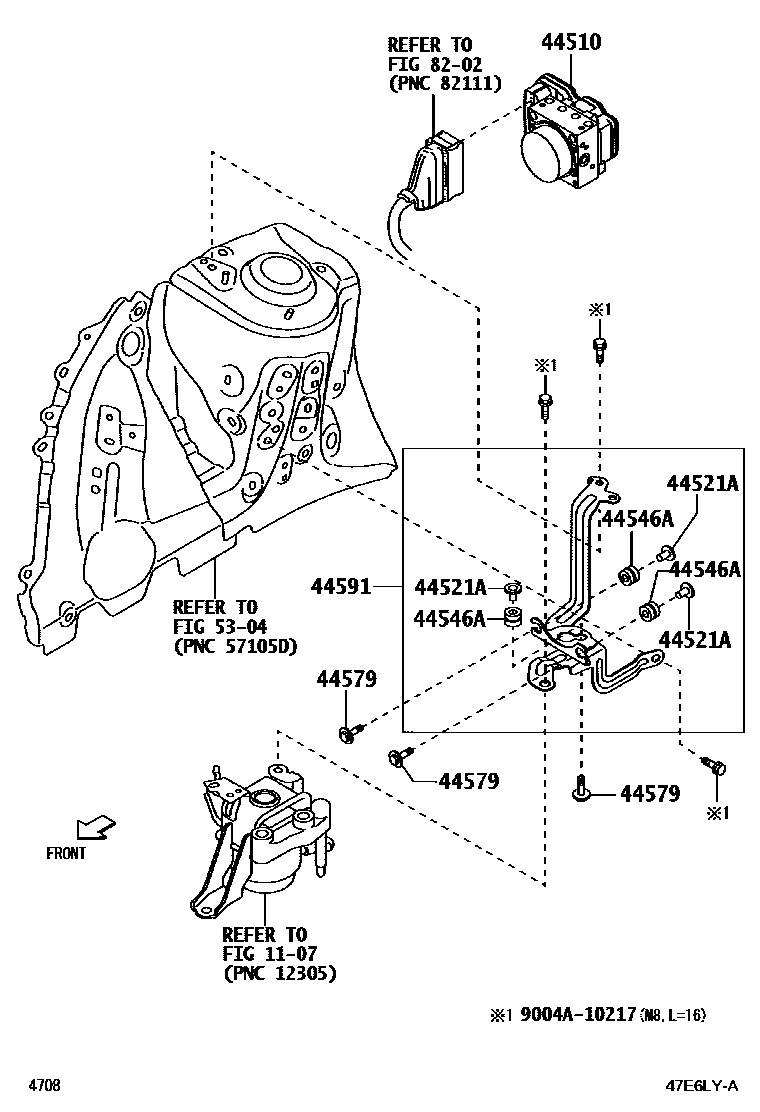

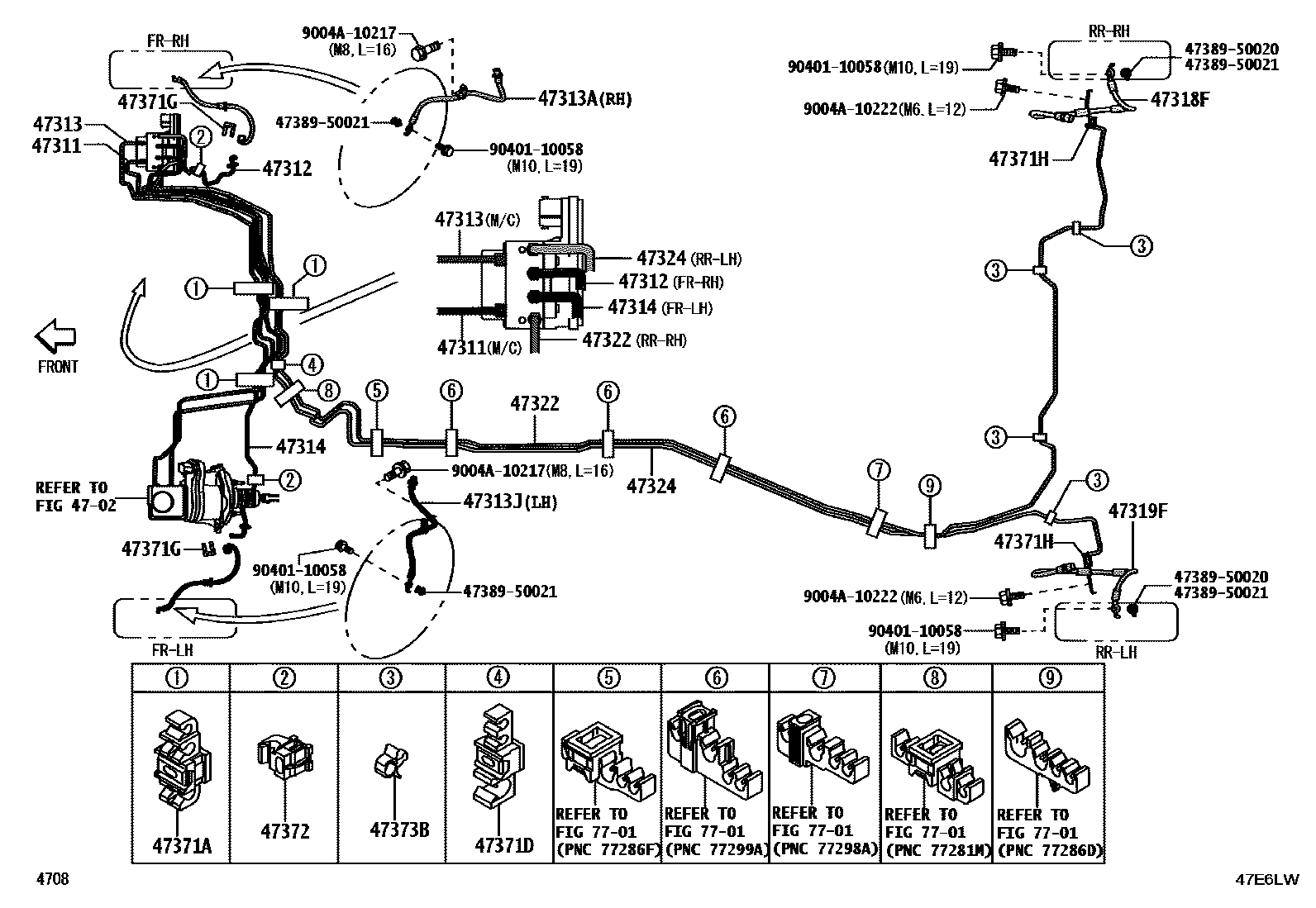

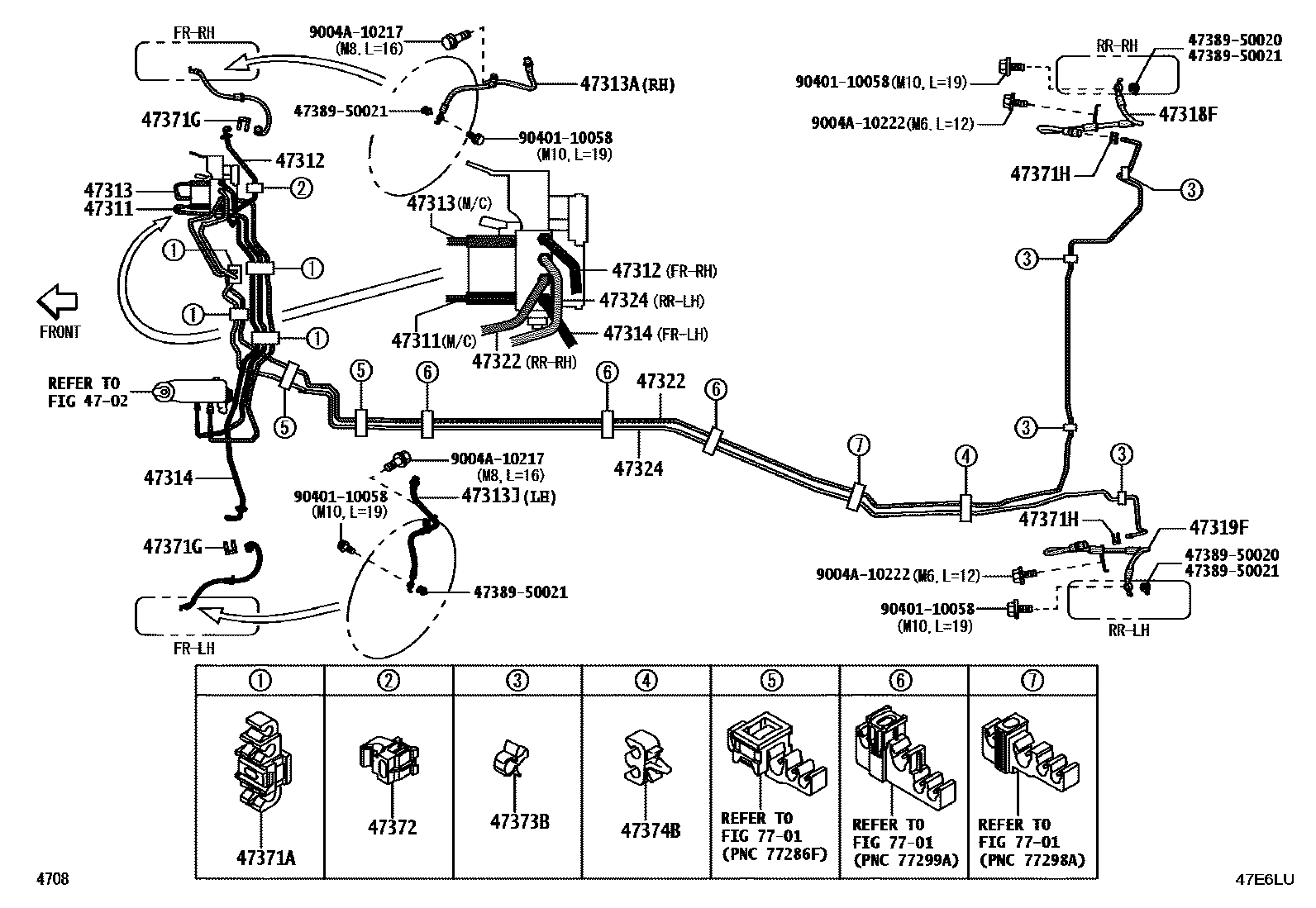

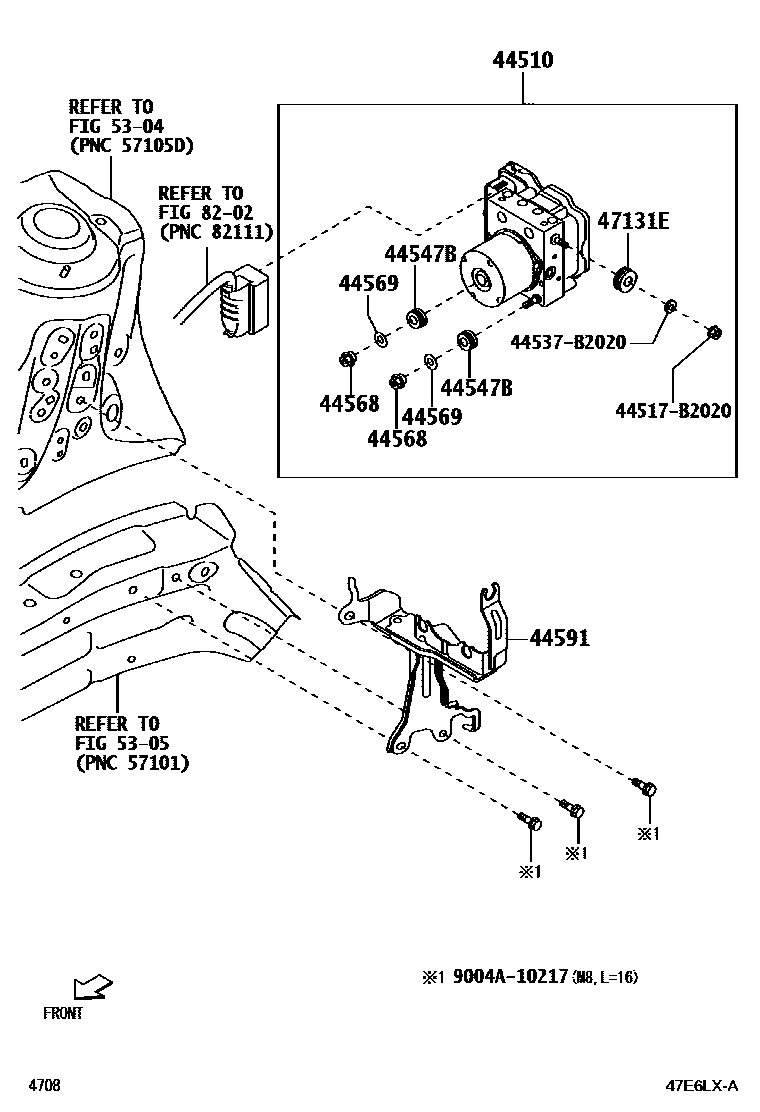

Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 7 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-B1A00 · 44050-BZ200 · 44050-BZ210 · 44050-BZ270 |
| 44521A | No. 1 brake actuator housing collar | 44521-0D010 · 44521-33020 |
| 44546A | Brake actuator bolt cushion | 44547-02050 |
| 44547B | brake actuator bracket cushion | 44547-33100 · 44547-B2040 |
| 44568 | brake actuator nut | 44517-B2010 |
| 44569 | brake actuator washer | 44537-B2010 |
| 44579 | Brake actuator bracket bolt | 90119-06834 |
| 44591 | No. 1 brake actuator bracket | 44590-BZ100 · 44591-BZ390 · 44591-BZ420 |
| 44594 | No. 4 brake actuator bracket | 44594-BZ010 |
| 47131E | No. 2 brake actuator bracket buffer pad | 44547-B2050 |
| 47311 | No. 1 front brake pipe | 47311-BZ870 · 47311-BZ880 · 47311-BZA20 |
| 47312 | No. 2 front brake pipe | 47312-BZ770 · 47312-BZ850 · 47312-BZ860 |
| 47313 | No. 3 front brake pipe | 47313-BZ850 · 47313-BZ860 · 47313-BZ890 |
| 47313A | No. 1 front flexible hose | 9004A-94114 |
| 47313J | No. 2 front flexible hose | 9004A-94114 |
| 47314 | No. 4 front brake pipe | 47314-BZ730 · 47314-BZ790 · 47314-BZ800 |
| 47318F | Right rear flexible hose | 47330-BZ030 |
| 47319F | Left rear flexible hose | 47340-BZ030 |
| 47322 | No. 2 rear brake pipe | 47322-BZ490 · 47322-BZ580 · 47322-BZ590 · 47322-BZ640 |
| 47324 | No. 4 rear brake pipe | 47324-BZ630 · 47324-BZ640 · 47324-BZ690 · 47324-BZ700 |
| 47371A | No. 1 brake pipe clamp | 47371-B2080 |
| 47371B | No. 6 brake pipe clamp | 47371-BZ230 |
| 47371C | No. 7 brake pipe clamp | 47372-BZ090 |
| 47371D | No. 8 brake pipe clamp | 47371-BZ280 |
| 47371G | No. 11 brake pipe clamp | 90044-65441 |
| 47371H | No. 12 brake pipe clamp | 90044-65441 |
| 47372 | No. 2 brake pipe clamp | 47372-B2040 |
| 47373B | No. 3 brake pipe clamp | 90044-64918 |
| 47374B | No. 4 brake pipe clamp | 90044-64891 |
| 47375 | No. 5 brake pipe clamp | 90949-01D41 |
