Toyota YARIS 后盘式制动器卡钳和防尘罩 — Figure 4707

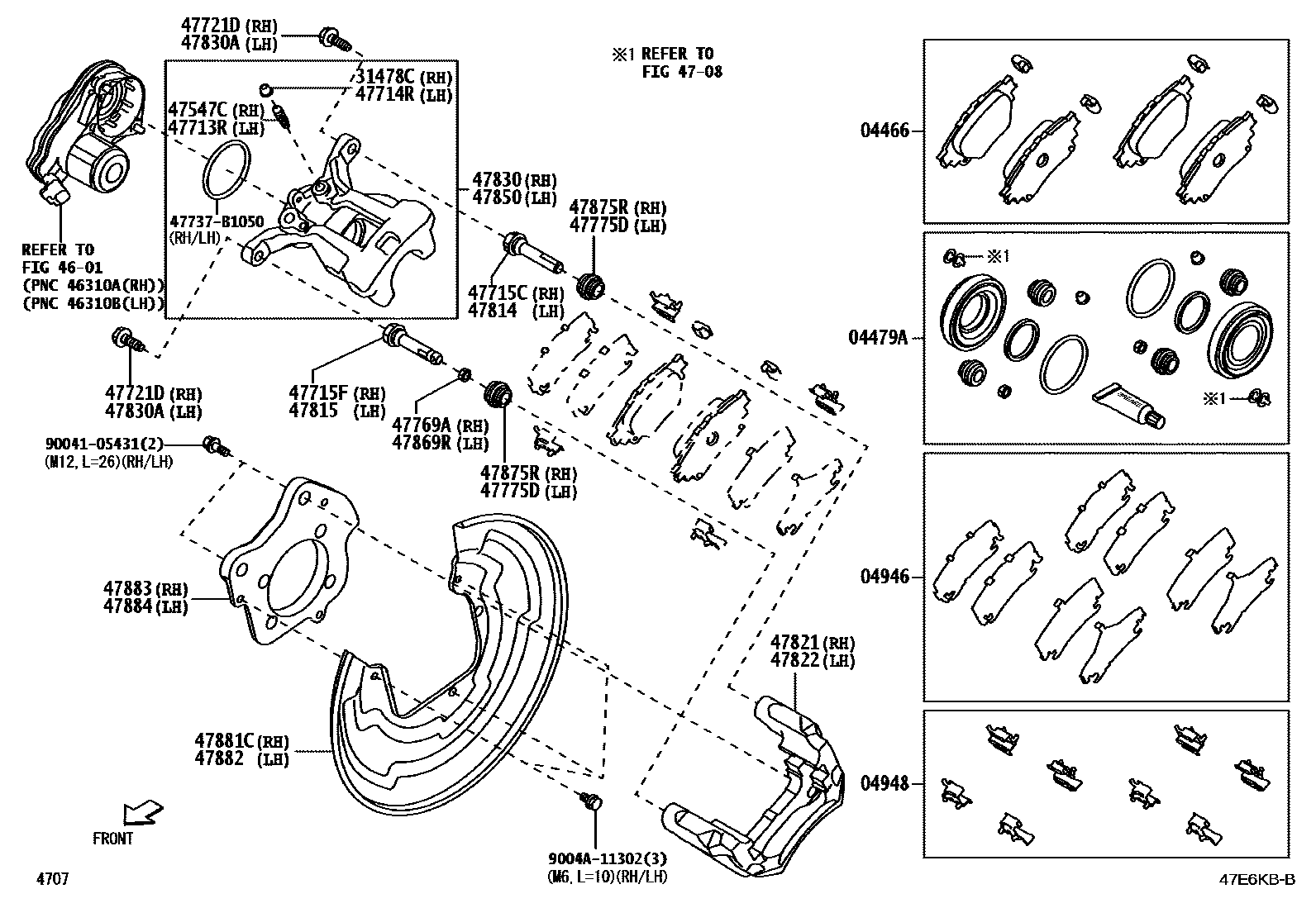

Toyota YARIS EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-B1011 |
| 04479A | Rear disc brake cylinder assembly | 04479-B1010 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-B1010 |
| 04948 | Rear disc brake mounting assembly | 04948-B1010 |
| 31478C | Bleed plug cap (for rear disc brake) | 47548-87501 |
| 47547C | Bleed plug (for rear disc brake) | 47547-87204 |
| 47713R | Bleed plug (for rear disc brake) | 47547-87204 |
| 47714R | Bleed plug cap (for rear disc brake) | 47548-87501 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47814-B1010 |
| 47715F | No. 2 brake cylinder sliding pin (for rear disc brake) | 47815-B1010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 47815-B1020 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47879-B1010 |
| 47775D | Bushing boot (for rear disc brake) | 47875-B1010 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-B1010 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-B1010 |
| 47821 | Right rear disc brake cylinder retainer | 47821-B1010 |
| 47822 | Left rear disc brake cylinder retainer | 47822-B1010 |
| 47830 | Right rear disc brake cylinder assembly | 47830-B1010 |
| 47830A | Bolt (for rear disc brake) | 47815-B1020 |
| 47850 | Left rear disc brake cylinder assembly | 47850-B1010 |
| 47869R | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47879-B1010 |
| 47875R | Bushing boot (for rear disc brake) | 47875-B1010 |
| 47881C | Right rear disc brake dust cover | 47881-BZ010 |
| 47882 | Left rear disc brake dust cover | 47882-BZ010 |
| 47883 | Right rear brake caliper bracket | 47883-BZ030 |
| 47884 | Left rear brake caliper bracket | 47884-BZ030 |
