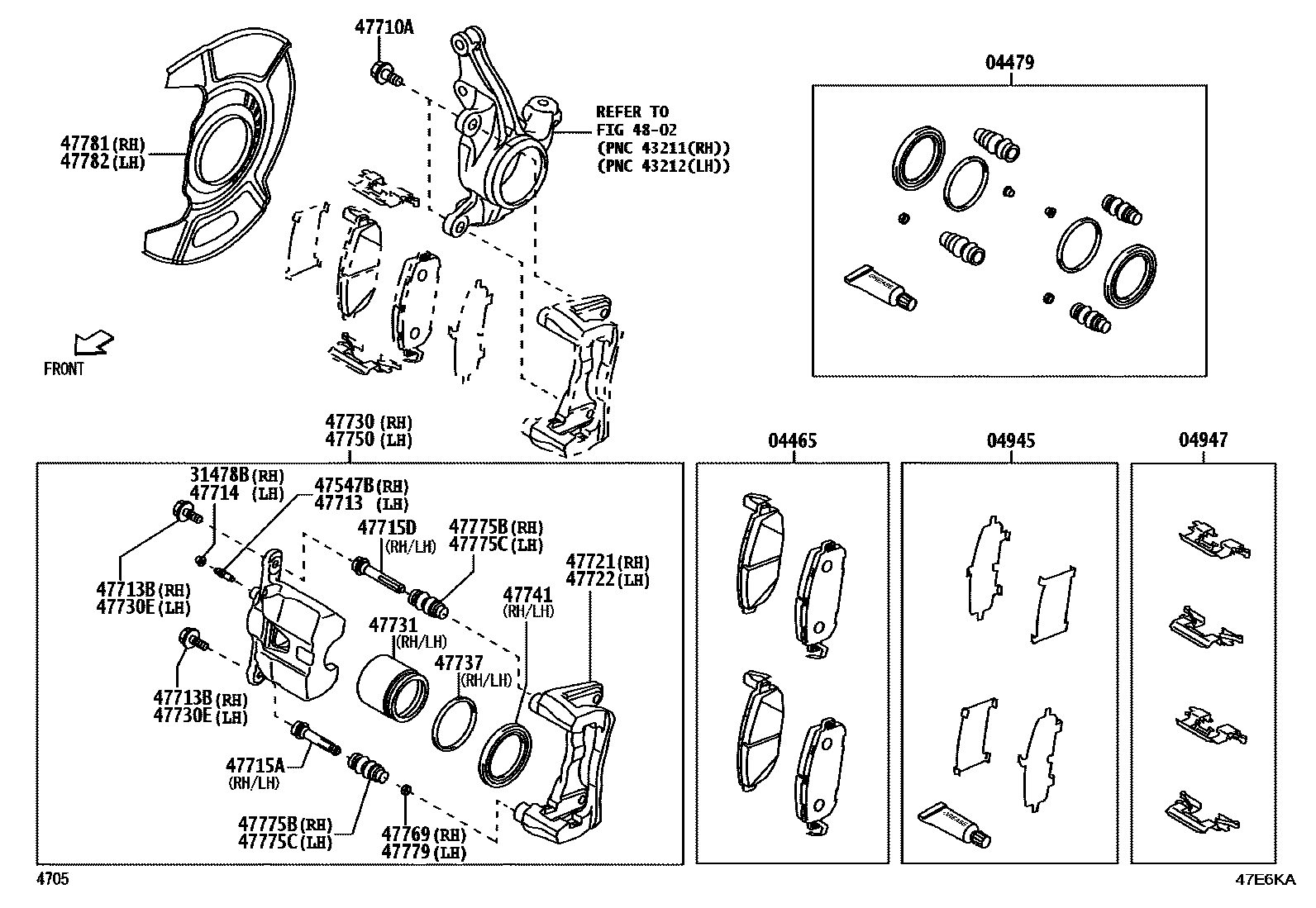

Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-BZ320 |
| 04479 | Front disc brake cylinder assembly | 04478-BZ200 |
| 04945 | Front silencer gasket assembly | 04945-BZ120 |
| 04947 | Front disc brake mounting kit | 04947-BZ110 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D070 |
| 47547B | Bleed plug (for front disc brake) | 47547-BZ160 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47713 | Bleed plug (for front disc brake) | 47547-BZ160 |
| 47713B | Bolt (for front disc brake cylinder) | 47715-BZ230 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-0D070 |
| 47715A | Front disc brake cylinder sliding pin | 47714-BZ060 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-BZ220 |
| 47721 | Right front disc brake cylinder retainer | 47721-BZ180 |
| 47722 | Left front disc brake cylinder retainer | 47721-BZ190 |
| 47730 | Right front disc brake cylinder assembly | 47730-BZ180 |
| 47730E | Bolt (for front disc brake cylinder) | 47715-BZ230 |
| 47731 | Front disc brake piston | 47731-BZ150 |
| 47737 | Front disc brake cylinder piston seal | 47737-BZ110 |
| 47741 | Front disc brake cylinder dust boot | 47741-BZ120 |
| 47750 | Left disc brake cylinder assembly | 47750-BZ190 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-BZ090 |
| 47775B | No. 1 Bushing Dust Boot | 47775-BZ120 |
| 47775C | No. 2 Bushing Dust Boot | 47775-BZ120 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47769-BZ090 |
| 47781 | Right front disc brake dust cover | 47781-BZ190 |
| 47782 | Left front disc brake dust cover | 47782-BZ190 |
