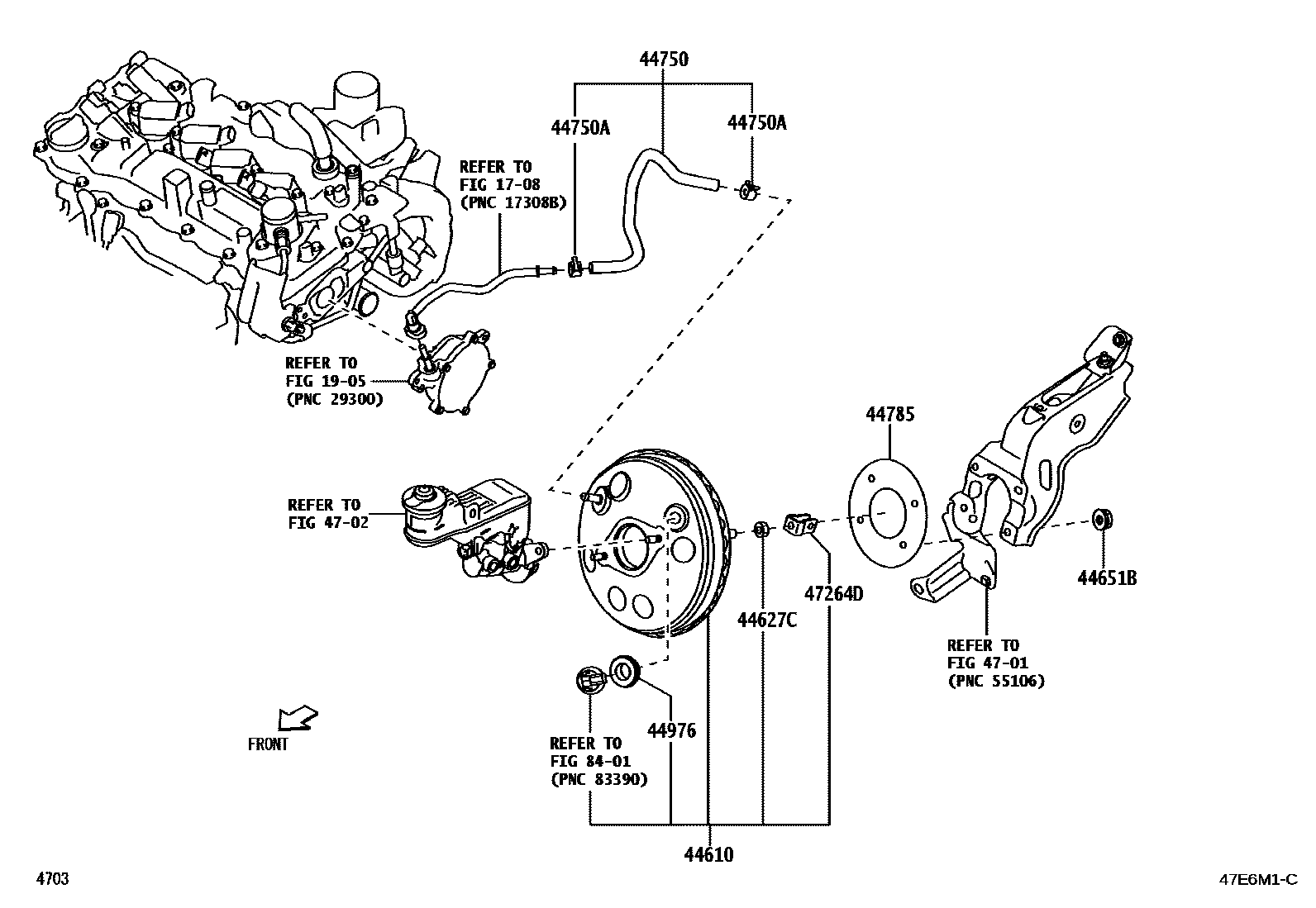

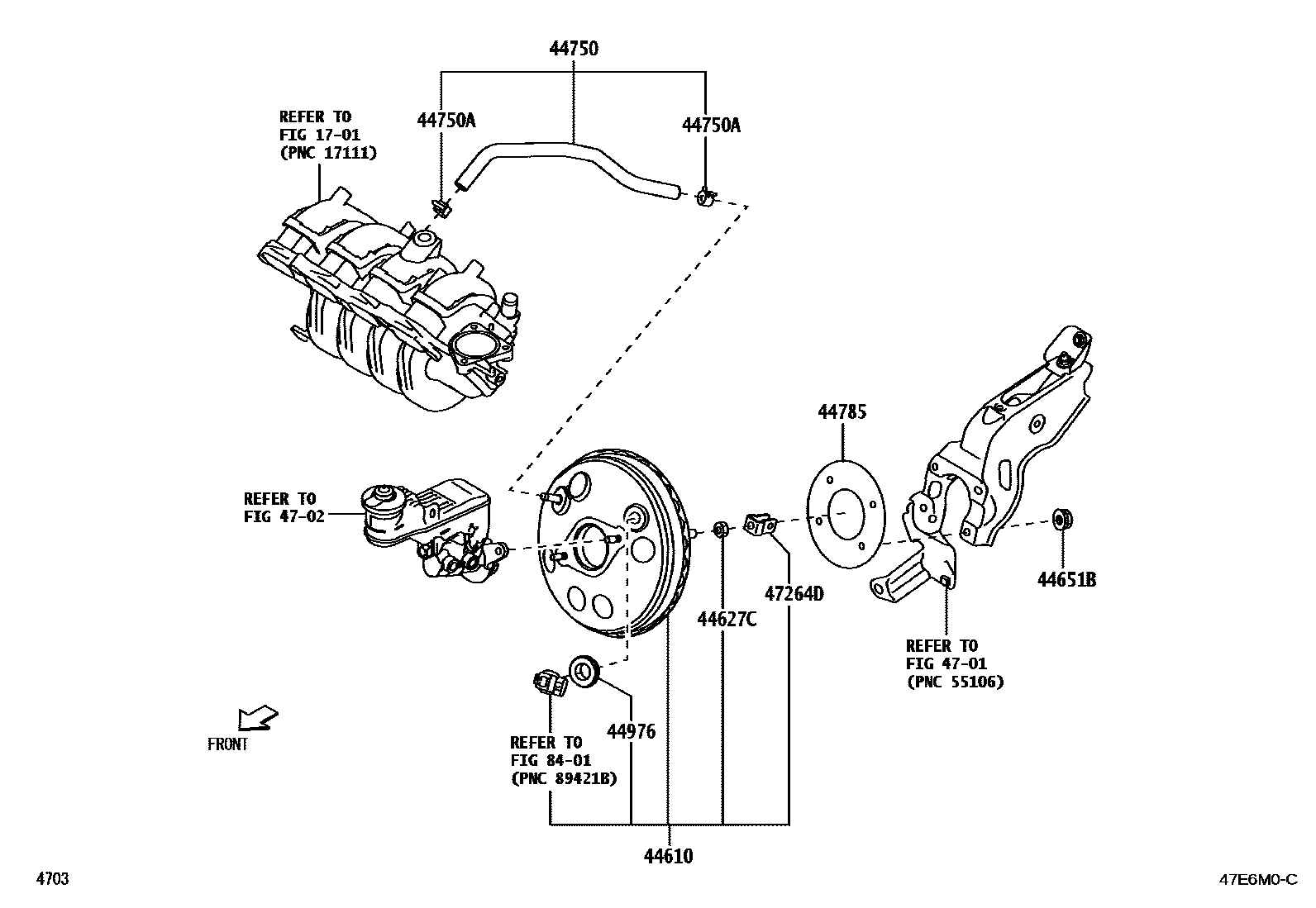

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-BZC00 · 44610-BZC20 |
| 44627C | Booster slave cylinder nut | 94130-01002 |
| 44651B | booster nut | 90041-79300 |
| 44750 | Vacuum hose assembly | 44750-BZ460 · 44750-BZ630 |
| 44750A | Clamp (for vacuum hose assembly) | 90044-67161 |
| 44785 | brake booster pad | 44785-28020 |
| 44976 | booster seal | 44685-BZ040 · 44685-BZ050 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-BZ140 |
