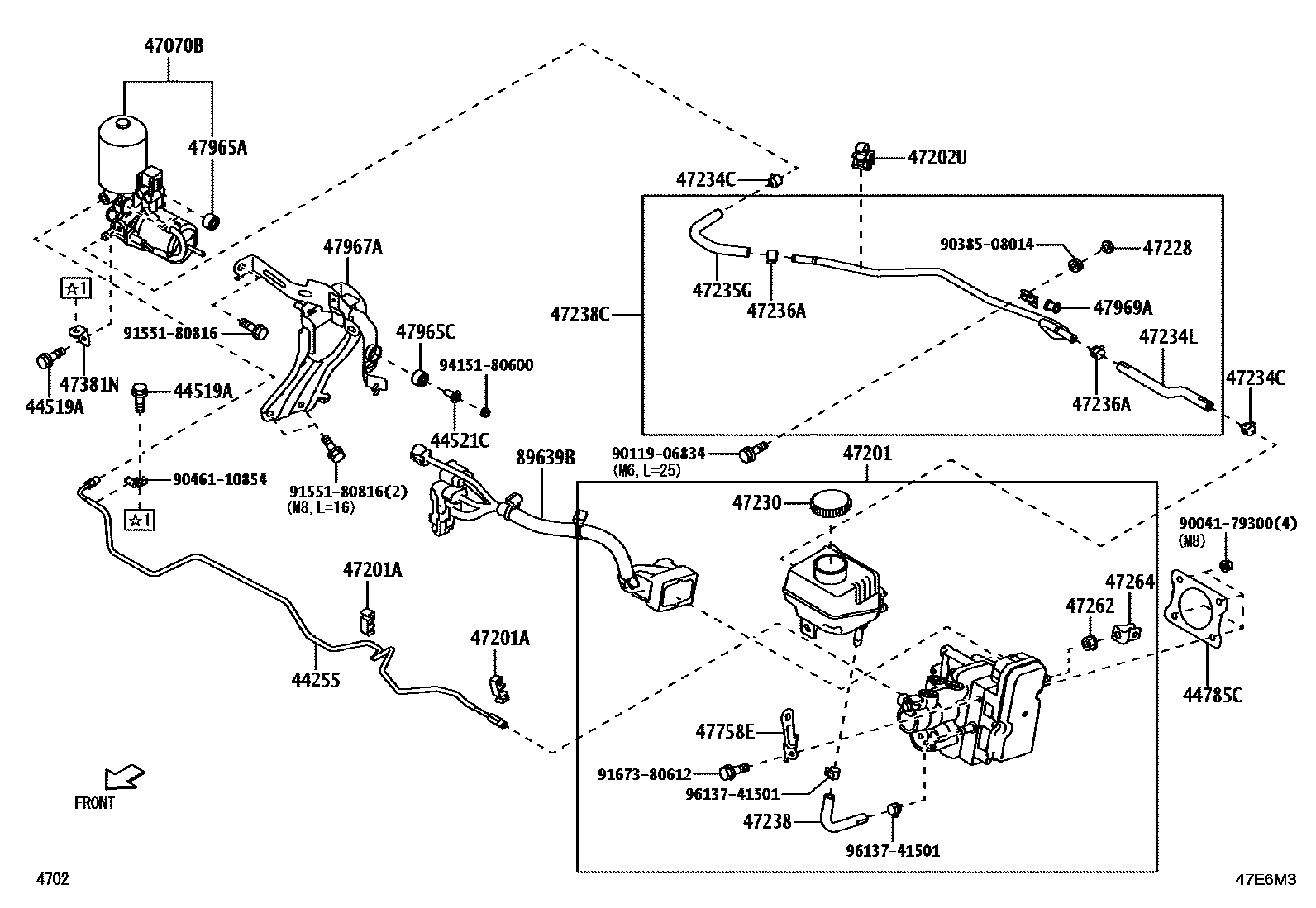

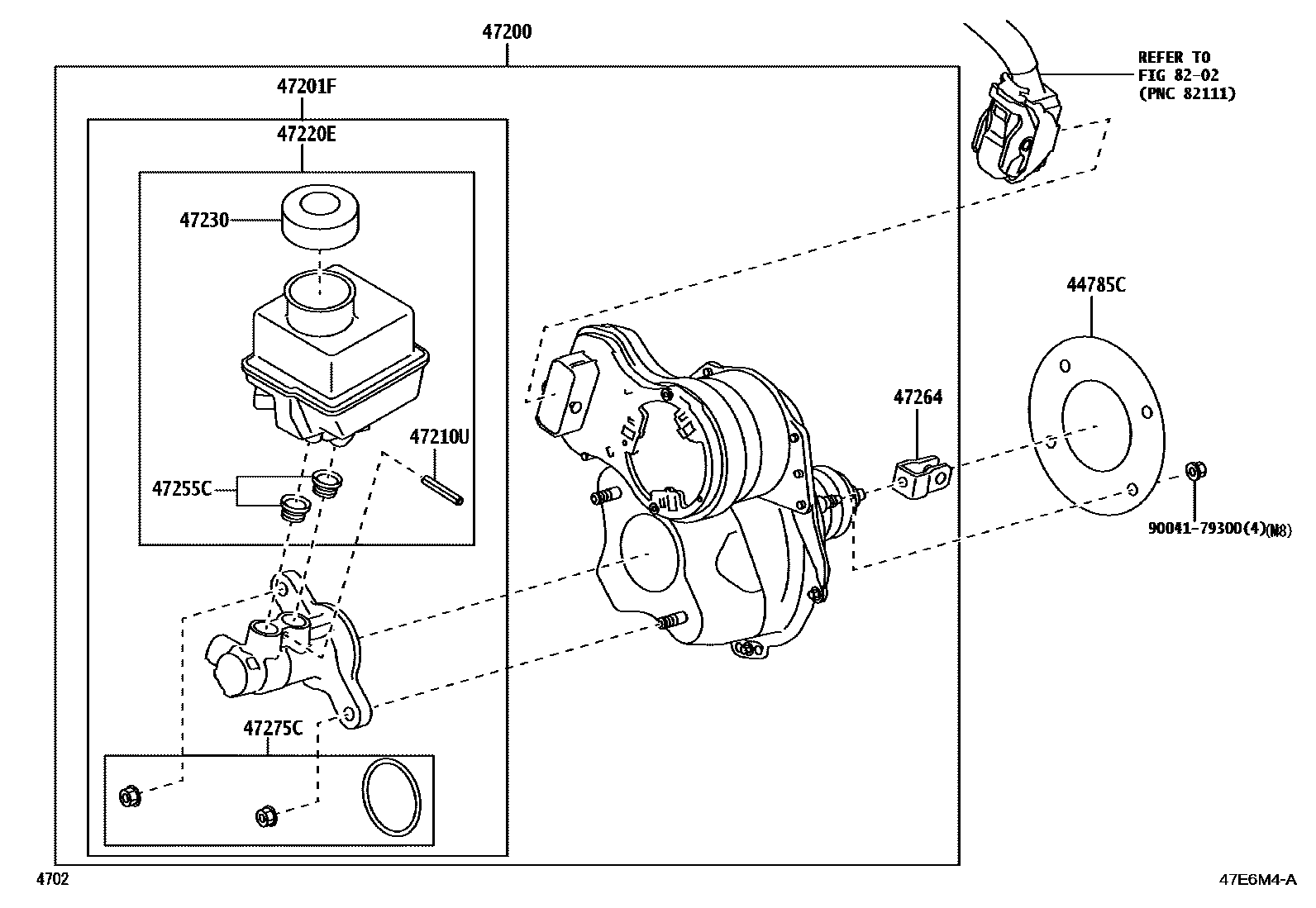

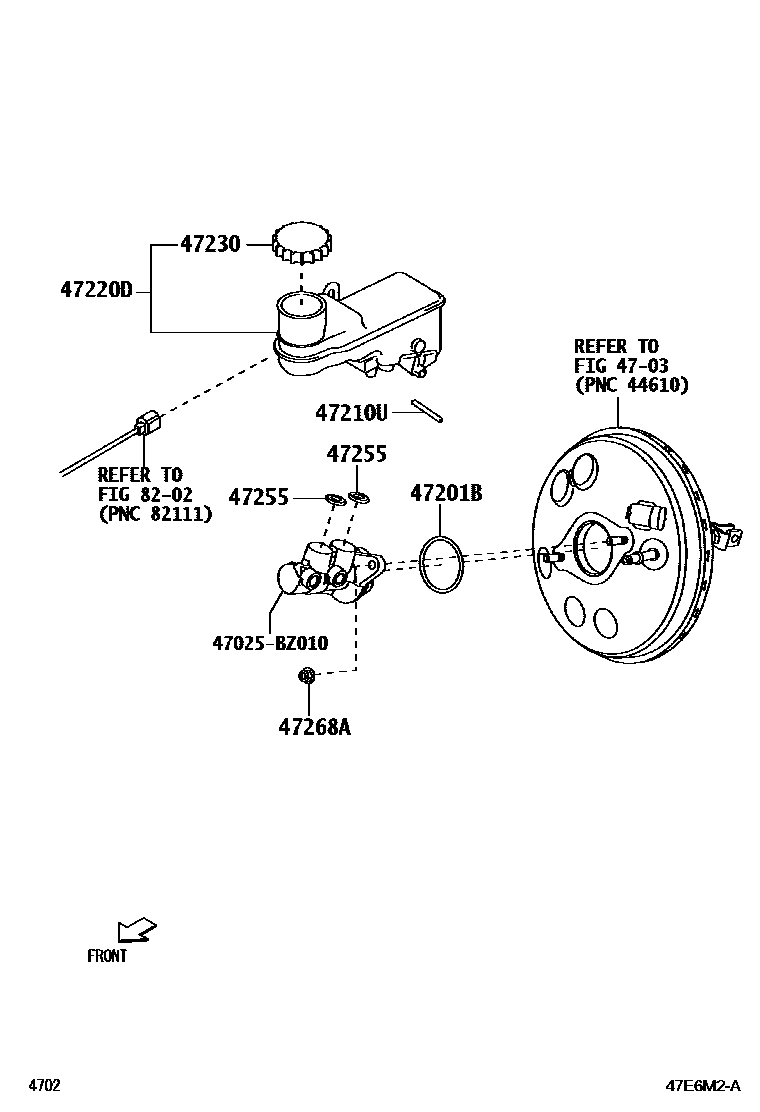

Toyota YARIS 制动总泵 — Figure 4702
Toyota YARIS EPC diagram 4702, 制动总泵, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44255 | brake master cylinder pipe | 473A1-BZ020 |
| 44519A | Bolt (for brake booster pump) | 91671-80614 |
| 44521C | brake actuator housing collar | 44521-47010 |
| 44785C | brake booster pad | 44785-12040 · 44785-28020 |
| 47070B | Brake booster pump assembly with pressure accumulator | 47070-B1020 |
| 47200 | brake master cylinder assembly | 47210-BZ020 |
| 47201 | Brake master cylinder sub-assembly | 47050-B1210 |
| 47201A | Clamp (for brake master cylinder) | 47371-BZ200 |
| 47201B | O-ring (for brake master cylinder) | 44618-BZ040 |
| 47201F | SOUS-ENS. CYLINDRE, MAITRE FREIN, JEU | 47201-B9000 |
| 47202U | Clamp (for master cylinder reservoir assembly) | 77286-B1010 |
| 47210U | Direct sales (for brake master cylinder) | 44992-BZ010 · 90069-35007 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-BZ470 |
| 47220E | ENS. RESERVOIR, MAITRE CYLINDRE, JEU | 47220-B9000 |
| 47228 | Reservoir tank cap septum | 90561-06016 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 · 47230-BZ190 · 47230-F4010 |
| 47234C | Clamp (for No. 1 tube of liquid storage tank) | 96137-41501 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-BZ060 |
| 47235G | Reservoir tank No. 2 hose | 47235-BZ030 |
| 47236A | Clamp (for reservoir tube) | 96137-41501 |
| 47238 | Master pump bridge hose | 47238-B1080 |
| 47238C | Reservoir tube | 47230-BZ240 |
| 47255 | Master pump reservoir seal | 47255-BZ150 |
| 47255C | JEU OEILLET, RESERVOIR | 47255-09040 |
| 47262 | master cylinder push rod nut | 90179-10065 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-BZ110 · 47264-K0010 |
| 47268A | brake master cylinder nut | 47268-BZ020 |
| 47275C | JEU REVISION, MAITRE CYLINDRE | 47275-09010 |
| 47381N | Pipe clamp bracket | 47381-BZ230 |
| 47758E | No. 1 Cable Clamp Bracket | 47758-B1060 |
| 47965A | brake booster pump bushing | 47965-30010 |
| 47965C | No. 2 brake booster pump bushing | 47965-30010 |
| 47967A | No. 1 brake booster pump bracket | 47967-BZ020 |
| 47969A | brake booster tube cushion | 47969-BZ010 |
| 89639B | Brake control wiring harness | 89639-BZ060 |
