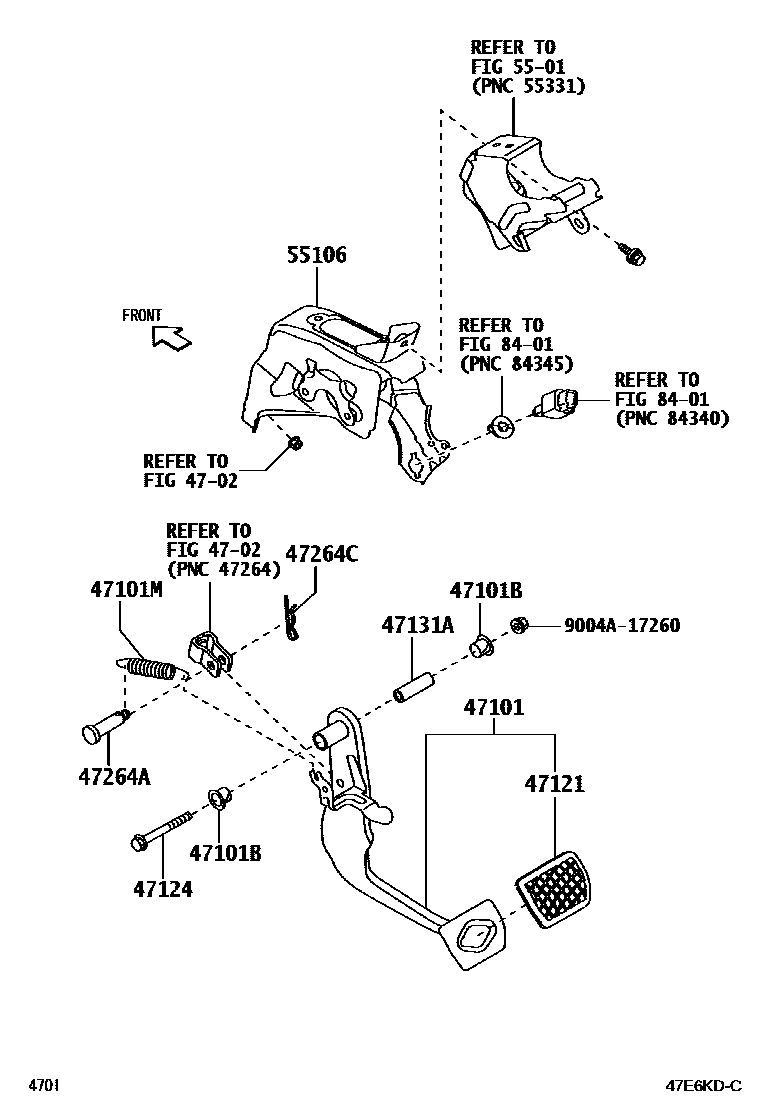

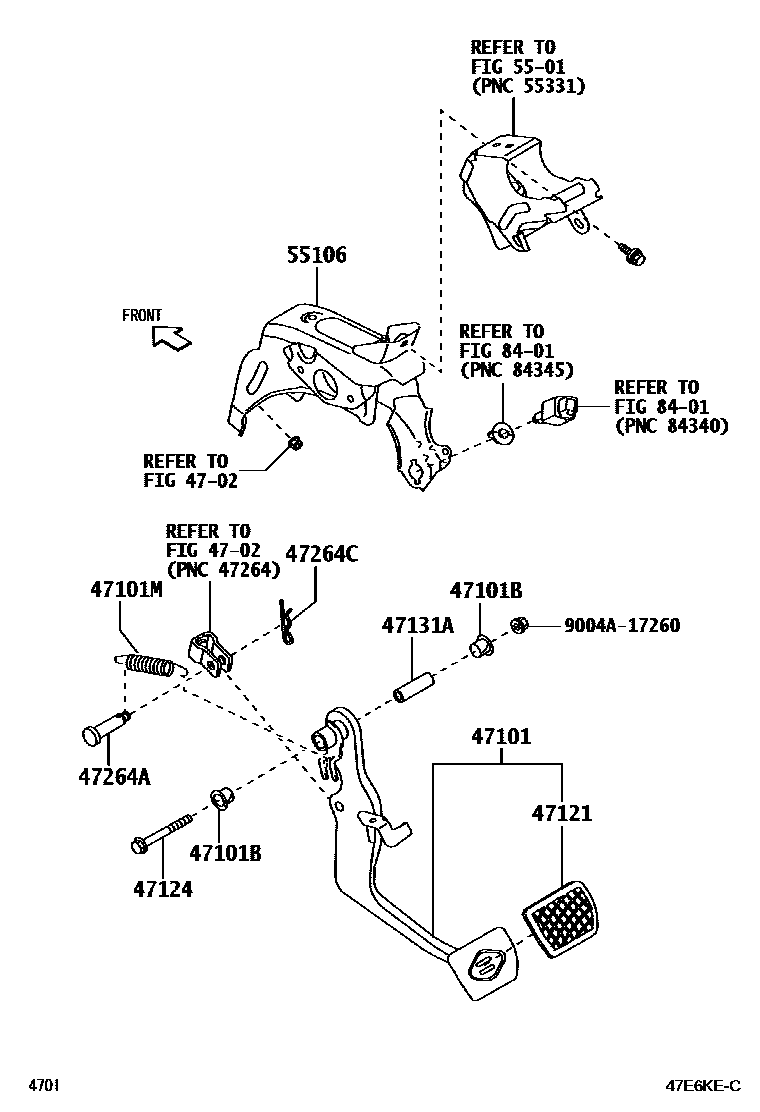

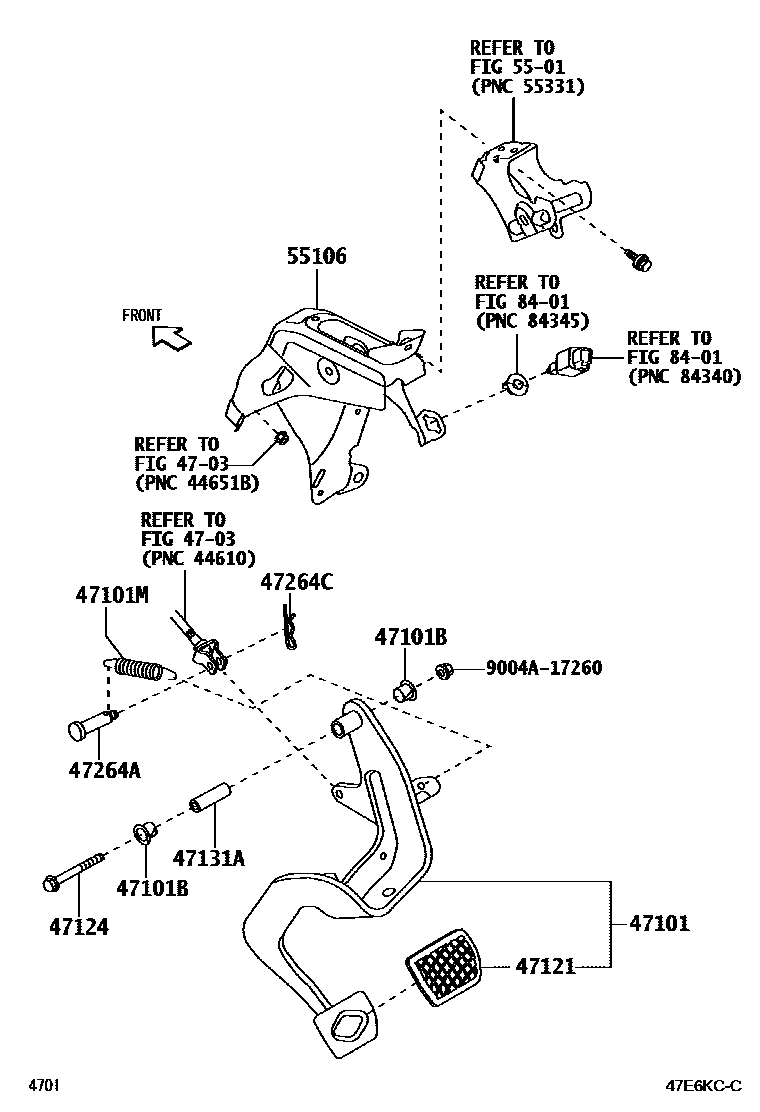

Toyota YARIS Brake Pedal & Bracket — Figure 4701
Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47110-BZ740 · 47110-BZ800 · 47110-BZ810 |
| 47101B | Bushing (for brake pedal) | 9004A-38094 |
| 47101M | Tension spring | 90506-14088 · 90506-T0015 |
| 47121 | brake pedal pad | 47121-BZ070 |
| 47124 | brake pedal shaft | 9004A-10281 |
| 47131A | Cushion pad (for brake pedal stop) | 9004A-56112 |
| 47264A | Pin (for push rod) | 90249-08051 |
| 47264C | Clip (for push rod clevis pin) | 90468-16142 |
| 55106 | Brake pedal bracket sub-assembly | 55106-BZ470 · 55106-BZ500 · 55106-BZ510 |
