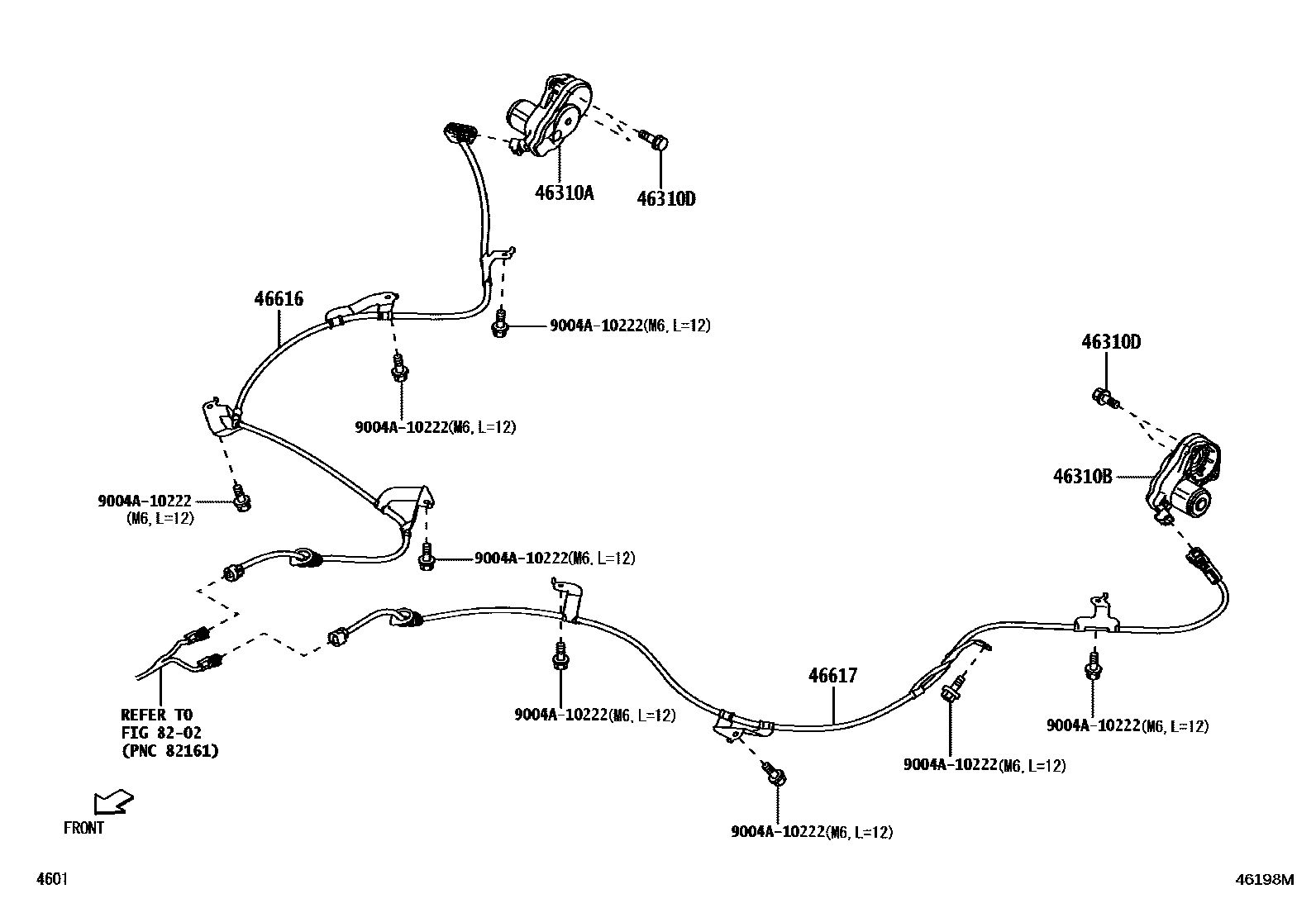

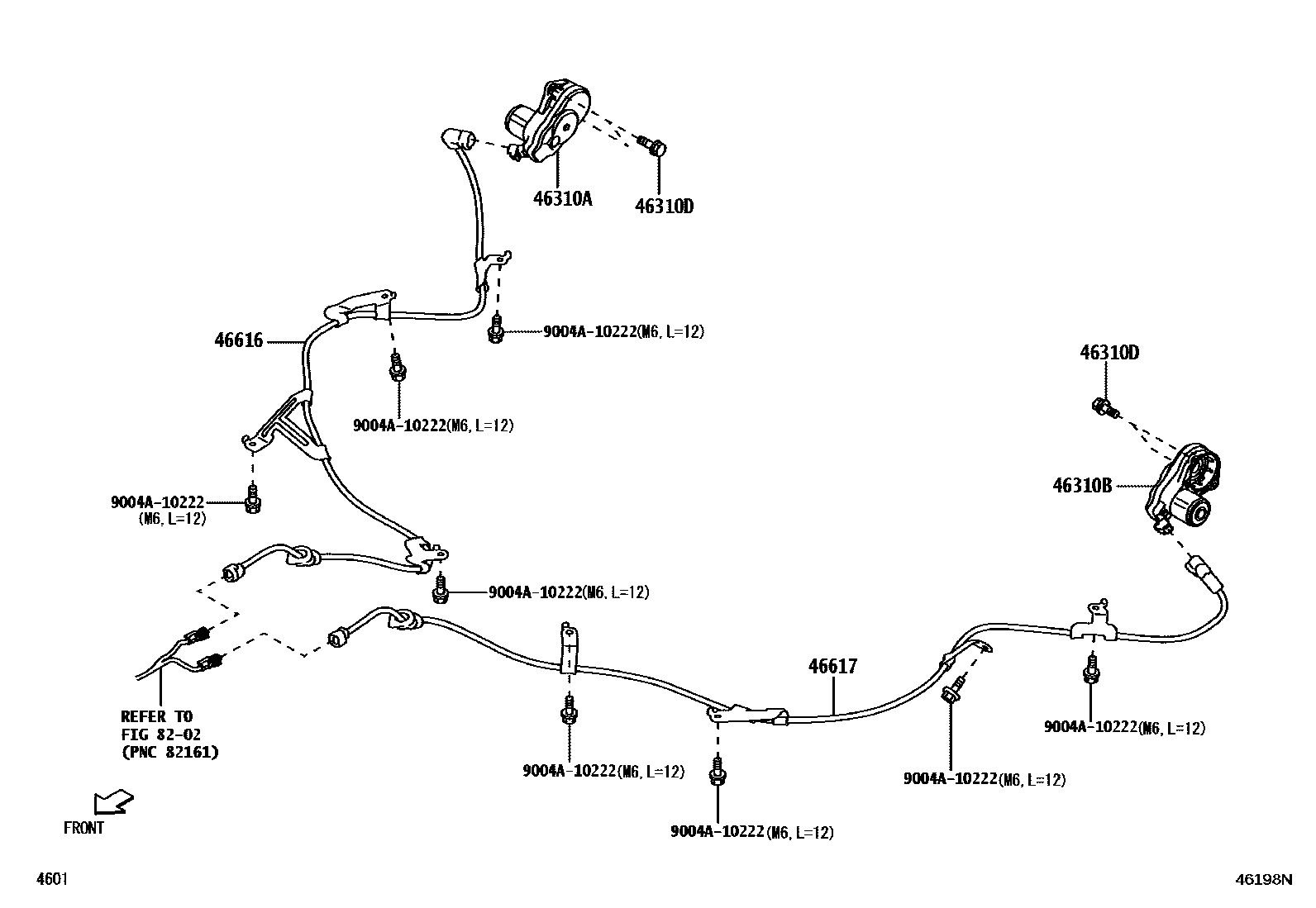

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46310A | Right parking brake actuator assembly | 46310-B1030 |
| 46310B | Left parking brake actuator assembly | 46310-B1030 |
| 46310D | Bolt (for parking brake actuator) | 46791-B1010 |
| 46616 | Right parking brake cable | 890C0-BZ050 · 890C0-BZ070 |
| 46617 | left parking brake cable | 890C0-BZ060 · 890C0-BZ080 |
