Toyota YARIS 前转向齿轮和连杆 — Figure 4505

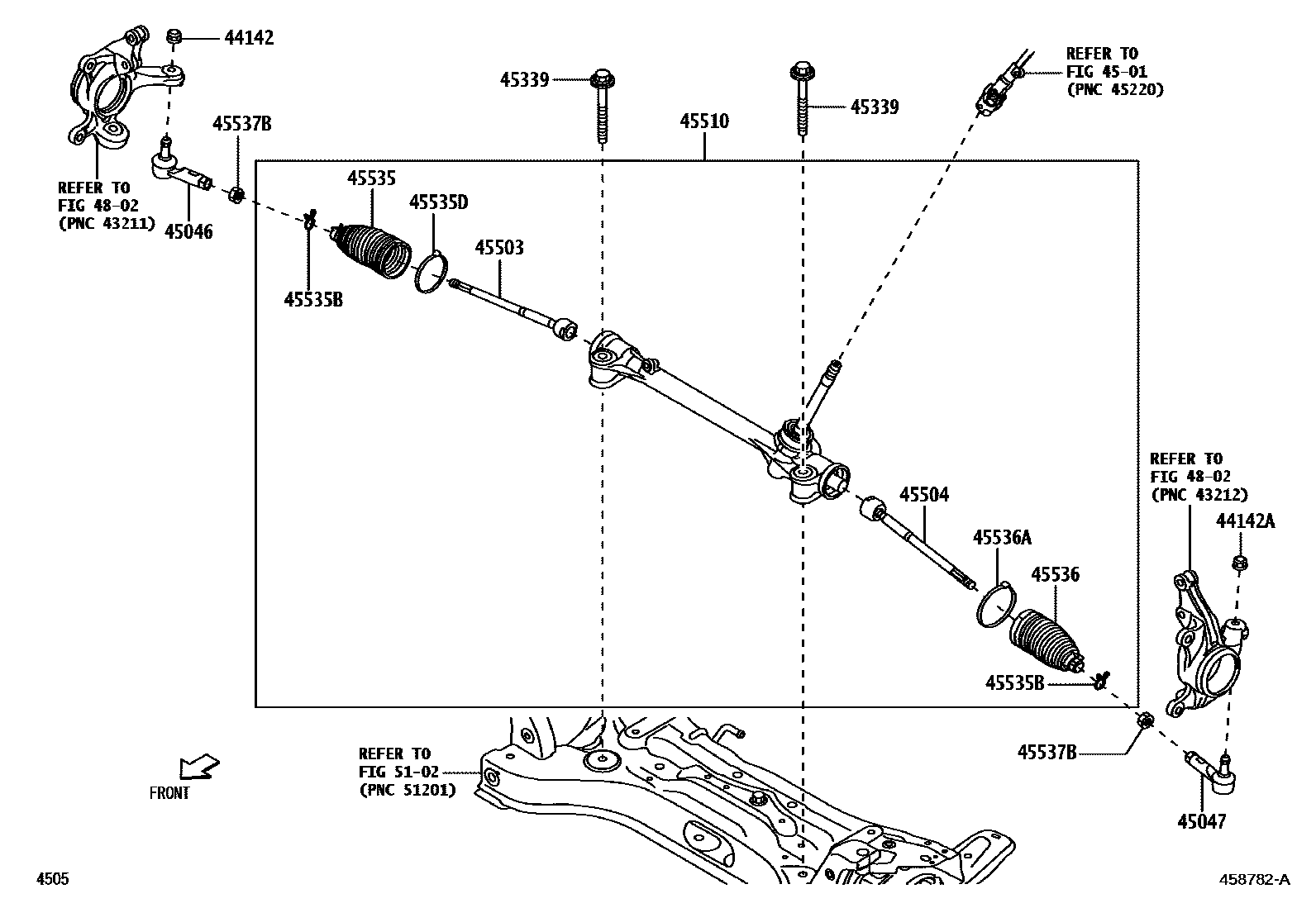

Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44142 | lock nut | 90041-77011 |
| 44142A | No. 1 lock nut | 90041-77011 |
| 45046 | Right tie rod end sub-assembly | 45046-BZ360 |
| 45047 | Left tie rod end sub-assembly | 45046-BZ360 |
| 45339 | Steering case bolts | 9004A-11390 |
| 45503 | Steering rack end sub-assembly | 45503-BZ260 |
| 45504 | No. 2 steering rack end sub-assembly | 45503-BZ260 |
| 45510 | Steering gear assembly | 45510-BZ750 |
| 45535 | No. 1 steering rack dust cover | 45535-BZ200 |
| 45535B | Clamp (for steering rack dust boot) | 45537-BZ050 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-BZ080 |
| 45536 | No. 2 steering rack dust cover | 45535-BZ200 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-BZ080 |
| 45537B | Rack end lock nut | 90170-14012 |
