Toyota YARIS Front Axle Hub — Figure 4303

Toyota YARIS EPC diagram 4303, Front Axle Hub, with 1 images and 12 PNC and OE references.

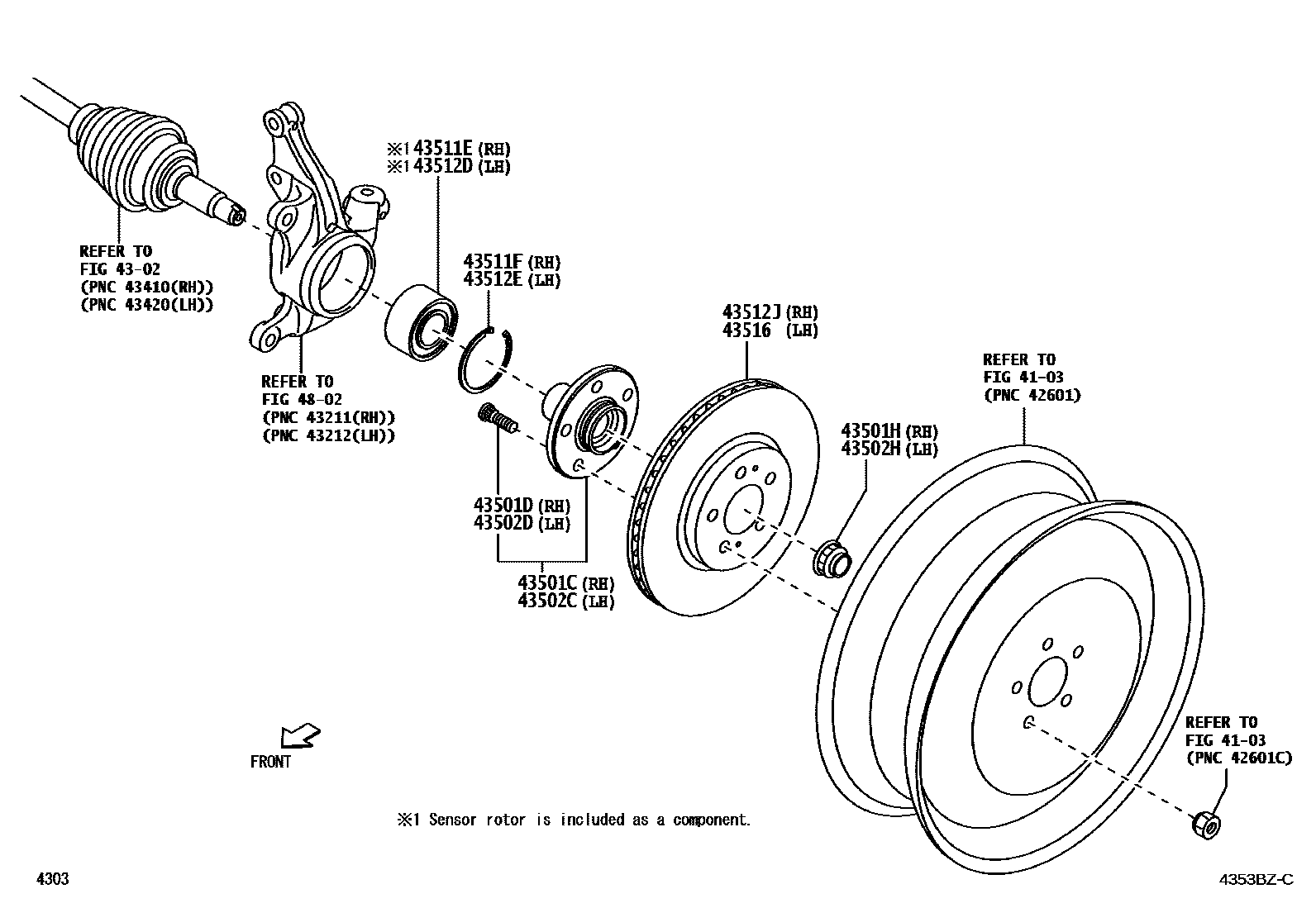

Toyota YARIS Front Axle Hub EPC diagram — 4353BZC
Front Axle Hub — 4353BZC (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
43501CRight front axle hub sub-assembly43502-BZ210
43501DHub bolt (for right front axle)90049-12056
43501HNut (for front axle right half shaft)90177-22001 · 90177-T0017
43502CLeft front axle wheel hub sub-assembly43502-BZ210
43502DHub bolt (for left front axle)90049-12056
43502HNut (for front axle left half shaft)90177-22001 · 90177-T0017
43511EBearing (for right front axle hub)43560-BZ030
43511FHole snap ring (for right front axle hub)90045-21188
43512DBearing (for left front axle hub)43560-BZ030
43512EHole snap ring (for left front axle hub)90045-21188
43512JRight front brake disc43512-BZ570
43516Left front brake disc43512-BZ570
