Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 3 images and 16 PNC and OE references.

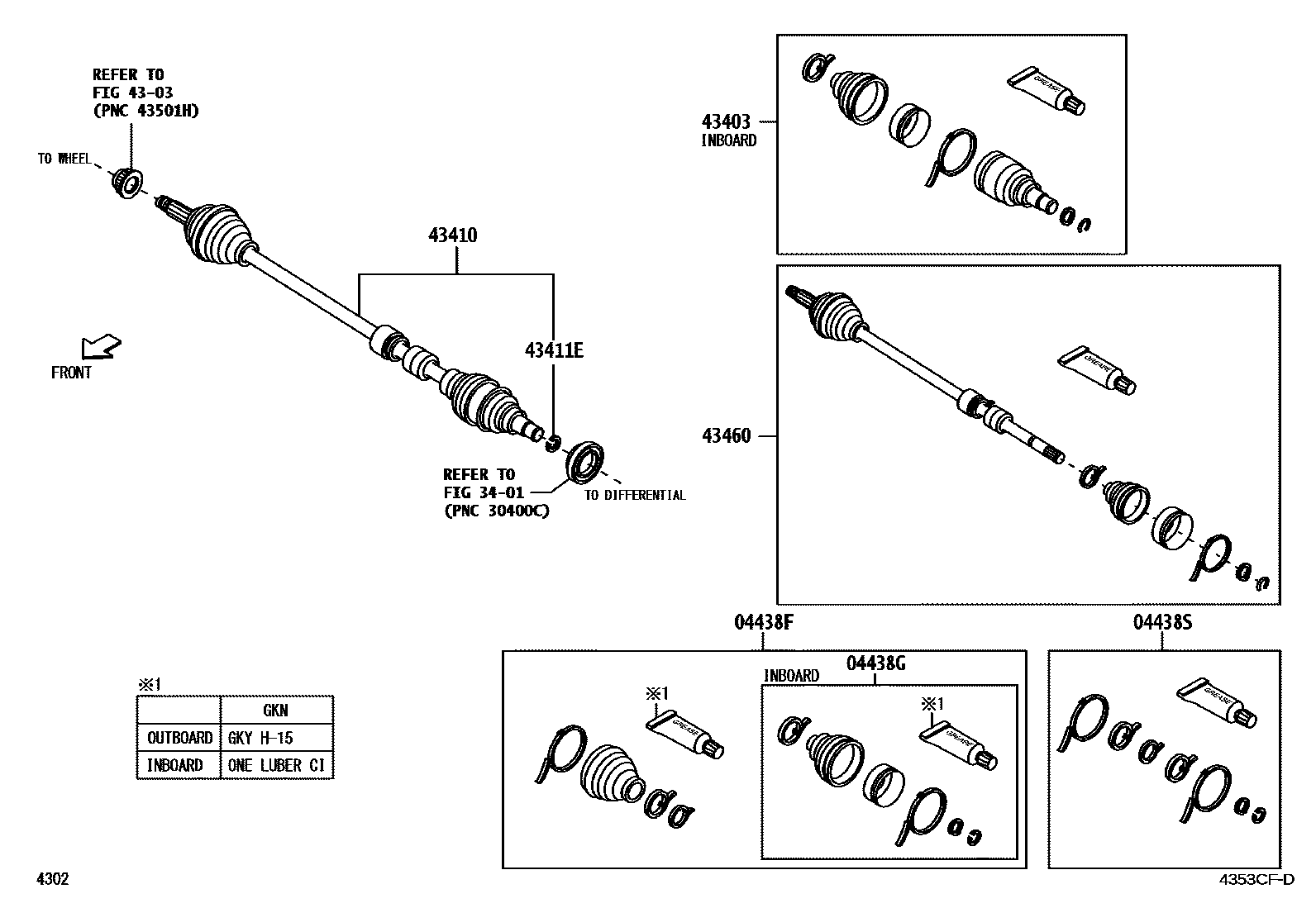

Toyota YARIS Front Drive Shaft EPC diagram — 4353CFD
Front Drive Shaft — 4353CFD (202510 – 999999)

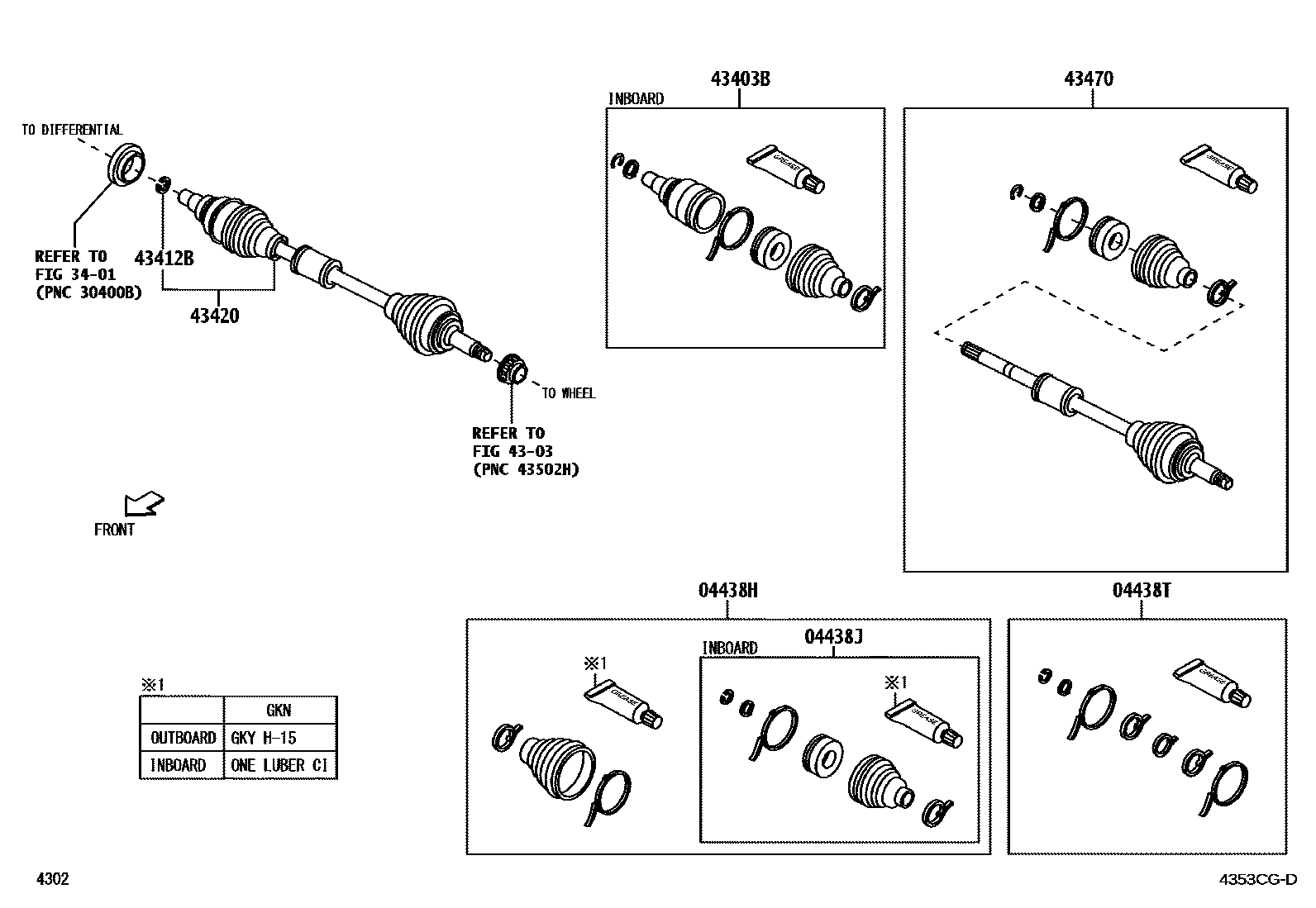

Toyota YARIS Front Drive Shaft EPC diagram — 4353CGD
Front Drive Shaft — 4353CGD (202510 – 999999)

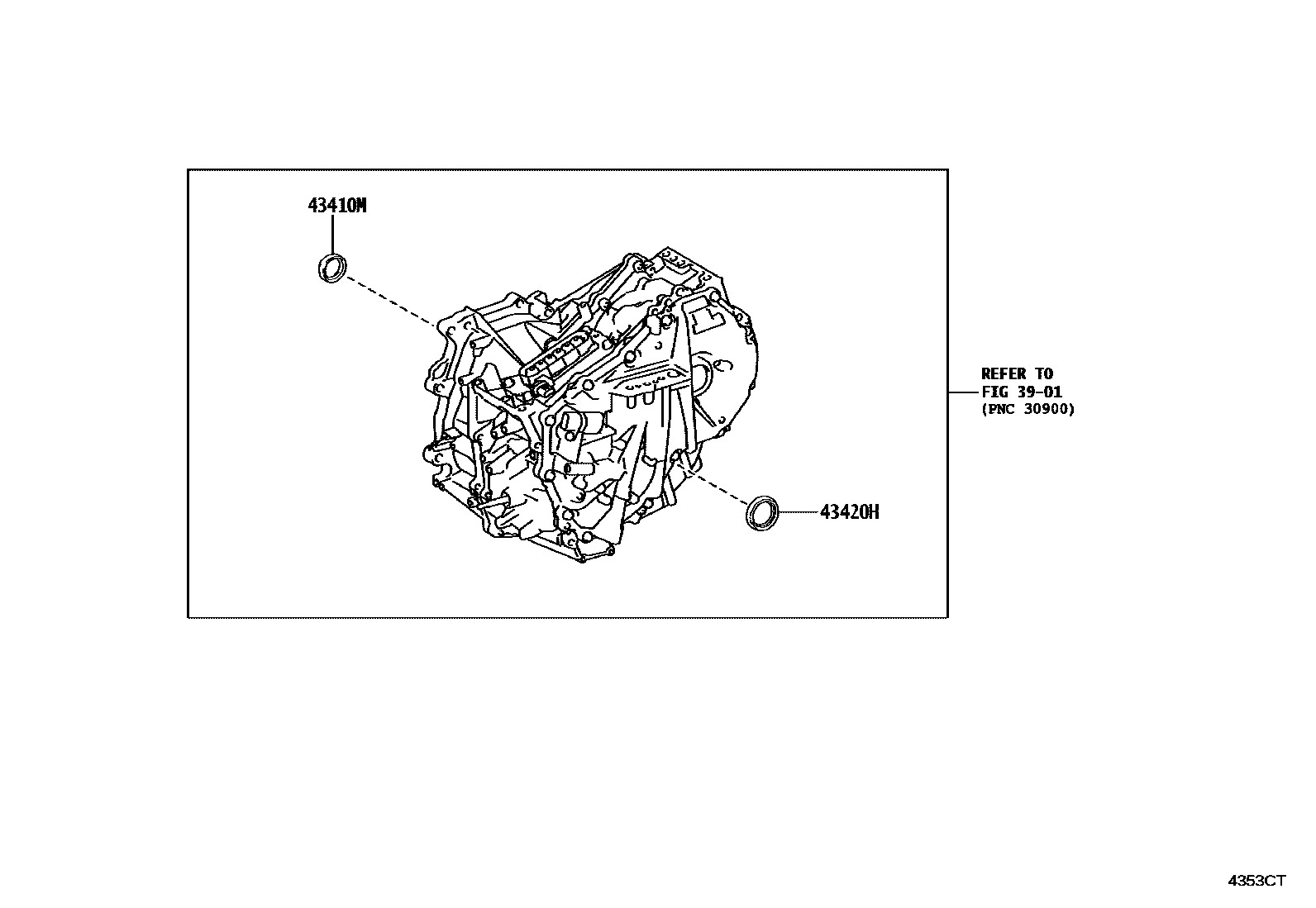

Toyota YARIS Front Drive Shaft EPC diagram — 4353CT
Front Drive Shaft — 4353CT (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04425-B2301 · 04425-B2305
04438GRight front drive shaft inner universal joint dust boot assembly04437-B2351 · 04437-B2355
04438HLeft front driveshaft inboard and outboard dust boot assembly04426-B2381 · 04426-B2385
04438JLeft front drive shaft inner universal joint dust boot assembly04437-B2351 · 04437-B2355
04438SRight front drive shaft clamp assembly04435-B2371 · 04435-B2375
04438TLeft front drive shaft clamp assembly04436-B2361 · 04436-B2365
43403Right front axle inner universal joint assembly43408-B9831 · 43408-B9835
43403BLeft front axle inner universal joint assembly43408-B9831 · 43408-B9835
43410Right front driveshaft assembly43410-BZ370 · 43410-BZ400
43410MFront drive shaft right oil seal90311-35083
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-BZ300 · 43425-BZ320
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-BZ300 · 43425-BZ320
43420Left front drive shaft assembly43420-BZ380 · 43420-BZ470
43420HFront drive shaft left oil seal90311-35082
43460Right front outer drive universal joint shaft assembly43411-B9841 · 43411-B9845
43470Left front outer drive universal joint shaft assembly43412-B9651 · 43412-B9655
