Toyota YARIS 车轮和车轮盖 — Figure 4103

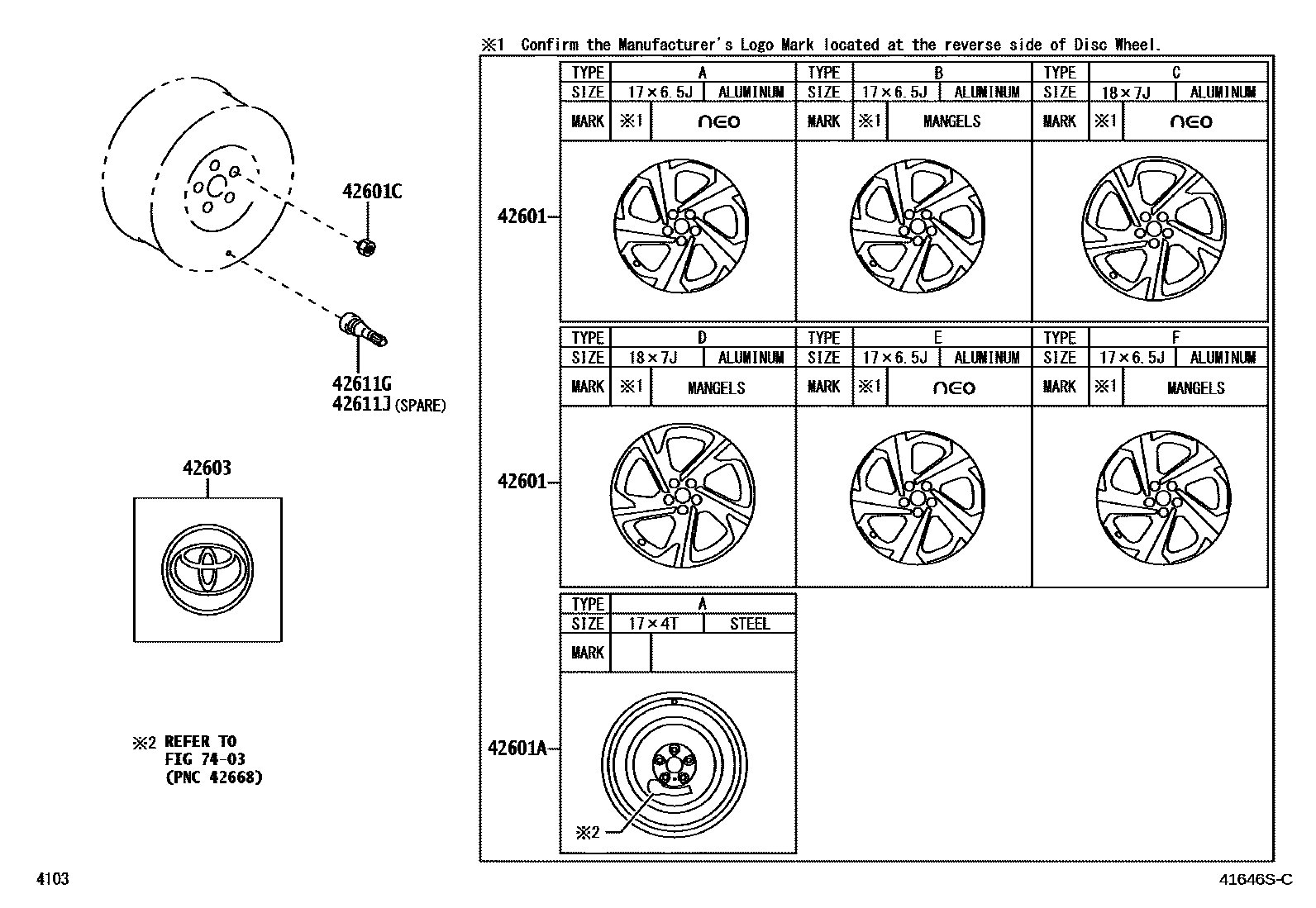

Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-BZM10 · 42611-BZM20 · 42611-BZM30 · 42611-BZM40 · 42611-BZM50 · 42611-BZQ10 |
| 42601A | Spoke wheel (for spare tire) | 42611-BZM60 |
| 42601C | Hub nut (for axle) | 9004A-94124 |
| 42603 | Wheel hub decorative parts sub-assembly | 42638-BZ800 |
| 42611G | Valve (for tubeless tires) | 90942-C5004 |
| 42611J | Valve (for tubeless spare tire) | 90942-C5004 |
