Toyota YARIS 变速器油冷却器和配管(CVT) — Figure 3414

Toyota YARIS EPC diagram 3414, 变速器油冷却器和配管(CVT), with 1 images and 3 PNC and OE references.

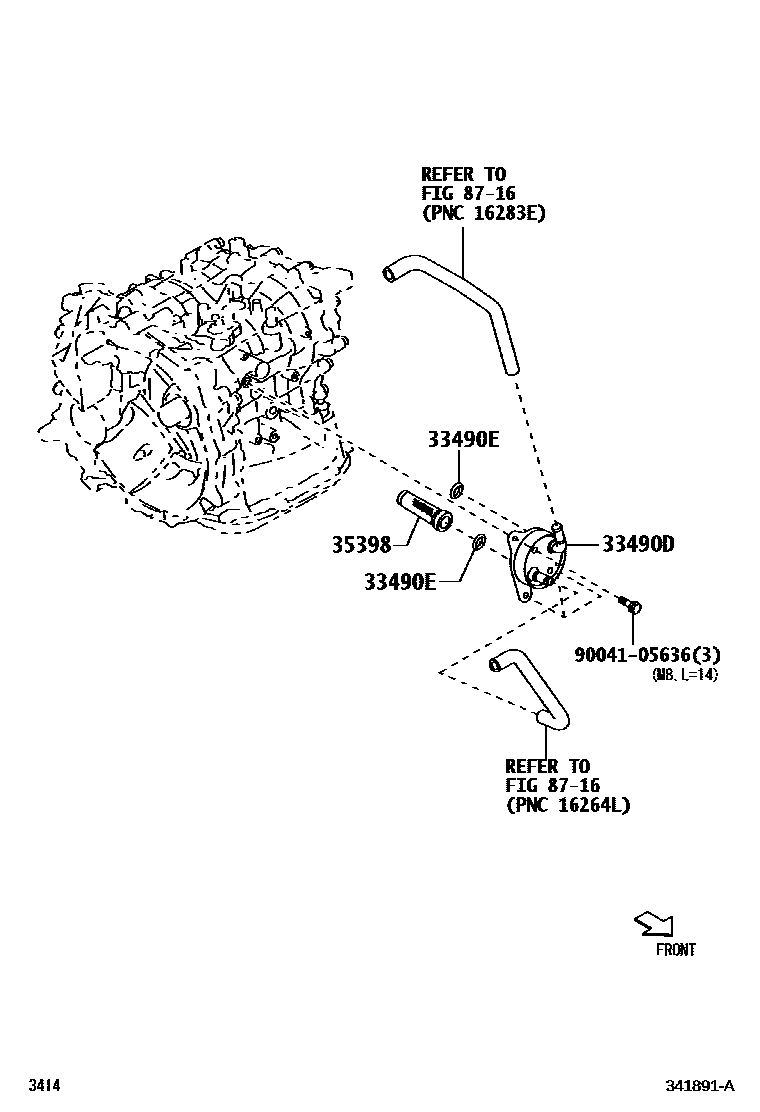

Toyota YARIS 变速器油冷却器和配管(CVT) EPC diagram — 341891A
变速器油冷却器和配管(CVT) — 341891A (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
33490DTransmission oil cooler assembly33490-B2030
33490EO-ring (for transmission oil cooler)90043-01374
35398CREPINE, HUILE DE LUBRIFICATION35398-B2010
