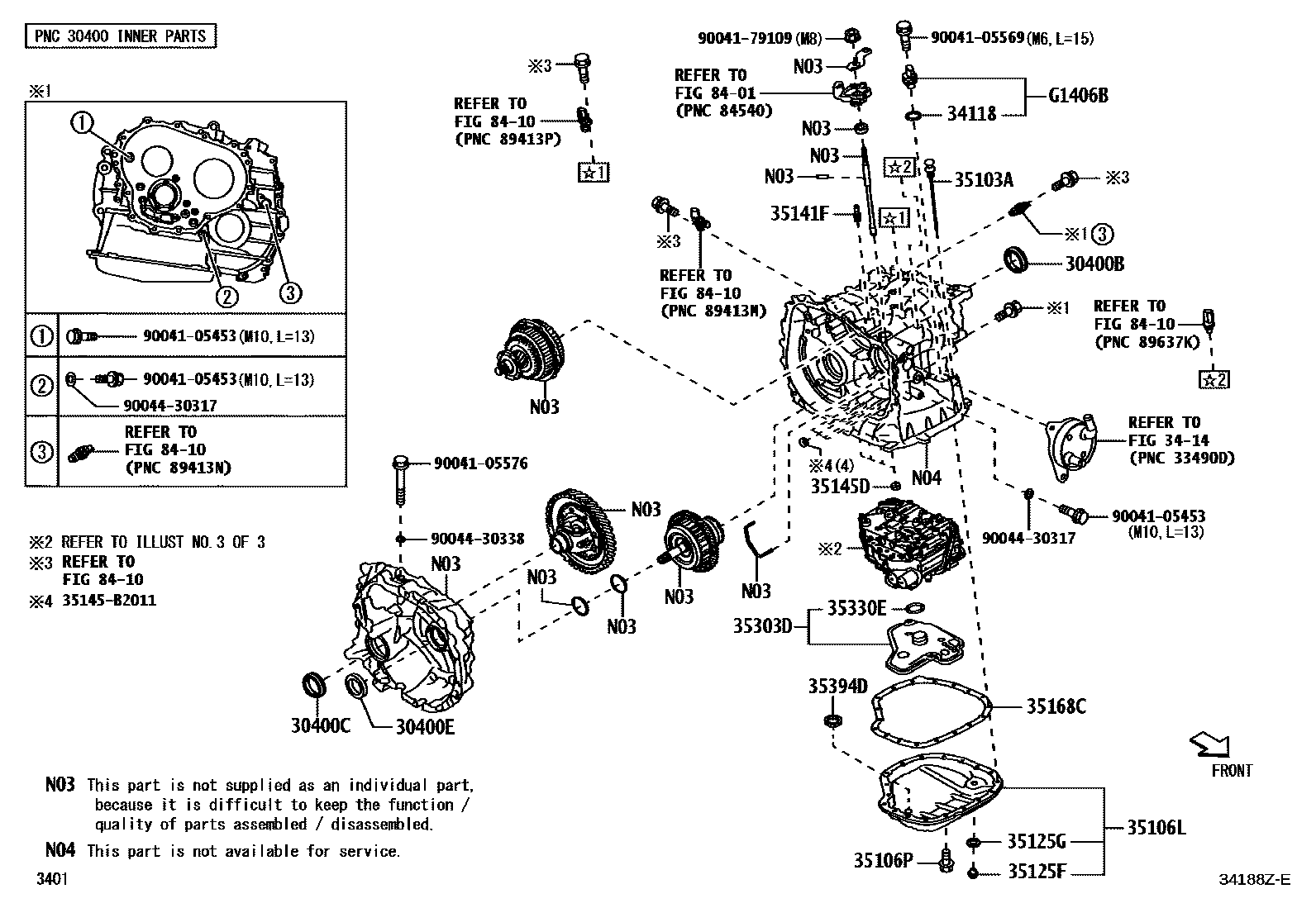

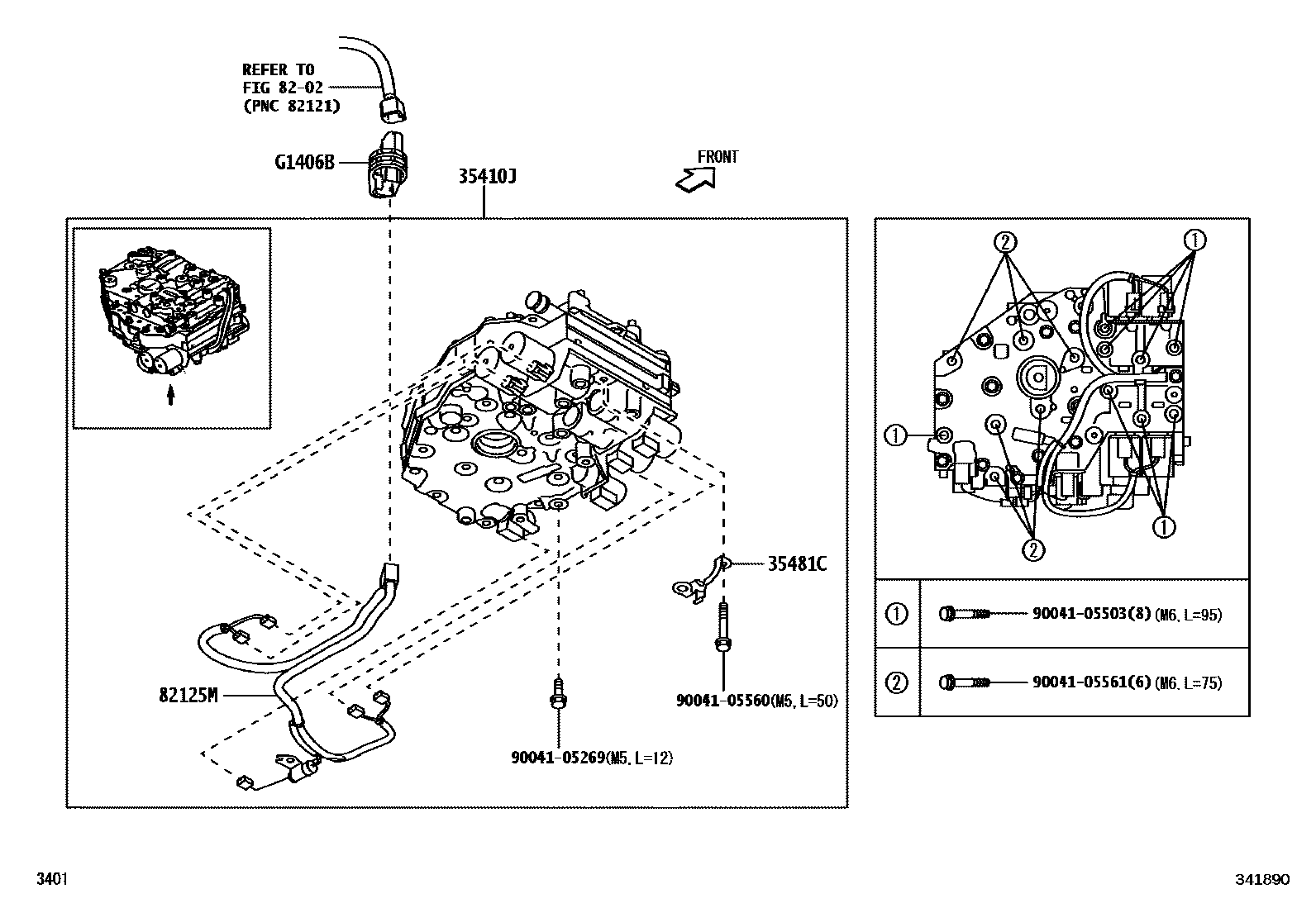

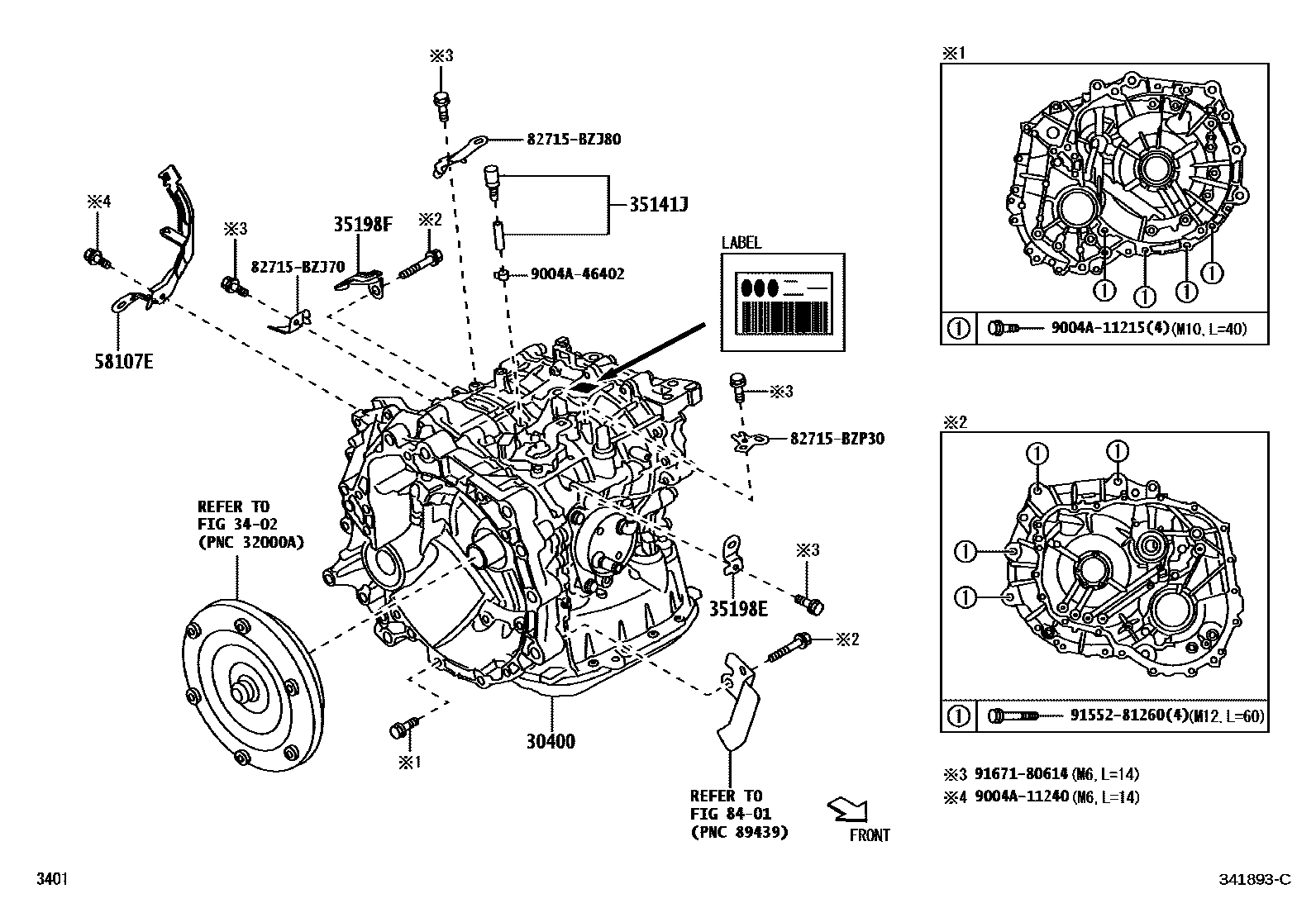

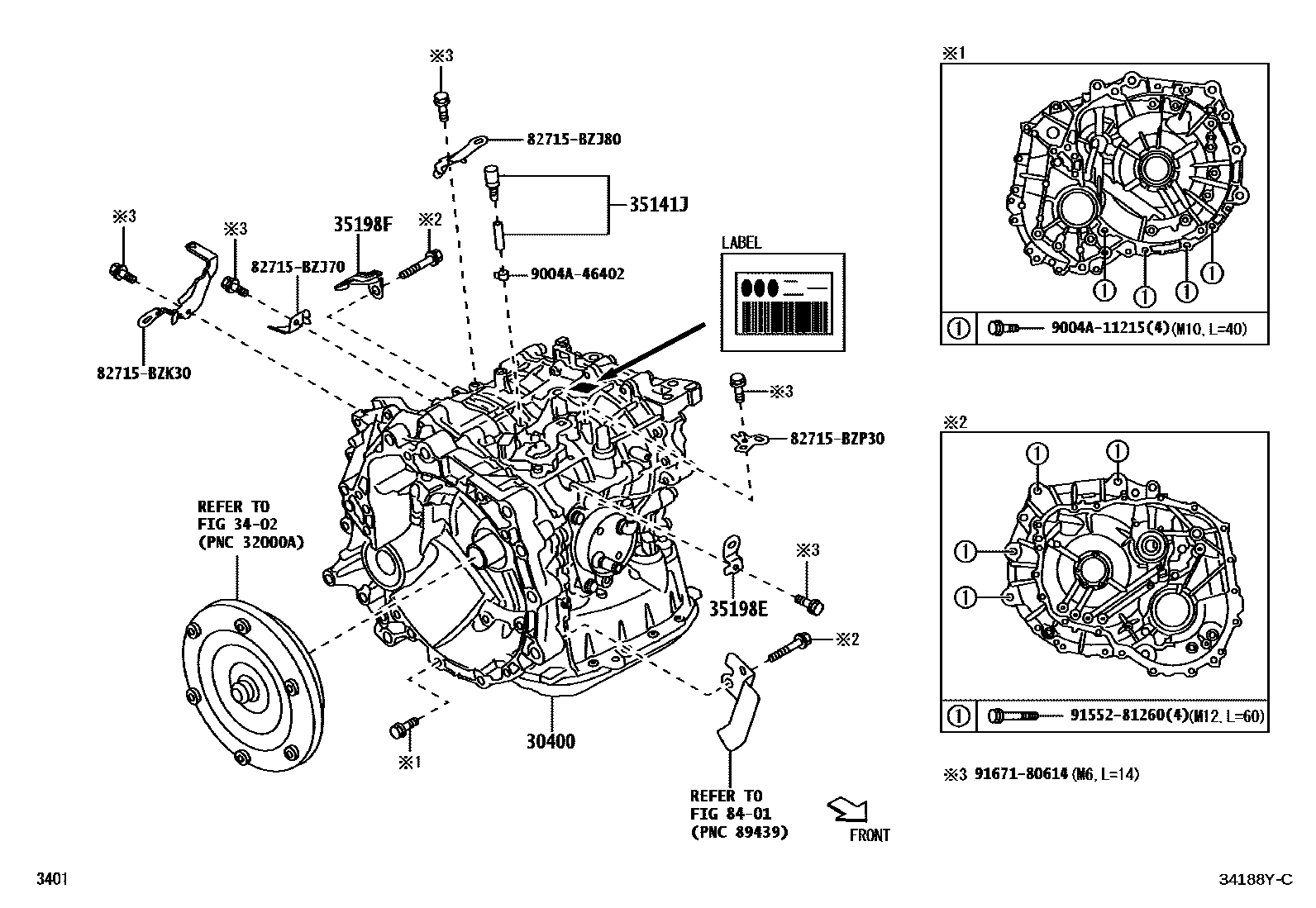

Toyota YARIS 传动桥总成(CVT) — Figure 3401
Toyota YARIS EPC diagram 3401, 传动桥总成(CVT), with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-B2B40 |
| 30400B | No. 1 T-type oil seal (for CVT) | 90043-11437 |
| 30400C | No. 2 T-type oil seal (for CVT) | 90043-11440 |
| 30400E | T-type oil seal (for CVT oil pump) | 90043-11436 |
| 34118 | JOINT TORIQUE | 90043-01376 |
| 35103A | Transmission oil level scoring assembly | 35103-B2070 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35160-B2040 |
| 35106P | Bolts (for transaxle oil pan) | 90041-20331 |
| 35125F | Overflow plug (CVT) | 90043-41041 |
| 35125G | Overflow plug gasket (CVT) | 90044-30281 |
| 35141F | No. 1 vent plug (CVT) | 90049-15054 |
| 35141J | No. 2 vent plug (CVT) | 35120-BZ020 |
| 35145D | Transmission axle housing gasket | 35145-B2011 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-B2030 |
| 35198E | No. 1 wire harness clamp bracket | 82715-BZJ90 |
| 35198F | Wire harness clamp bracket | 82715-B2510 |
| 35303D | Oil filter sub-assembly | 35303-B2040 |
| 35330E | O-ring (for oil filter) | 90043-01347 |
| 35394D | Oil filter magnet (CVT) | 33449-B2010 |
| 35410J | Transmission valve body assembly | 35410-B9202 |
| 35481C | Valve body wiring harness clip | 35199-B2010 |
| 58107E | No. 1 clamp fixing bracket sub-assembly | 87101-BZ020 |
| 82125M | Transmission wiring harness | 82125-B2070 |
| G1406B | Transmission solenoid valve connector sub-assembly | G1406-B2010 |
