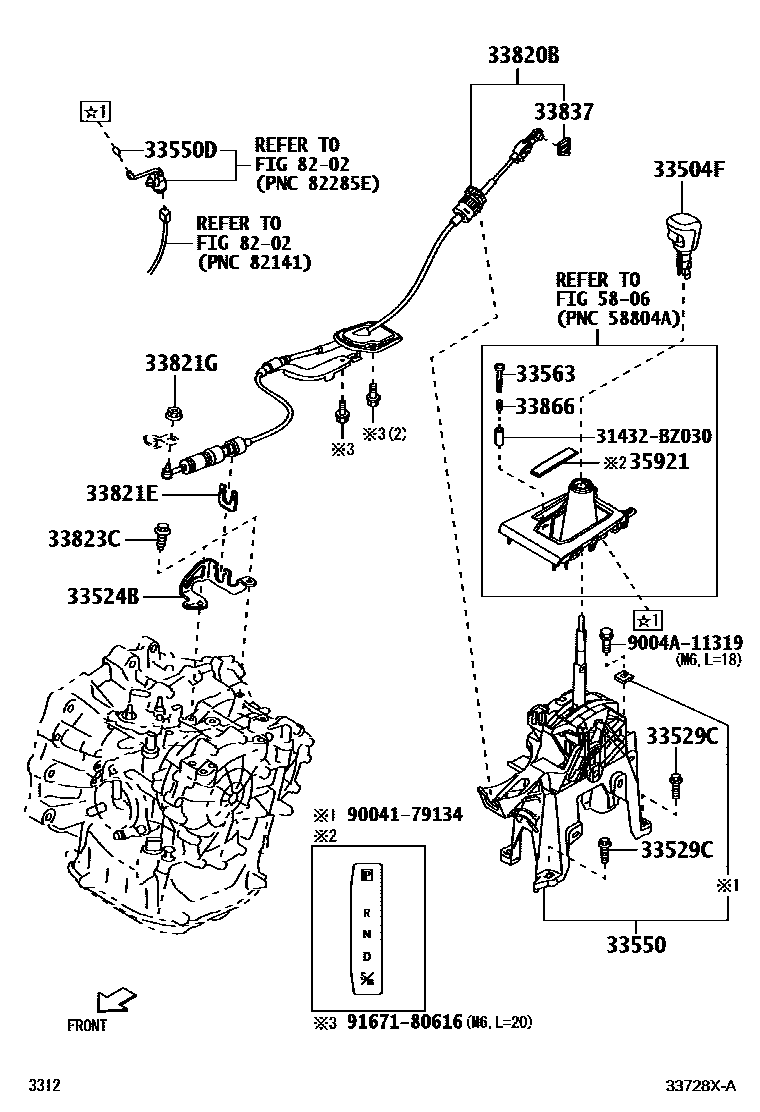

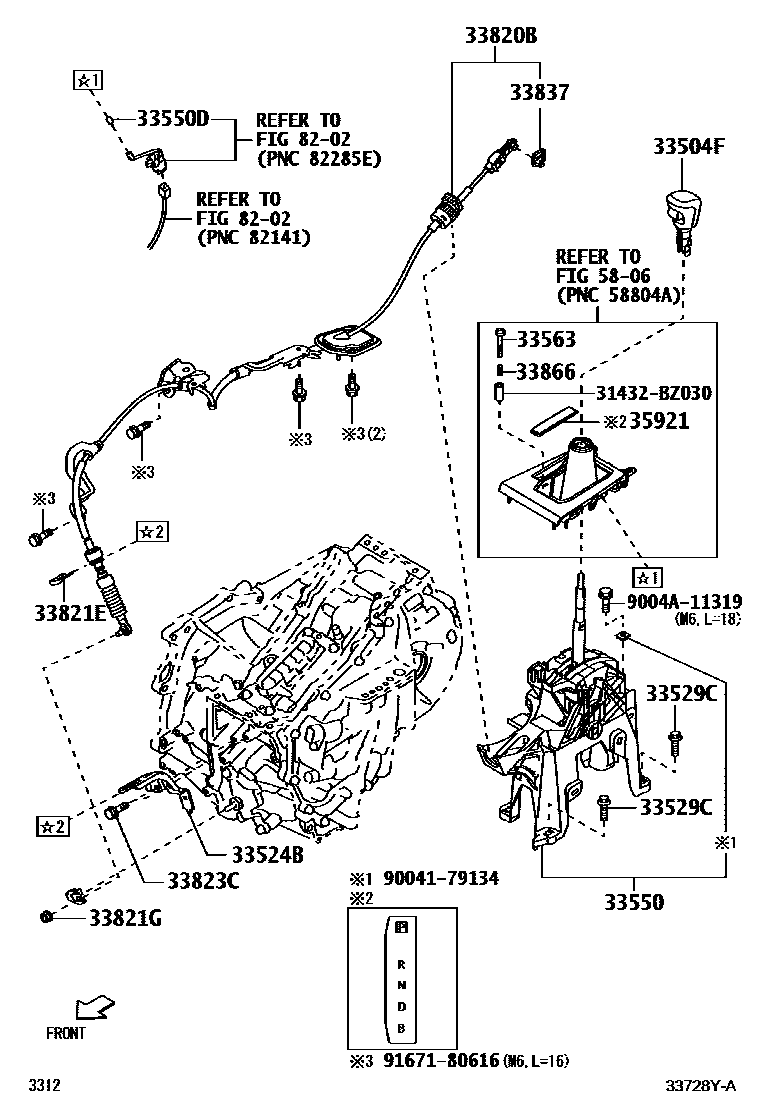

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524B | Control cable bracket | 33524-BZ040 · 33524-BZ100 |
| 33529C | shift lever bolt | 9004A-11274 |
| 33550D | position indicator light bulb | 35955-BZ030 |
| 33820B | Transmission control cable assembly | 33820-BZ590 · 33820-BZ600 |
| 33821E | Clamp No. 1 (for transmission control cable) | 33567-B1010 · 90468-14016 |
| 33821G | Nut (for transmission control cable) | 90179-06274 · 94151-80800 |
| 33823C | Bolt (for transmission control cable bracket) | 90105-T0120 |
| 33837 | Transmission control cable adjustment clip | 33837-B2010 |
| 33866 | Shift lock release spring | 33866-BZ010 |
| 35921 | control position indicator board | 35921-BZ410 · 35921-BZ420 |
