Toyota YARIS 燃油喷射系统 — Figure 2211

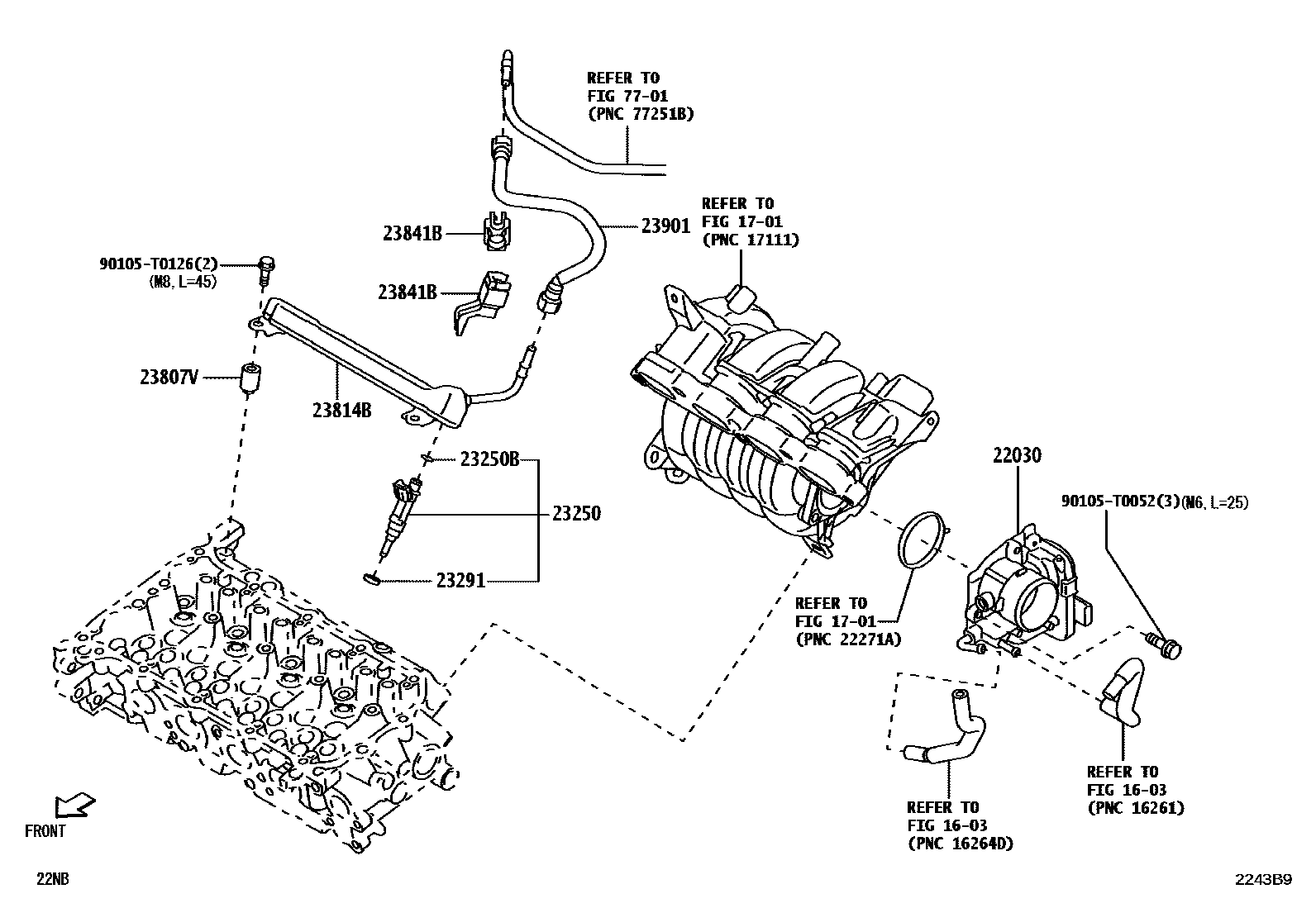

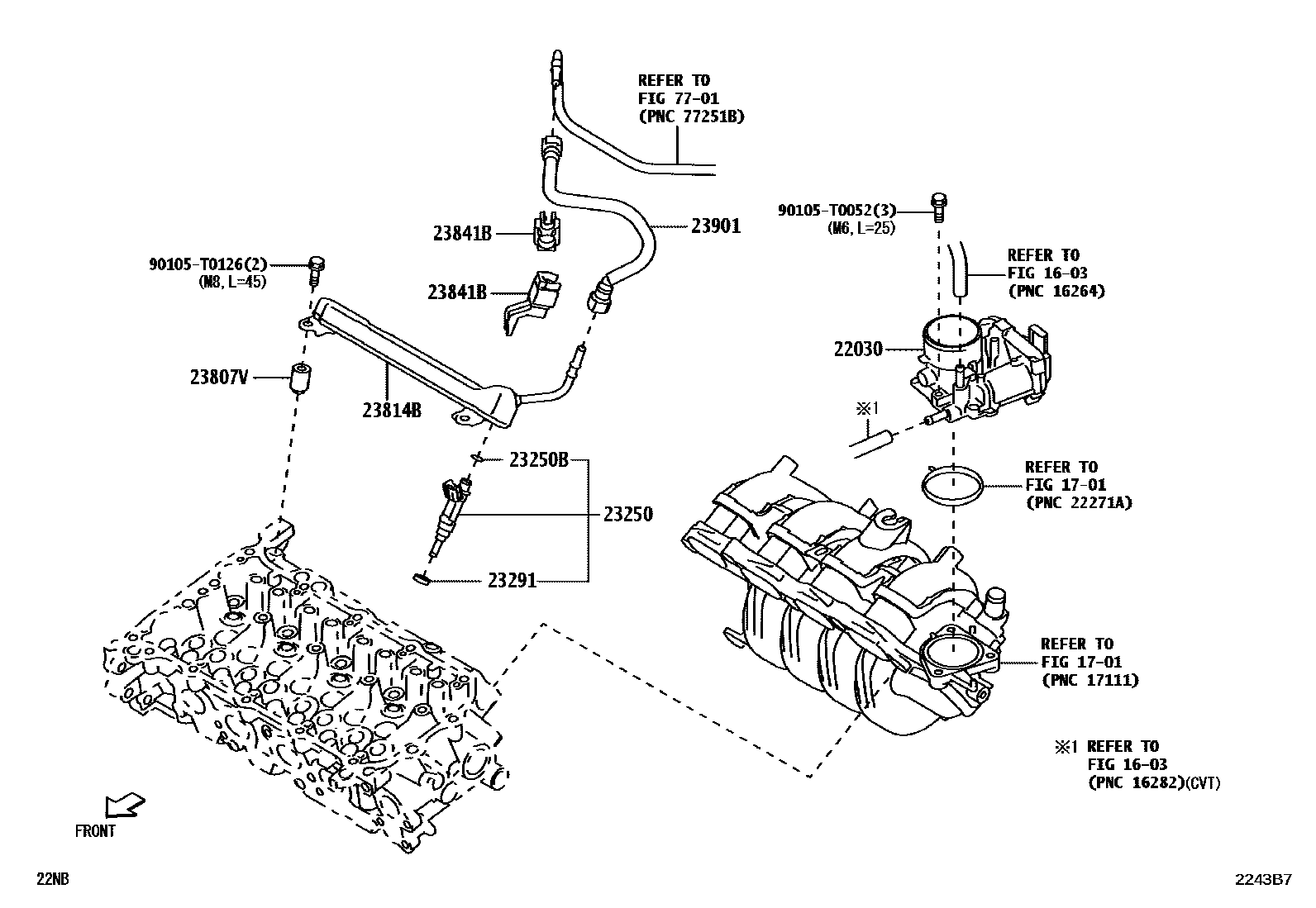

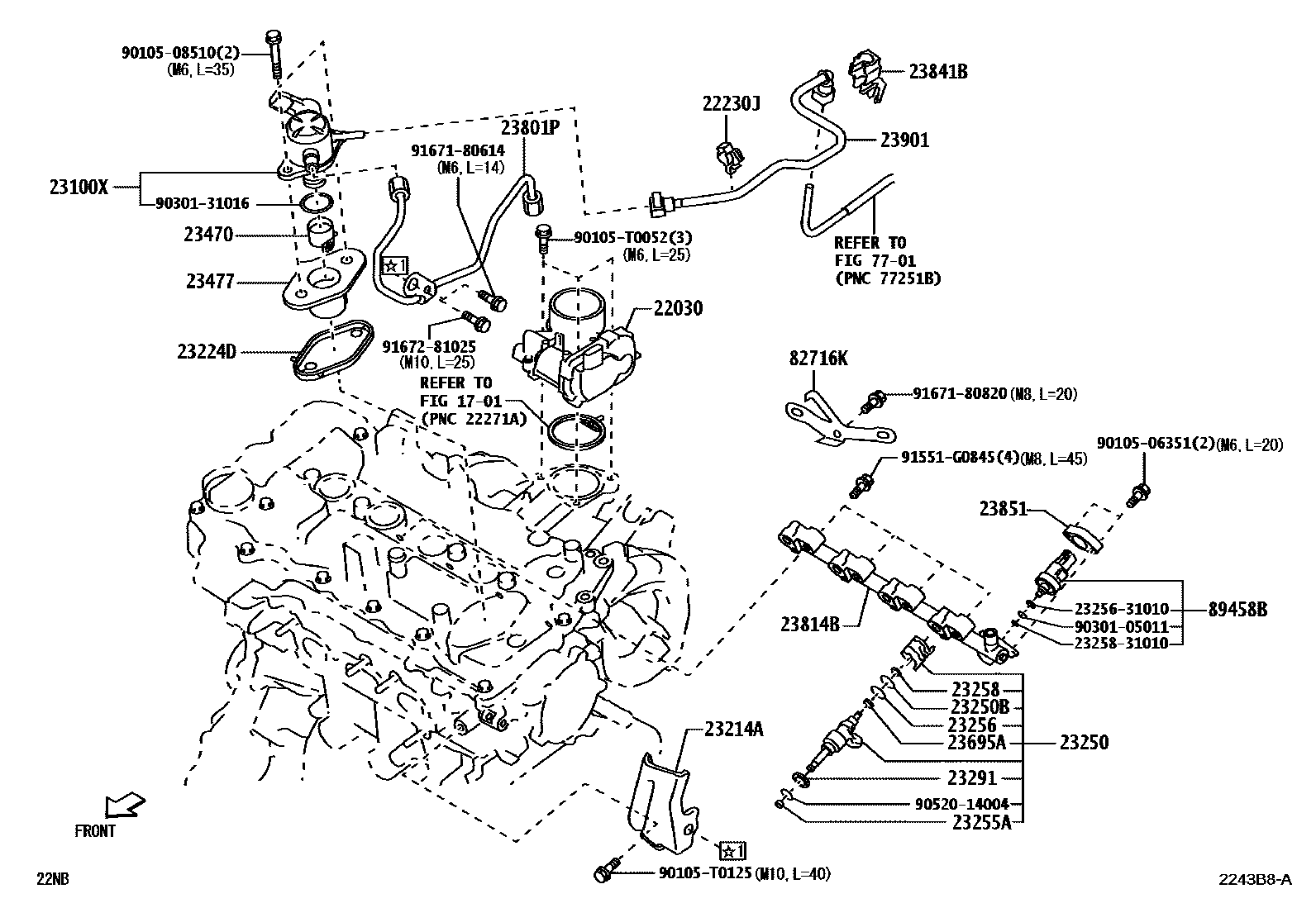

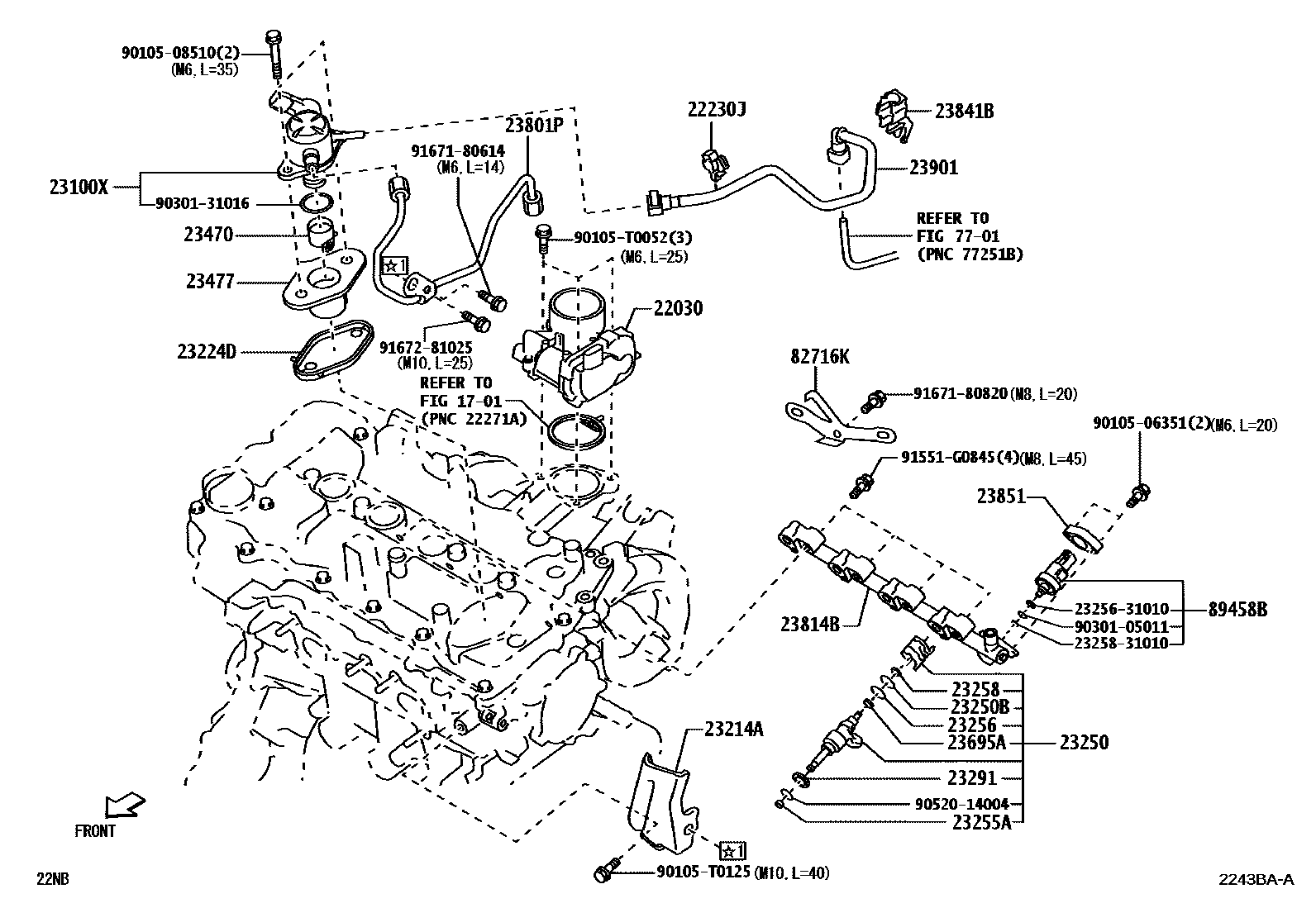

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-BZ150 · 22030-BZ160 · 22030-BZ180 |
| 22230J | card holder | 90044-64937 |
| 23100X | Fuel pump assembly (engine room side) | 23101-B0010 |
| 23214A | Fuel pump protection device | 23214-BZ010 |
| 23224D | fuel pump septum gasket | 23224-25011 |
| 23250 | Fuel injector assembly | 23209-09340 · 23209-B0010 · 23209-B9090 |
| 23250B | O-ring (for fuel injector) | 9004A-30072 · 90301-05013 · 90301-07042 |
| 23255A | Injector seal | 23255-31030 |
| 23256 | No. 1 injector retaining ring | 23256-25010 |
| 23258 | No. 3 injector retaining ring | 23258-36010 |
| 23291 | Injector vibration isolation pad | 23291-0Y020 · 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23470-25010 |
| 23477 | fuel pump tappet guide | 23477-BZ010 |
| 23695A | Injector body clamp | 23695-70010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-B0010 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-47040 |
| 23814B | oil pipeline | 23814-0Y010 · 23814-B0010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-B5030 · 23841-BZ020 |
| 23851 | No. 1 fuel pressure sensor holder | 23851-25020 |
| 23901 | Fuel pipe sub-assembly | 23901-BZ160 · 23901-BZ300 · 23901-BZ330 · 23901-BZ340 |
| 82716K | Wire harness clamp bracket | 82715-BZD90 |
| 89458B | fuel pressure sensor | 89458-33030 |
