Toyota YARIS 起动机 — Figure 1904

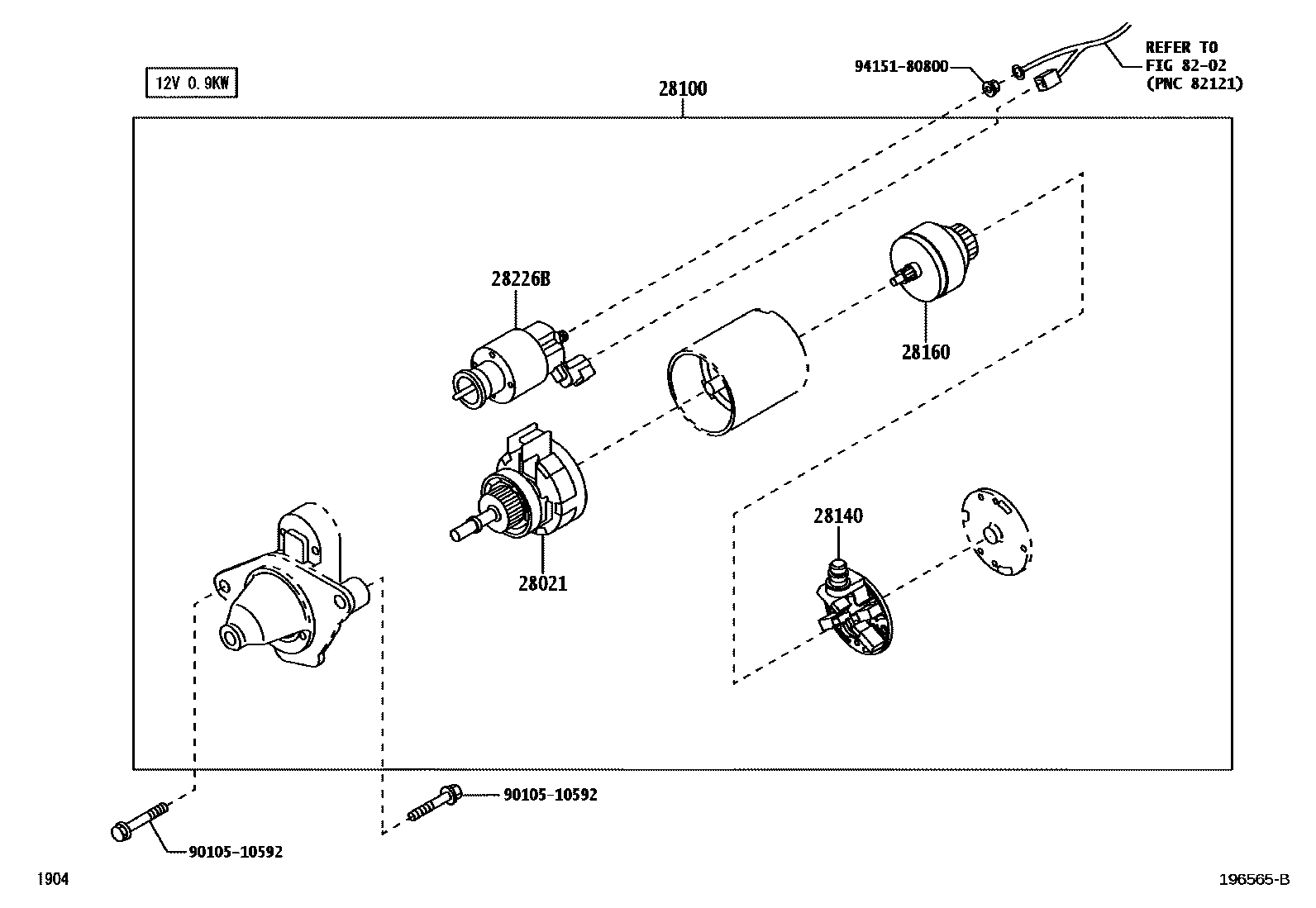

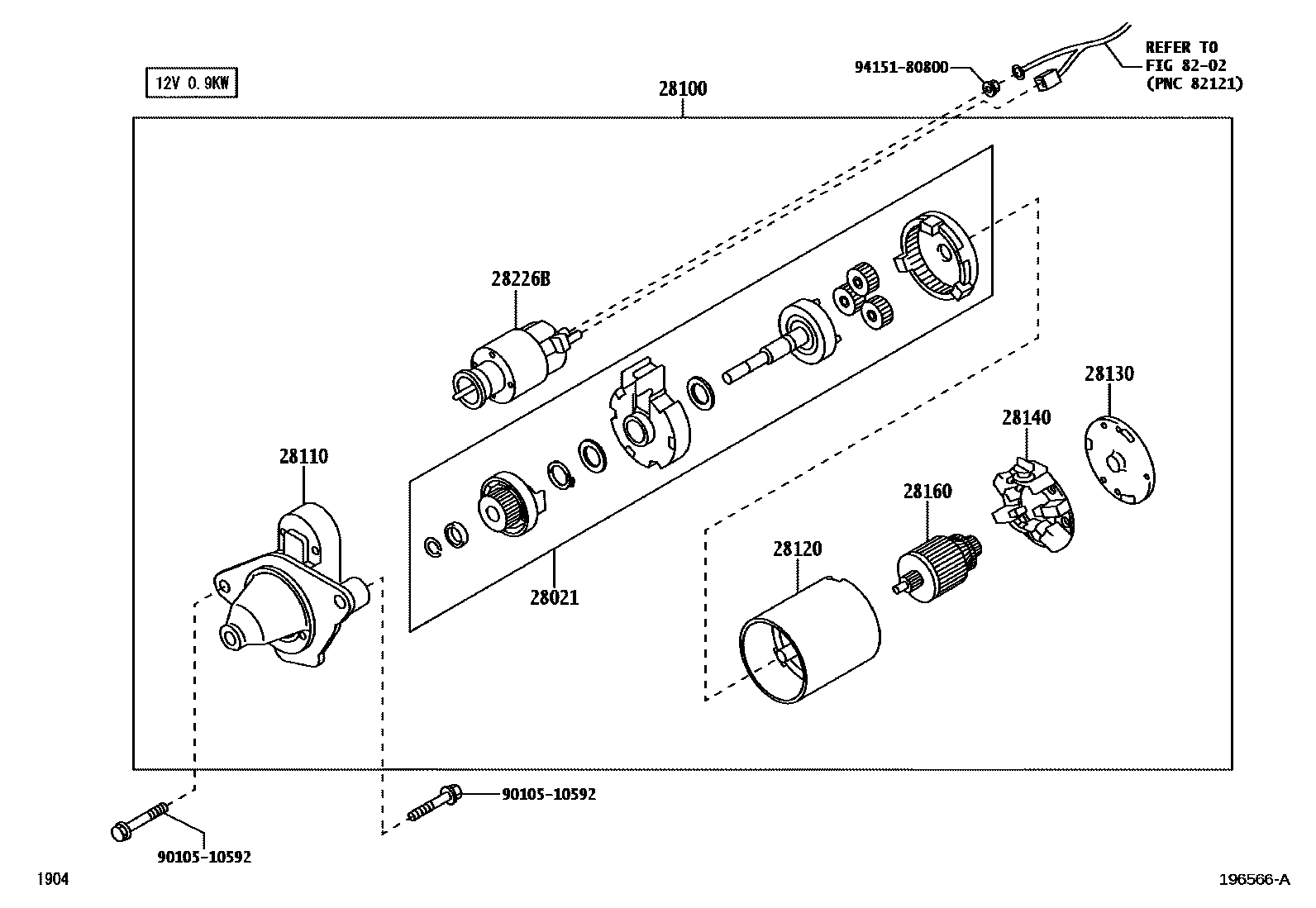

Toyota YARIS EPC diagram 1904, 起动机, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-BZ050 · 28021-BZ390 |
| 28100 | Starter assembly | 28100-BZ310 · 28100-BZ390 |
| 28110 | Starter drive end housing assembly | 28110-BZ180 |
| 28120 | Starter yoke assembly | 28120-BZ090 |
| 28130 | Starter commutator end frame assembly | 28130-BZ140 |
| 28140 | Starter brush holder assembly | 28140-0Y210 · 28140-BZ140 |
| 28160 | Starter armature assembly | 28160-0Y310 · 28160-BZ040 |
| 28226B | starter magnetic switch | 28226-BZ010 · 28226-BZ390 |
