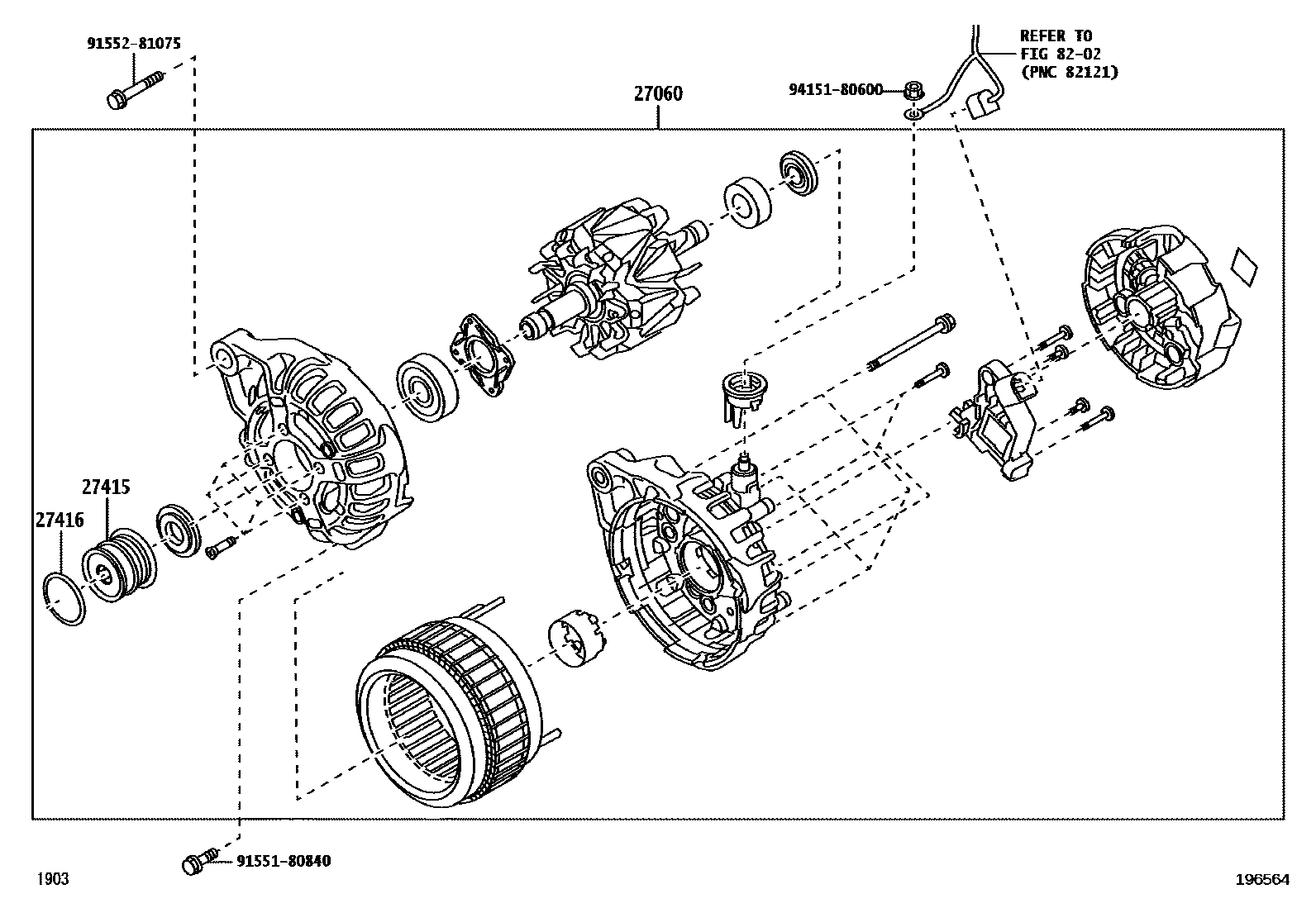

Toyota YARIS Alternator — Figure 1903
Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27060 | Generator assembly with regulator | 27060-BZ580 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-B0050 |
| 27416 | Generator pulley cover | 27416-B0010 |
