Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 4 images and 9 PNC and OE references.

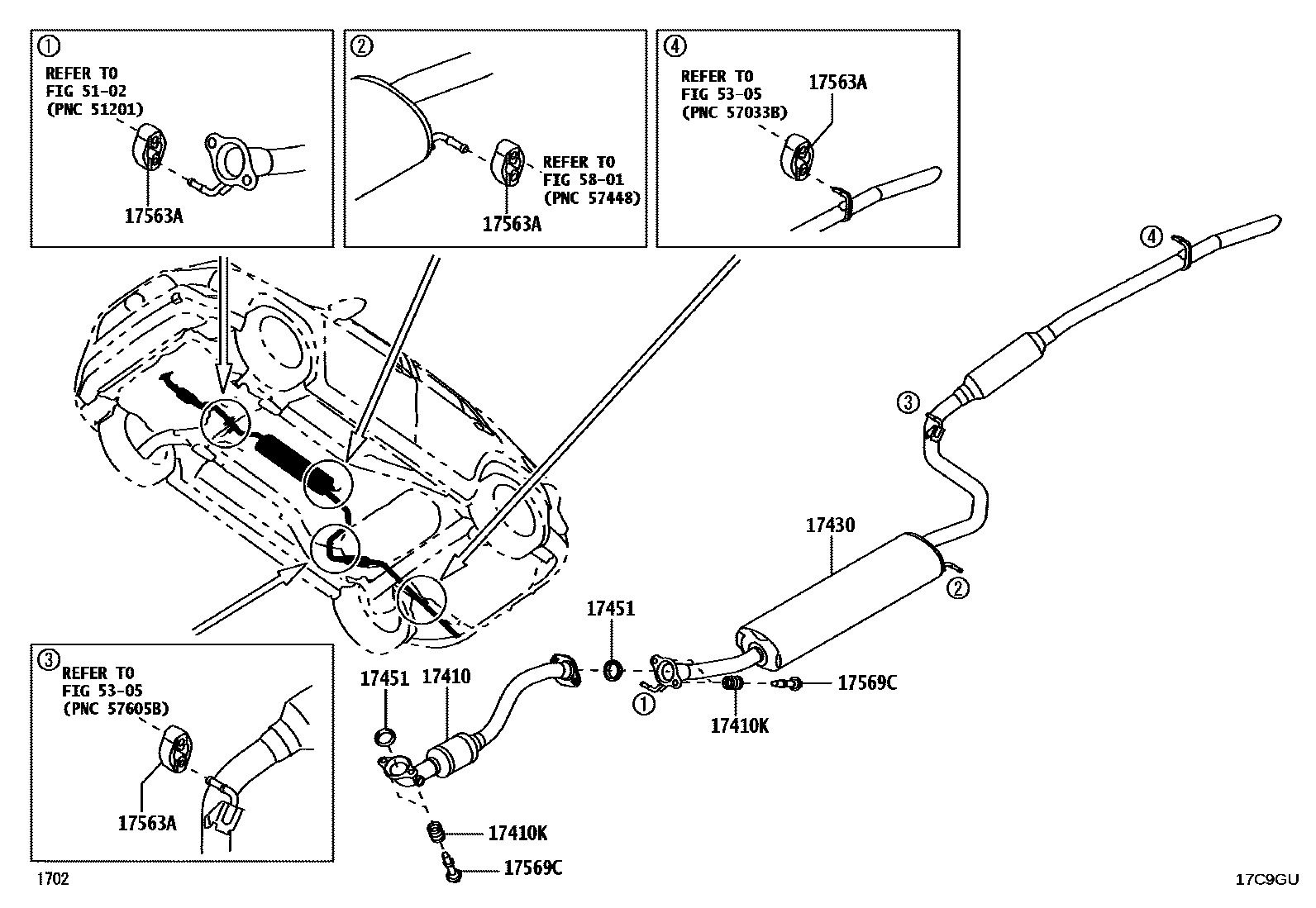

Toyota YARIS Exhaust Pipe EPC diagram — 17C9GU
Exhaust Pipe — 17C9GU (202511 – 999999)
Toyota YARIS Exhaust Pipe EPC diagram — 17C9GV
Exhaust Pipe — 17C9GV (202510 – 999999)

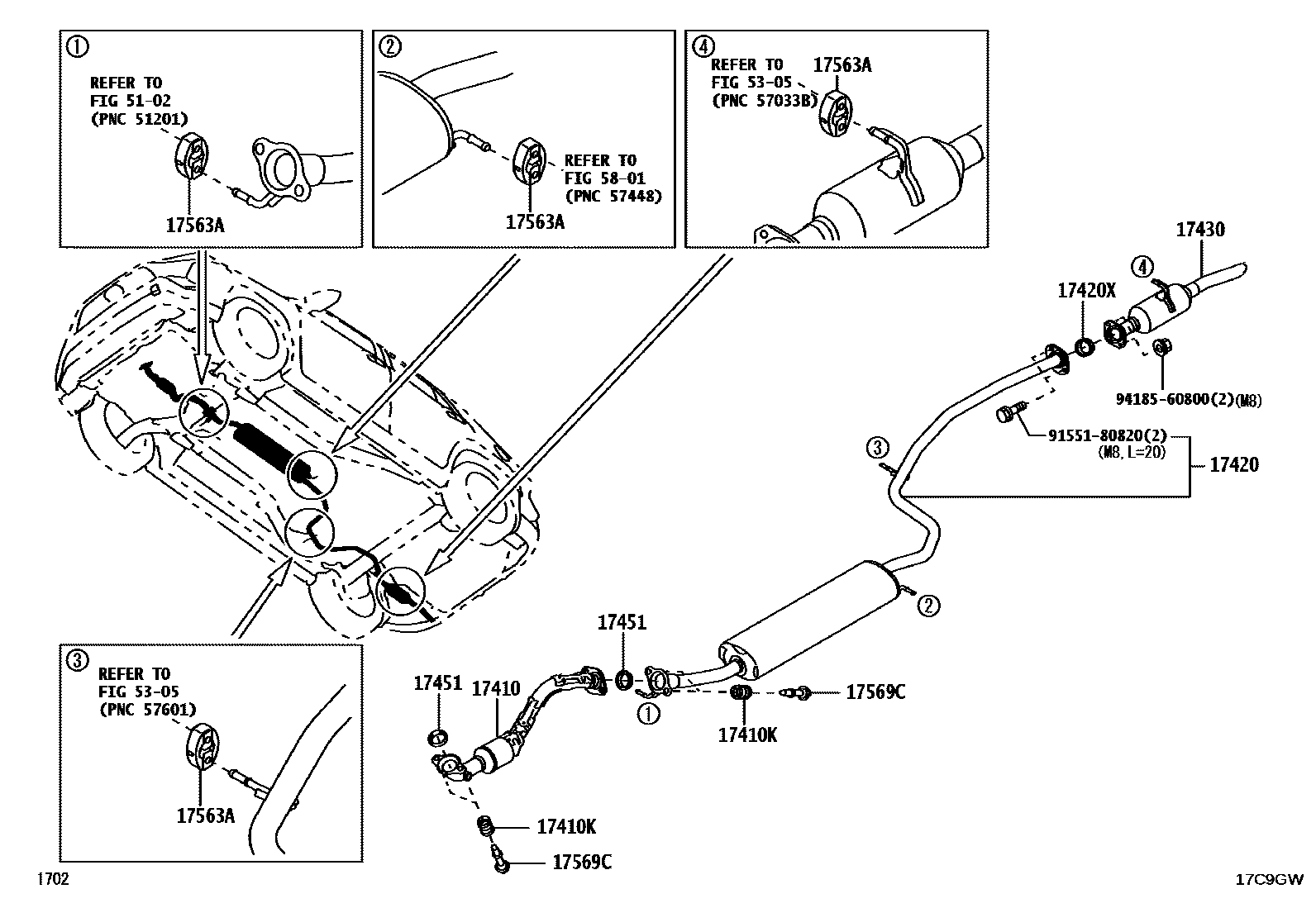

Toyota YARIS Exhaust Pipe EPC diagram — 17C9GW
Exhaust Pipe — 17C9GW (202510 – 999999)
Toyota YARIS Exhaust Pipe EPC diagram — 17C9GX
Exhaust Pipe — 17C9GX (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-BZF50 · 17410-BZF60 · 17410-BZF70 · 17410-BZF80
17410KExhaust pipe spring90501-T0020
17420Central exhaust pipe assembly17420-BZ080
17420XCenter exhaust pipe liner90917-06048
17430Exhaust tailpipe assembly17430-BZ840 · 17430-BZ850 · 17430-BZA90
17451Exhaust pipe gasket17451-BZ110
17562No. 2 exhaust pipe lifting lug17567-B1050
17563ANo. 3 exhaust pipe lifting lug17567-BZ170
17569CExhaust pipe bracket bolts90901-05026
