Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 4 images and 10 PNC and OE references.

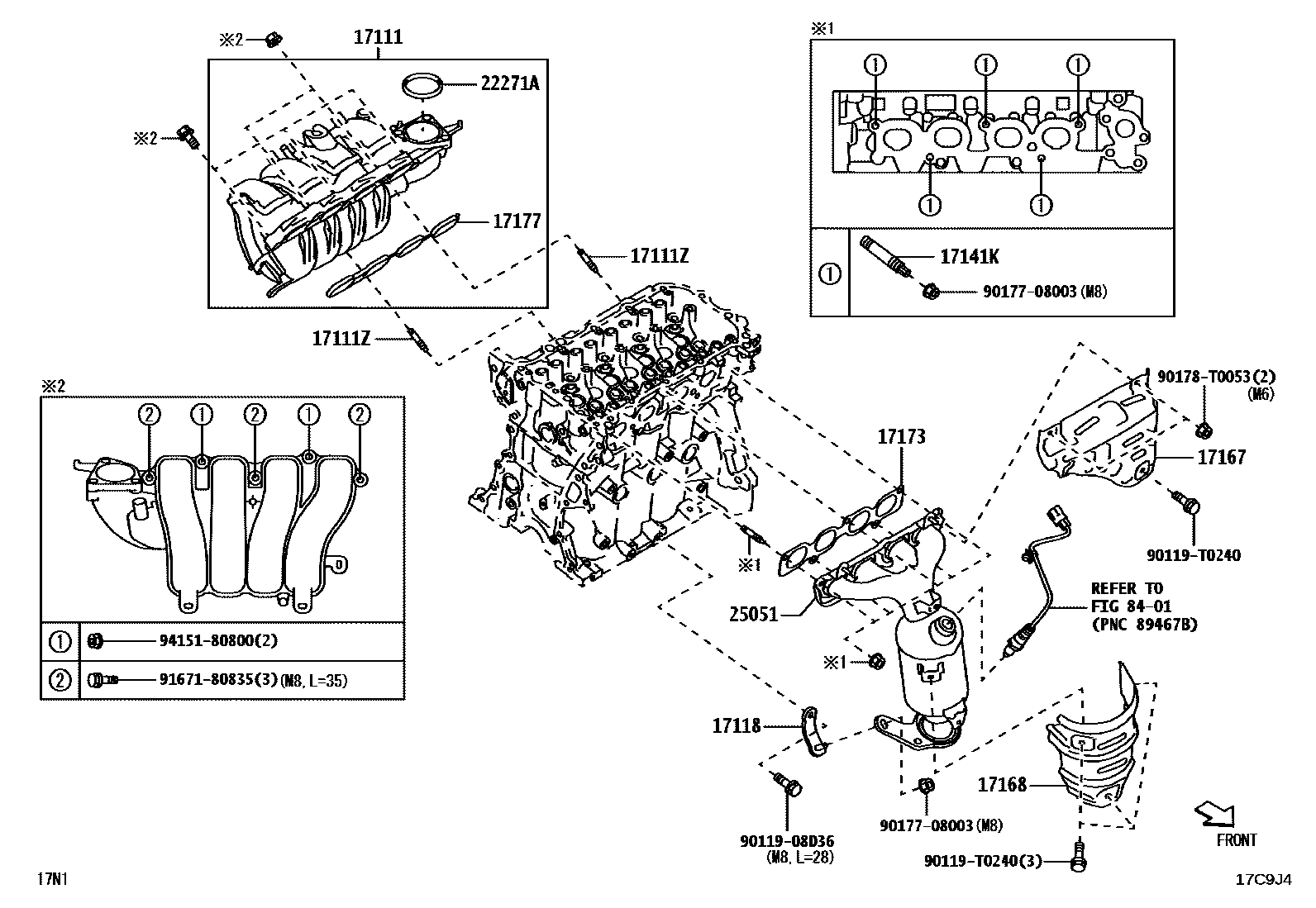

Toyota YARIS Manifold EPC diagram — 17C9J4
Manifold — 17C9J4 (202511 – 999999)

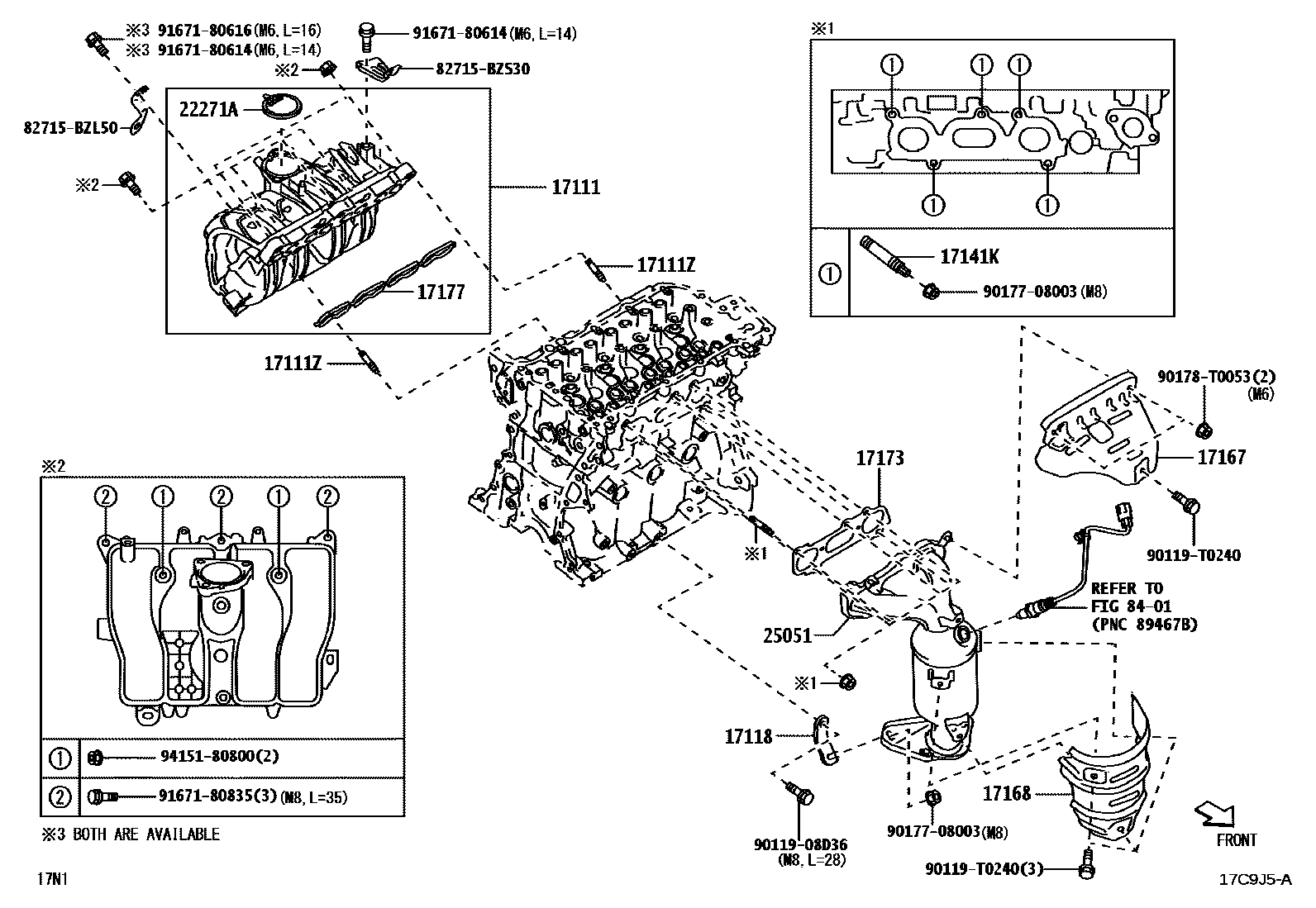

Toyota YARIS Manifold EPC diagram — 17C9J5A
Manifold — 17C9J5A (202510 – 999999)

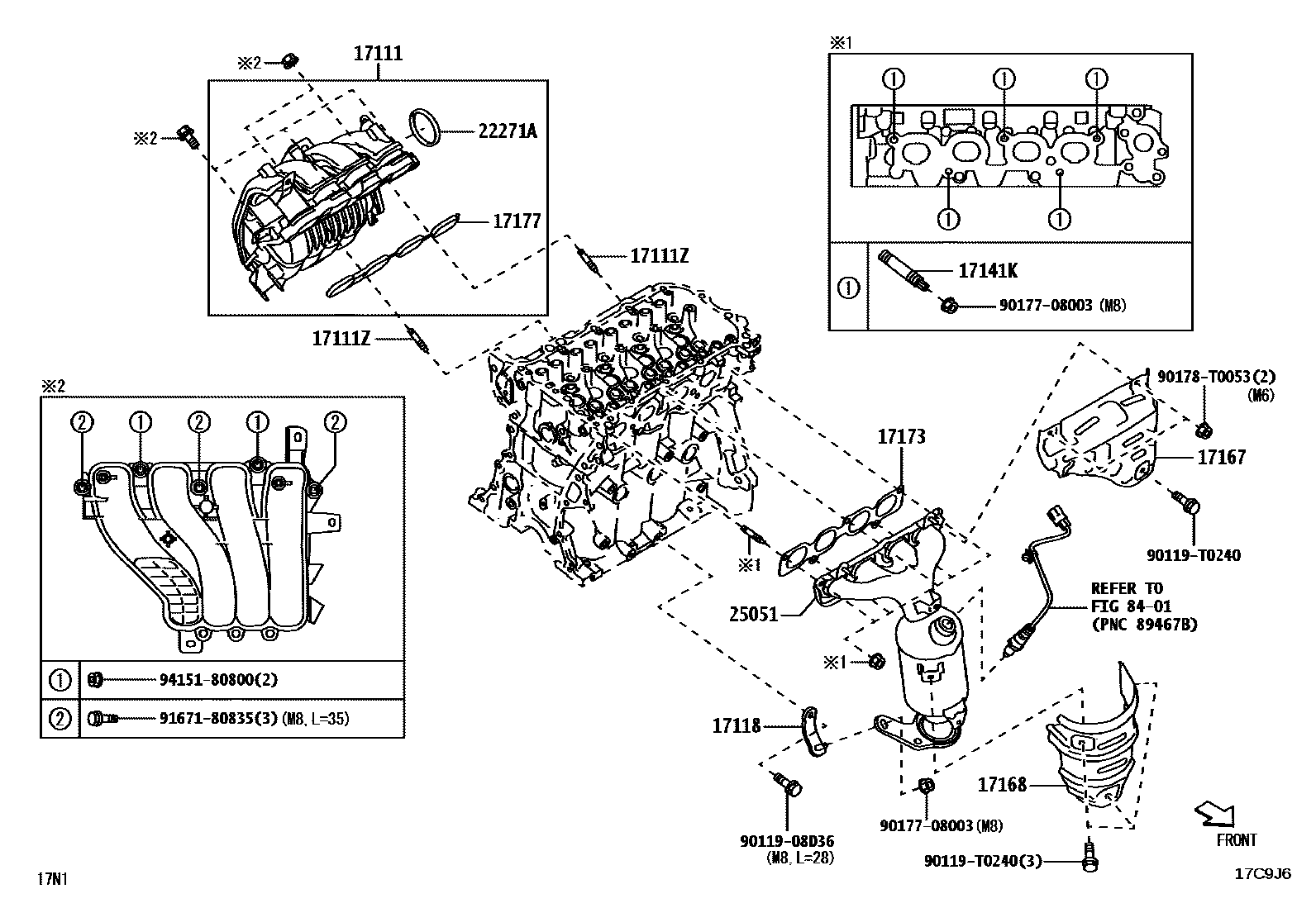

Toyota YARIS Manifold EPC diagram — 17C9J6
Manifold — 17C9J6 (202510 – 999999)

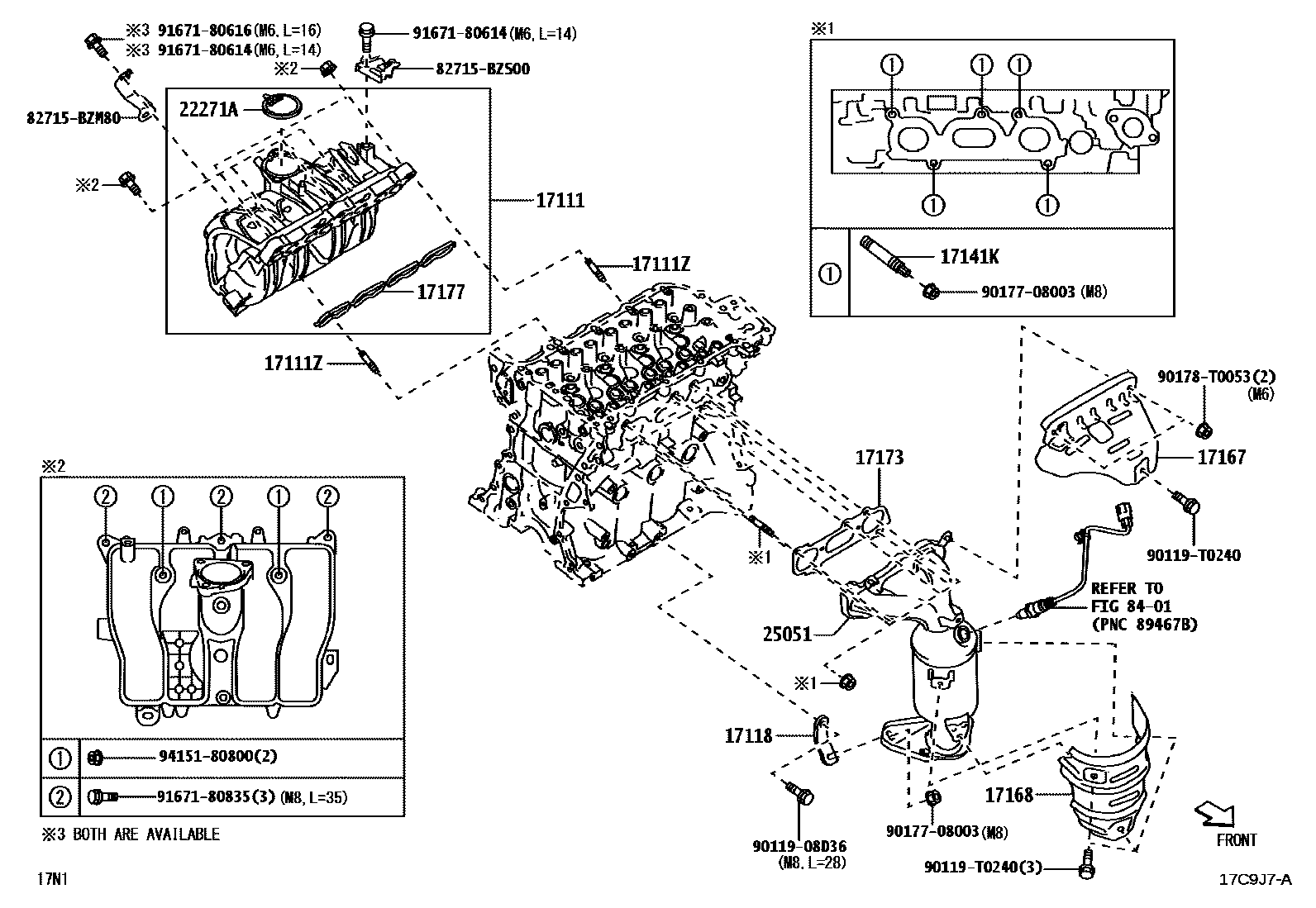

Toyota YARIS Manifold EPC diagram — 17C9J7A
Manifold — 17C9J7A (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17120-BZ130 · 17120-BZ210 · 17120-BZ220
17111ZStud bolts (for intake manifold to cylinder head)90126-T0019
17118Manifold stays17118-0Y011 · 17118-BZ260
17141KStud bolts (for exhaust manifold to cylinder head)90126-08052 · 90126-08063
17167Exhaust manifold No. 1 heat shield17167-0Y040 · 17167-BZ190
17168Exhaust manifold No.2 insulation pad17168-0Y040
17173Gasket (exhaust manifold to cylinder head)17173-0Y050 · 17173-BZ130
17177No. 1 gasket (intake manifold to cylinder head)17177-0Y030 · 17177-BZ080
22271AThrottle body gasket22271-0Y030
25051Exhaust manifold three-way catalytic converter sub-assembly25051-BZ150 · 25051-BZ260 · 25051-BZ290
