Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603

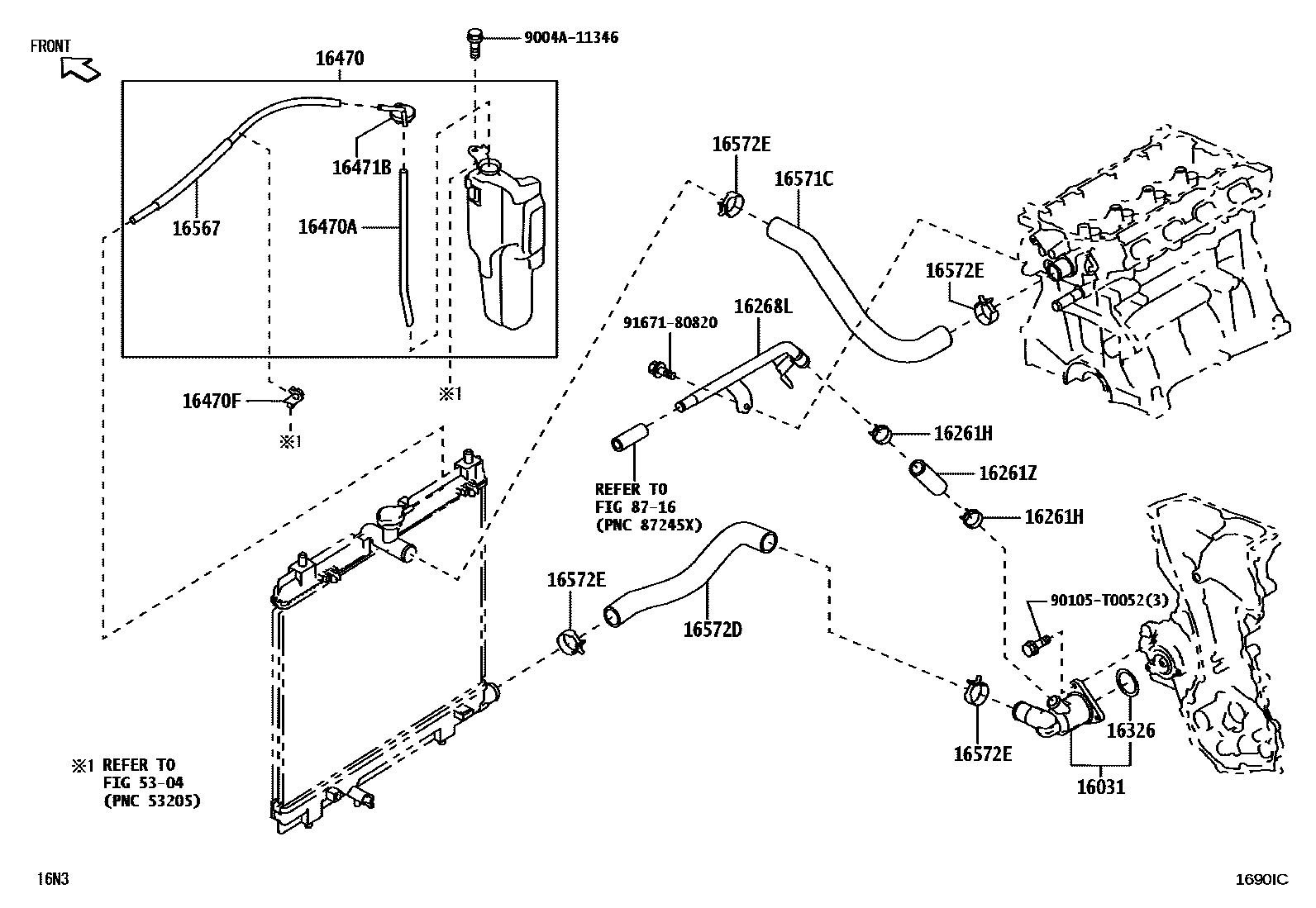

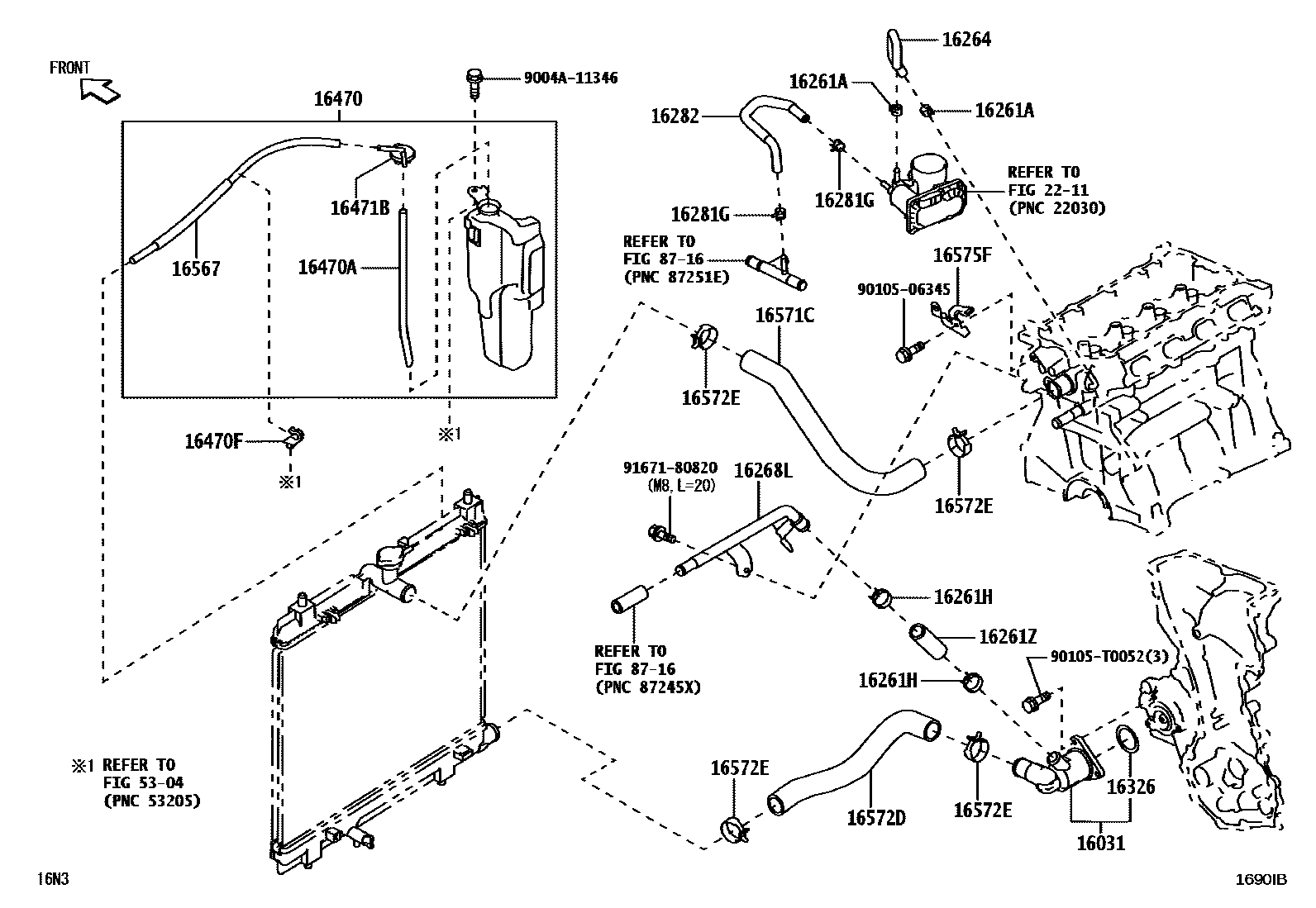

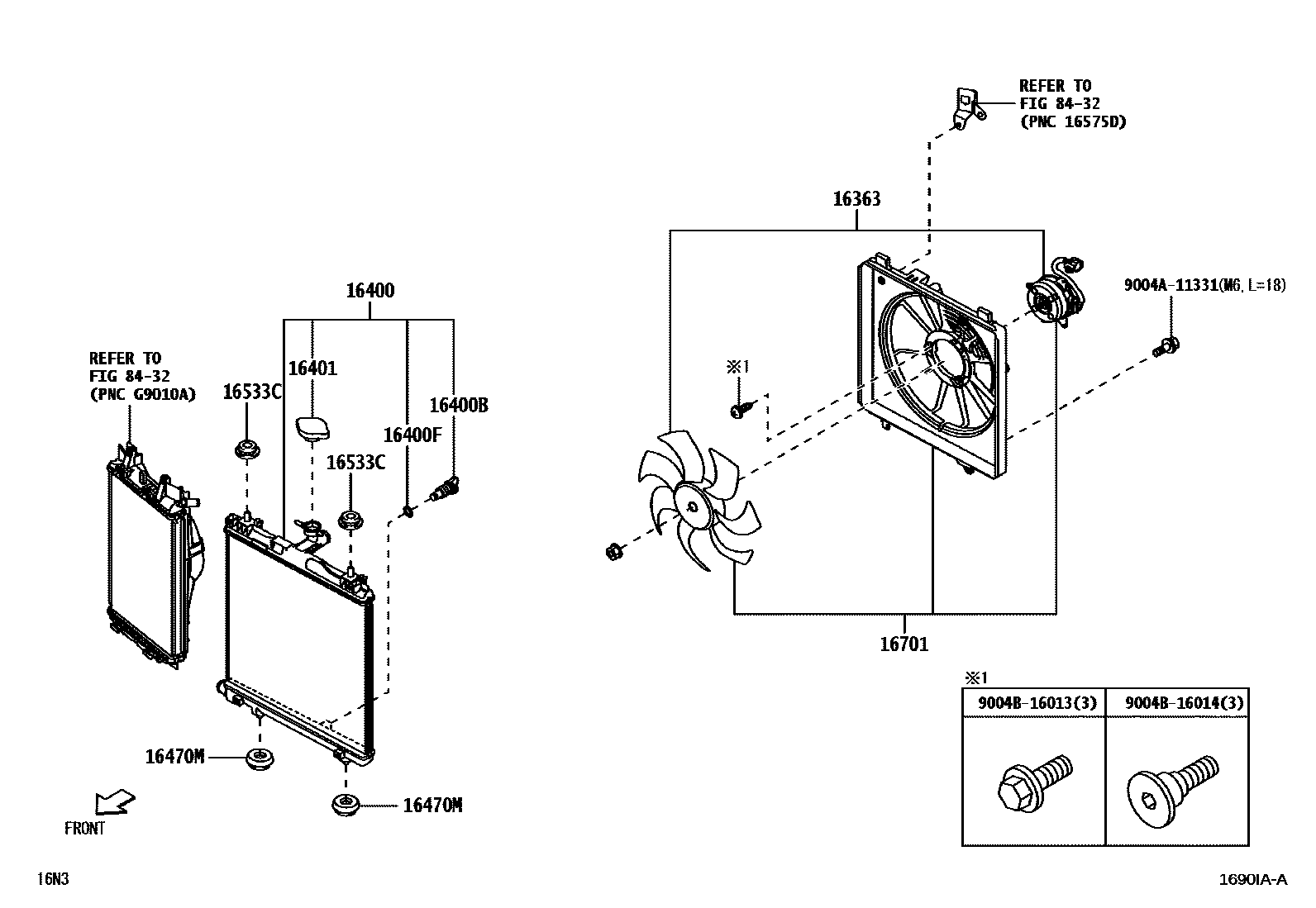

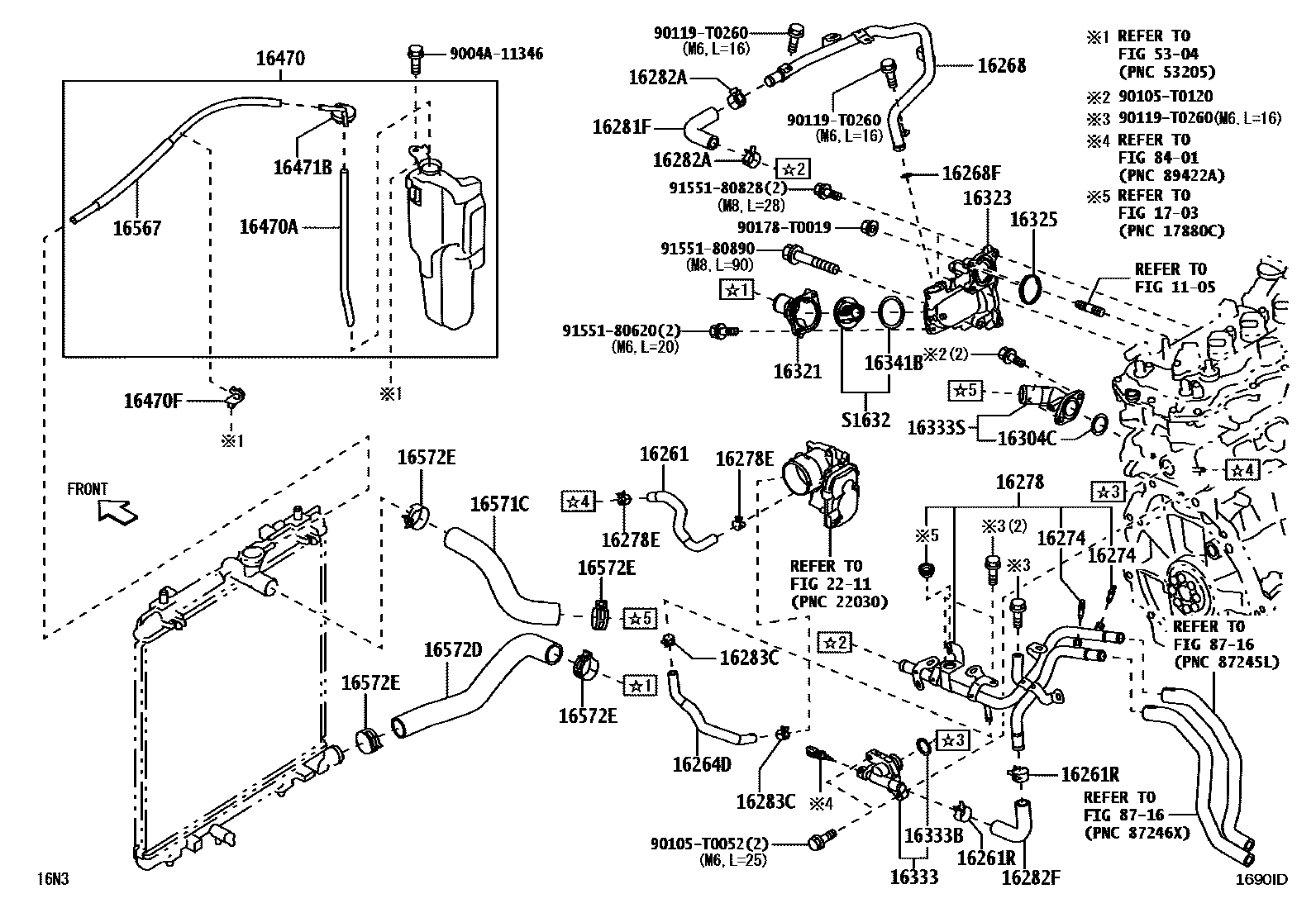

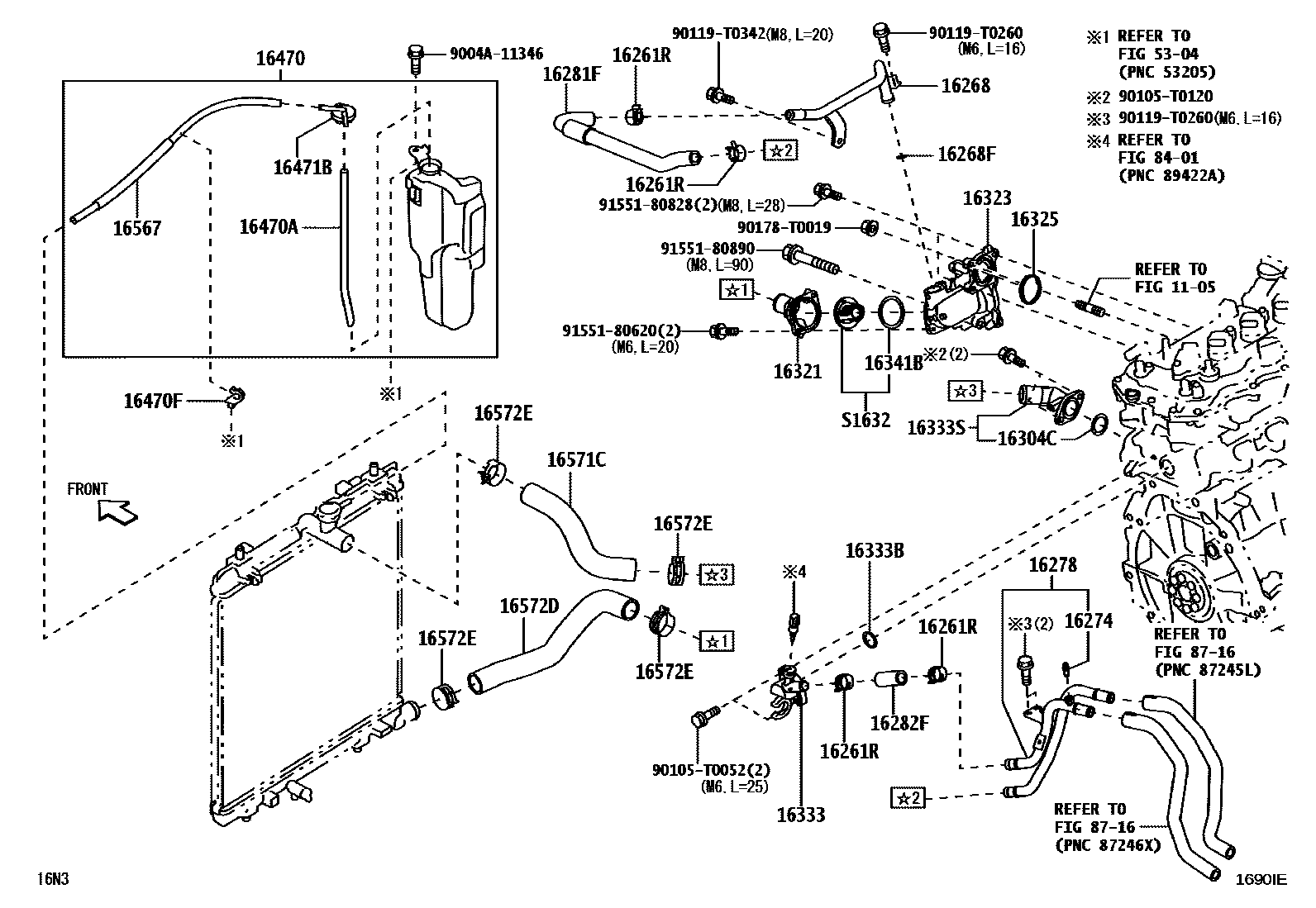

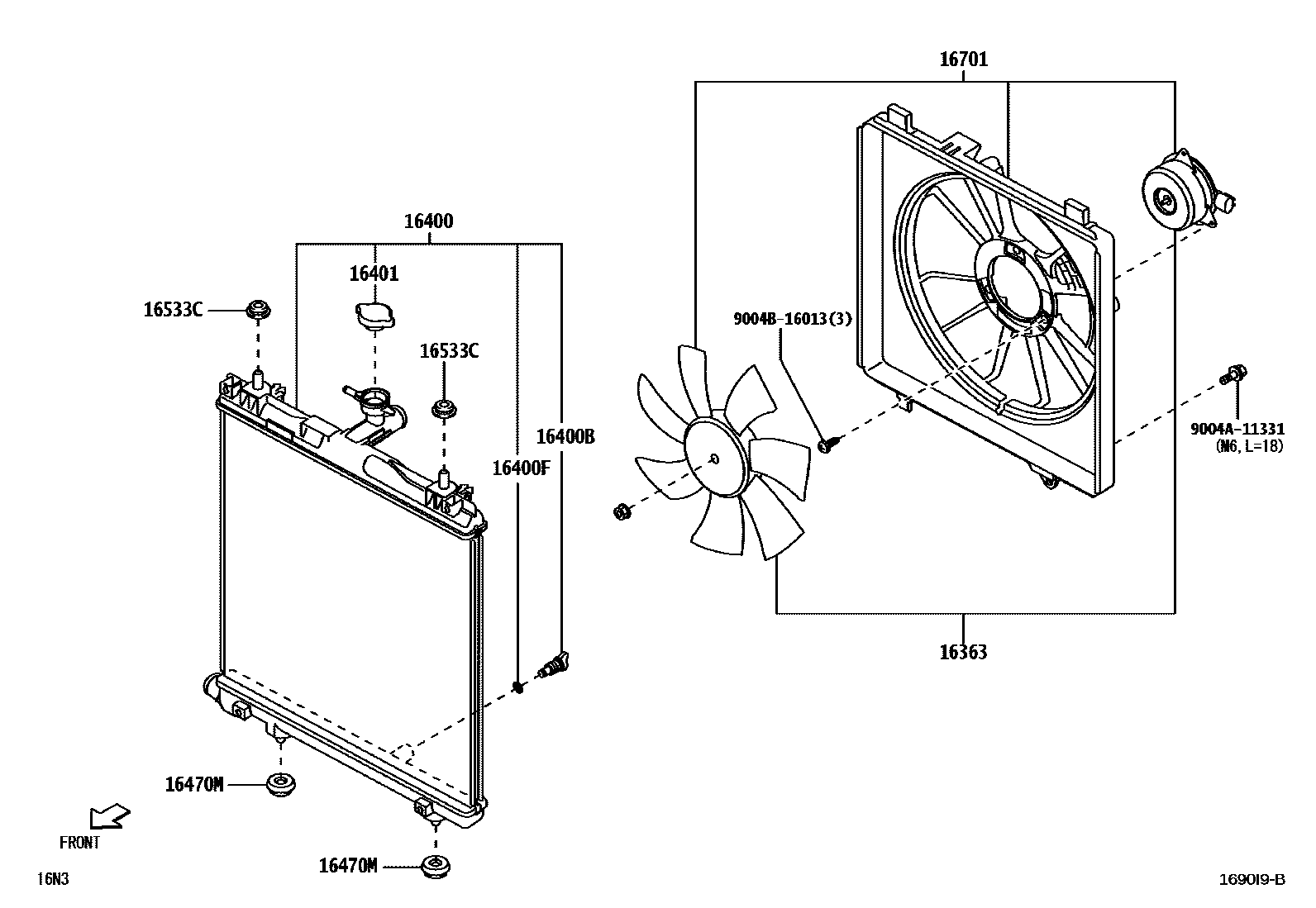

Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-BZ030 · 16031-BZ040 |
| 16261 | HOSE, WATER BY-PASS | 16261-BZ750 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0015 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42901 |
| 16261R | Clip or clip (for water bypass hose) | 96136-42501 |
| 16261Z | HOSE, WATER BY-PASS, NO.1 | 16261-0Y100 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0Y110 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-BZ380 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-BZ170 · 16268-BZ190 |
| 16268F | O-ring (for water bypass pipe) | 9004A-30076 |
| 16268L | PIPE, WATER BY-PASS | 16268-0Y180 |
| 16274 | Water bypass pipe screw plug | 9004A-93005 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16270-BZ030 · 16270-BZ050 |
| 16278E | Clip (for water bypass hose) | 90466-T0015 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16261-BZ760 · 16282-BZ110 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-T0015 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-BZ070 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96136-42501 |
| 16282F | HOSE, WATER BY-PASS, NO.5 | 16264-BZ390 · 16282-BZ110 |
| 16283C | Clip or clip (for water bypass hose) | 90466-T0015 |
| 16304C | O-ring (for water outlet pipe) | 9004A-30075 |
| 16321 | water inlet | 16321-BZ130 |
| 16323 | HOUSING, WATER INLET | 16323-BZ040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-BZ050 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0Y010 |
| 16333 | Water outlet shell | 16303-BZ030 · 16333-BZ050 |
| 16333B | O-ring (for outlet housing) | 16341-BZ020 · 9004A-30074 |
| 16333S | LOG, SORTIE D'EAU, NO.1 | 16303-BZ060 |
| 16341B | water inlet gasket | 16341-B2020 |
| 16363 | cooling fan motor | 16362-BZ010 · 16362-BZ020 · 16362-BZ030 · 16362-BZ040 |
| 16400 | Radiator assembly | 16400-BZD50 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16442-97201 |
| 16401 | Radiator cover sub-assembly | 16401-BZ130 |
| 16470 | Radiator reservoir assembly | 16470-BZ320 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16472-BZ340 |
| 16470F | Radiator reservoir hose clamp | 90044-64924 |
| 16470M | gasket | 90044-80592 |
| 16471B | Reservoir tank cover | 16471-BZ190 |
| 16533C | Gasket (for radiator bracket) | 9004A-48017 |
| 16567 | Hoses (for radiator reservoir) | 16472-BZ330 |
| 16571C | Radiator hose No. 1 | 16571-BZ450 · 16571-BZ520 · 16571-BZ560 |
| 16572D | Radiator hose No. 2 | 16572-BZ410 · 16572-BZ460 |
| 16572E | No. 2 radiator hose clip | 96136-43901 |
| 16575F | No. 3 water hose clamp bracket | 16575-BZ090 |
| 16701 | Fan cover sub-assembly | 16701-BZ080 · 16701-BZ090 · 16701-BZ100 · 16701-BZ110 |
| S1632 | thermostat assembly | 16340-B0020 |
