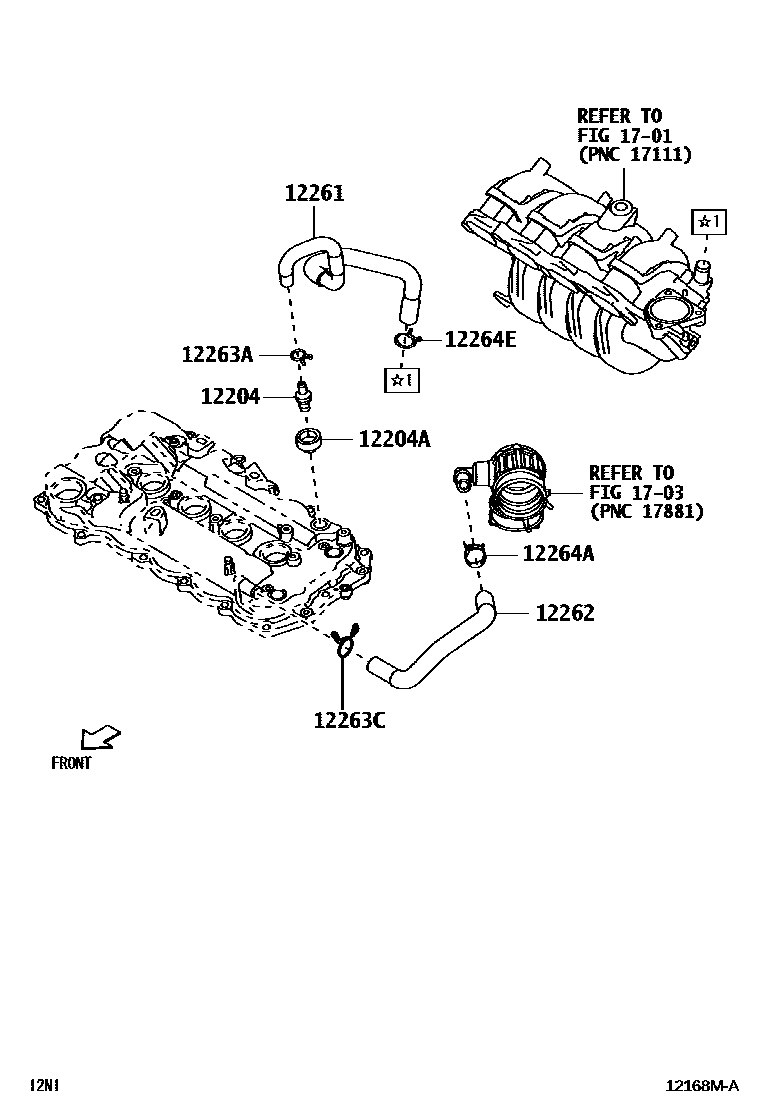

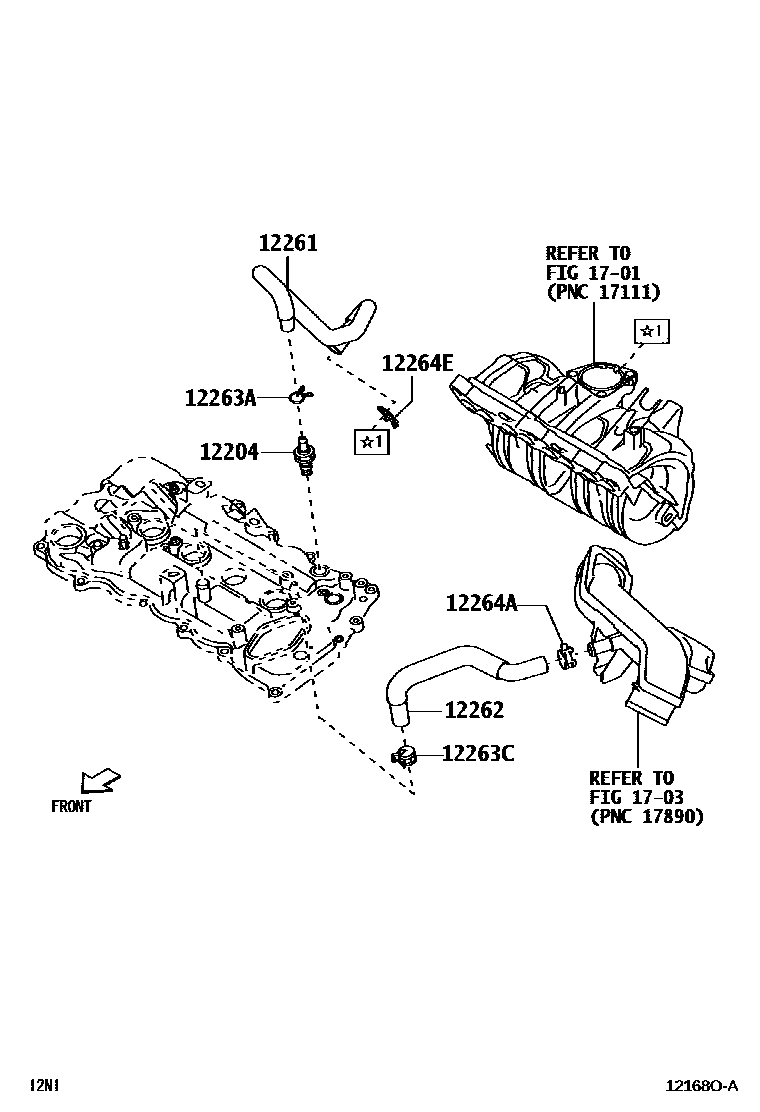

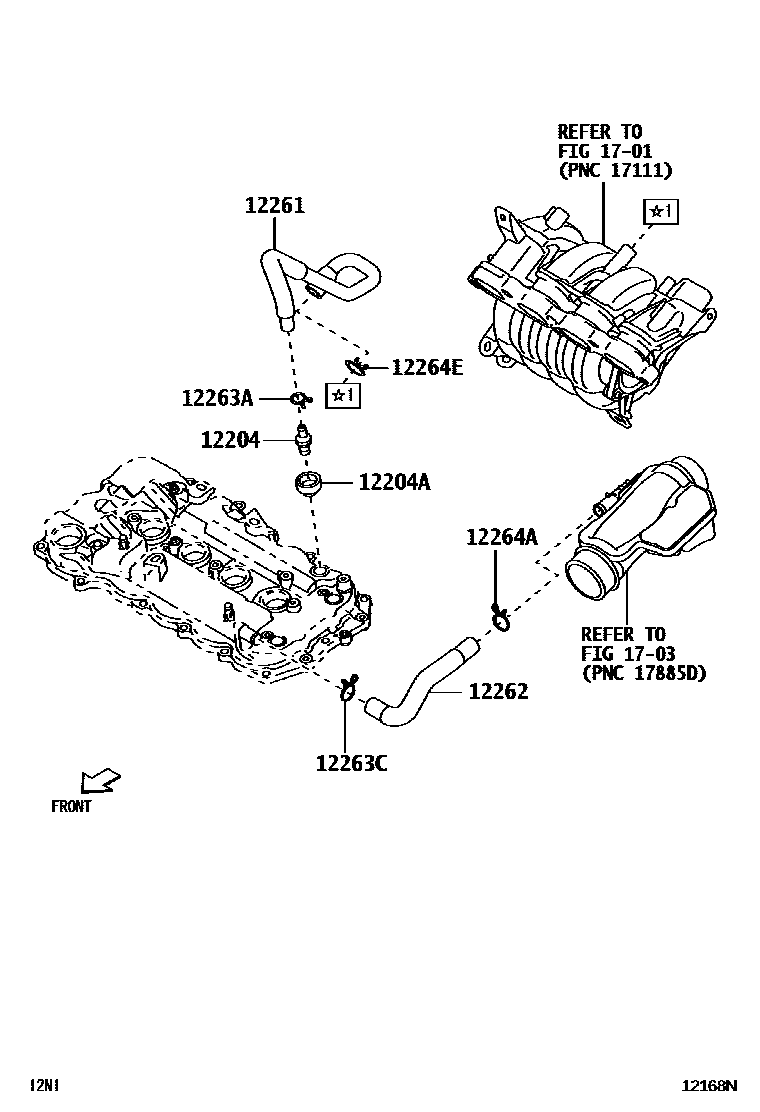

Toyota YARIS Ventilation Hose — Figure 1201
Toyota YARIS EPC diagram 1201, Ventilation Hose, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-0Y020 · 12204-BZ070 · 12204-BZ081 · 12204-BZ091 |
| 12204A | Gasket (for ventilation system) | 90480-T0013 |
| 12261 | Ventilation Hose | 12261-BZ210 · 12261-BZ310 · 12261-BZ320 |
| 12262 | Ventilation hose No. 2 | 12262-BZ190 · 12262-BZ220 · 12262-BZ230 |
| 12263A | Clip (for ventilation hose) | 90466-T0061 |
| 12263C | Clip (for ventilation hose) | 90466-T0020 · 90467-21004 |
| 12264A | Clip (for ventilation hose) | 90466-T0020 · 90466-T0027 · 90467-21004 |
| 12264E | Clip (for ventilation hose) | 90466-T0062 |
