Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 6 PNC and OE references.

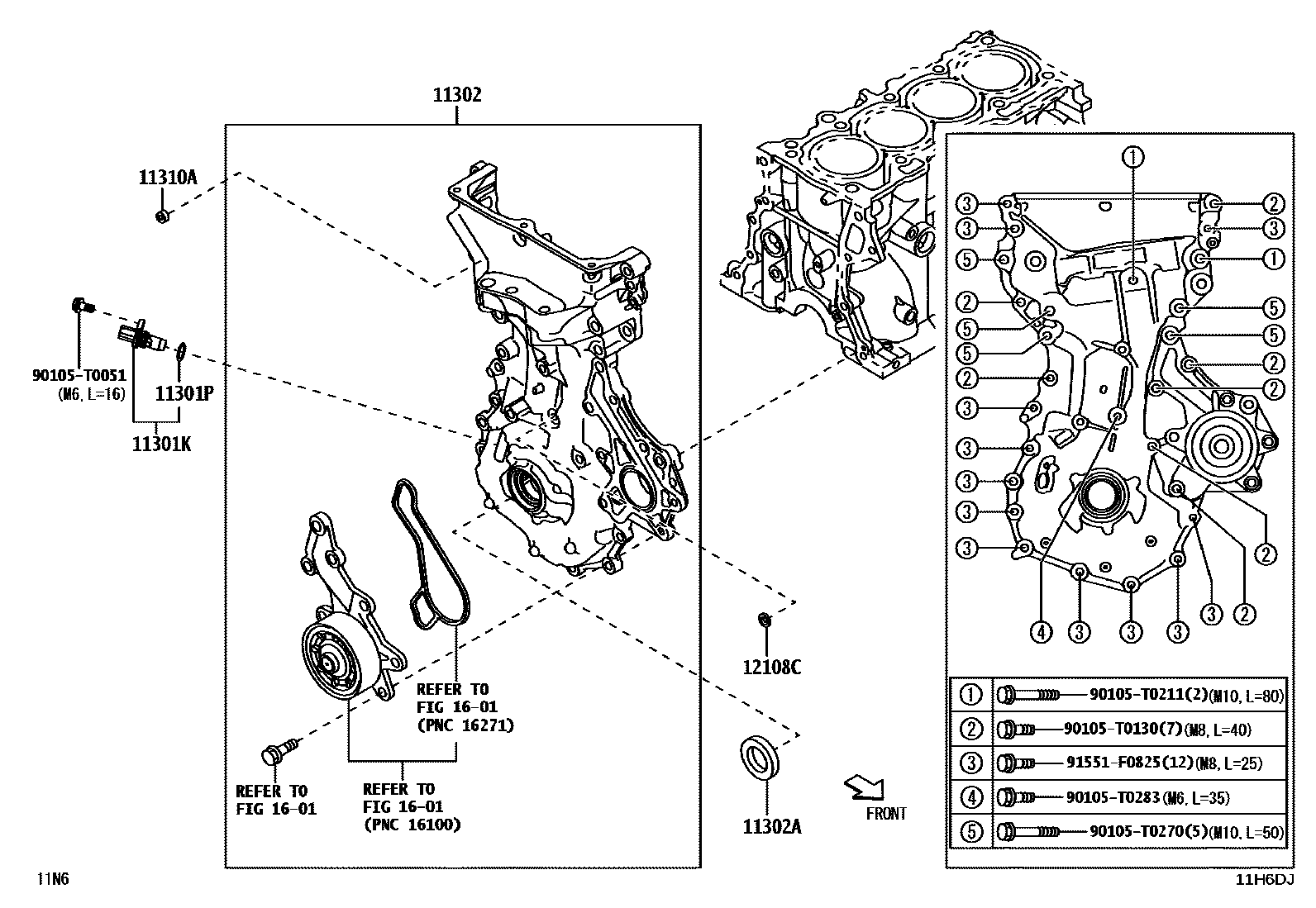

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11H6DJ
Timing Gear Cover & Rear End Plate — 11H6DJ (202510 – 999999)
Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11H6DK
Timing Gear Cover & Rear End Plate — 11H6DK (202510 – 999999)

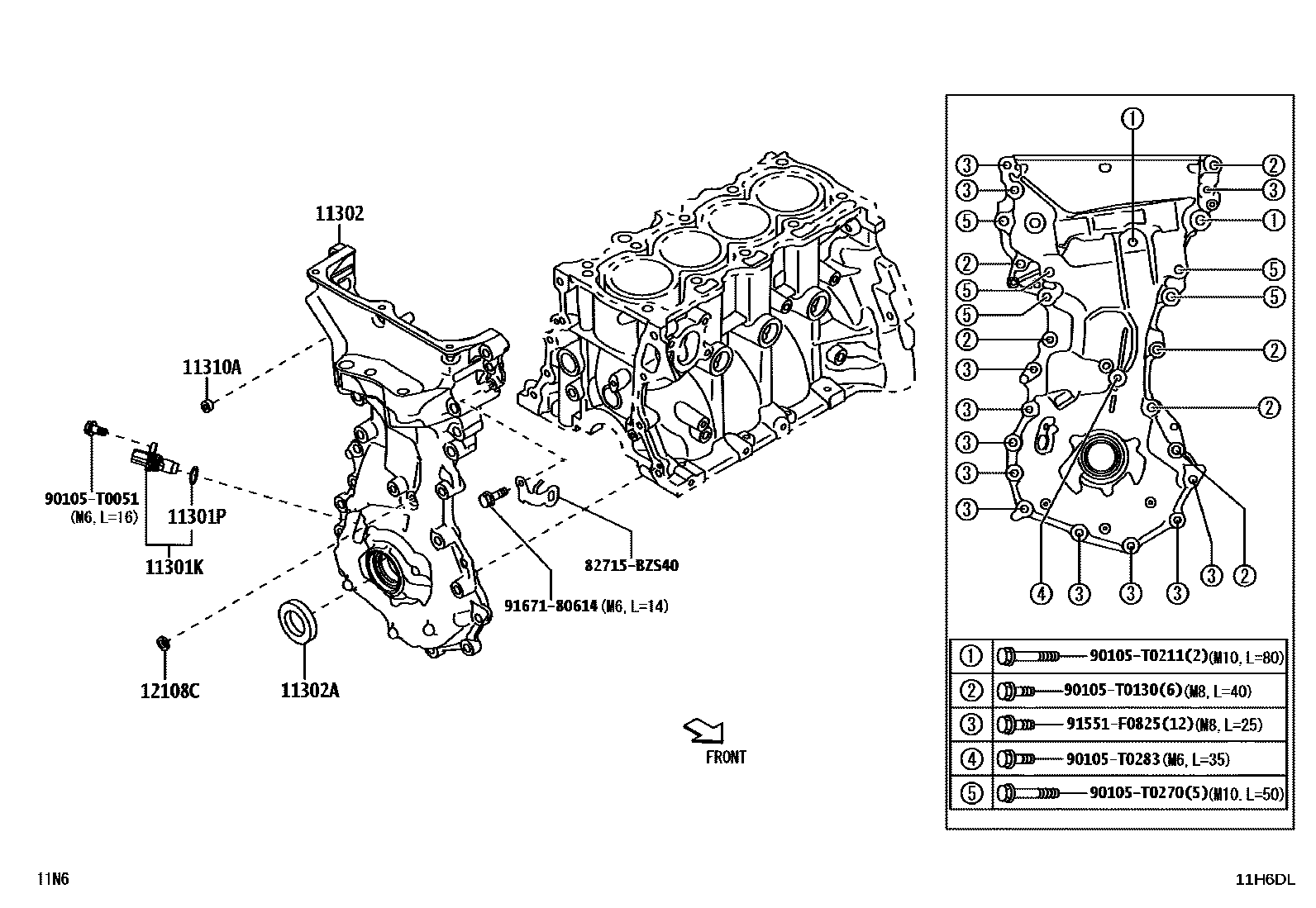

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11H6DL
Timing Gear Cover & Rear End Plate — 11H6DL (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-T5001
11301PCrankshaft position sensor O-ring9004A-30059
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-BZ290 · 11310-BZ300
11302AOil seal (for timing chain or timing belt cover)90311-T0076
11310ATapered thread plug (for timing chain cover)90344-53008
12108Cpadding16258-0Y010
