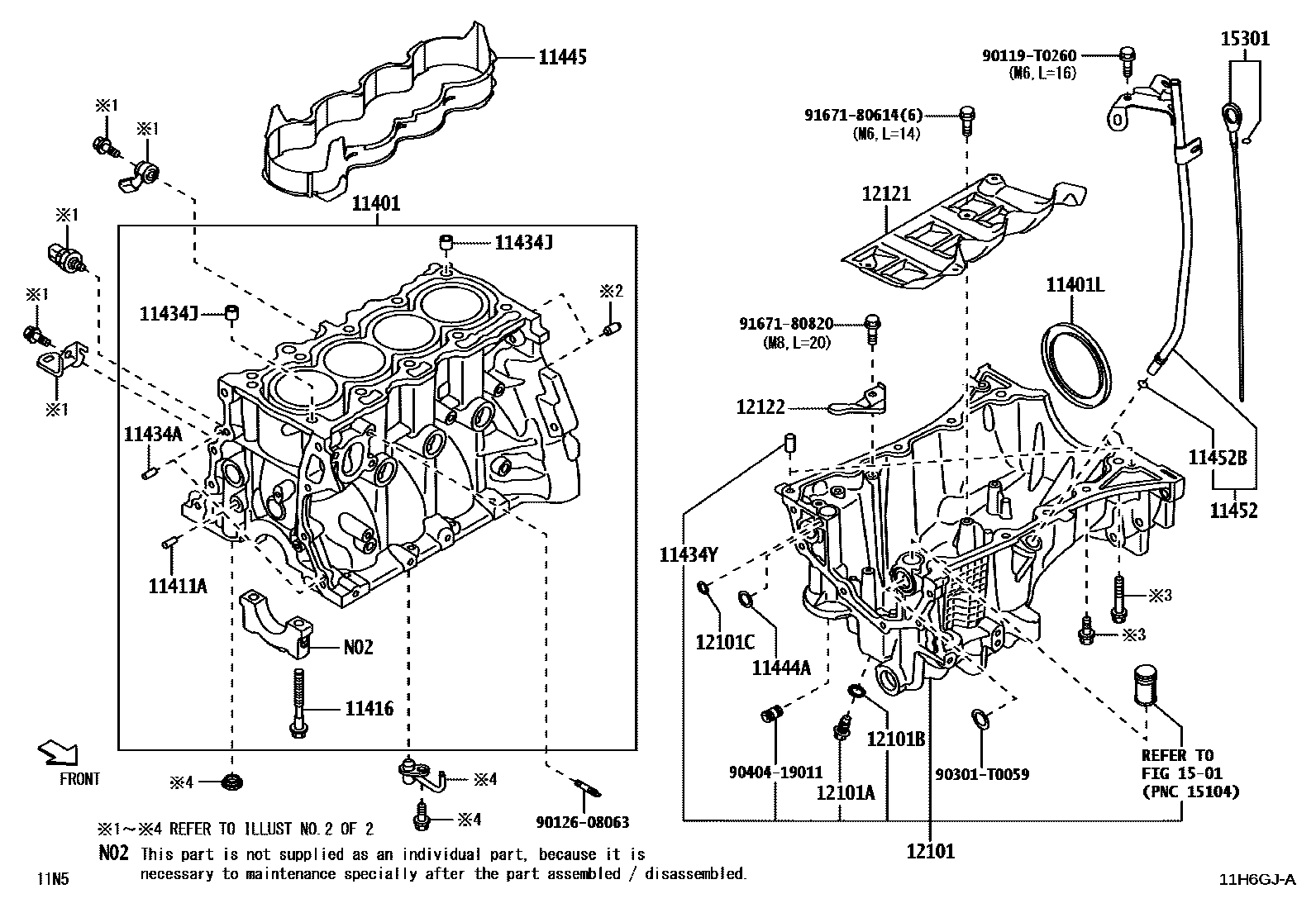

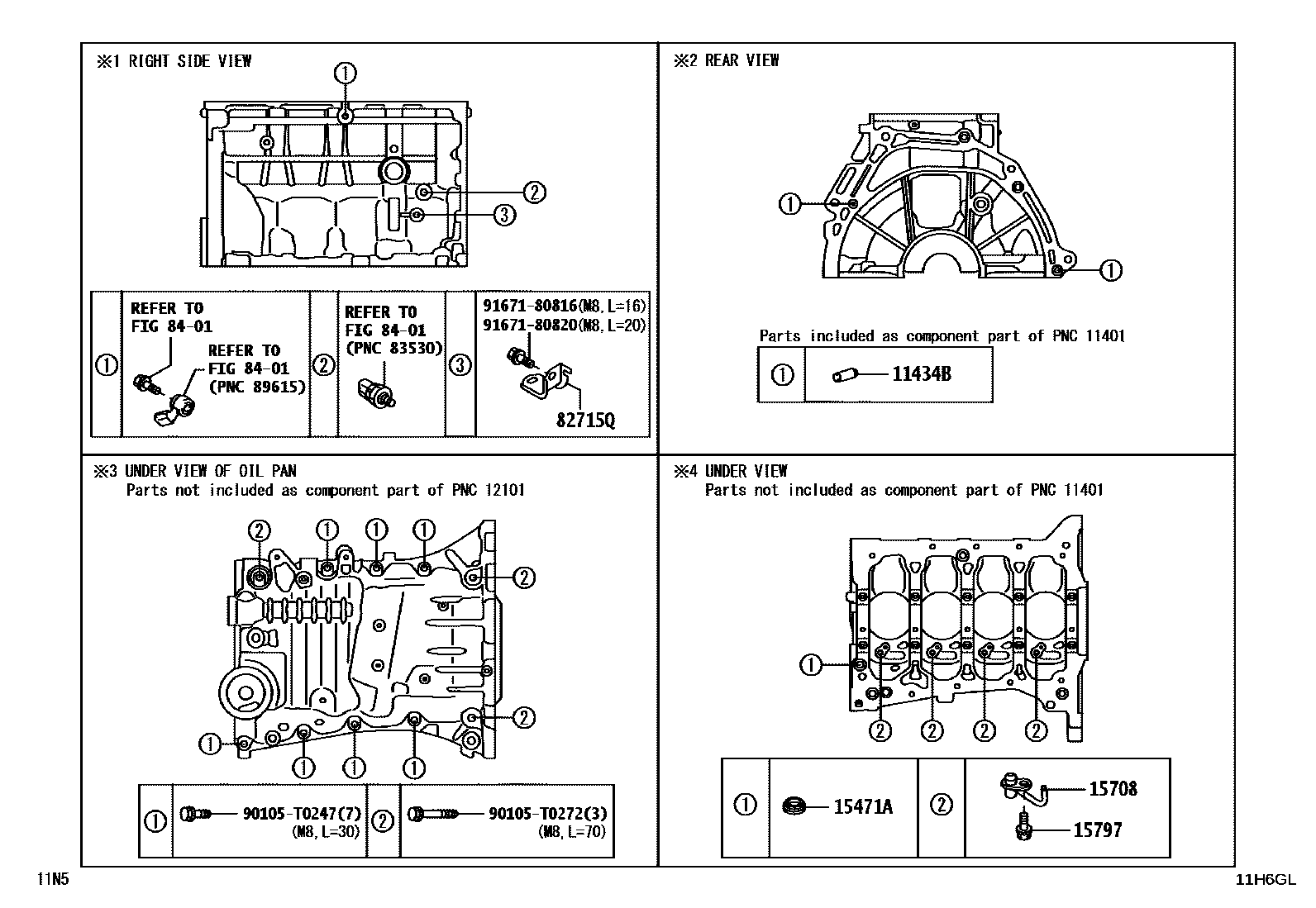

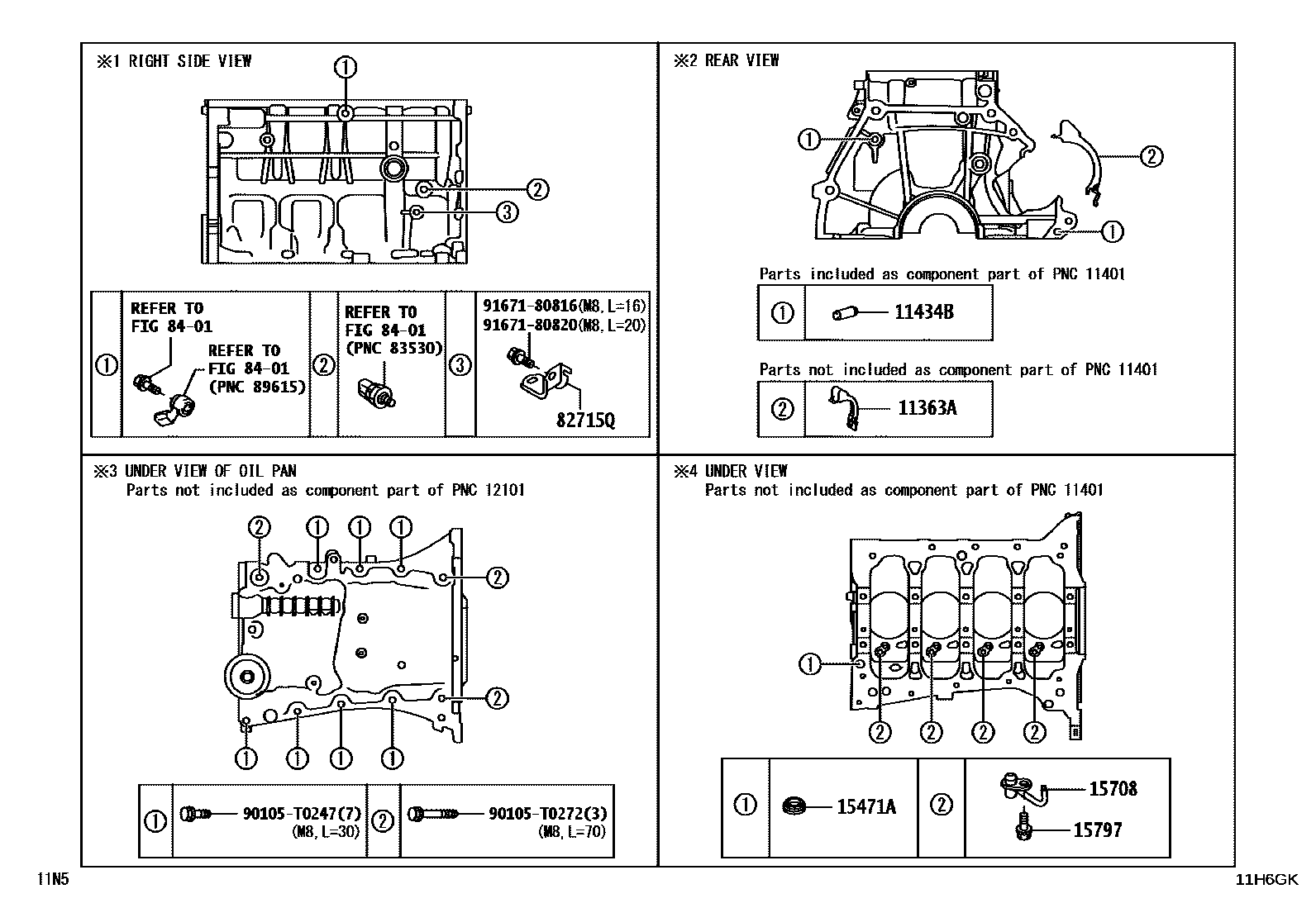

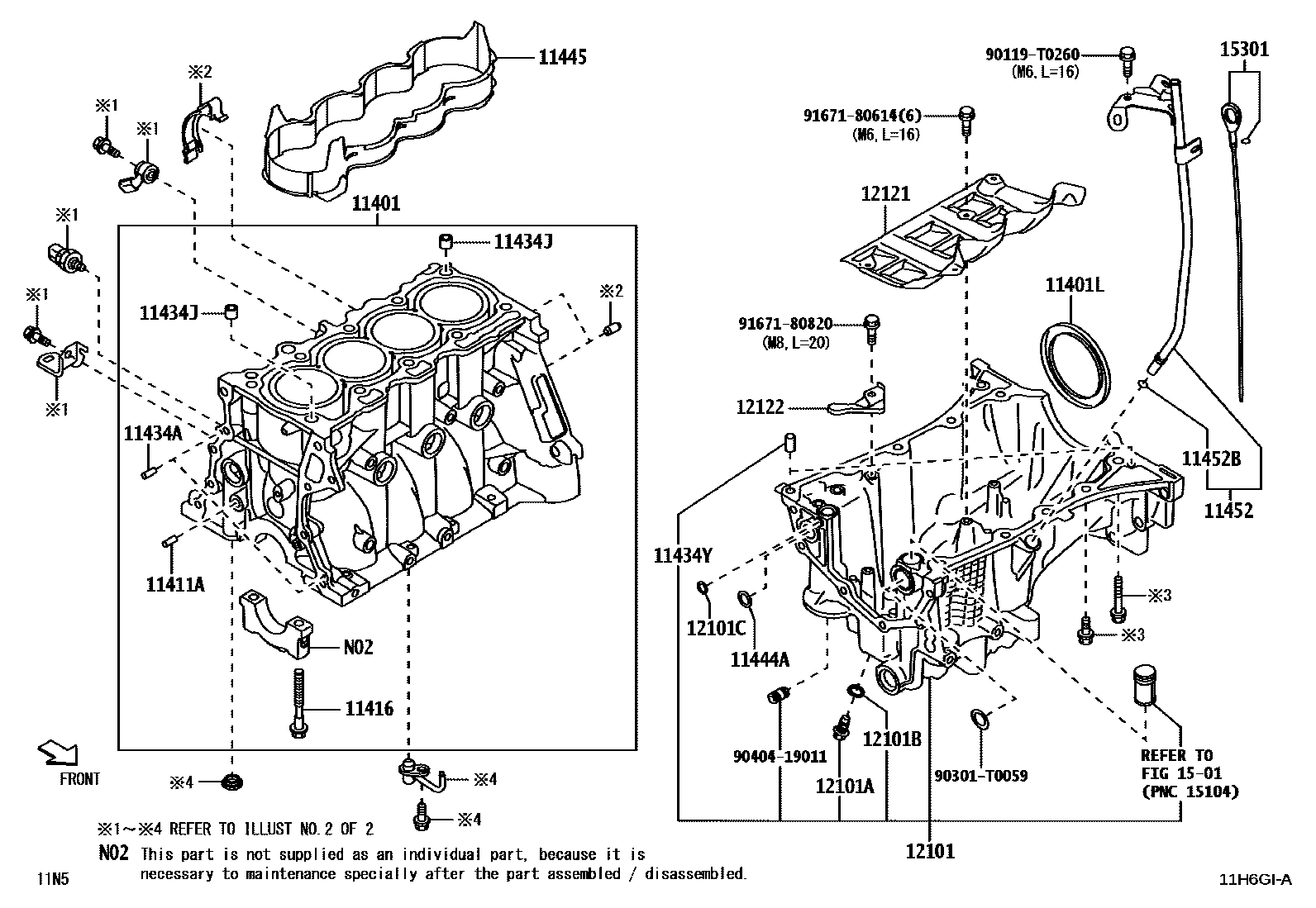

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11363A | Flywheel housing side cover | 11363-0Y020 |
| 11401 | Cylinder block sub-assembly | 11410-B9140 · 11410-B9150 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-T0074 |
| 11411A | Ring pin (for cylinder block No. 1) | 90250-T0019 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-T2013 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11444A | O-ring | 90301-T0057 |
| 11445 | Cylinder block water jacket spacer | 11445-0Y020 |
| 11452 | Engine oil level gauge guide | 11409-BZ180 |
| 11452B | O-ring (for oil level gauge guide) | 9004A-30058 |
| 12101 | Oil pan sub-assembly | 12101-BZ220 · 12101-BZ230 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 90301-T0055 |
| 12121 | No. 1 oil pan baffle | 12121-0Y050 |
| 12122 | No. 2 oil pan baffle | 12122-0Y011 |
| 15301 | Engine oil level scoring assembly | 15301-BZ180 |
| 15471A | Gasket (for cylinder block) | 90430-T0023 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0Y040 |
| 15797 | Oil nozzle connector bolt | 90110-06040 |
| 82715Q | Wire harness clamp bracket | 82715-BZP20 |
