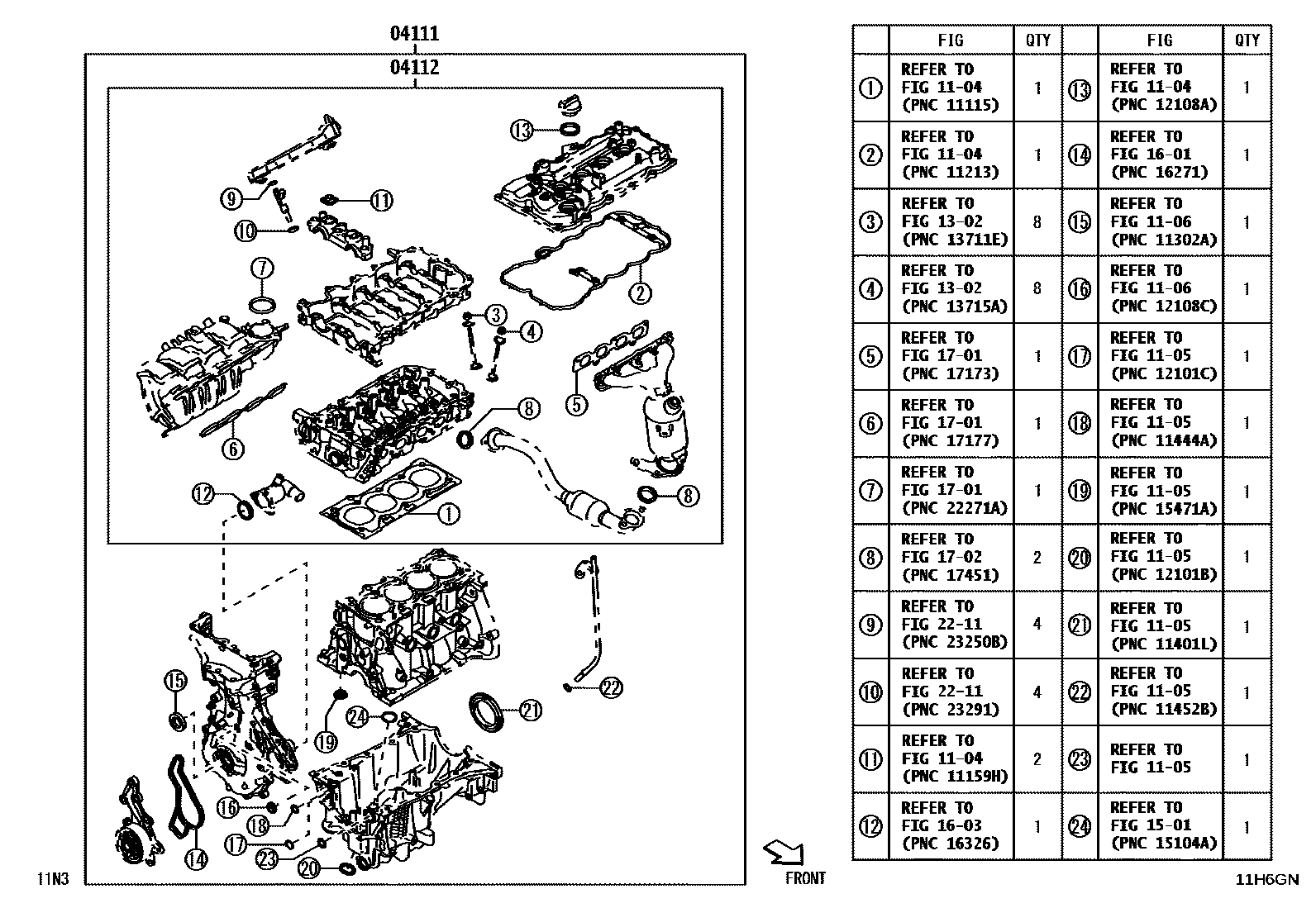

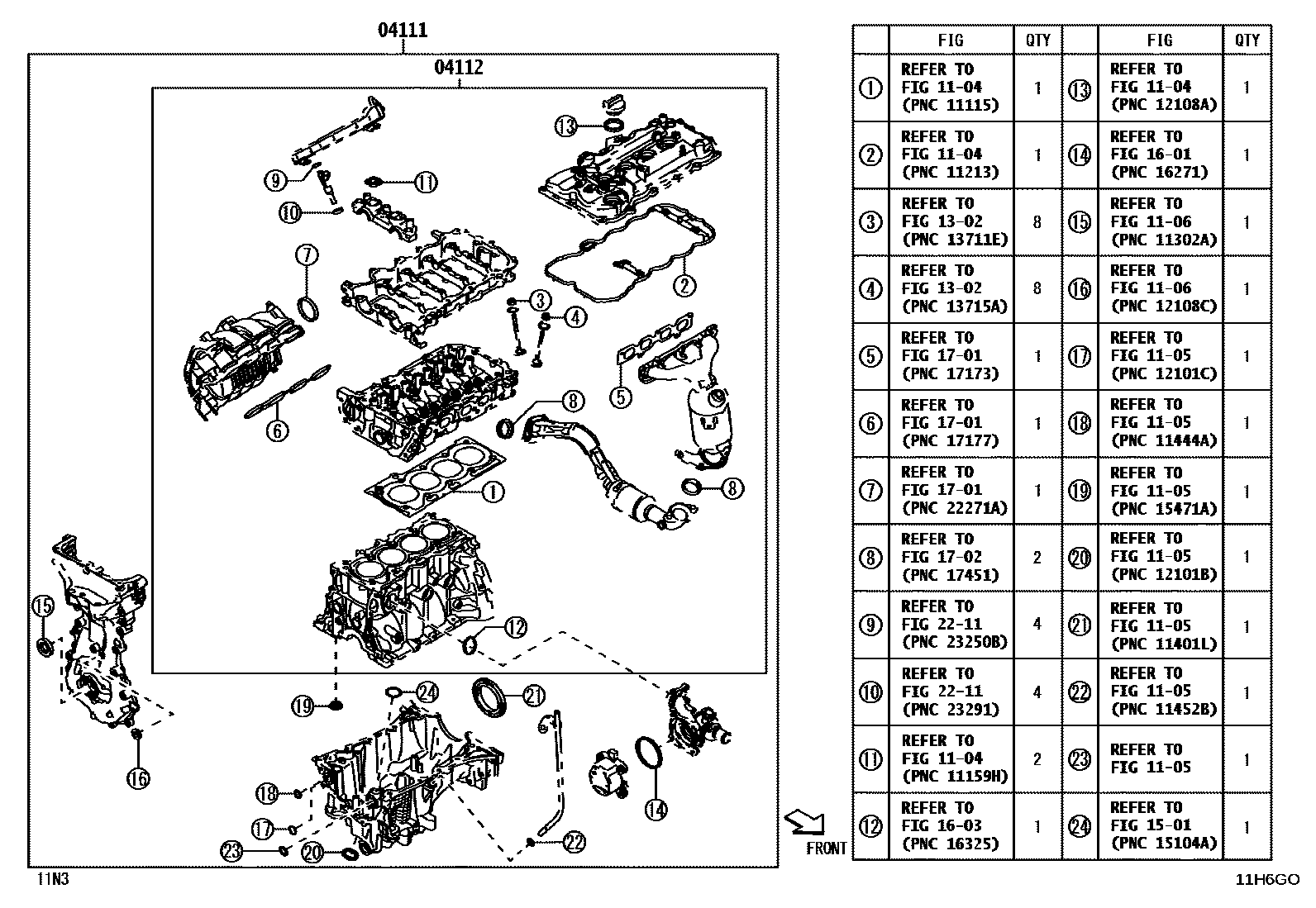

Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103
Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-BZA31 · 04111-BZA40 · 04111-BZA50 · 04111-BZA60 |
| 04112 | Engine valve grinding pad assembly | 04112-BZA31 · 04112-BZA40 · 04112-BZA50 · 04112-BZA60 |
