Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 2 images and 1 PNC and OE references.

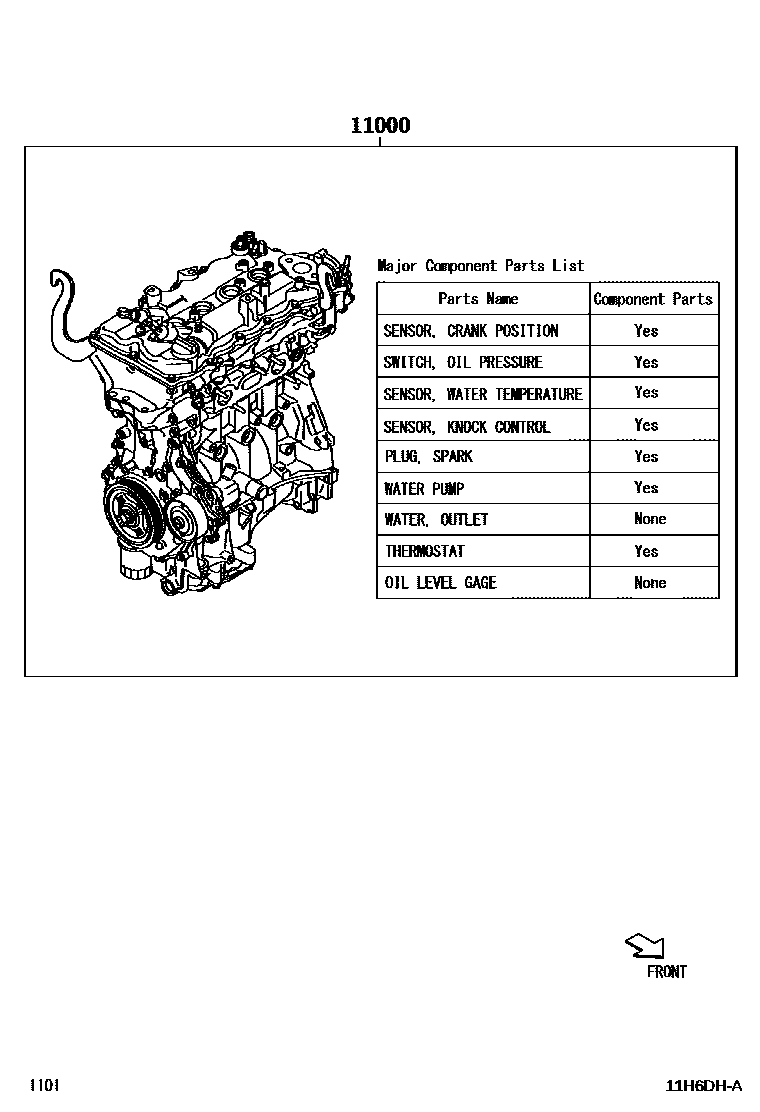

Toyota YARIS Partial Engine Assembly EPC diagram — 11H6DHA
Partial Engine Assembly — 11H6DHA (202510 – 999999)

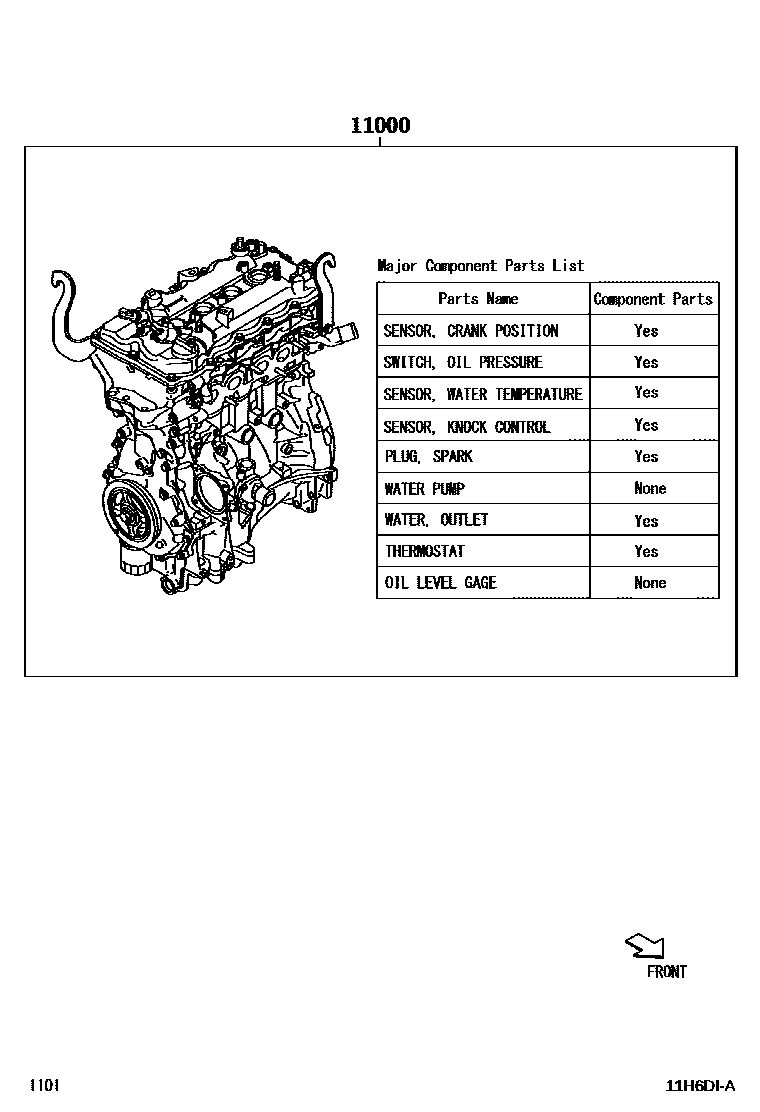

Toyota YARIS Partial Engine Assembly EPC diagram — 11H6DIA
Partial Engine Assembly — 11H6DIA (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-BZA46 · 19000-BZA56 · 19000-BZA66 · 19000-BZA77
