Toyota YARIS Standard Tools — Figure 0901

Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.

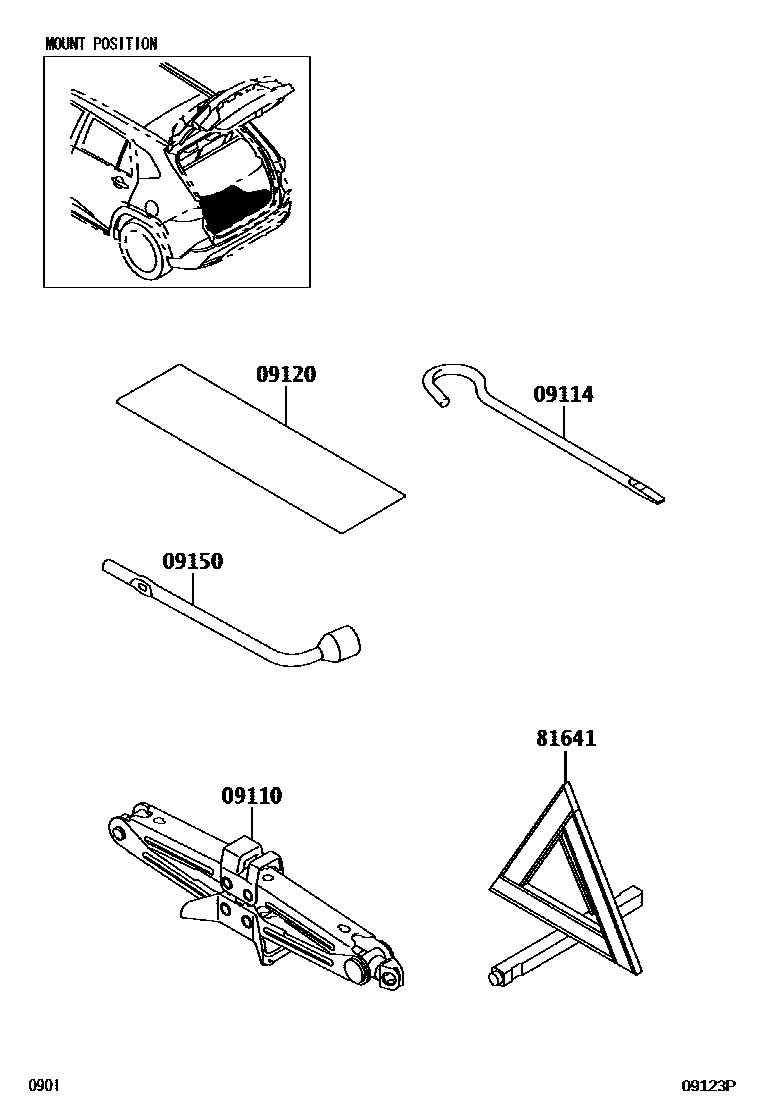

Toyota YARIS Standard Tools EPC diagram — 09123P
Standard Tools — 09123P (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-BZ240
09114Jack Handle Extension Sub-Assembly09114-BZ100
09120Tool Bag09120-0D200
09150Wheel Nut Wrench Case09151-BZ050
81641triangular reflector81641-0D050
