Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

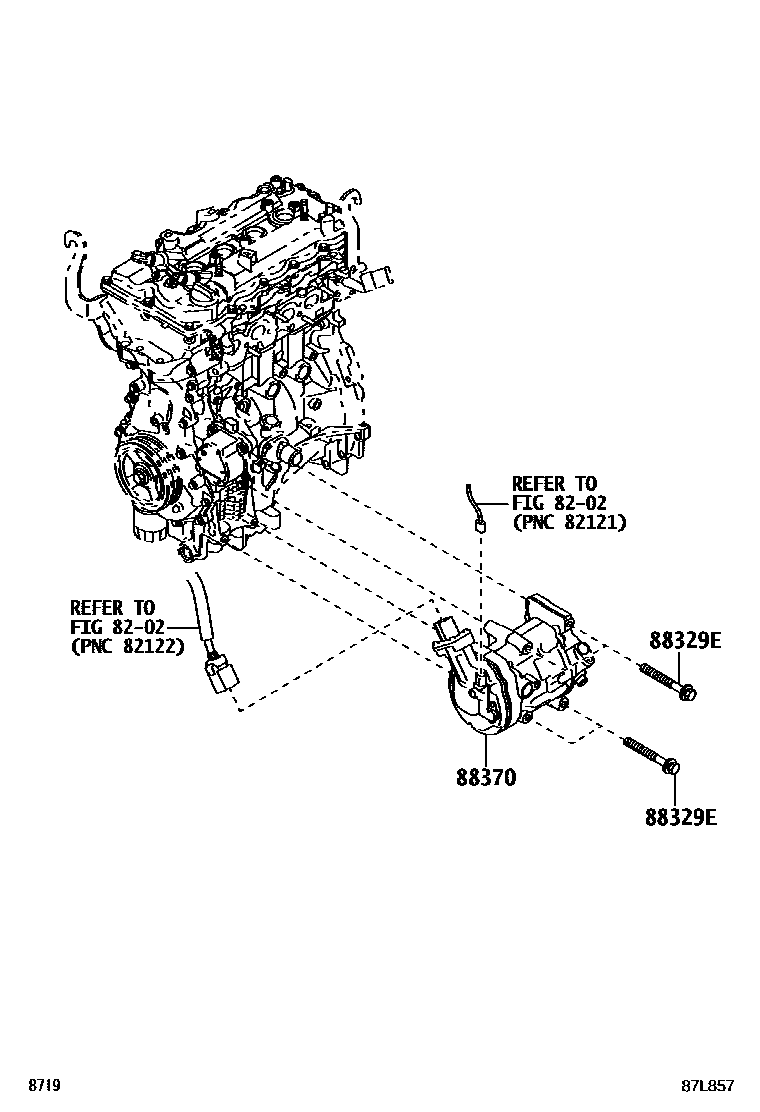

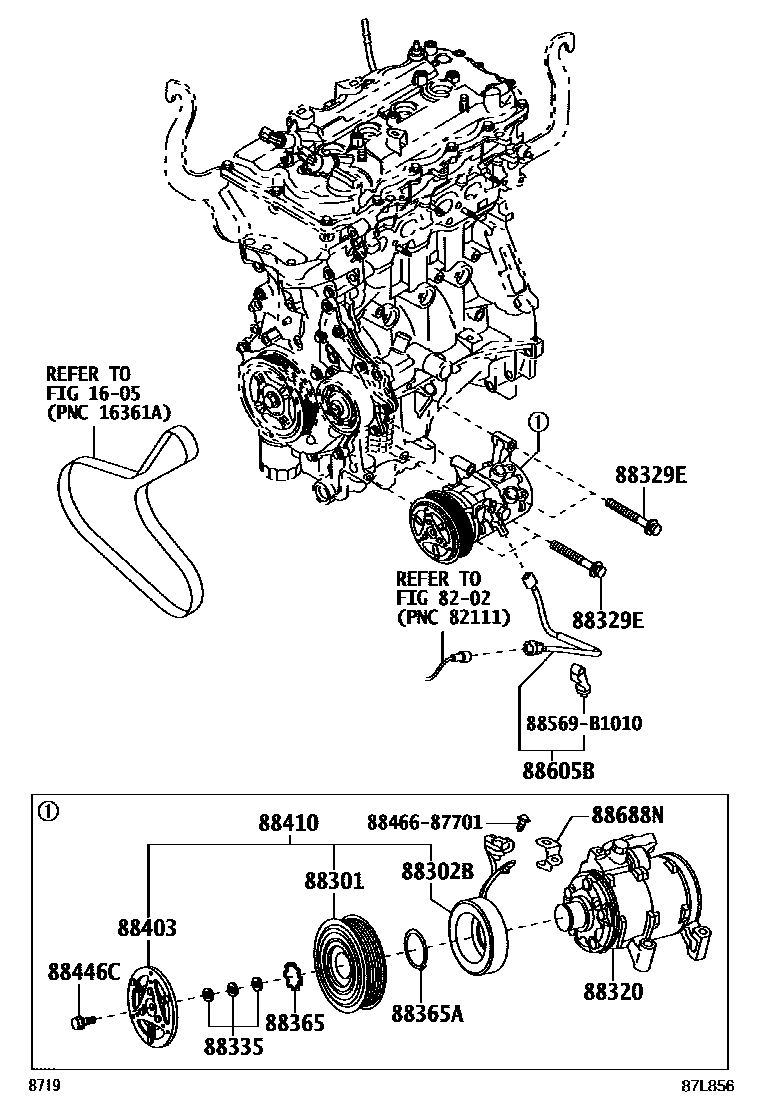

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-BZ200 |
| 88302B | Electromagnetic clutch stator | 88411-BZ270 |
| 88320 | Cooler Compressor Assembly | 88320-BZ400 |
| 88329E | No. 1 compressor bolt | 88329-B1020 · 9004A-10144 · 90105-T0158 · 91551-80850 |
| 88335 | Overhaul gasket assembly | 88335-14020 |
| 88365 | snap ring | 90099-07125 |
| 88365A | Snap ring (for compressor) | 90099-07114 |
| 88370 | Compressor assembly with motor | 88370-B1020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-BZ080 |
| 88410 | Magnetic Clutch Assembly | 88410-BZ410 |
| 88446C | Electromagnetic clutch fixing bolt | 90099-04349 |
| 88605B | Air conditioning wiring harness sub-assembly | 82210-BZ020 |
| 88688N | cooler bracket | 88688-BZ290 |
