Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

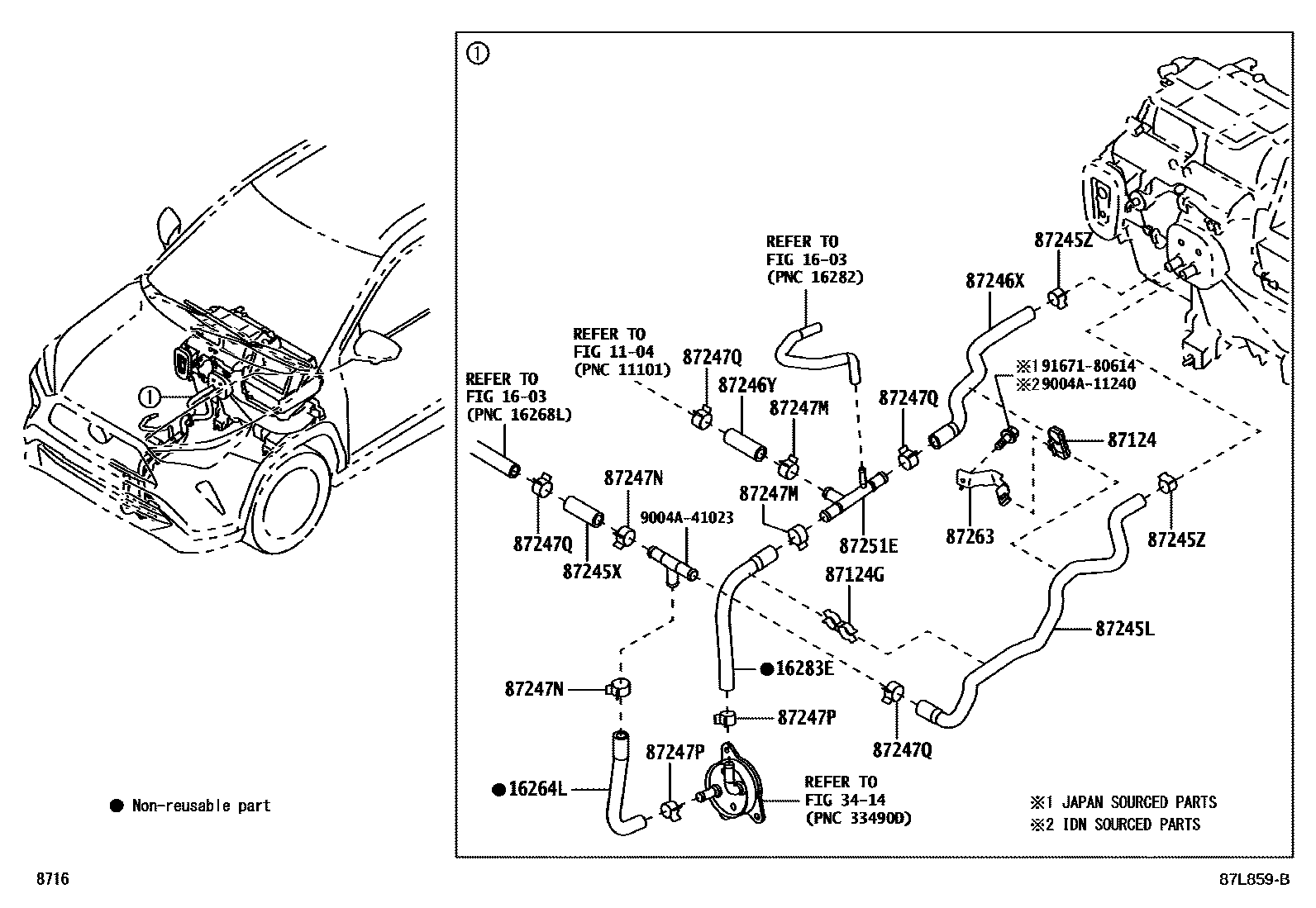

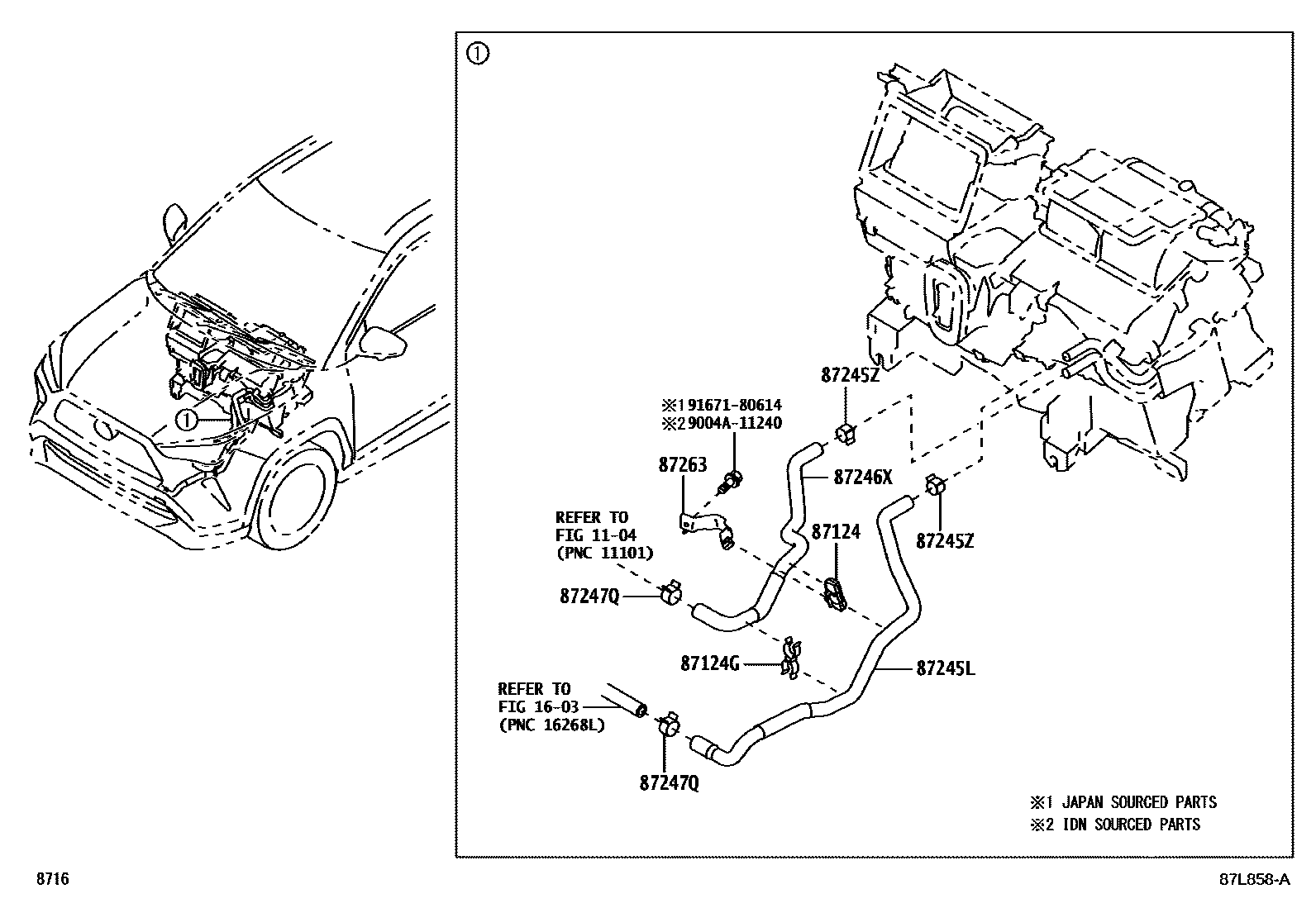

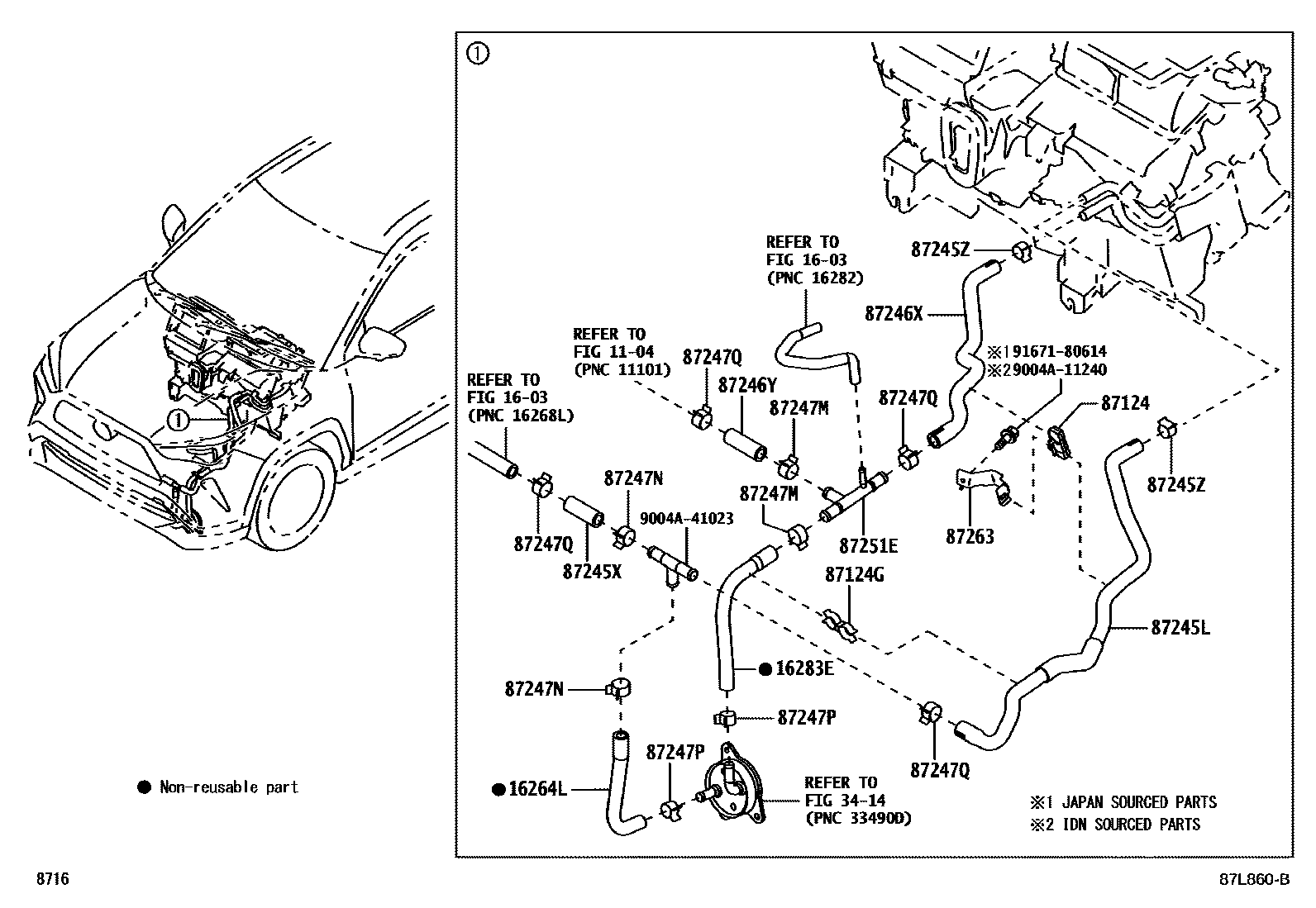

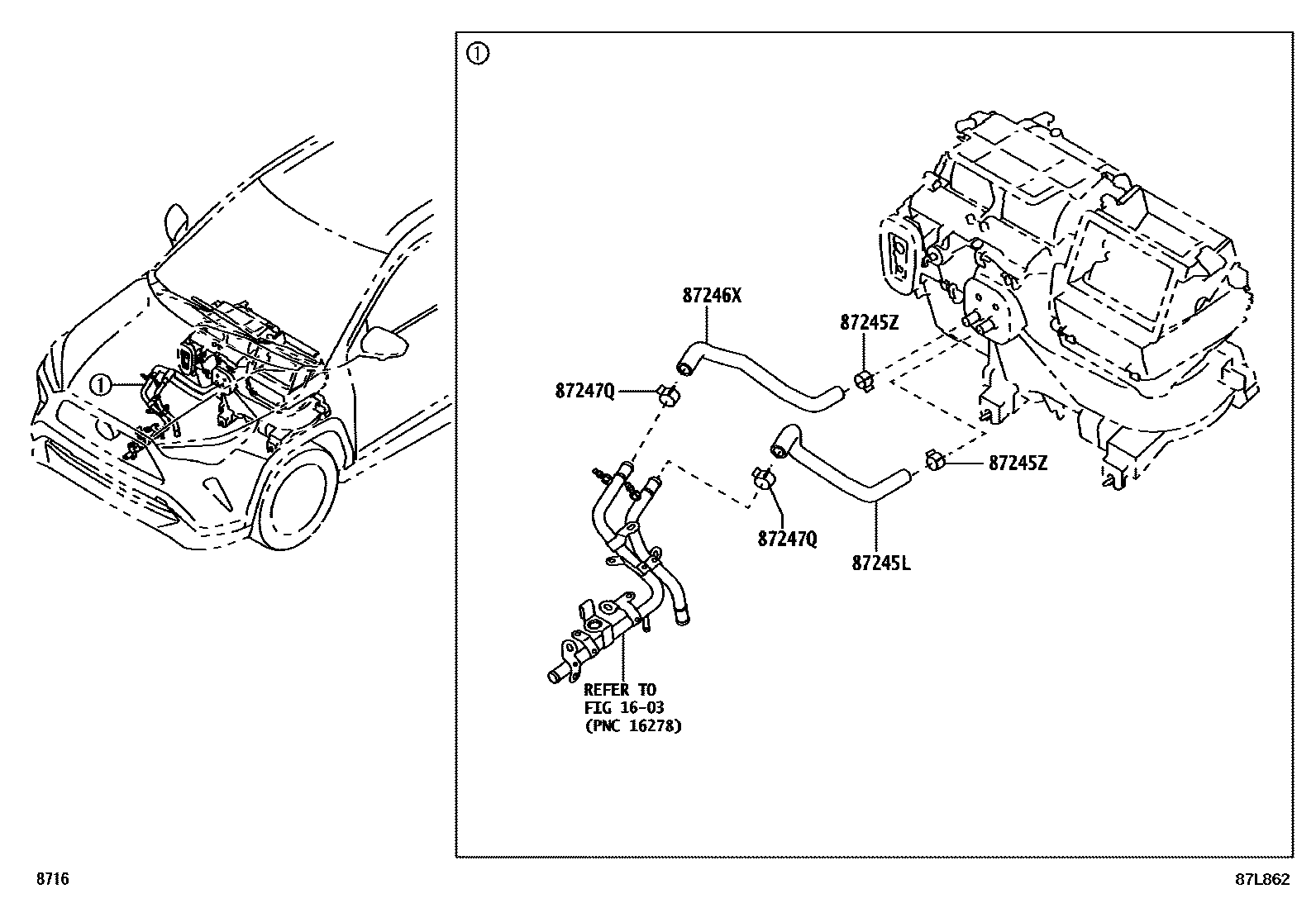

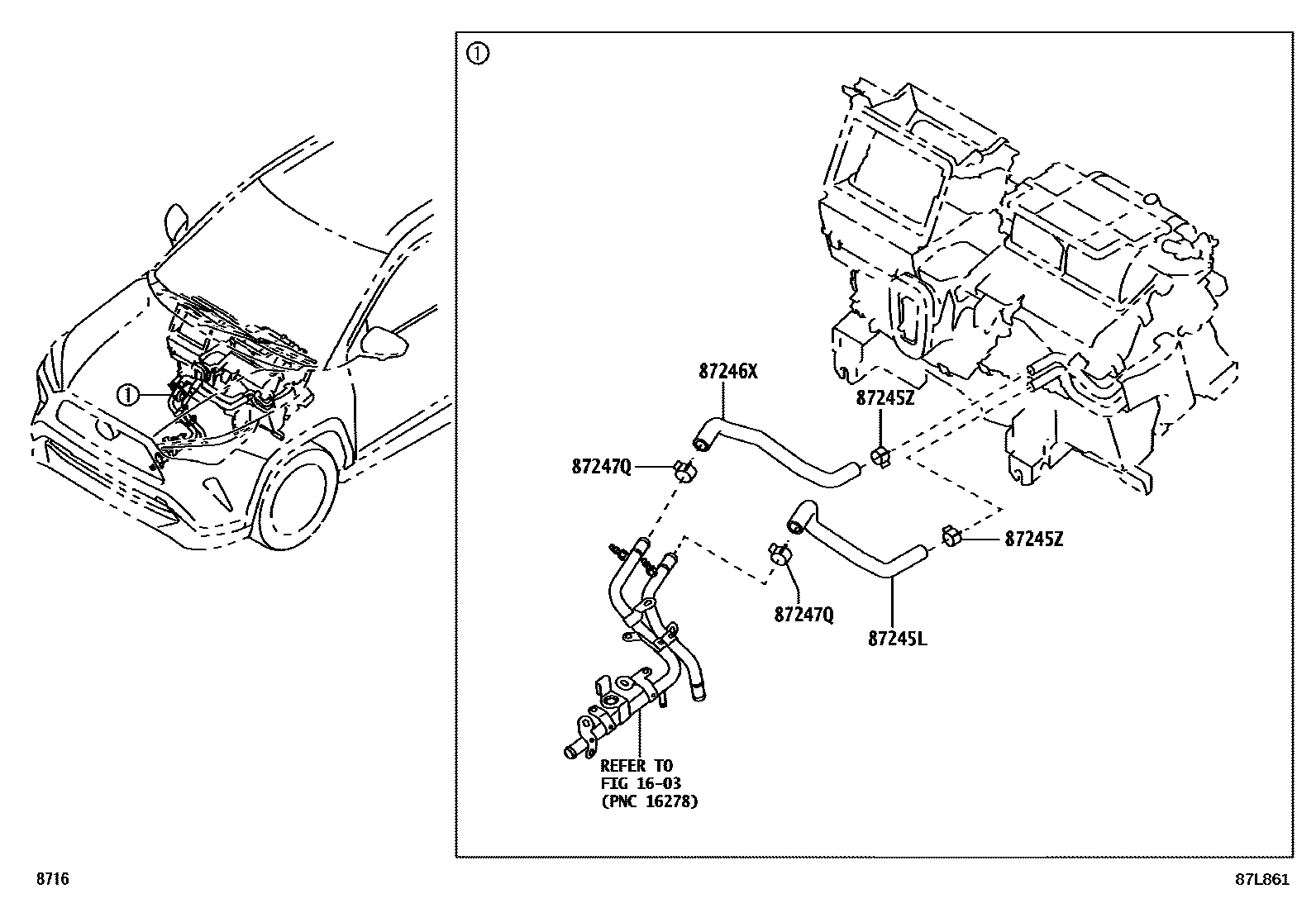

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16264L | HOSE, WATER BY-PASS, NO.2 | 16264-BZ240 |
| 16283E | HOSE, WATER BY-PASS, NO.6 | 16261-BZ440 |
| 87124 | heater clip | 87124-B2080 |
| 87124G | No. 2 heater hose clamp | 87124-BZ030 · 87124-BZ150 |
| 87245L | Heater water hose L | 87245-BZ380 · 87245-BZ390 · 87245-BZ410 · 87245-BZ470 · 87245-BZ480 |
| 87245X | heater water hose | 87242-BZ060 |
| 87245Z | Clip or clip (for heater water hose) | 90466-T0017 · 96136-42101 |
| 87246X | heater water hose | 87246-BZ320 · 87246-BZ330 · 87246-BZ350 · 87246-BZ410 · 87246-BZ420 |
| 87246Y | heater water hose | 87243-BZ050 |
| 87247M | Hose clip | 90466-T0020 · 96136-42501 |
| 87247N | Hose clip | 96136-42501 |
| 87247P | Hose clip | 96136-42101 |
| 87247Q | Hose clip | 90466-T0020 · 96136-42501 |
| 87251E | No. 2 water hose connector | 87251-BZ020 |
| 87263 | No. 1 heater water pipe bracket | 87263-BZ020 |
