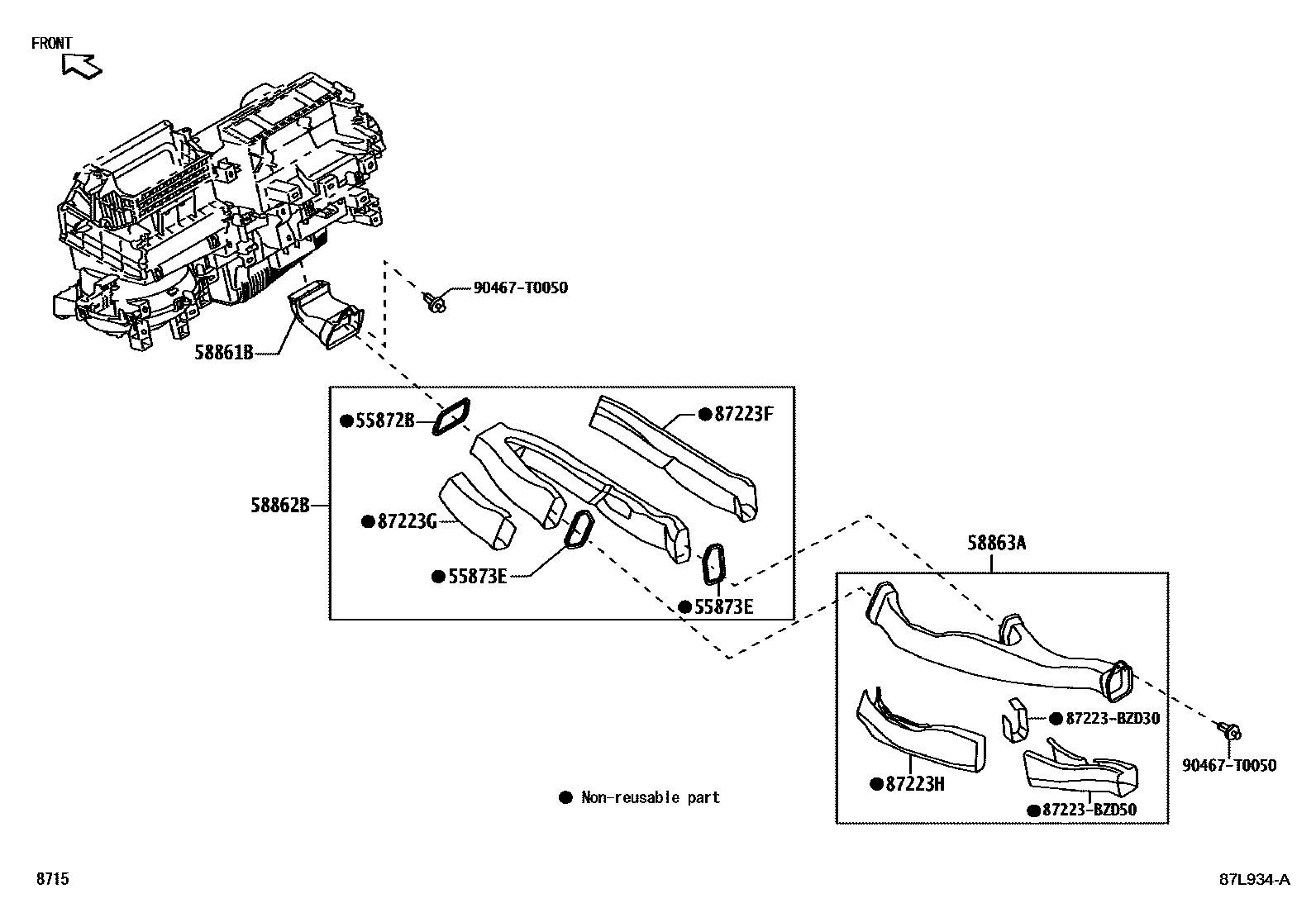

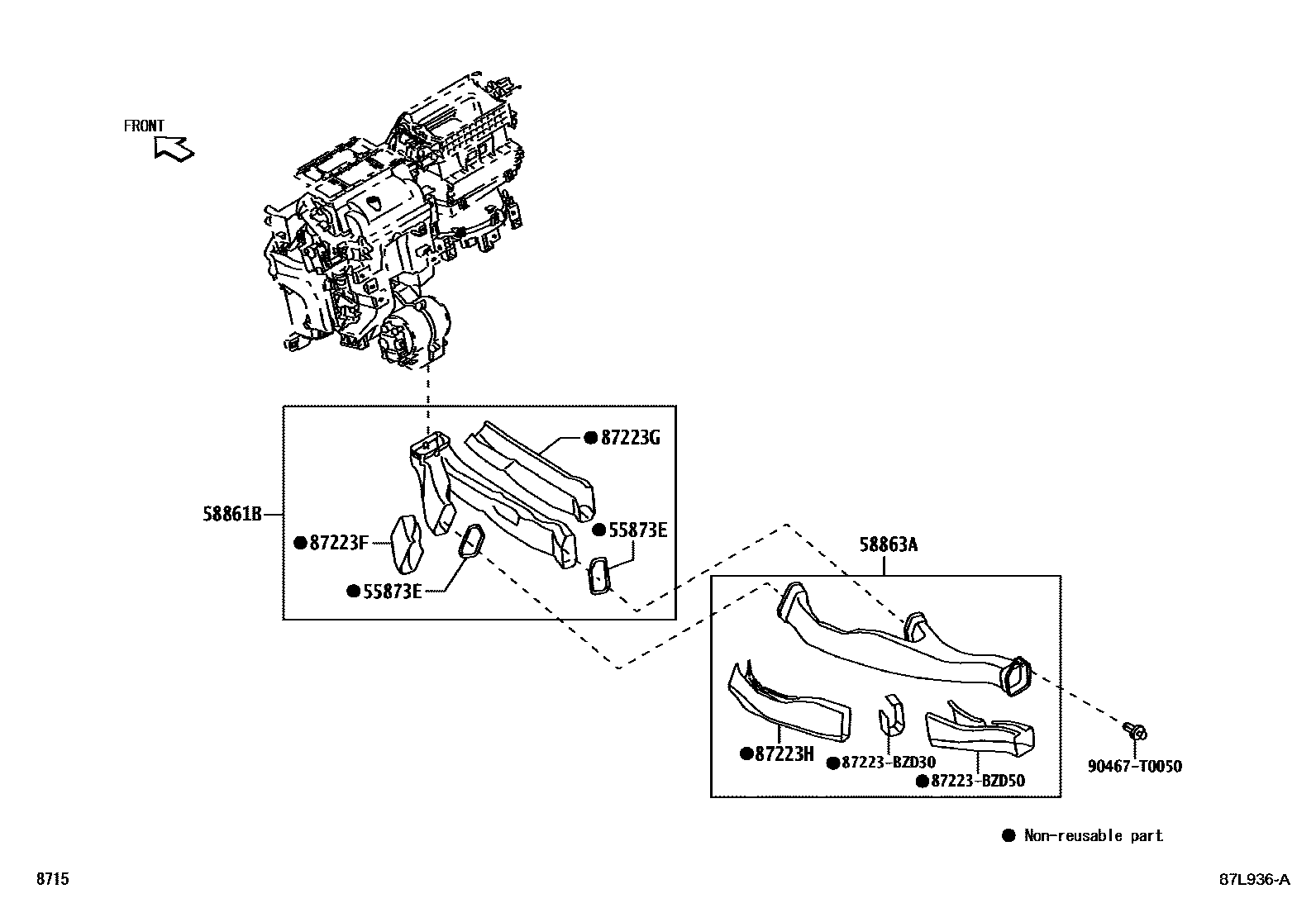

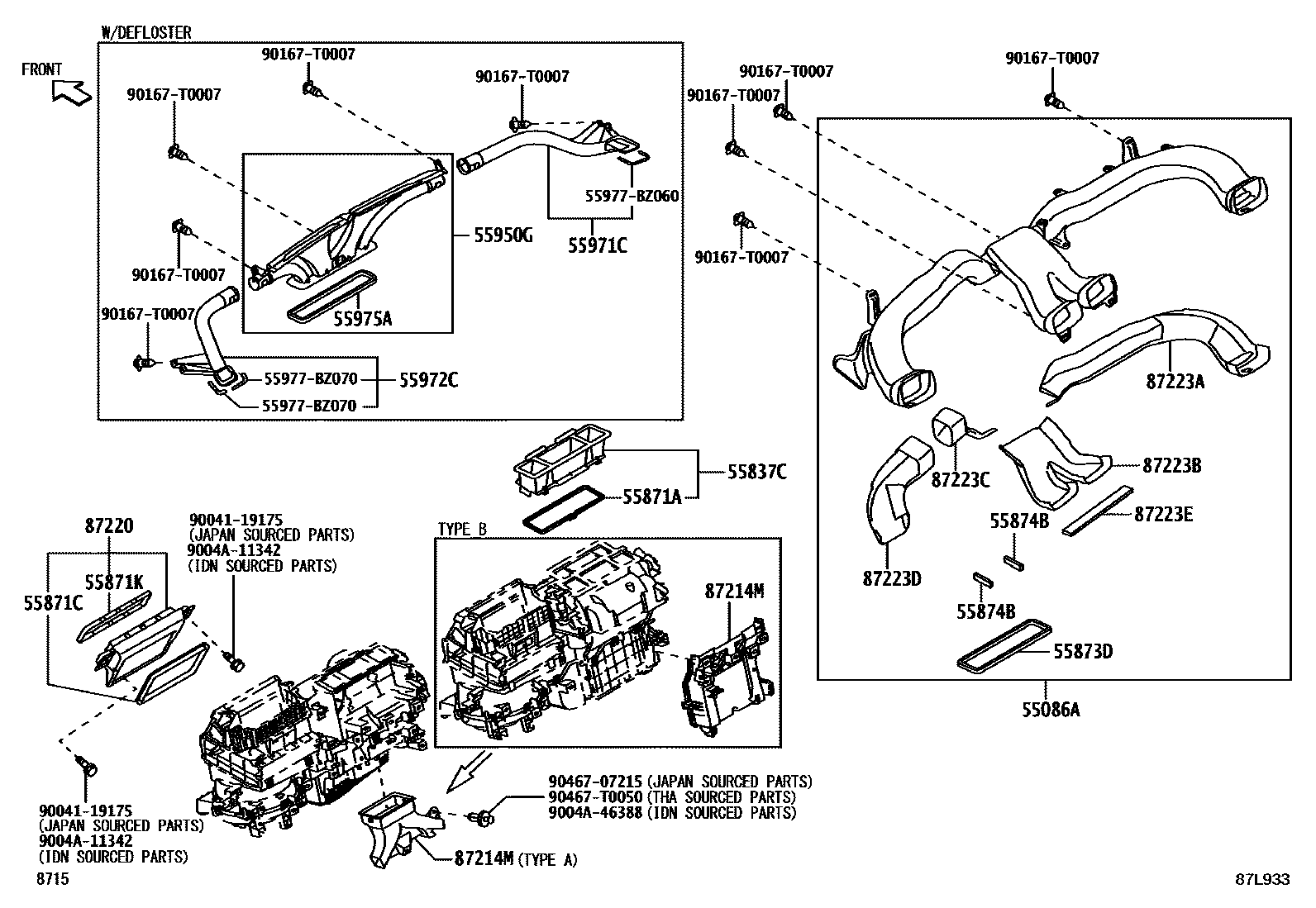

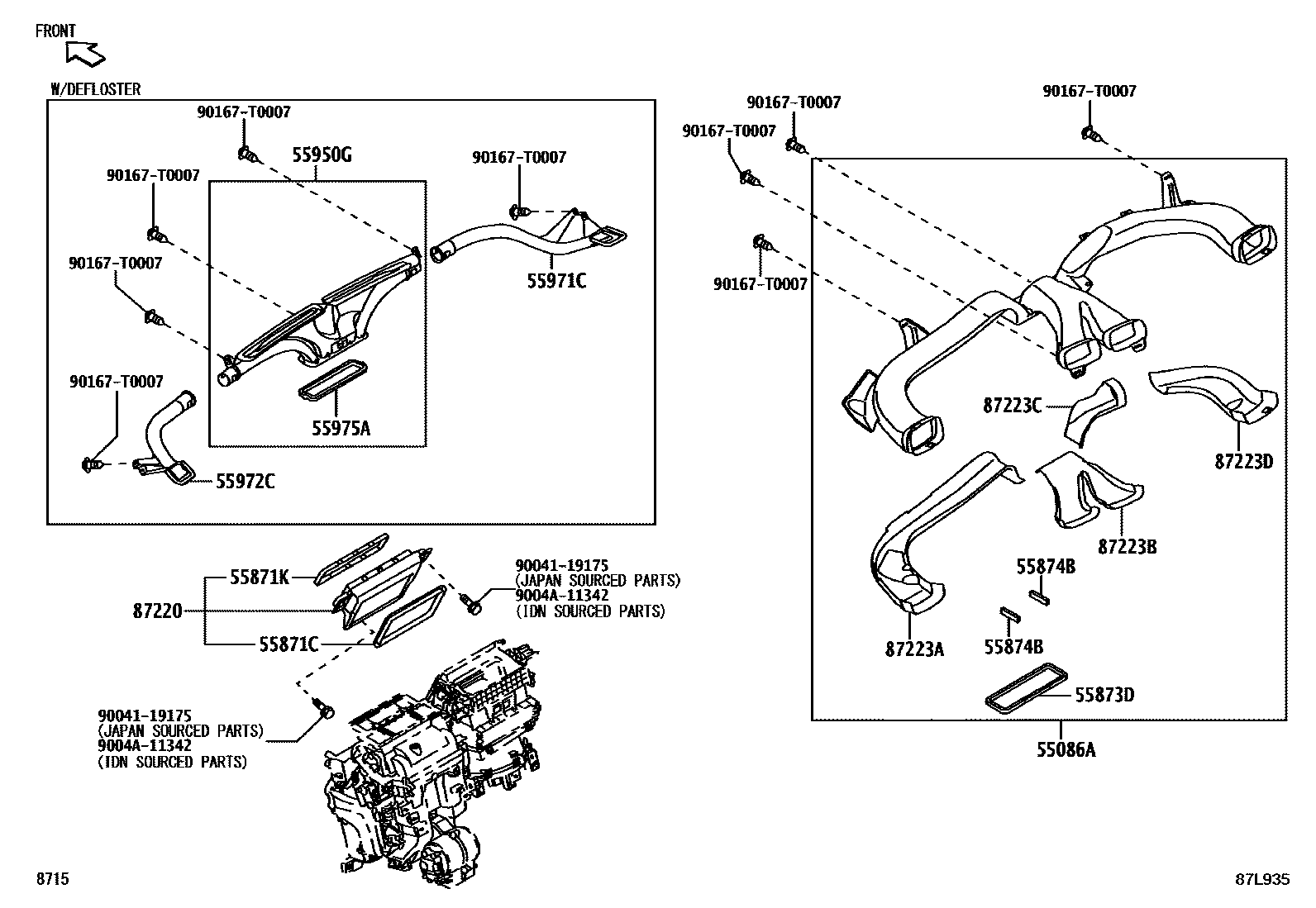

Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55086A | Heater to central air register air duct sub-assembly | 55086-BZ450 · 55086-BZ460 |
| 55837C | Central auxiliary air duct from heater to air register | 55837-BZ020 · 55837-BZ030 |
| 55871A | No. 1 air duct seal | 55872-BZ160 · 55872-BZ180 |
| 55871C | Air duct seals | 55875-BZ060 |
| 55871K | Air duct seals | 55876-BZ020 |
| 55872B | No. 2 air duct seal | 55873-BZ150 |
| 55873D | central duct seal | 55873-BZ160 · 55873-BZ180 |
| 55873E | Air duct seals | 55873-BZ220 |
| 55874B | No. 4 air duct seal | 55874-BZ060 · 55874-BZ080 |

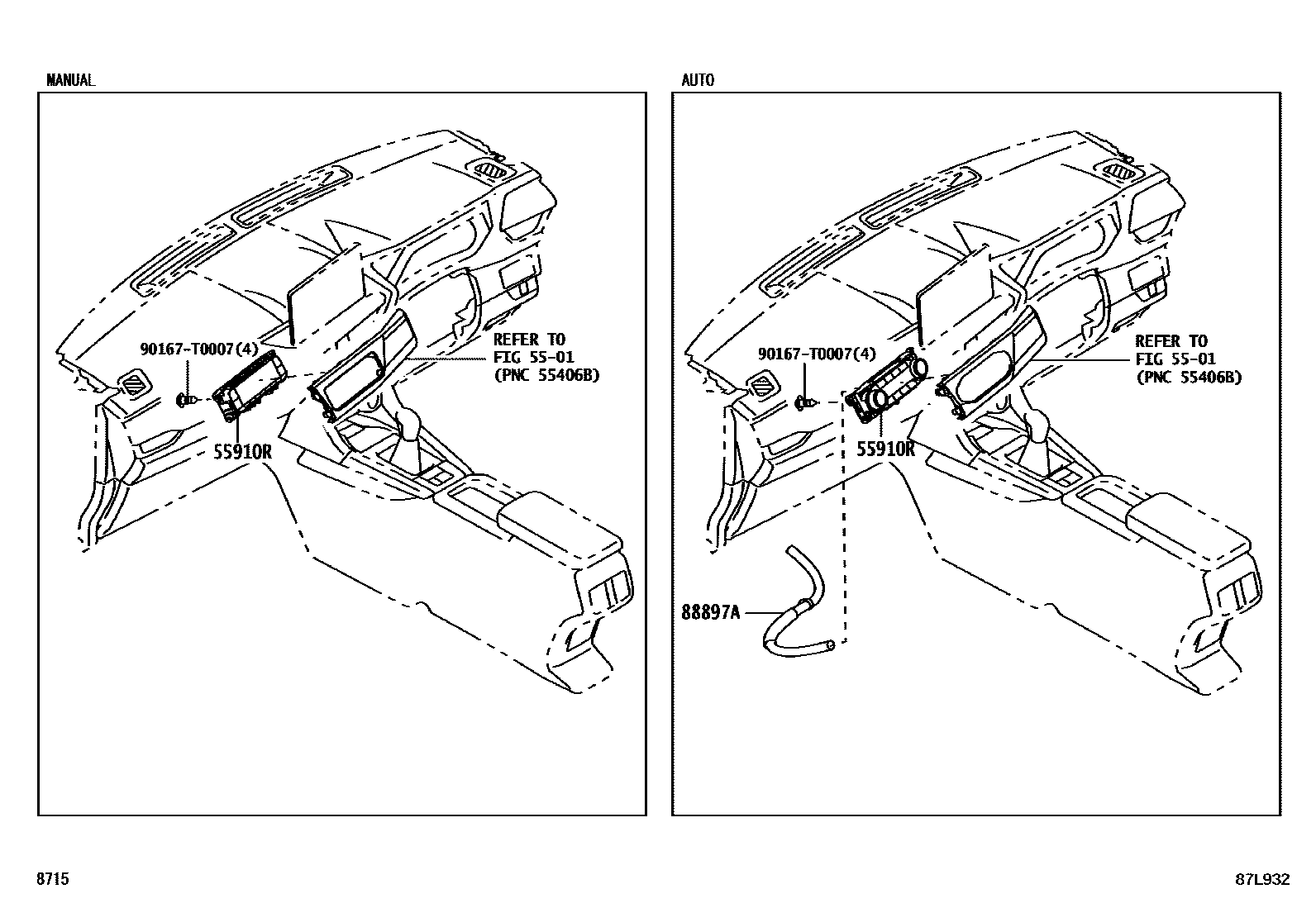

| 55910R | Heater control assembly | 55910-BZA40 · 55910-BZA50 · 55910-BZB10 · 55910-BZB70 · 55910-BZB71 · 55910-BZB80 · 55910-BZB81 · 55910-BZB90 · 55910-BZB91 · 55910-BZC00 · 55910-BZC01 · 55910-BZC10 · 55910-BZC11 · 55910-BZC20 · 55910-BZC21 · 55910-BZC30 · 55910-BZC31 · 55910-BZC70 · 55910-BZC71 · 55910-BZD40 · 55910-BZD41 |
| 55950G | Defroster nozzle assembly | 55950-BZ320 · 55950-BZ330 |
| 55971C | Side defroster No. 1 nozzle air duct | 55961-BZ110 · 55961-BZ130 |
| 55972C | Side defroster No. 2 nozzle air duct | 55962-BZ110 · 55962-BZ130 |
| 55975A | Defroster No. 1 Nozzle Seal | 55975-BZ080 · 55975-BZ100 |
| 58861B | Air duct No. 1 for armrest box | 58861-BZ010 · 58861-BZ040 |
| 58862B | Air duct No. 2 for armrest box | 58862-BZ030 |
| 58863A | Armrest box No. 3 air duct | 58863-BZ020 · 58863-BZ040 |
| 87214M | Heater to foot duct No. 3 | 87214-BZ010 · 87214-BZ040 |
| 87220 | Air duct assembly | 87220-BZ490 |
| 87223A | Duct gasket | 87223-BZD90 · 87223-BZF30 |
| 87223B | No. 2 air duct gasket | 87223-BZD80 · 87223-BZF00 |
| 87223C | No. 3 air duct gasket | 87223-BZD60 · 87223-BZF10 |
| 87223D | No. 4 air duct gasket | 87223-BZD70 · 87223-BZF20 |
| 87223E | No. 5 air duct gasket | 87223-BZE10 |
| 87223F | No. 6 air duct gasket | 87223-BZE60 · 87223-BZE80 |
| 87223G | No. 7 air duct gasket | 87223-BZE70 · 87223-BZE90 |
| 87223H | No. 8 air duct gasket | 87223-BZD40 |

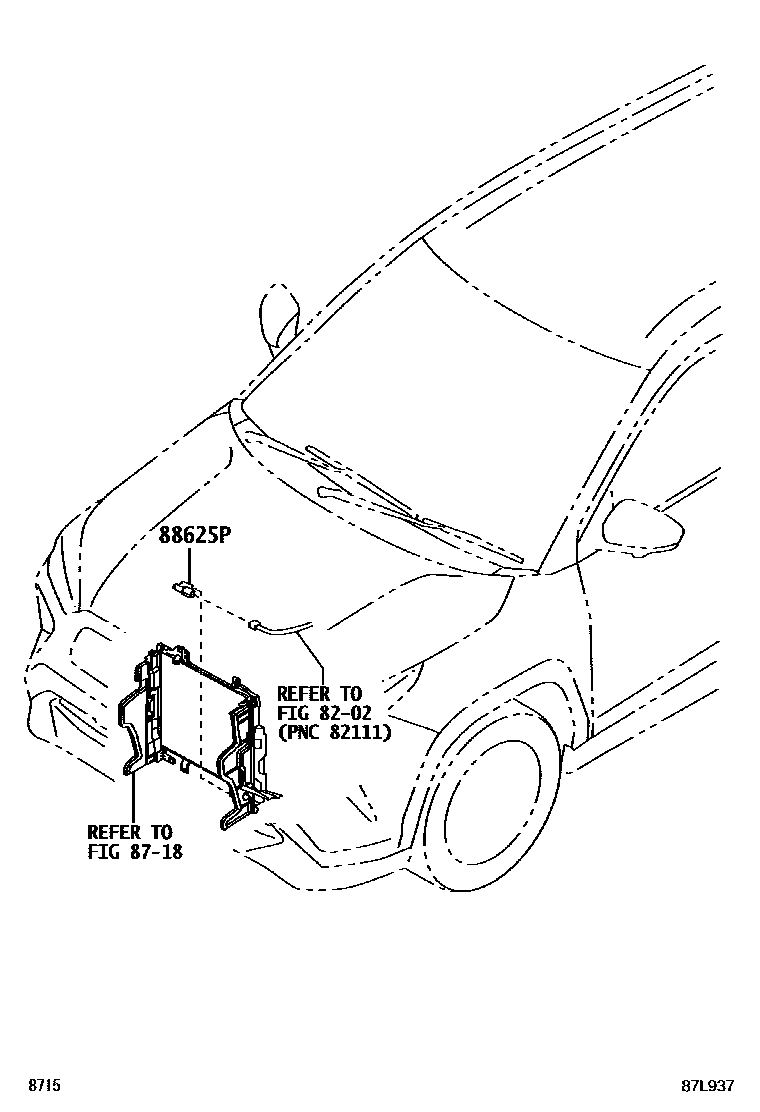

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-B1080 · 88790-BZ040 |
| 88897A | aspirator tube | 88505-BZ030 · 88505-BZ050 |
