Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

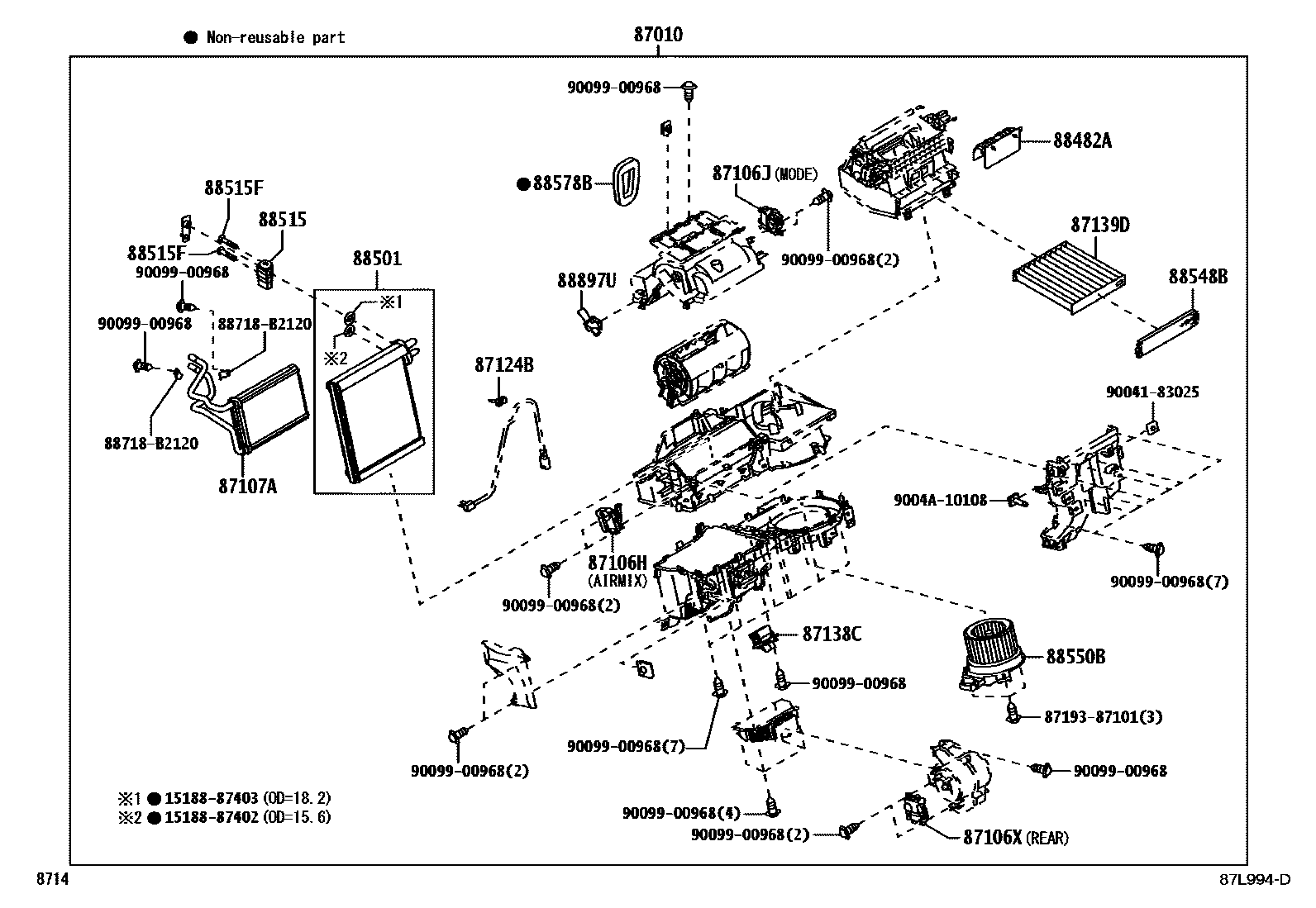

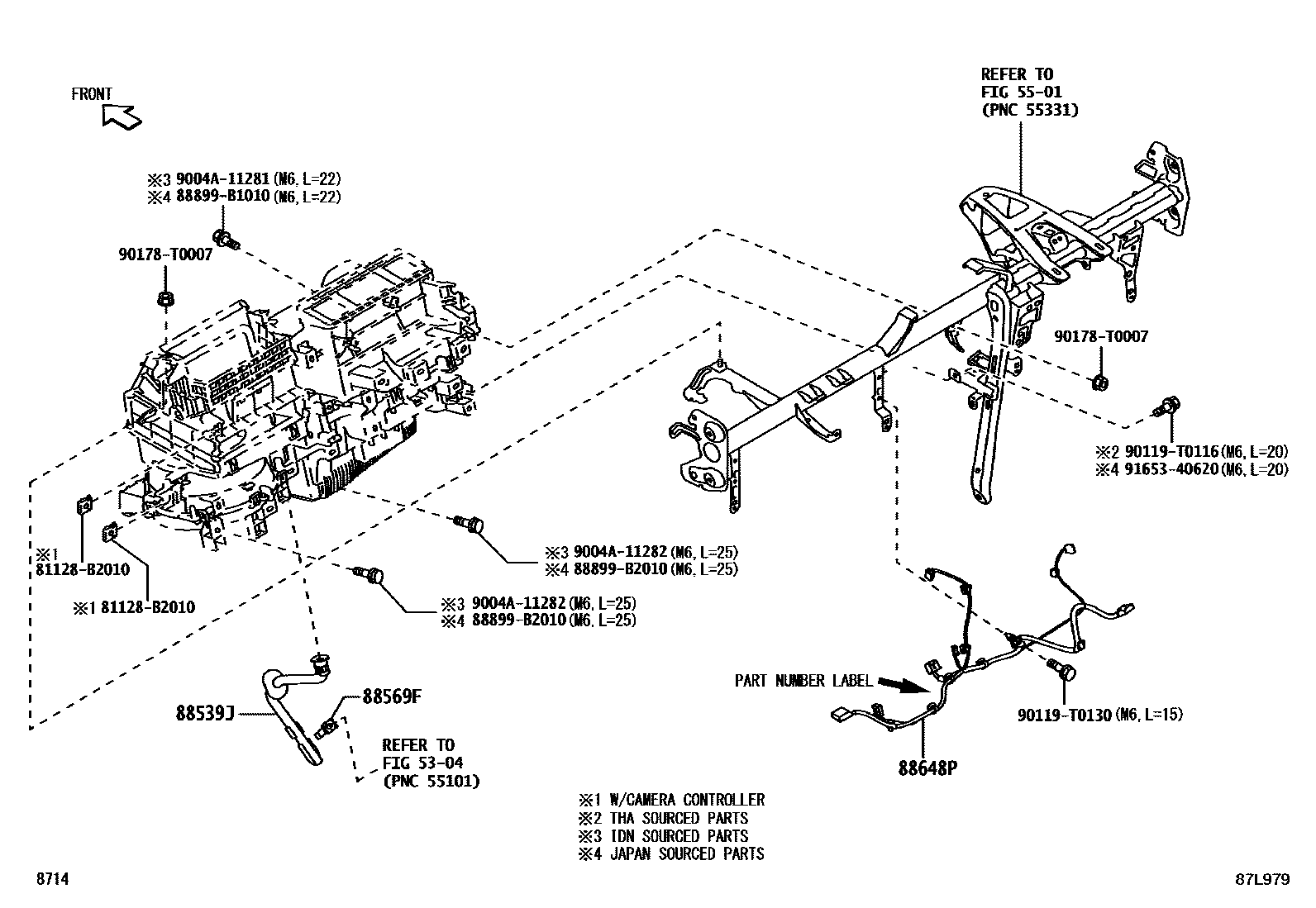

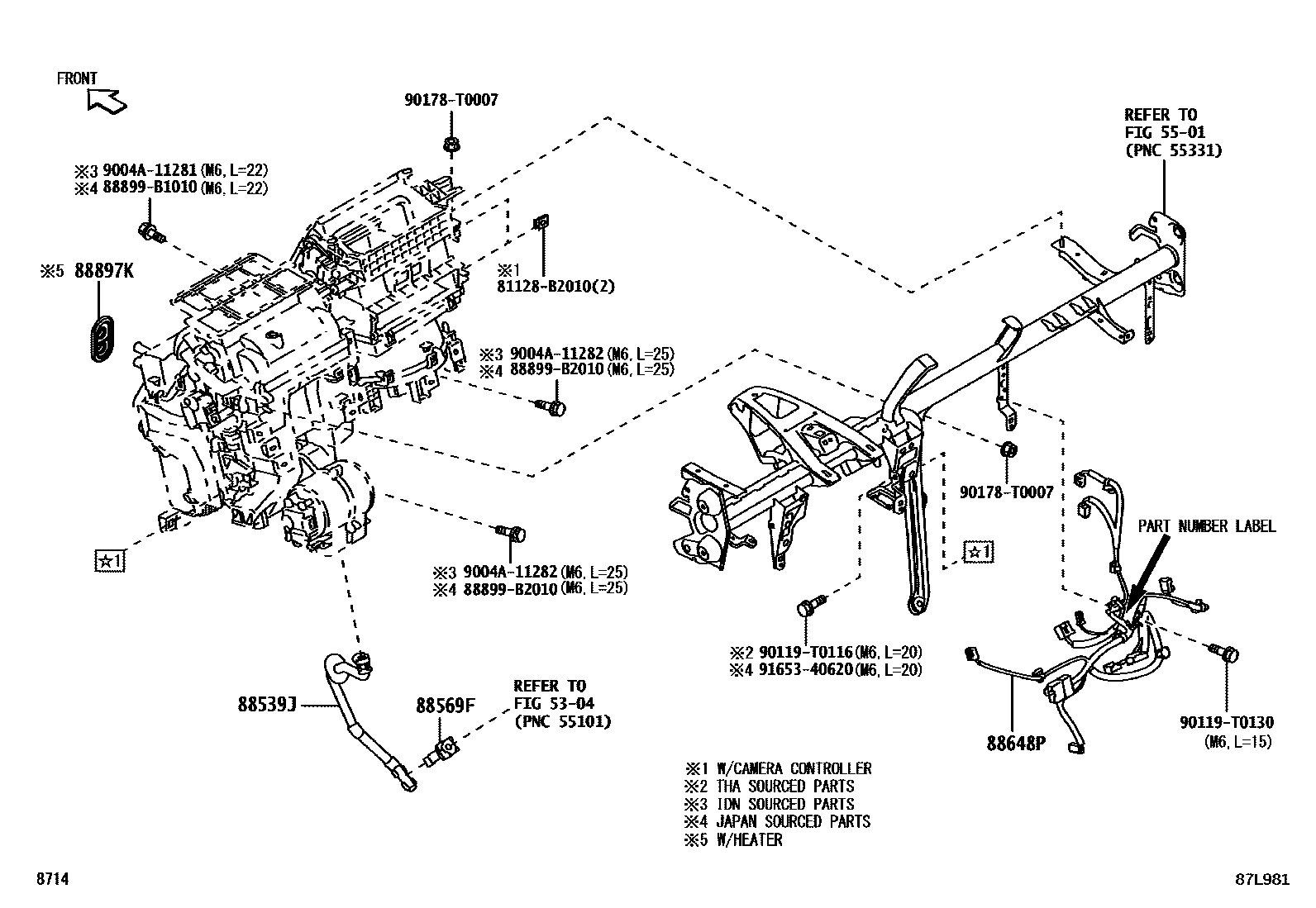

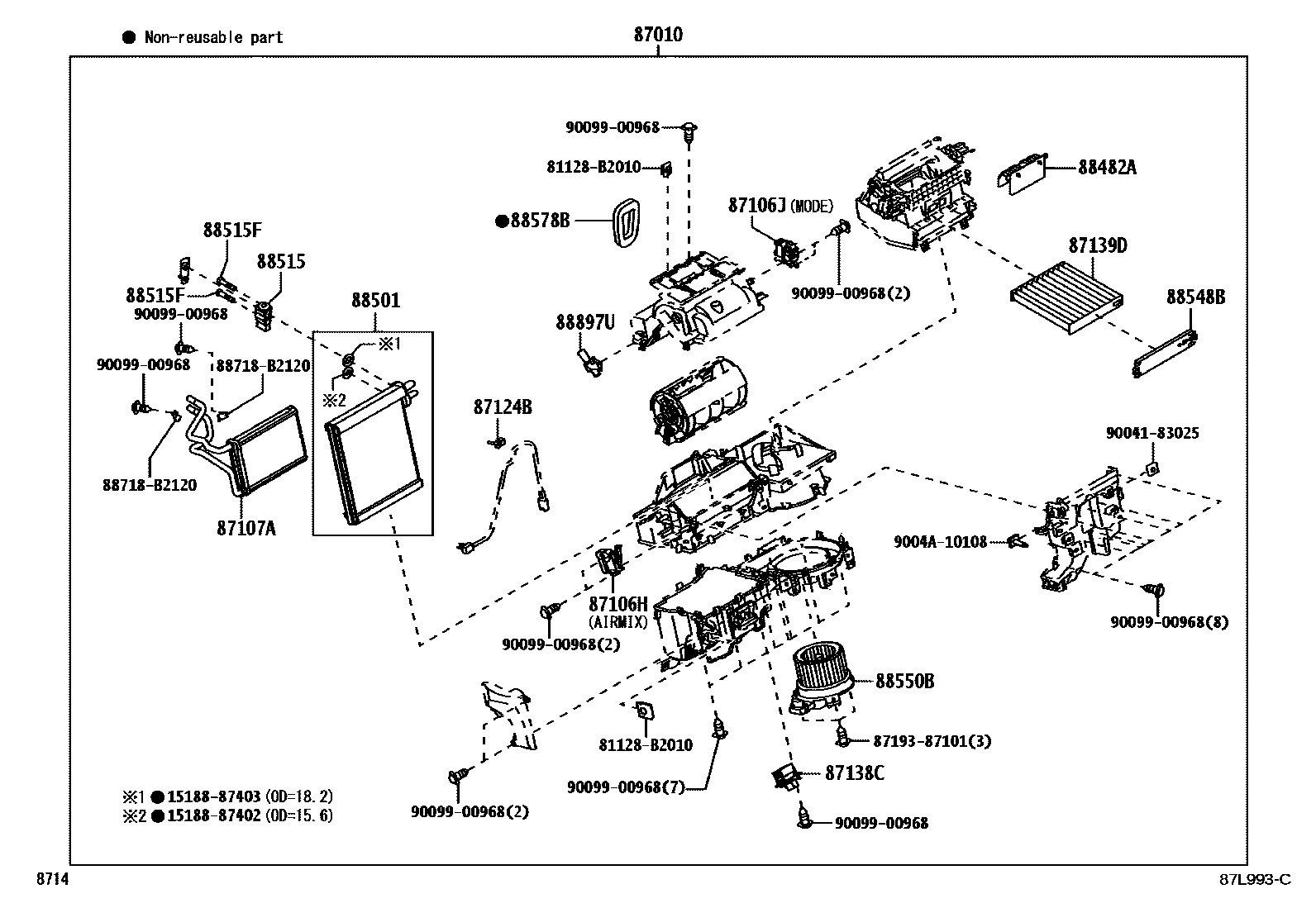

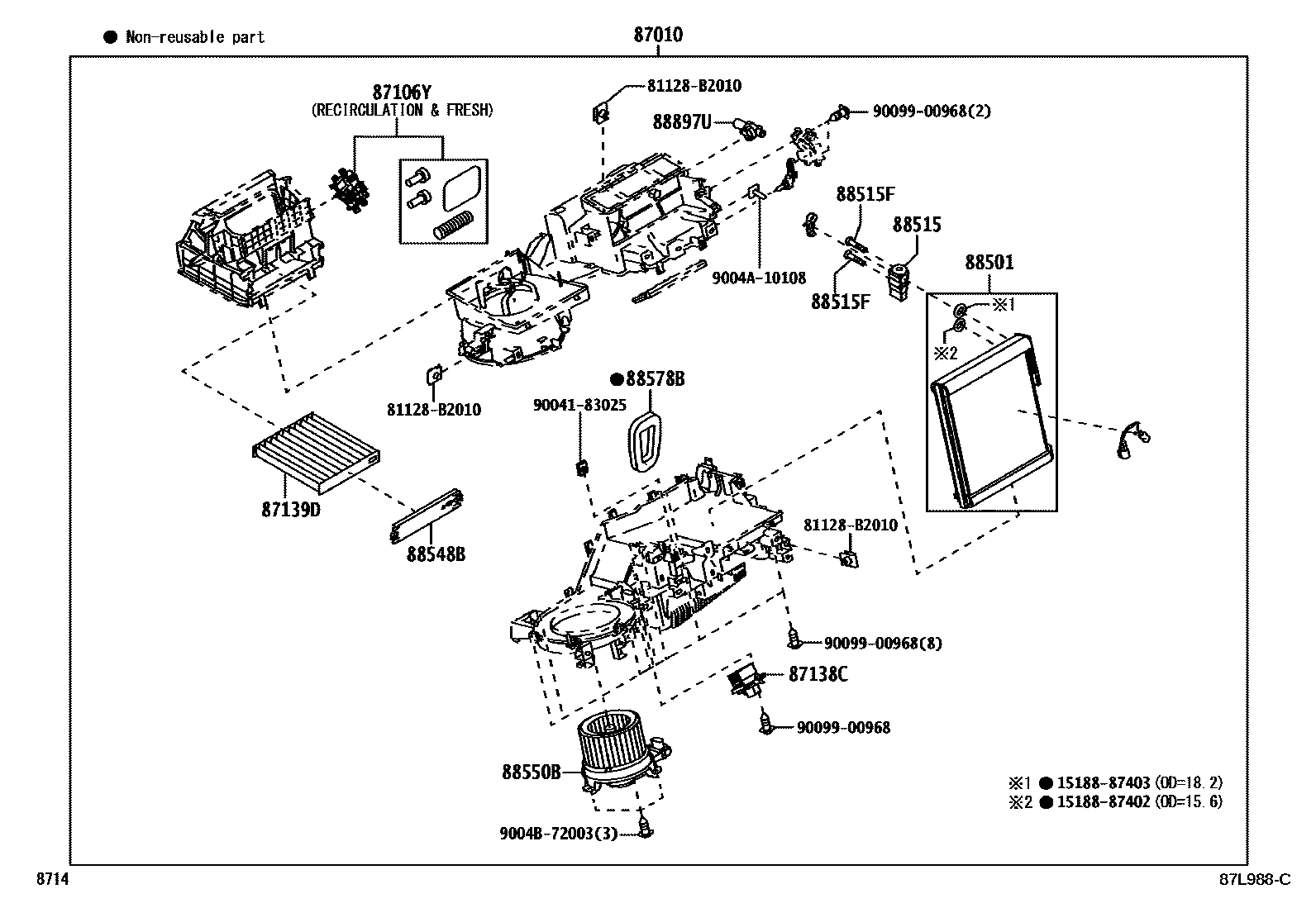

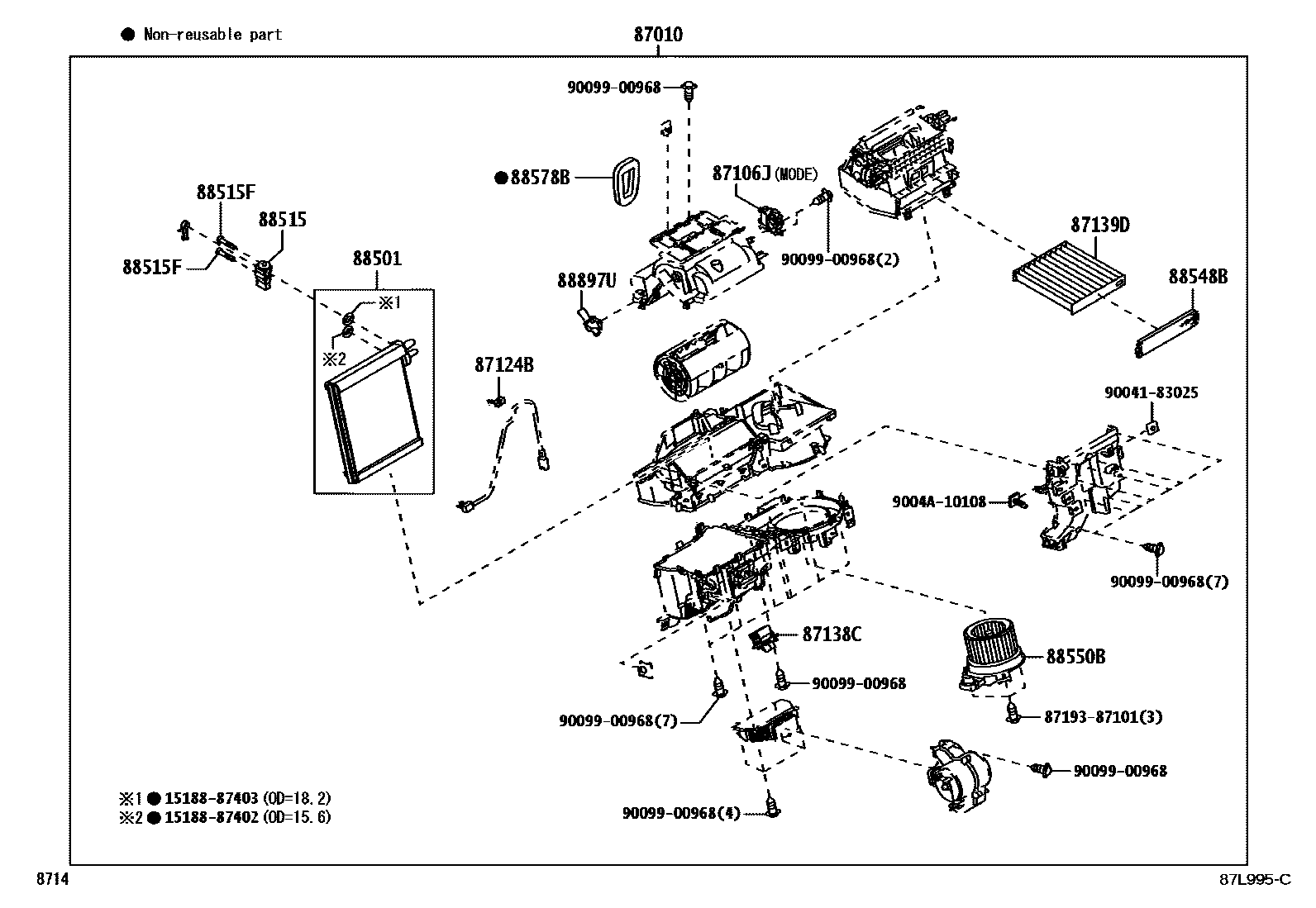

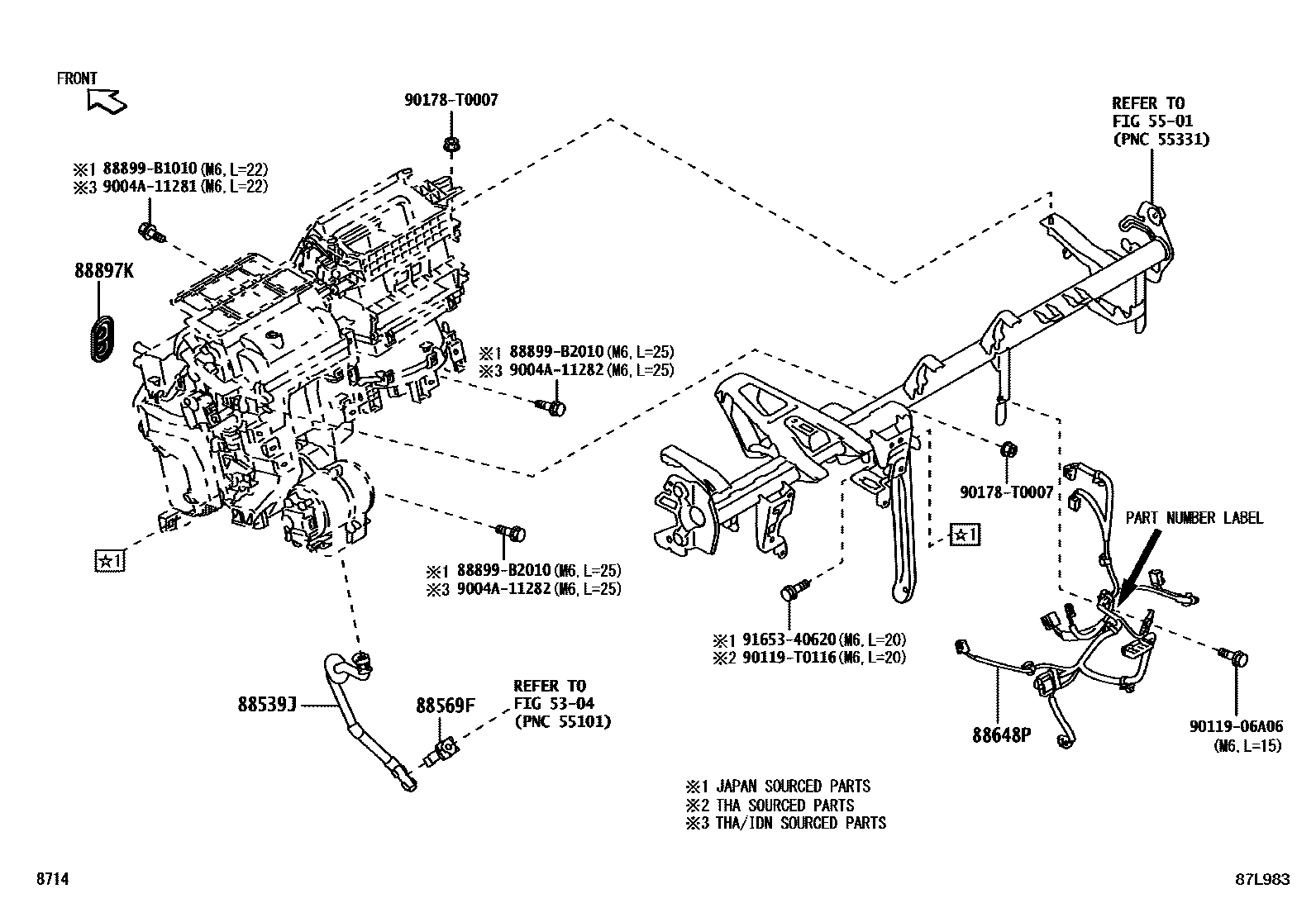

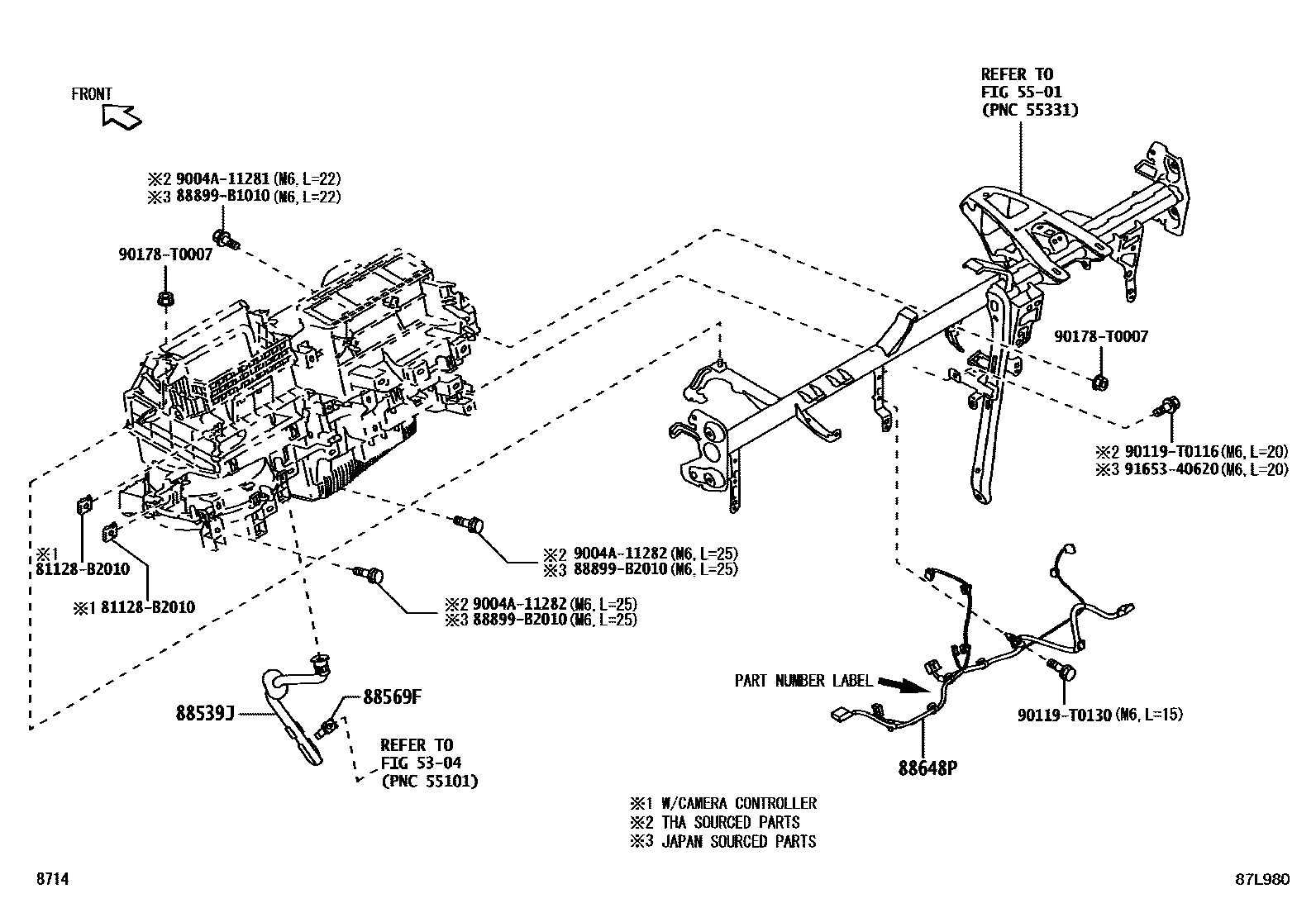

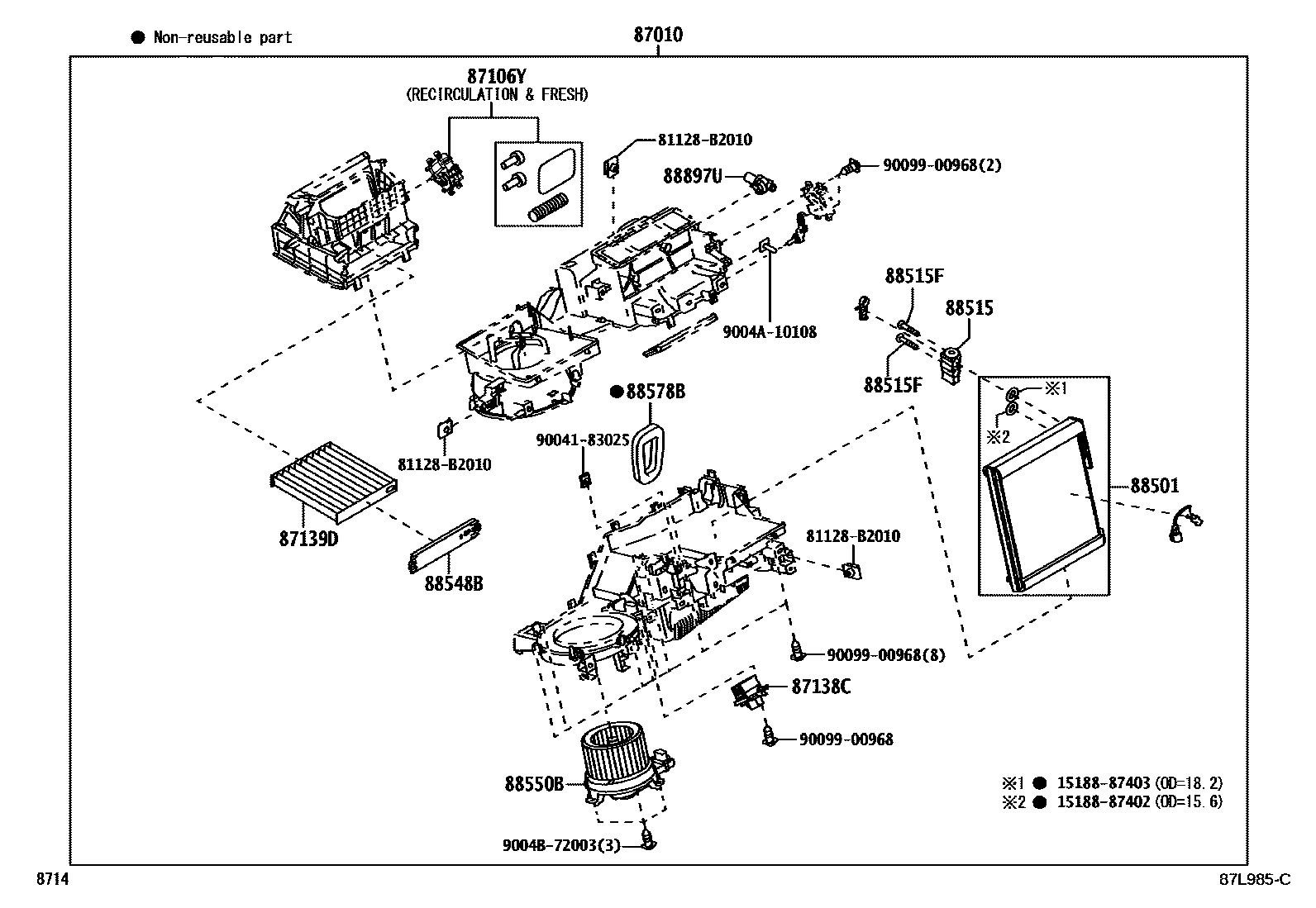

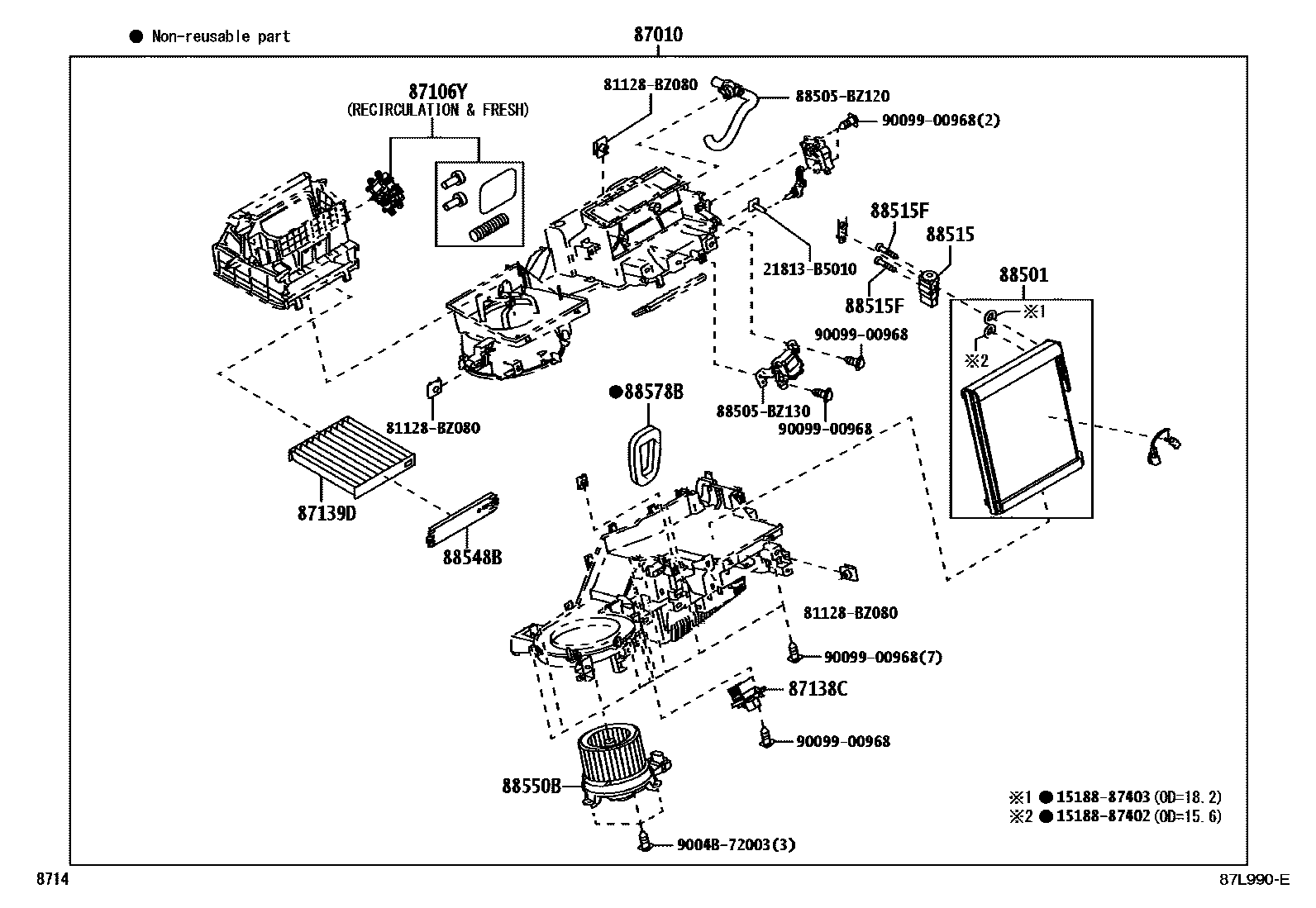

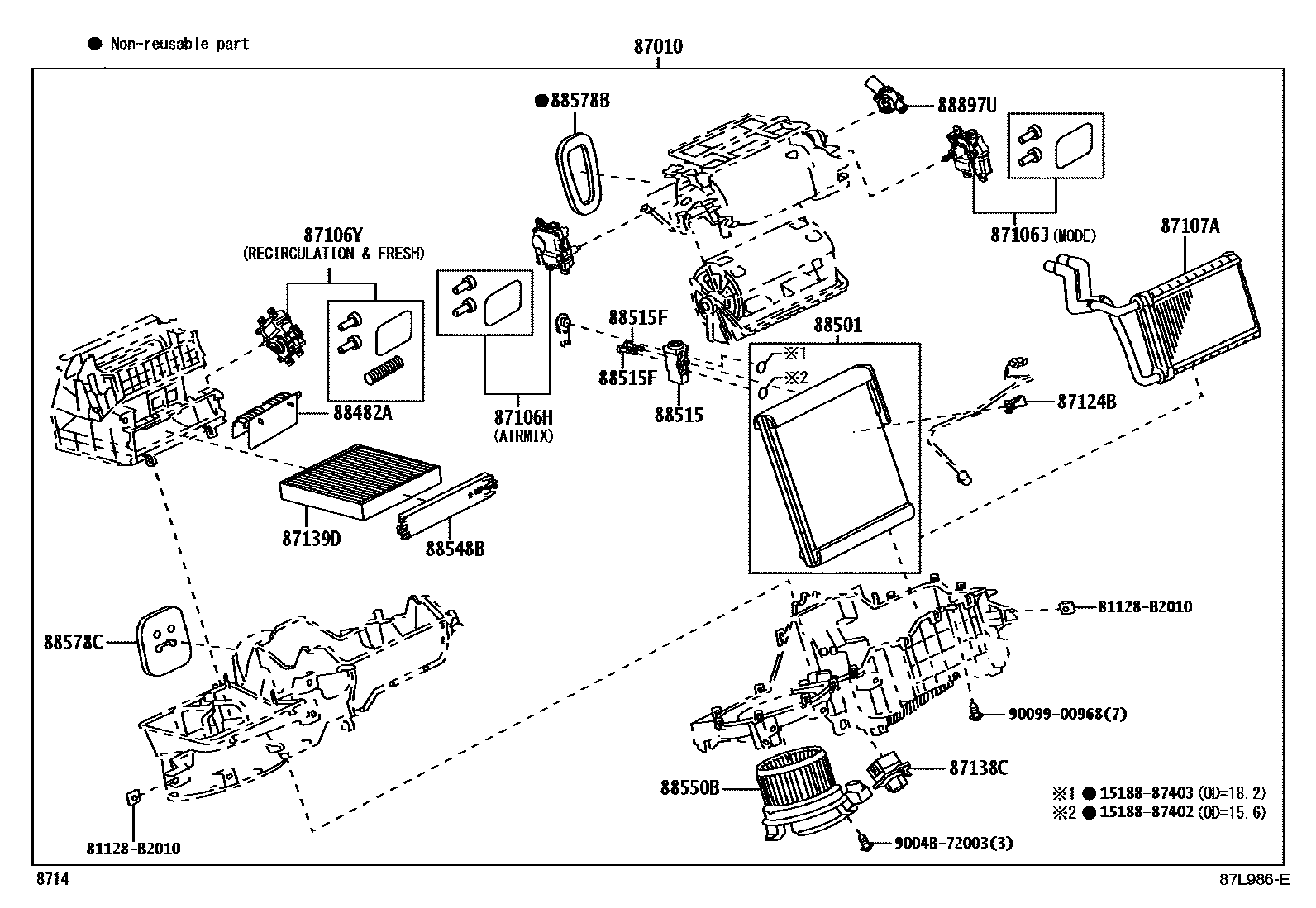

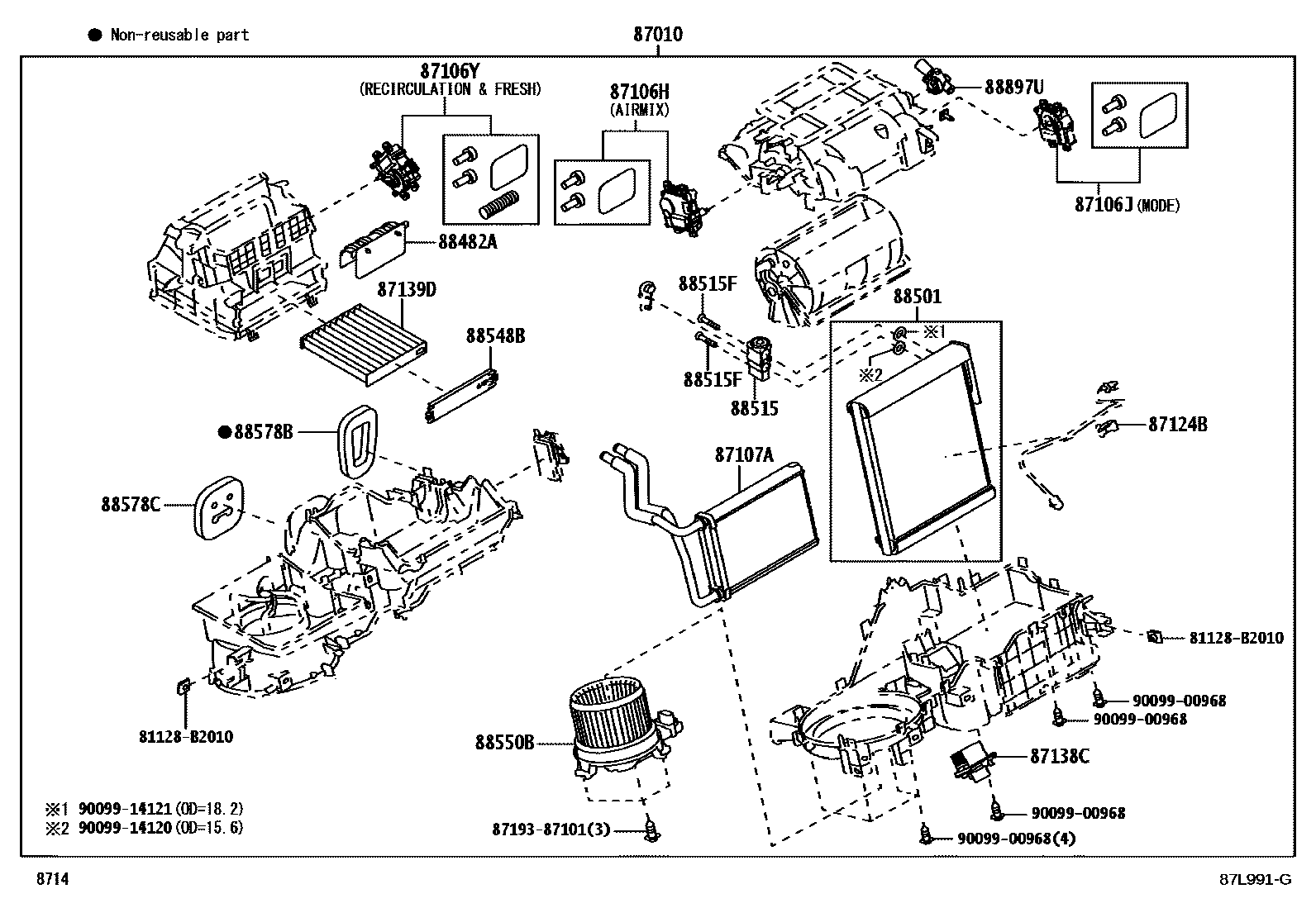

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 13 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-BZ610 · 87010-BZ620 · 87010-BZ630 · 87010-BZ760 · 87010-BZC40 · 87010-BZC50 · 87010-BZC60 · 87010-BZC80 · 87010-BZD10 · 87010-BZD40 · 87010-BZD50 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-BZ010 · 88660-B2040 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 88660-B2030 · 88660-BZ090 |
| 87106X | Damper servo mechanism sub-assembly (for rear mode) | 88660-BZ130 |
| 87106Y | Damper servo sub-assembly (for recirculation and fresh air) | 88660-B2050 |
| 87107A | Heater radiator device sub-assembly | 87107-B1040 · 87107-BZ130 |
| 87124B | heater clip | 87126-B1010 |
| 87138C | Blower resistor | 87138-BZ150 · 87138-BZ190 · 87138-BZ300 |
| 87139D | Air fine filter element | 87139-BZ020 · 87139-BZ050 |
| 88482A | cover | 87114-BZ150 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-BZ400 · 88501-BZ460 · 88501-BZ480 |
| 88515 | Cooler expansion valve | 88515-52120 · 88515-BZ200 · 88515-BZ250 · 88515-BZ260 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04630 · C9909-97201 |
| 88539J | Cooler drain hose | 88539-BZ410 · 88539-BZ450 · 88539-BZ460 |
| 88548B | air filter housing | 88548-BZ030 · 88548-BZ060 |
| 88550B | Blower motor assembly | 88550-BZ130 · 88550-BZ140 · 88550-BZ150 · 88550-BZ160 · 88550-BZ190 |
| 88569F | card holder | C8899-B1020 · C8899-B2010 |
| 88578B | Cooling unit seal No. 1 | 88578-BZE30 · 88578-BZG10 |
| 88578C | No. 2 cooling unit seal | 88578-BZE40 |
| 88648P | Air conditioner No. 1 wiring harness | 88648-BZ510 · 88648-BZ530 · 88648-BZ550 · 88648-BZ600 · 88648-BZ610 · 88648-BZ620 · 88648-BZ630 · 88648-BZ640 · 88648-BZ650 · 88648-BZ720 · 88648-BZ730 |
| 88897K | Seals (for cooler tubes) | 88897-BZ160 · 88897-BZ190 |
| 88897U | aspirator tube | 88897-BZ300 |
