Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 3 images and 13 PNC and OE references.

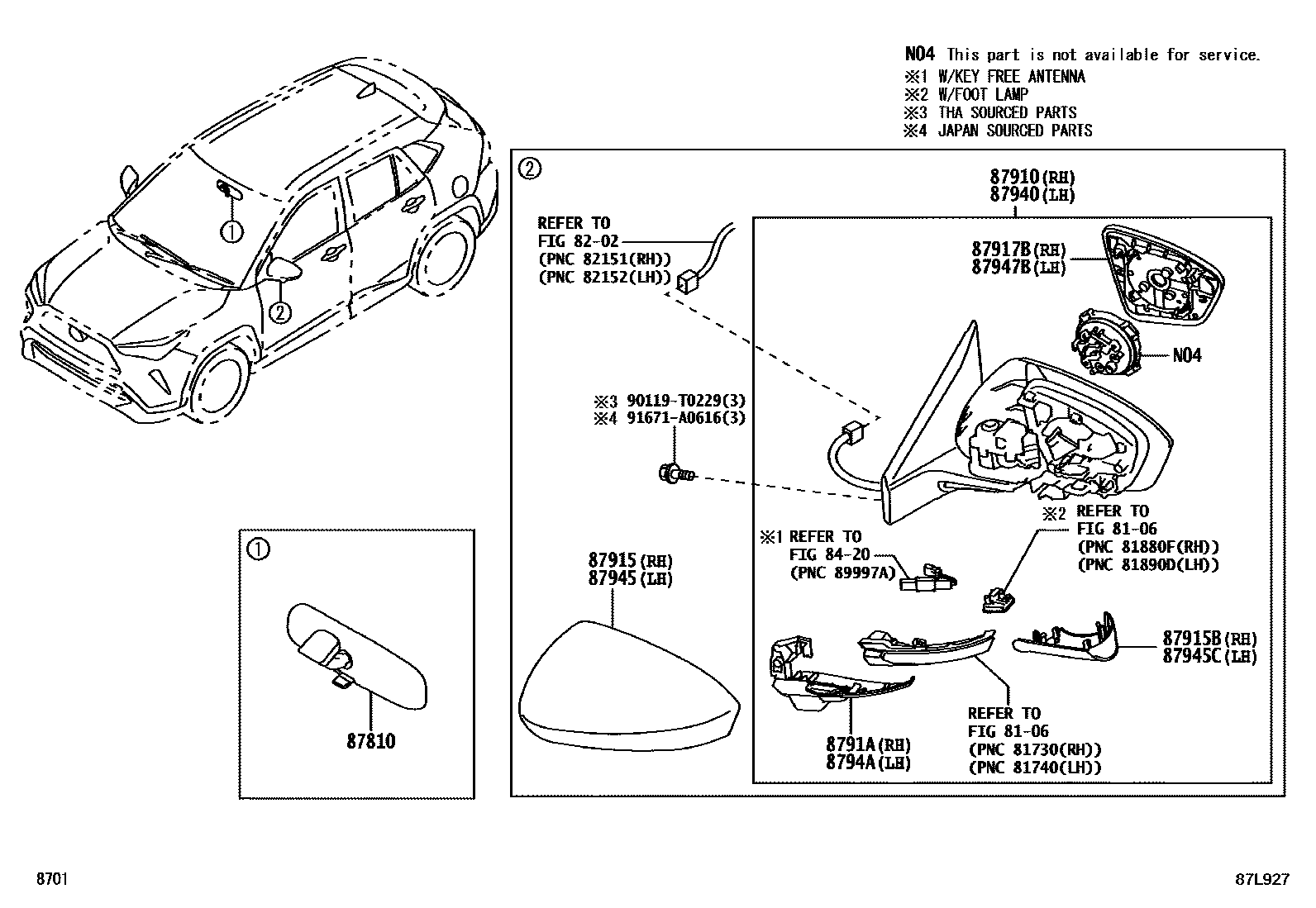

Toyota YARIS 后视镜 EPC diagram — 87L927
后视镜 — 87L927 (202306 – 999999)

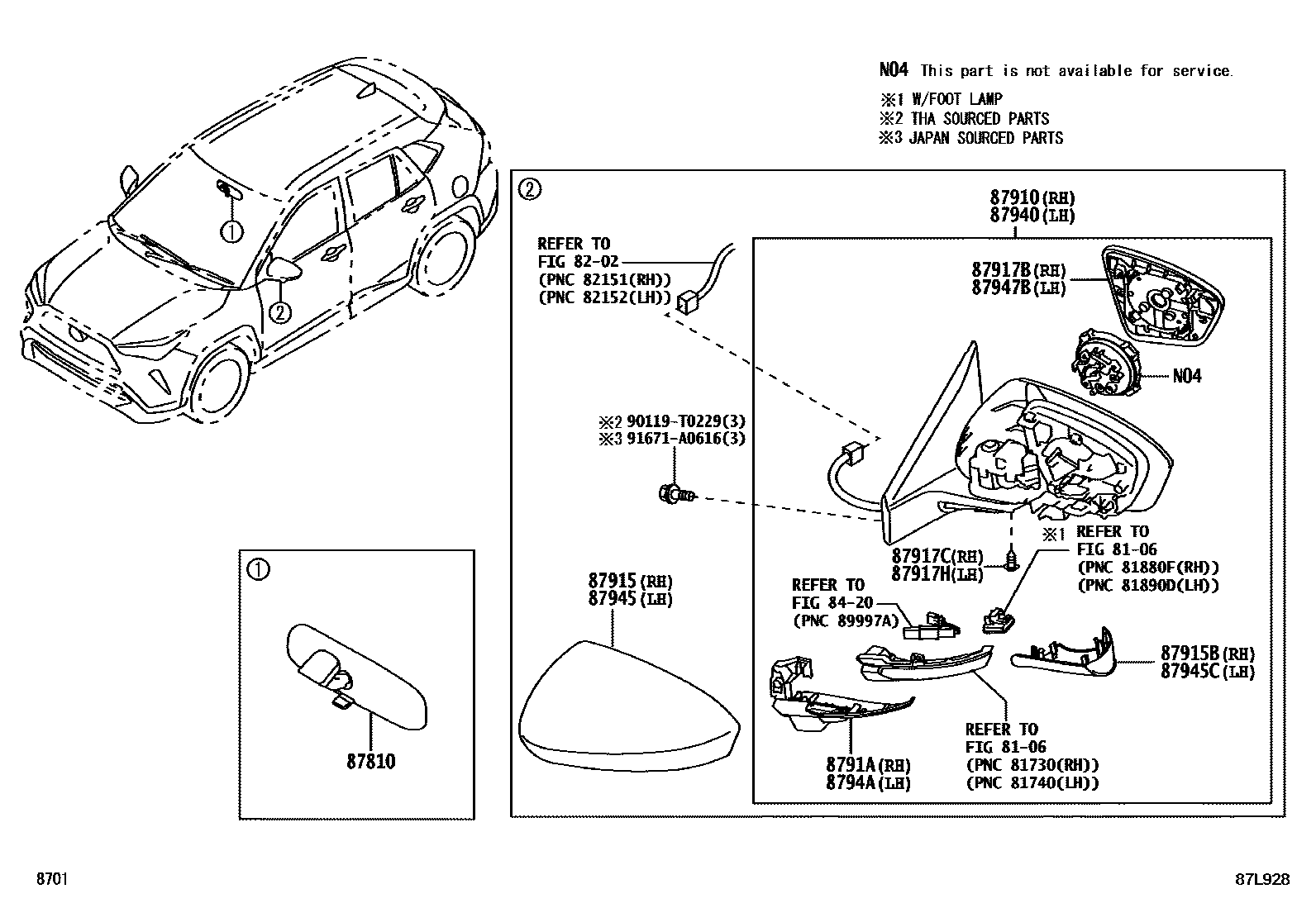

Toyota YARIS 后视镜 EPC diagram — 87L928
后视镜 — 87L928 (202310 – 999999)

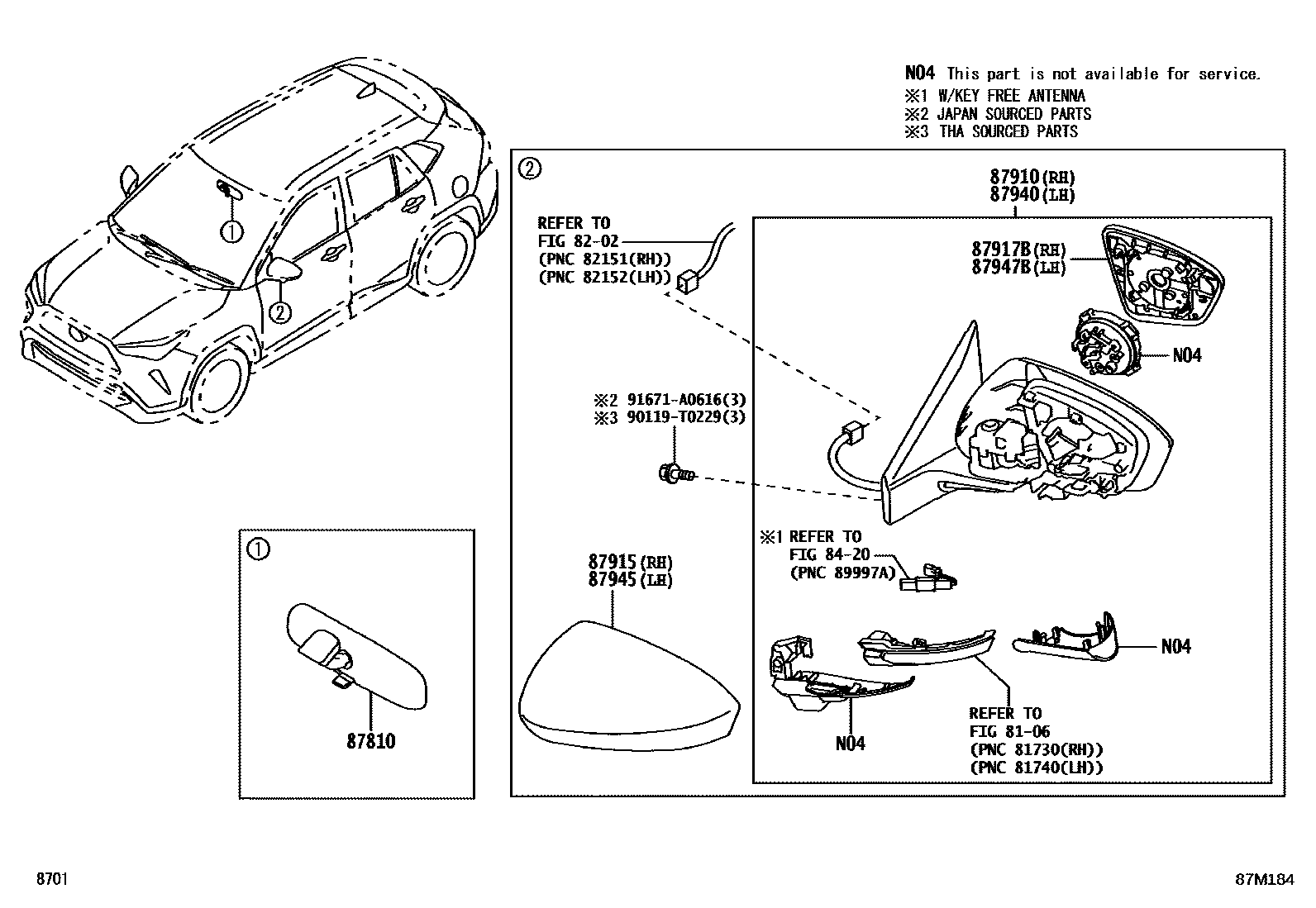

Toyota YARIS 后视镜 EPC diagram — 87M184
后视镜 — 87M184 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06041
87910Right exterior rearview mirror assembly87910-BZT50 · 87910-BZT60 · 87910-BZT70 · 87910-BZU00 · 87910-BZU10 · 87910-BZV30 · 87910-BZV40 · 87910-BZV50 · 87910-BZV90 · 87910-BZX00 · 87910-BZX10 · 87910-BZX20 · 87910-BZX30 · 87910-BZX40 · 87910-BZX80
87915Right exterior rearview mirror cover87915-BZ730 · 87915-BZ790 · 87915-BZ830
87915BRight exterior rearview mirror lower cover8791B-BZ130 · 8791B-BZ140 · 8791B-BZ150
87917BRight exterior rearview mirror87917-BZ420 · 87917-BZ430 · 87917-BZ440 · 87917-BZ460 · 87917-BZ500 · 87917-BZ510
87917CExterior rearview mirror screws87929-B1030 · 87929-BZ130
87917HExterior mirror screw No. 287929-B1030 · 87929-BZ130
8791ARight exterior rearview mirror cover No. 28791A-BZ070 · 8791A-BZ100 · 8791A-BZ150 · 8791A-BZ160 · 8791A-BZ170
87940Left exterior rearview mirror assembly87940-BZT30 · 87940-BZT40 · 87940-BZT50 · 87940-BZT80 · 87940-BZT90 · 87940-BZV10 · 87940-BZV20 · 87940-BZV30 · 87940-BZV70 · 87940-BZX00 · 87940-BZX10 · 87940-BZX20 · 87940-BZX30 · 87940-BZX40 · 87940-BZX80
87945Left exterior rearview mirror cap87945-BZ730 · 87945-BZ790 · 87945-BZ830
87945CLeft exterior rearview mirror lower cover8794B-BZ120 · 8794B-BZ130 · 8794B-BZ140
87947BLeft exterior rearview mirror87947-BZ400 · 87947-BZ410 · 87947-BZ420 · 87947-BZ440 · 87947-BZ470 · 87947-BZ480
8794ANo. 2 left exterior rearview mirror cap8794A-BZ070 · 8794A-BZ100 · 8794A-BZ140 · 8794A-BZ150 · 8794A-BZ160
