Toyota YARIS antenna — Figure 8604

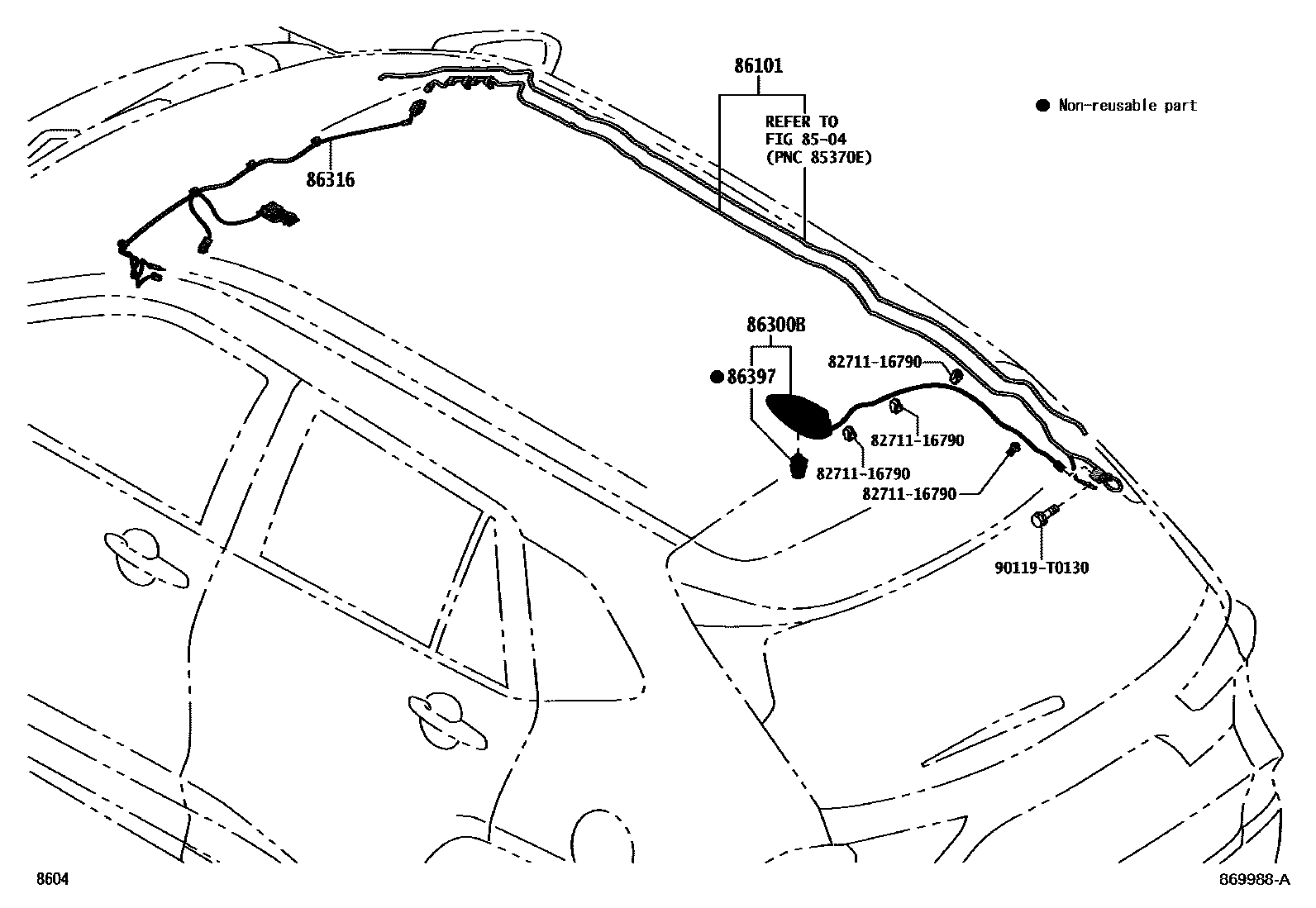

Toyota YARIS EPC diagram 8604, antenna, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86316-BZC00 · 86316-BZC10 · 86316-BZD40 |
| 86316 | Antenna cable | 86316-BZB80 · 86316-BZB90 · 86316-BZC80 · 86316-BZC90 |
| 86397 | Antenna ground iron plate | 86397-B1020 |
