Toyota YARIS 扬声器 — Figure 8602

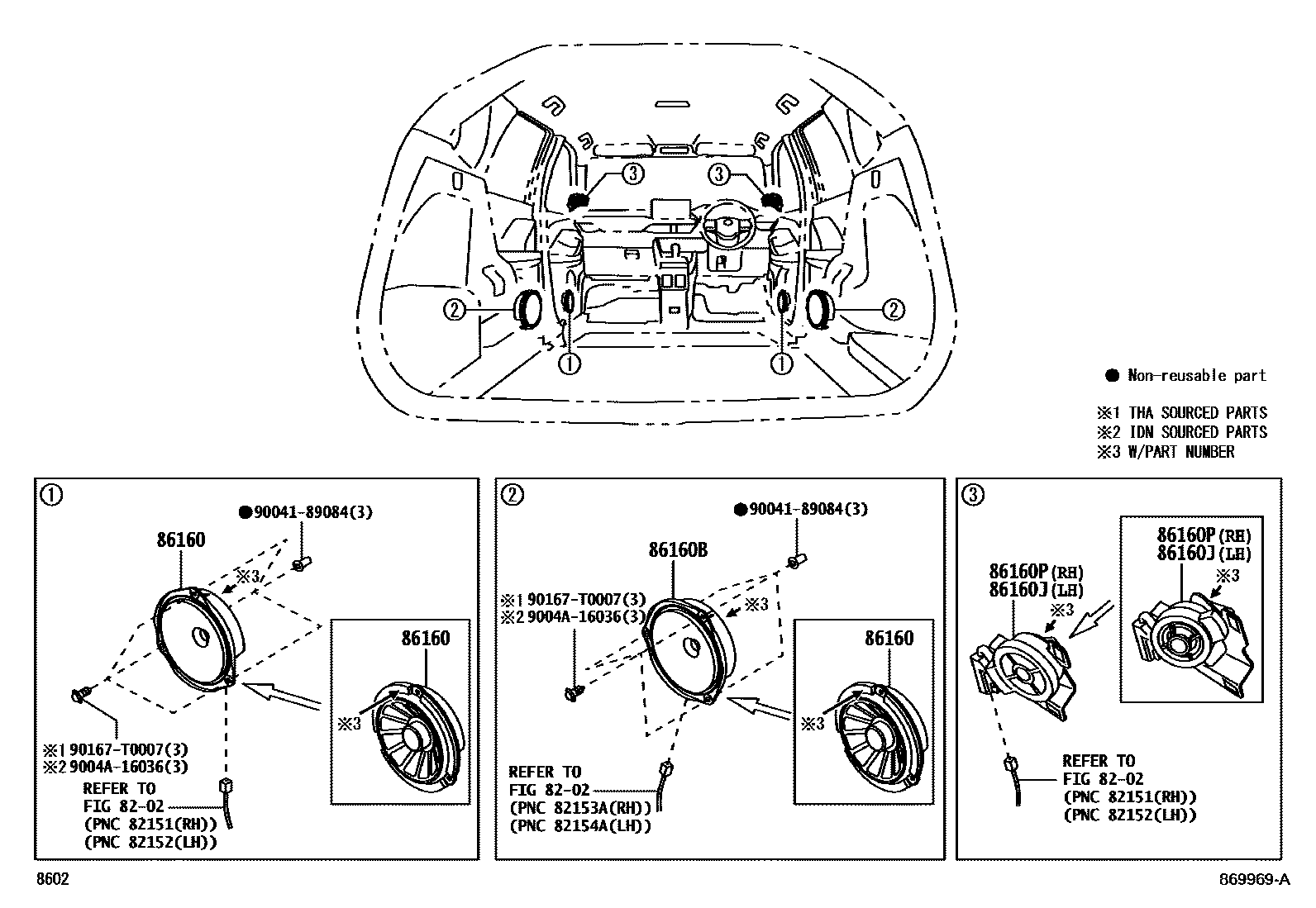

Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-BZ241 · 86160-BZ370 · 86160-BZ420 · 86160-BZ430 · 86160-BZ530 · 86160-BZ600 |
| 86160B | Rear speaker assembly | 86160-BZ241 · 86160-BZ370 · 86160-BZ420 · 86160-BZ430 · 86160-BZ530 · 86160-BZ600 |
| 86160J | No. 3 front speaker assembly | 86160-BZ470 · 86160-BZ500 · 86160-BZ550 · 86160-BZ570 · 86160-BZ620 |
| 86160P | No. 2 front speaker assembly | 86160-BZ460 · 86160-BZ490 · 86160-BZ540 · 86160-BZ560 · 86160-BZ610 |
