Toyota YARIS 挡风玻璃刮水器 — Figure 8501

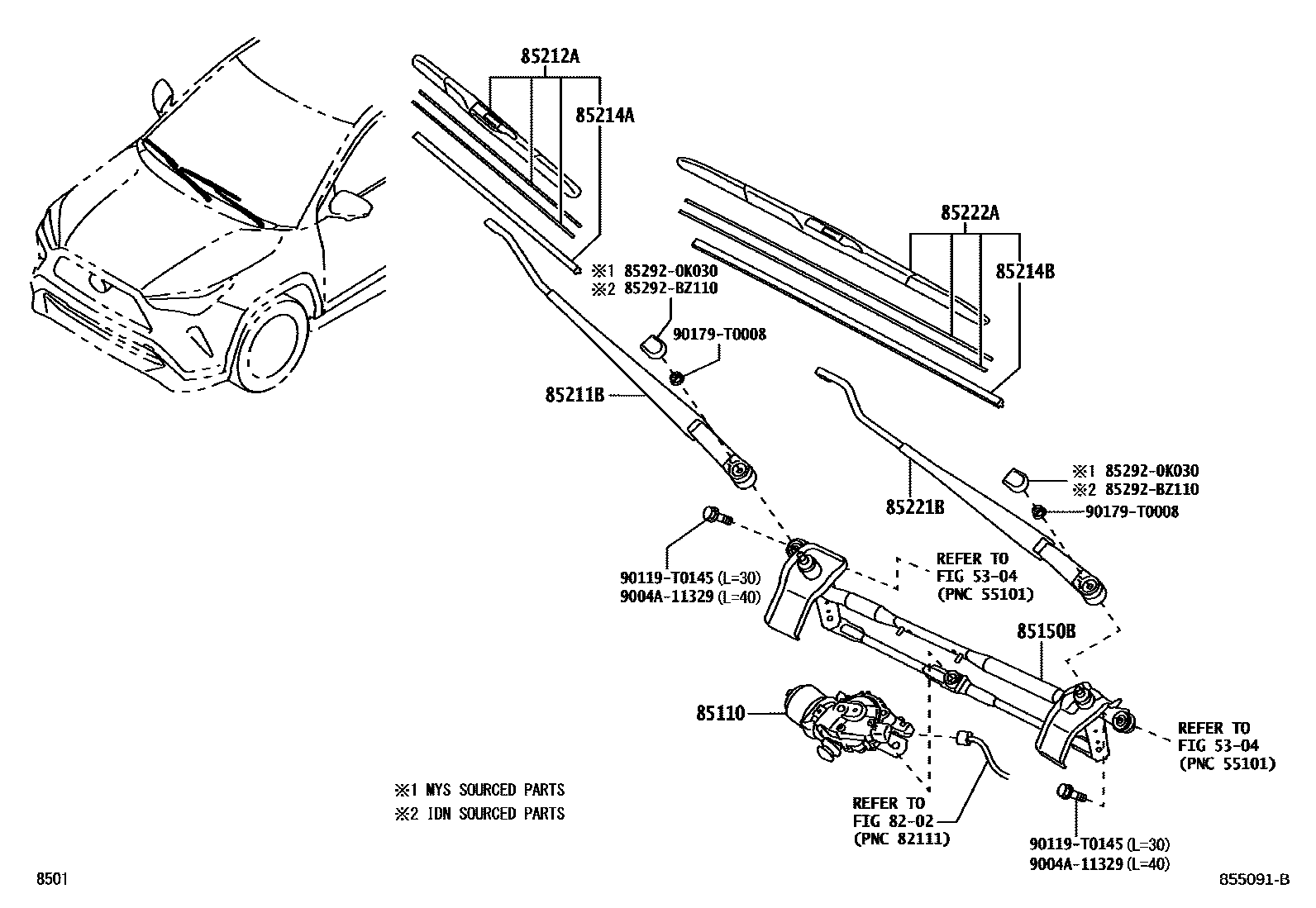

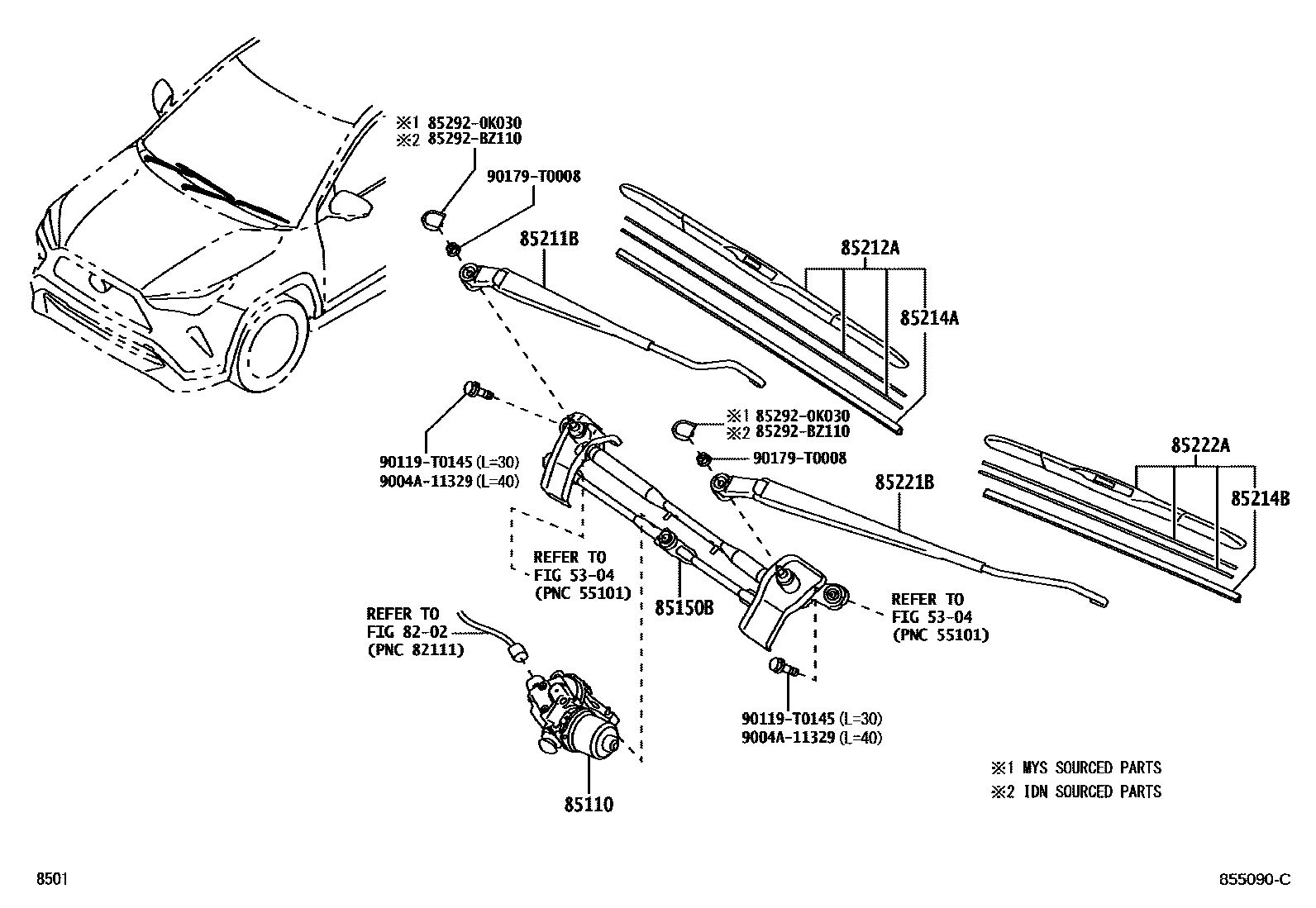

Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-BZ350 · 85110-BZ360 |
| 85150B | Wiper connecting rod assembly | 85150-BZ410 · 85150-BZ420 |
| 85211B | Right front wiper arm | 85211-BZ430 · 85221-BZ440 |
| 85212A | Right front wiper blade | 85212-B1050 · 85222-B1150 |
| 85214A | Right wiper rubber strip | 85214-B1070 · 85214-B2290 |
| 85214B | Left wiper rubber strip | 85214-B1070 · 85214-B2290 |
| 85221B | Left front wiper arm | 85211-BZ440 · 85221-BZ430 |
| 85222A | Left front wiper blade | 85212-B1130 · 85222-B1140 |
