Toyota YARIS HEV 控制ECU — Figure 8433
Toyota YARIS EPC diagram 8433, HEV 控制ECU, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

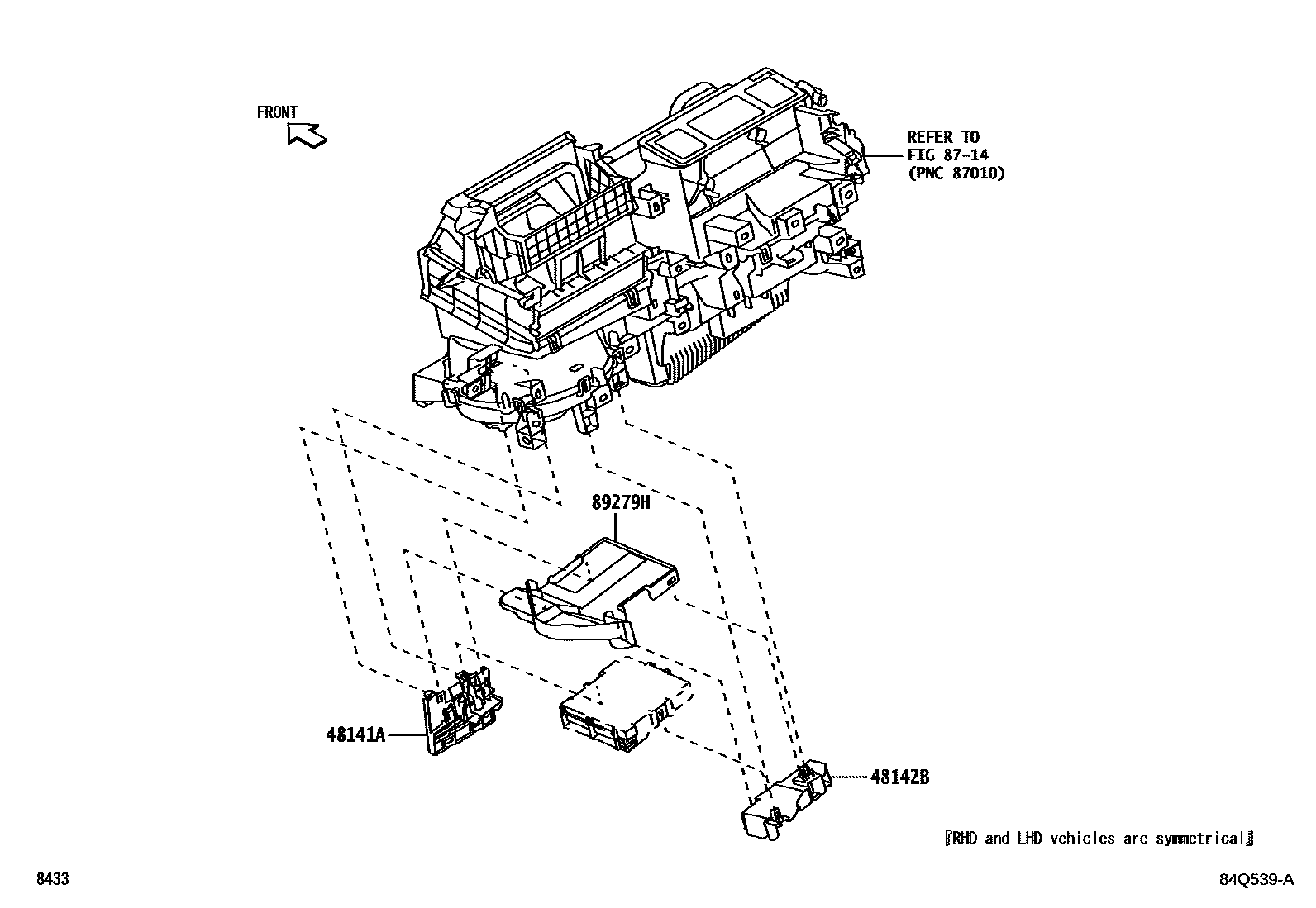

| 48141A | No. 1 front spring clip | 48141-BZ010 · 48141-BZ020 |
| 48142B | No. 2 front spring clip | 48142-BZ010 · 48142-BZ020 |
| 89279H | ECU cover | 89279-BZ080 · 89279-BZ120 |

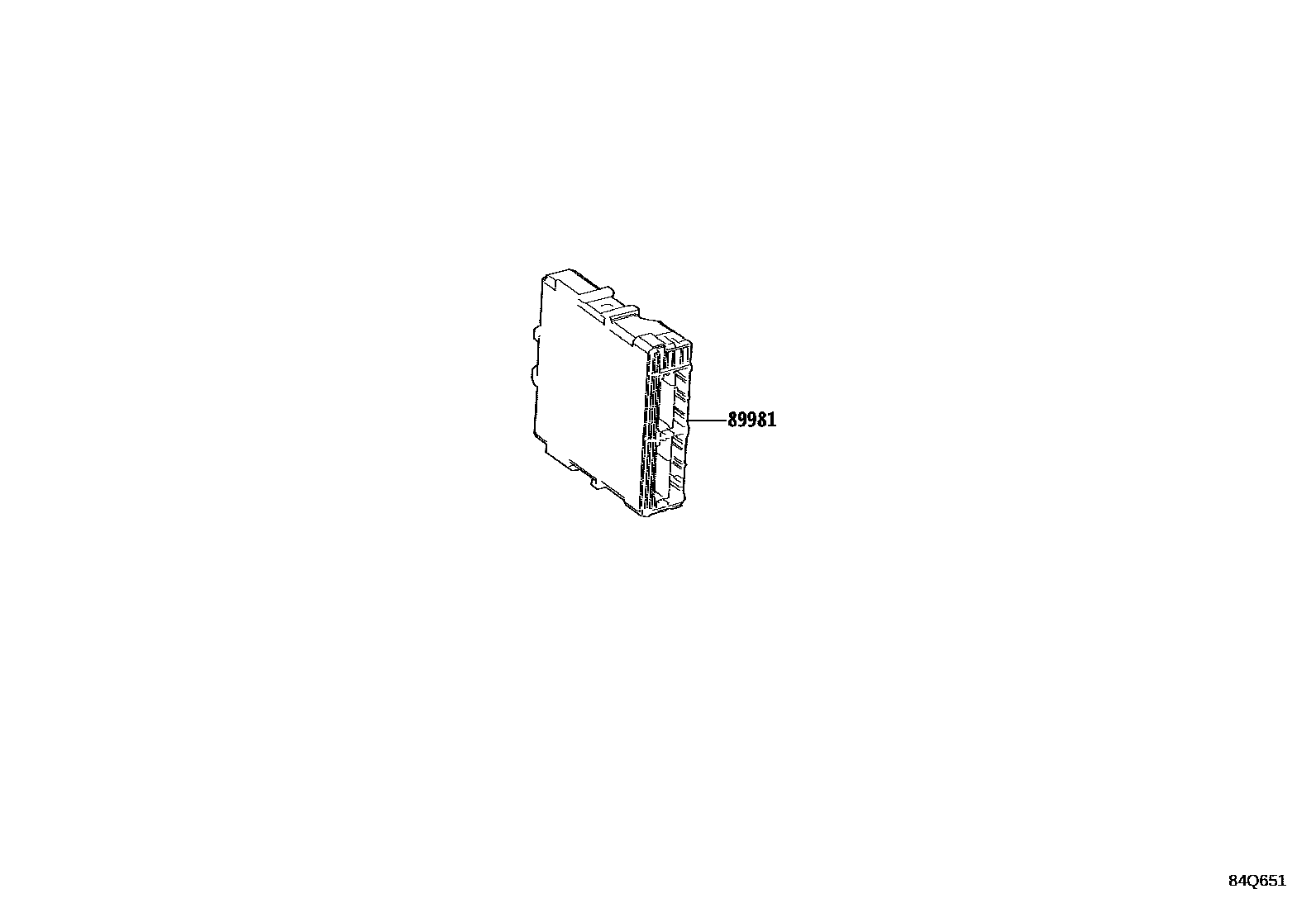

| 89981 | Hybrid vehicle control ECU | 89981-0J040 · 89981-0J050 |
