Toyota YARIS 测距雷达和倒车雷达 — Figure 8417

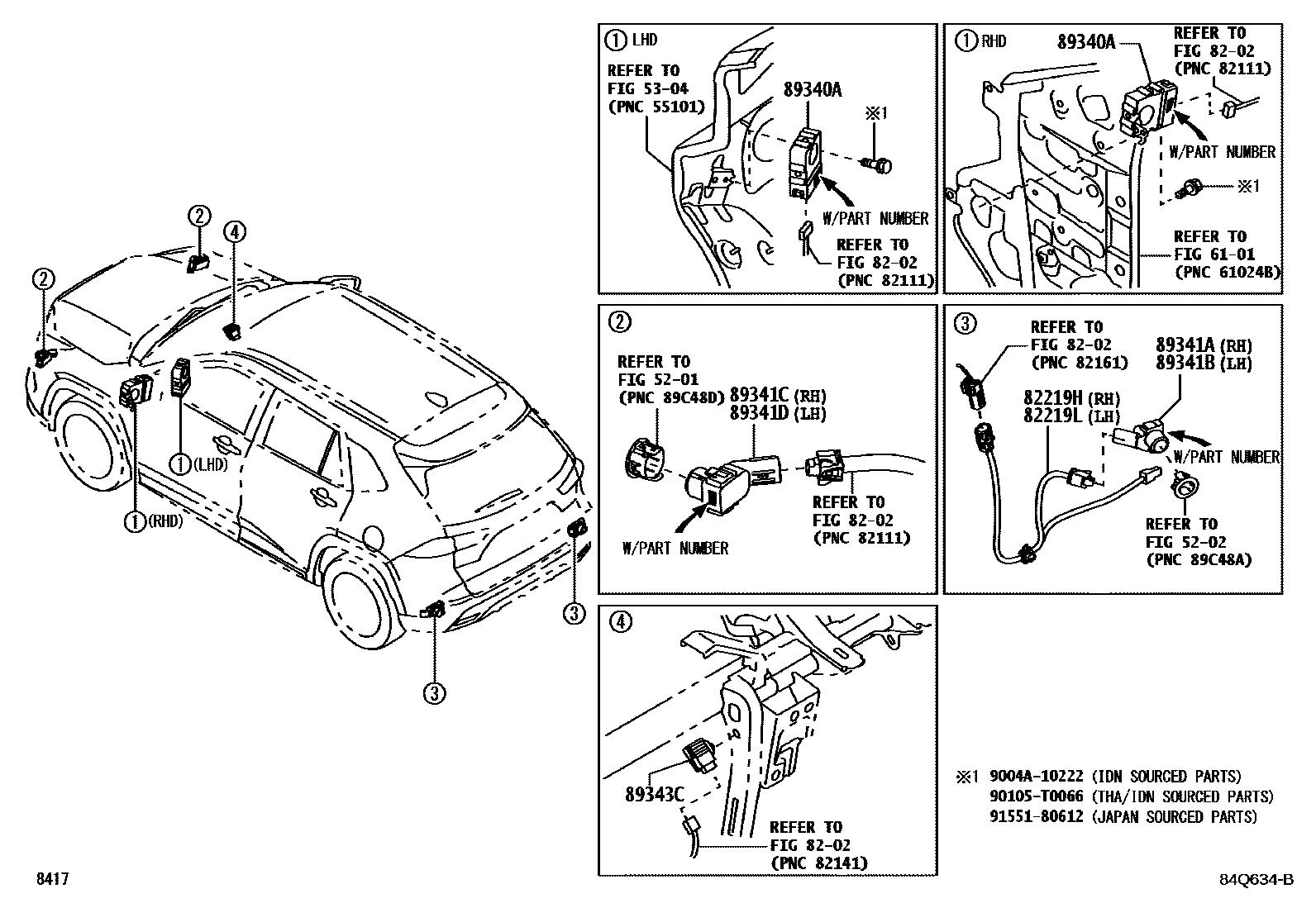

Toyota YARIS EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82219H | sensor harness | 82219-BZ440 |
| 82219L | sensor harness | 82219-BZ440 · 82219-BZ460 |
| 89340A | Distance warning ECU assembly | 89340-BZ520 · 89340-BZ530 · 89340-BZ540 · 89340-BZ580 · 89340-BZ590 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
