Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 5 PNC and OE references.

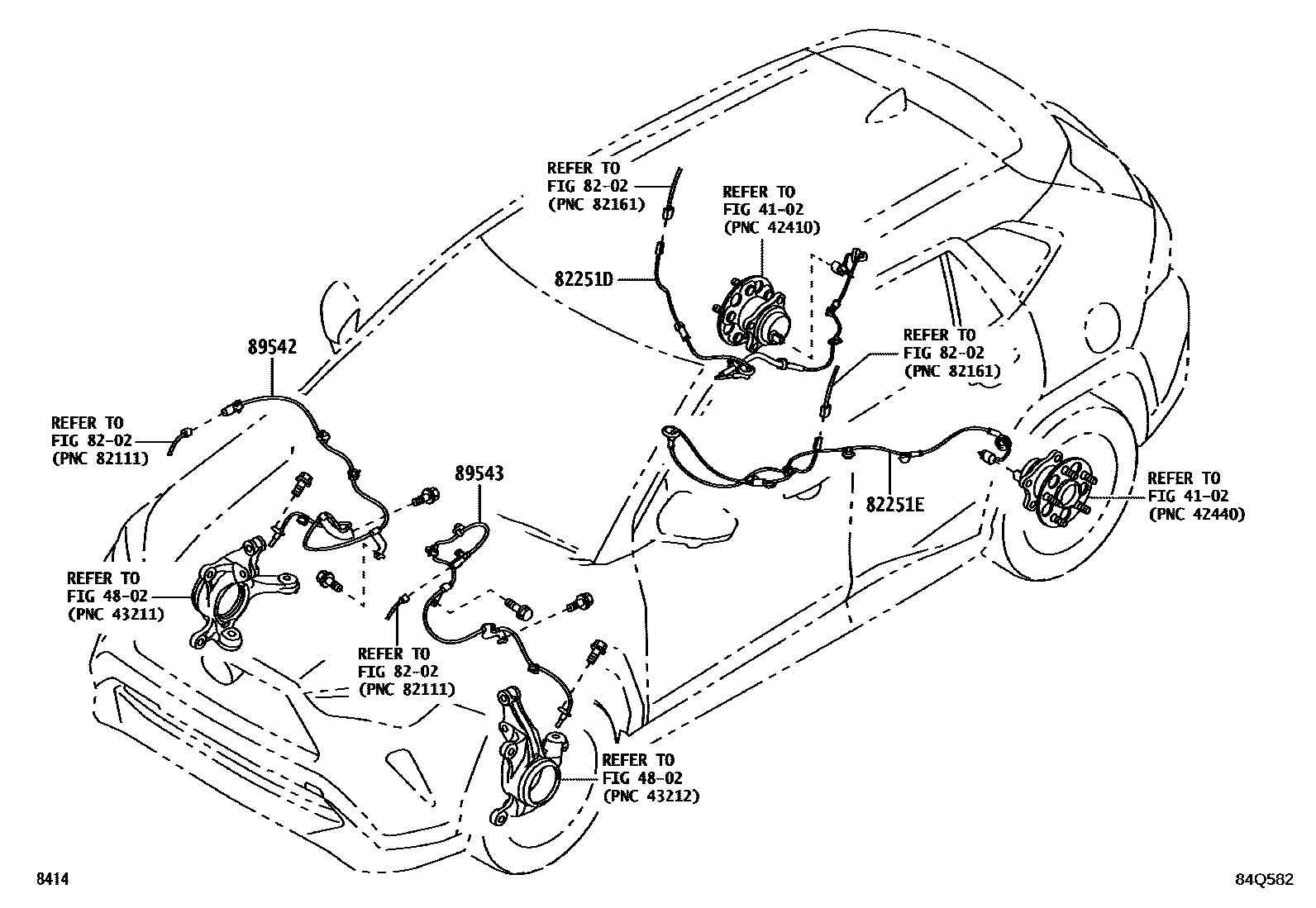

Toyota YARIS ABS 和 VSC EPC diagram — 84Q582
ABS 和 VSC — 84Q582 (202306 – 999999)

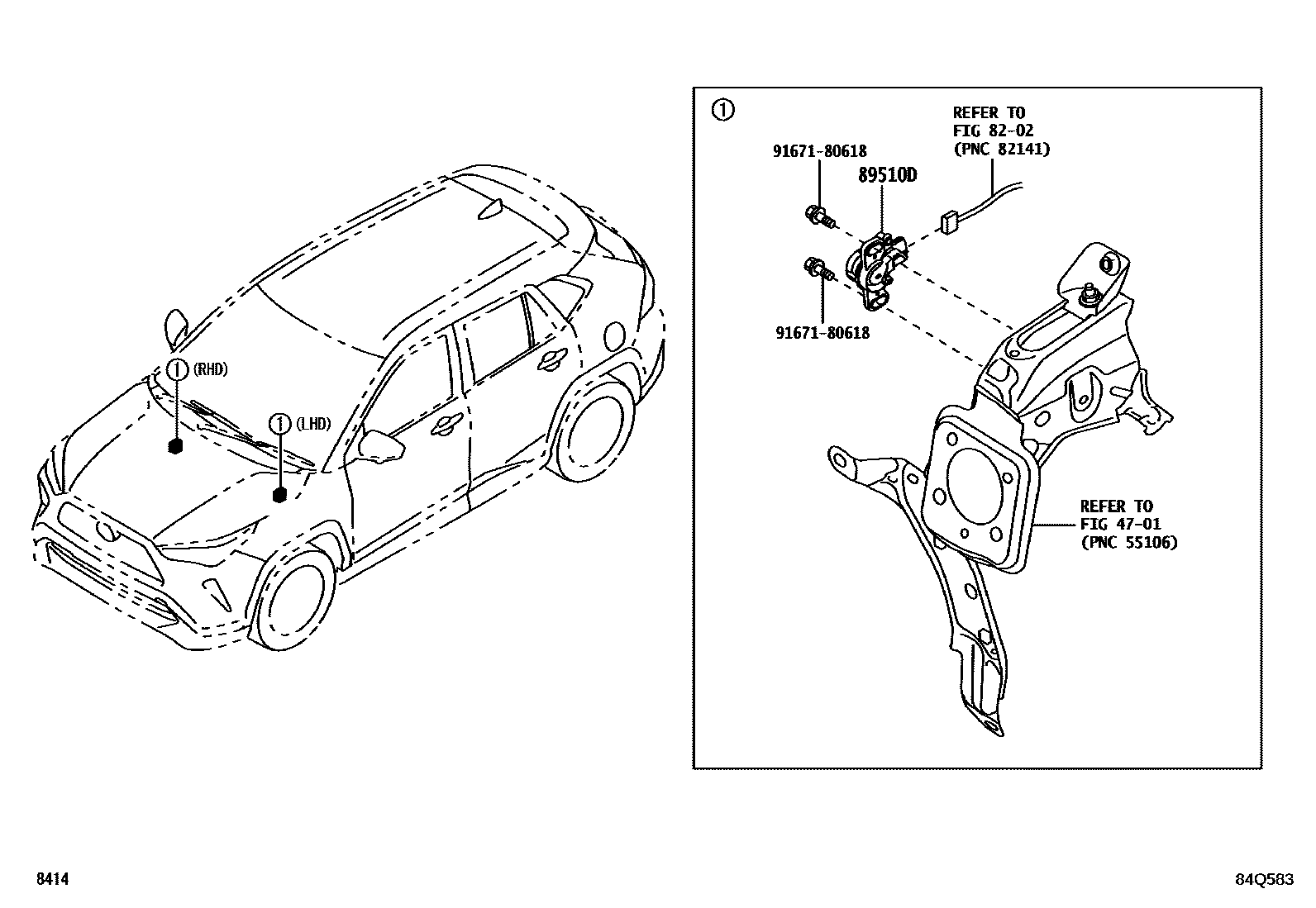

Toyota YARIS ABS 和 VSC EPC diagram — 84Q583
ABS 和 VSC — 84Q583 (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
82251DRight speed sensor harness82251-BZ270 · 82251-BZ350
82251ELeft speed sensor wiring harness82251-BZ280 · 82251-BZ360
89510DBrake pedal stroke sensor assembly89510-47030 · 89510-47040
89542Right front wheel speed sensor89542-BZ260
89543Left front wheel speed sensor89543-BZ260
