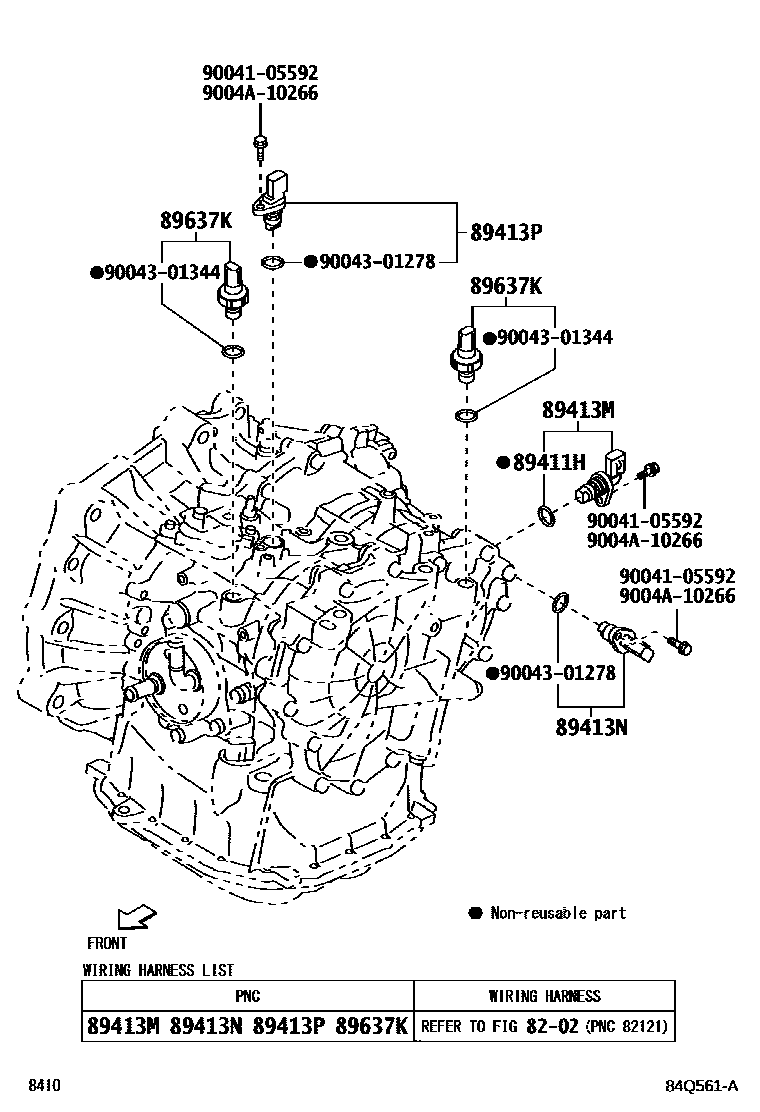

Toyota YARIS 超速档和电子控制变速器 — Figure 8410
Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89411H | O-ring | 90043-01278 |
| 89413M | Transmission speed sensor (NOUT) | 89413-B2030 |
| 89413N | Transmission speed sensor (NT) | 89413-B2020 |
| 89413P | Transmission speed sensor (NIN) | 89413-B2020 |
| 89637K | oil pressure sensor | 89637-B2030 |
