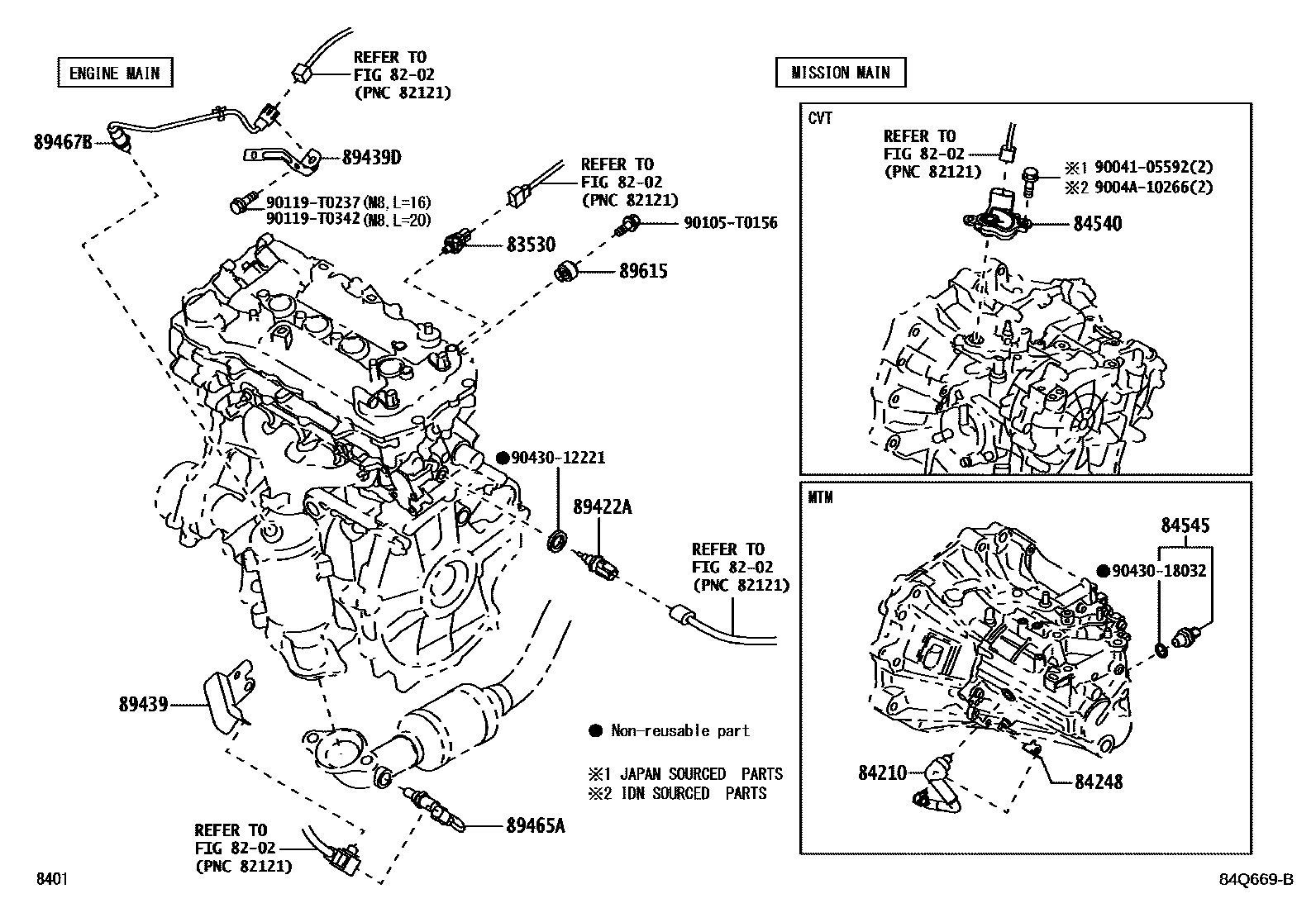

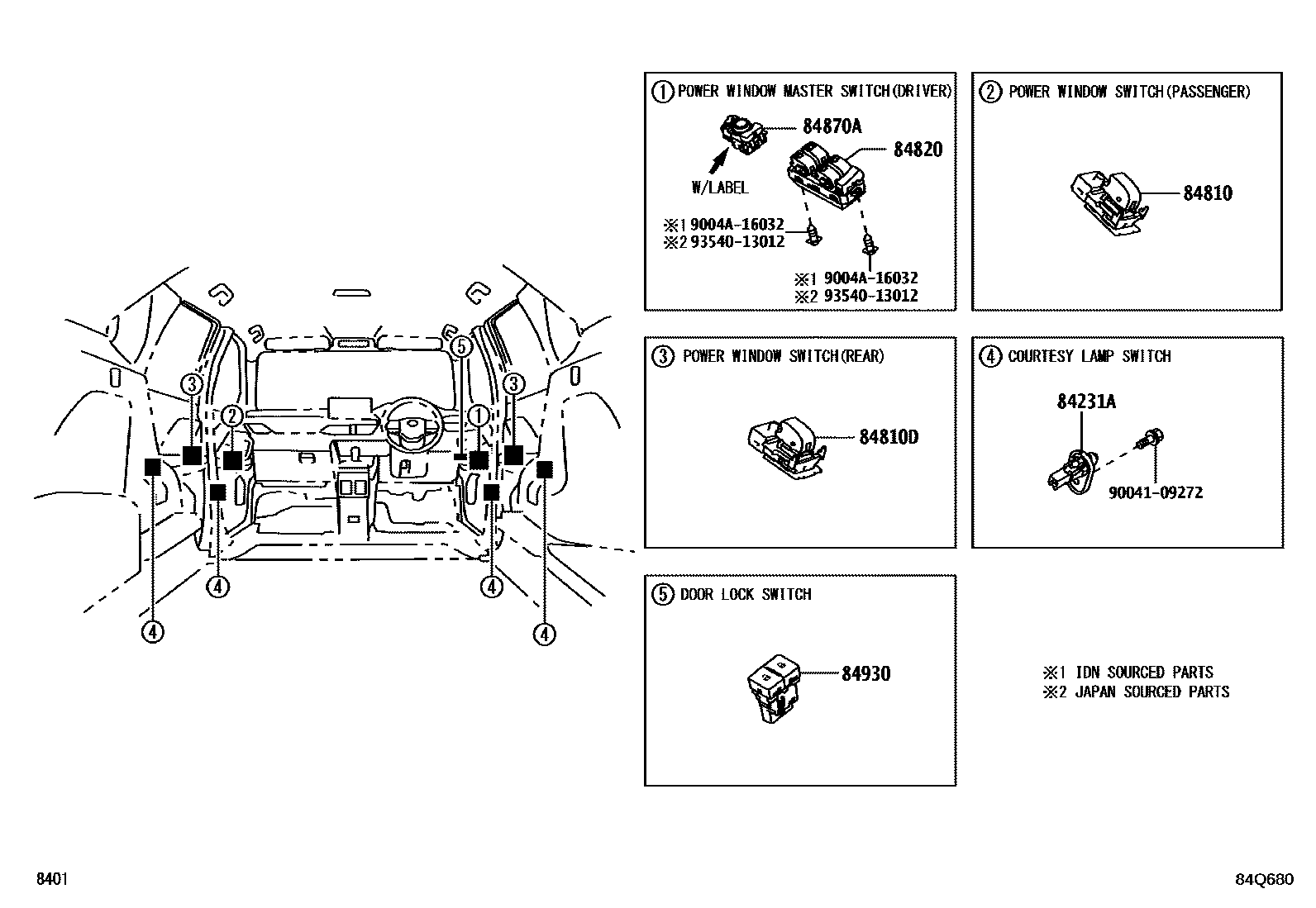

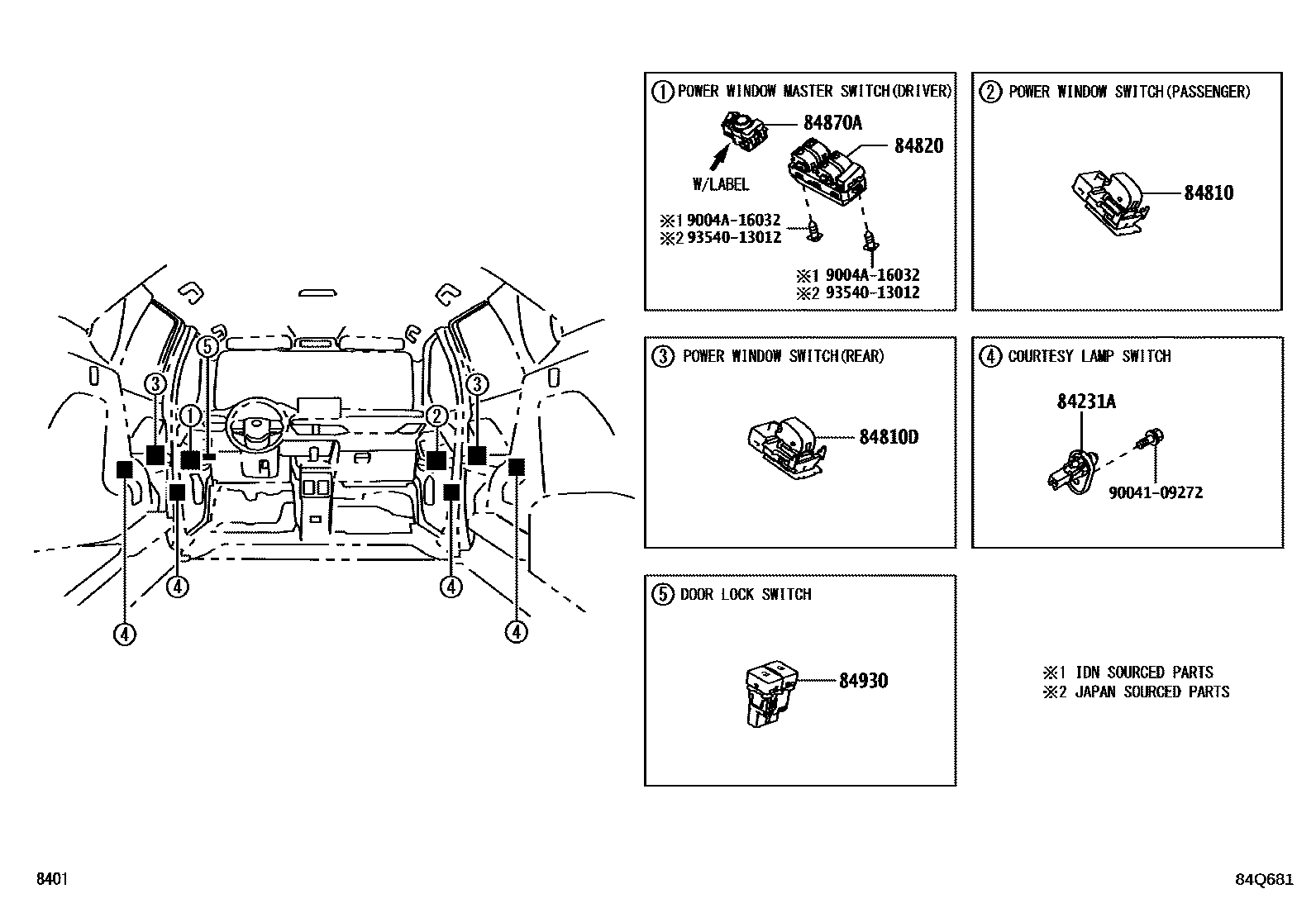

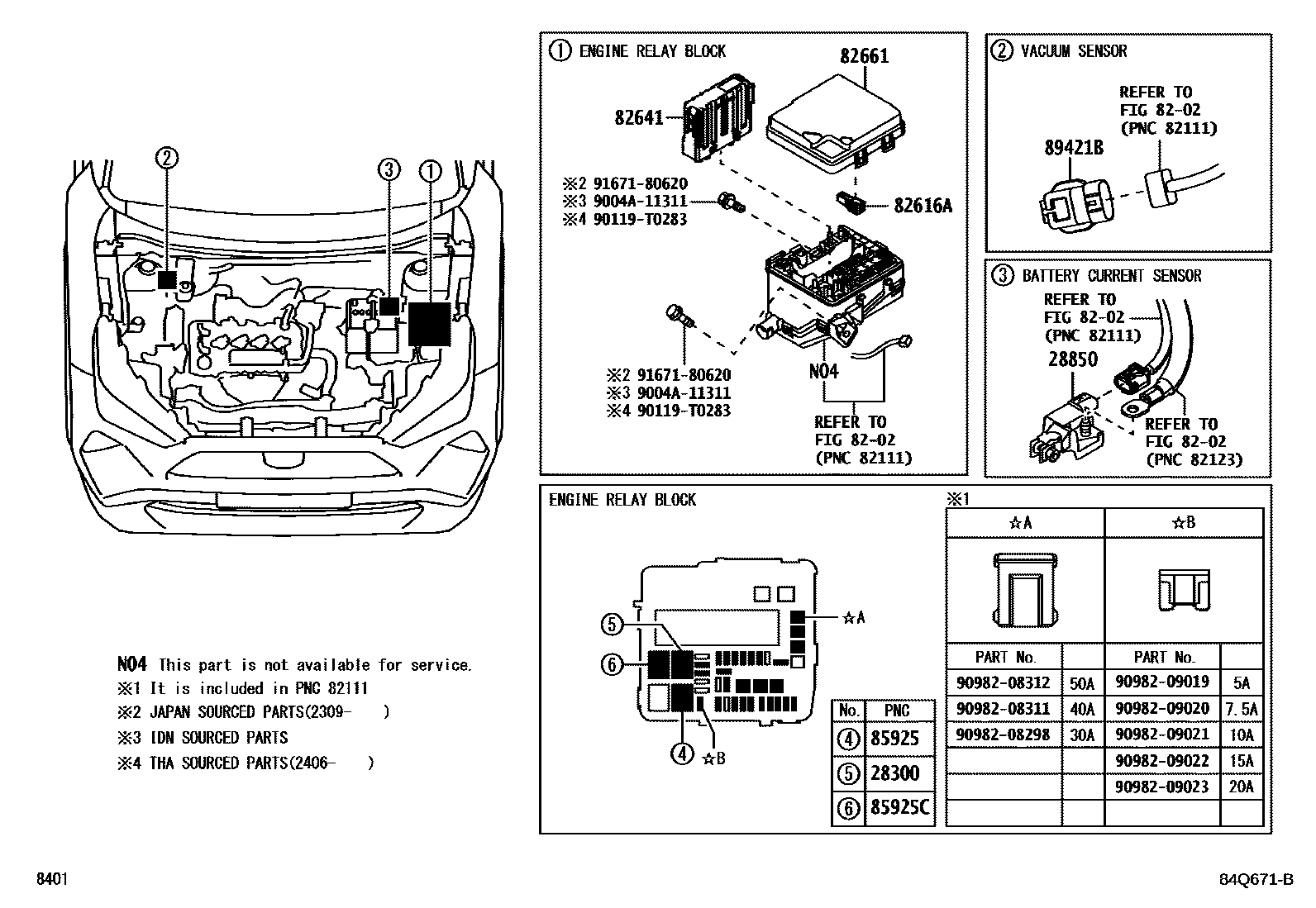

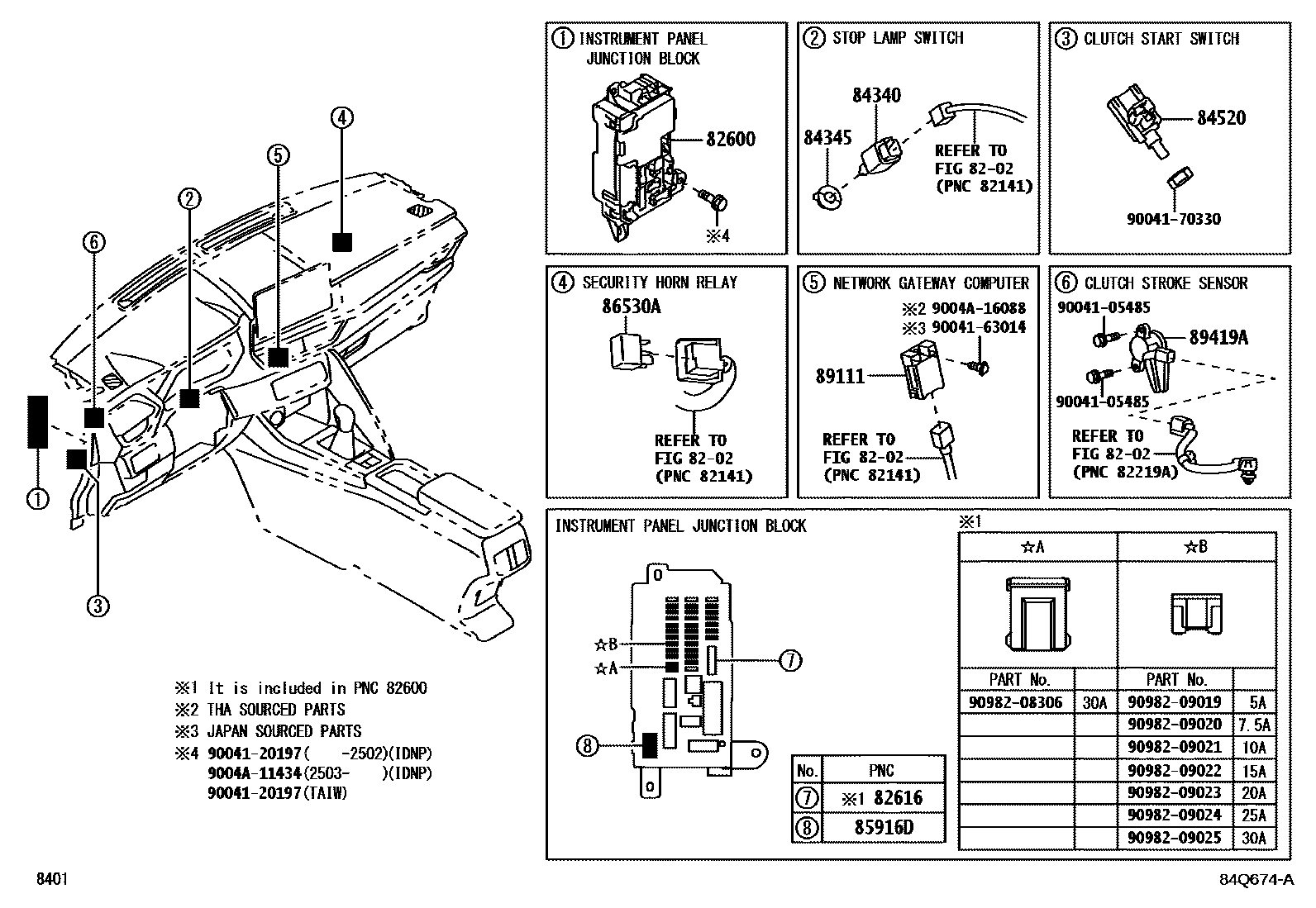

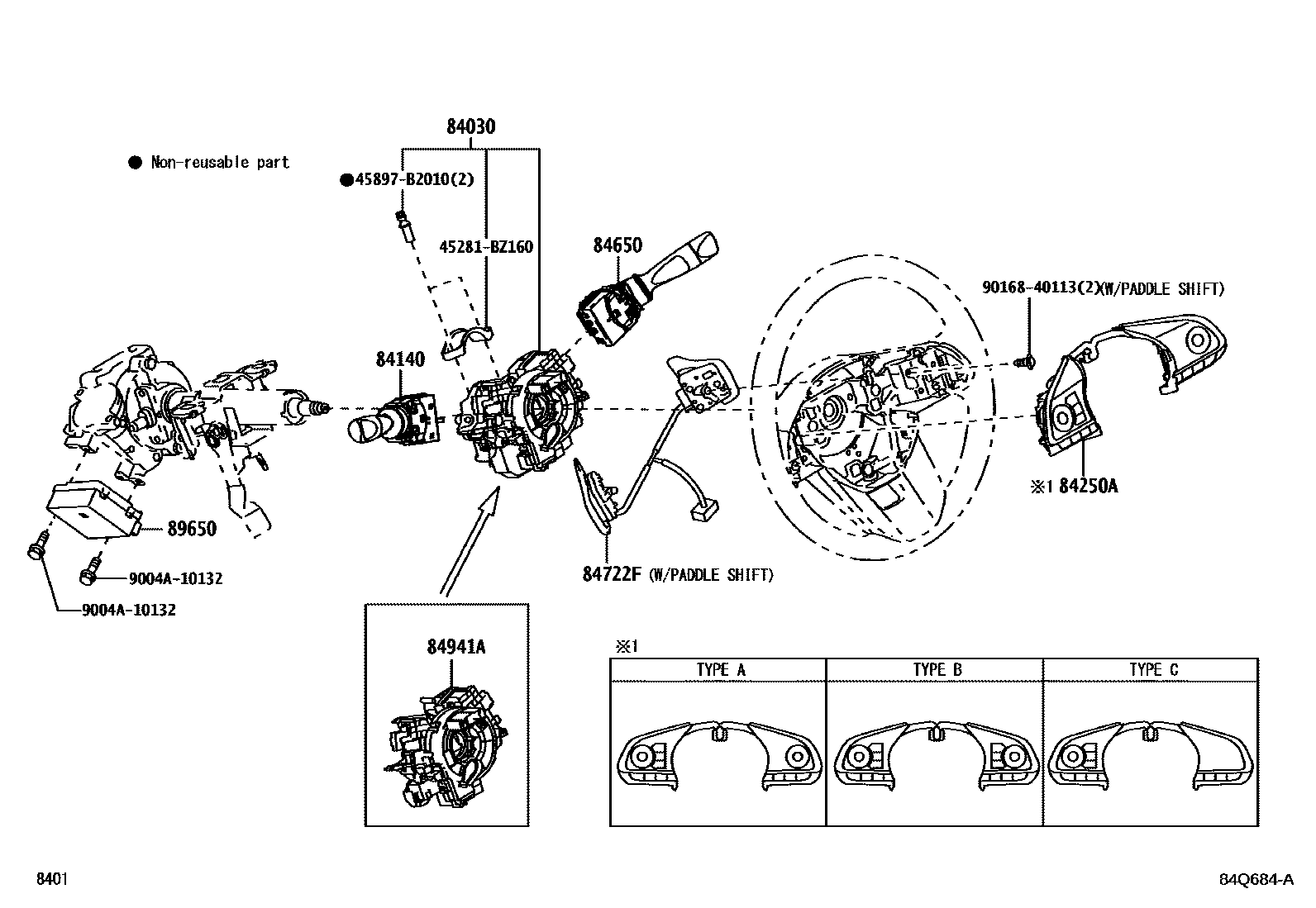

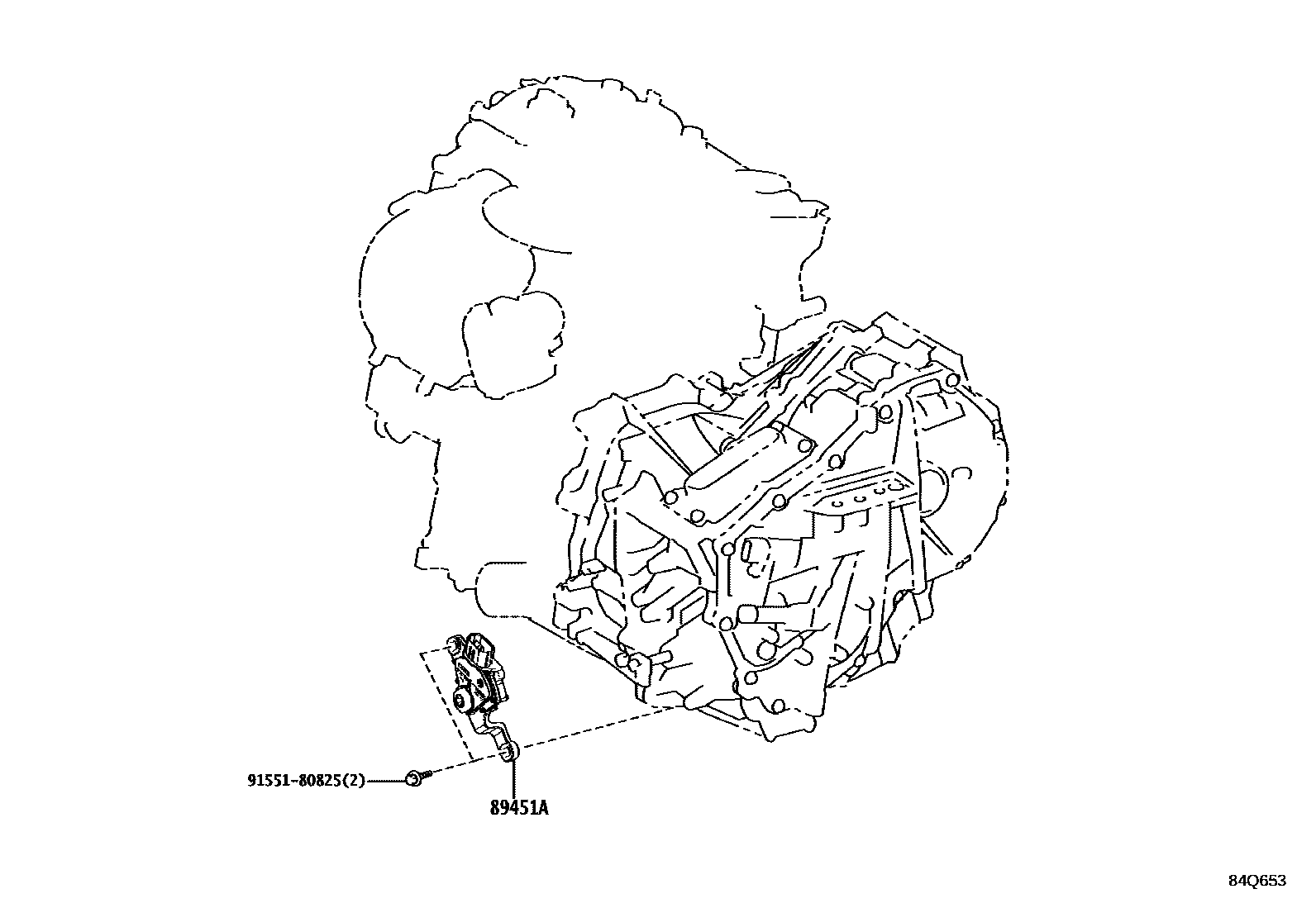

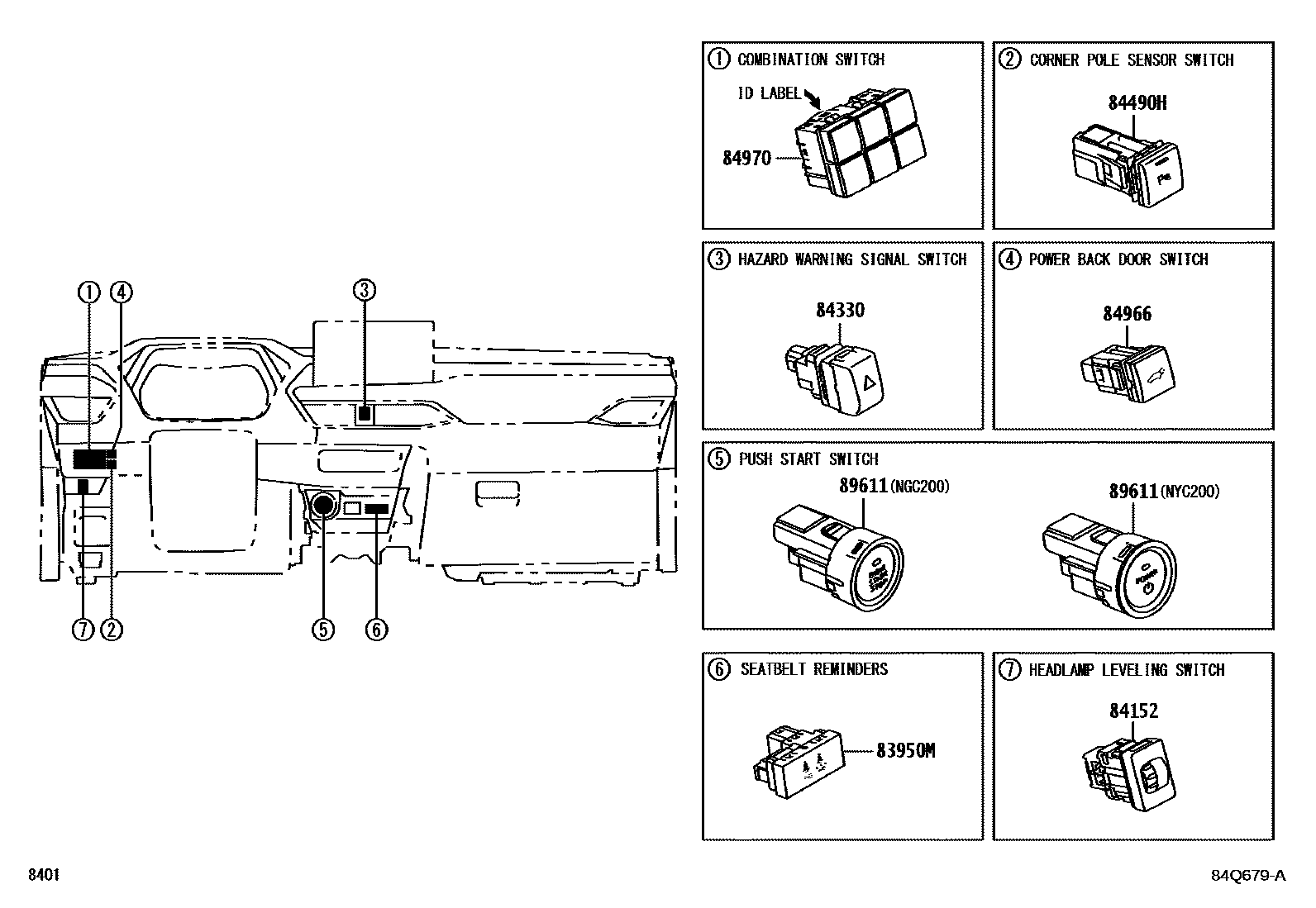

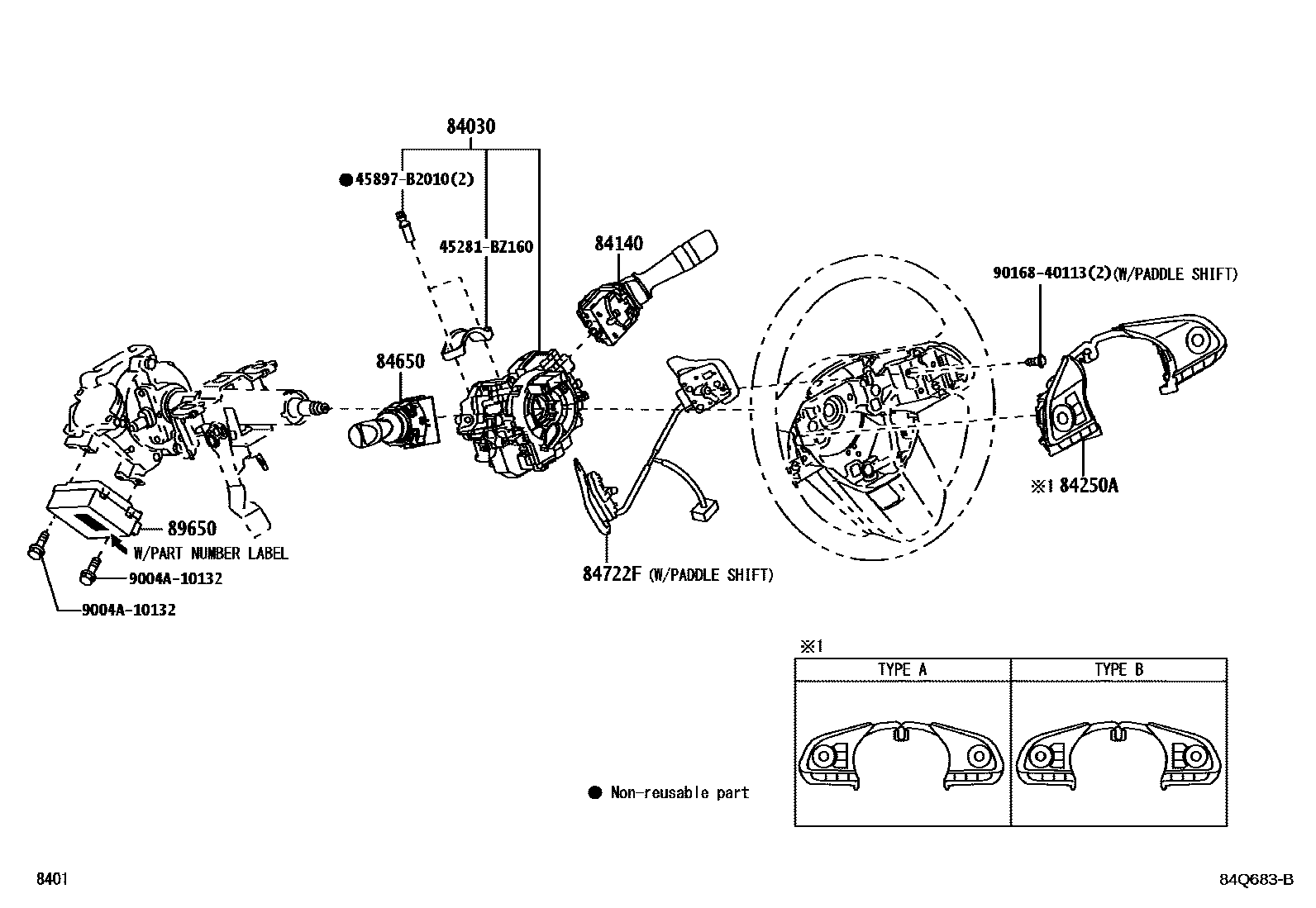

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 17 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 90987-T2001 |

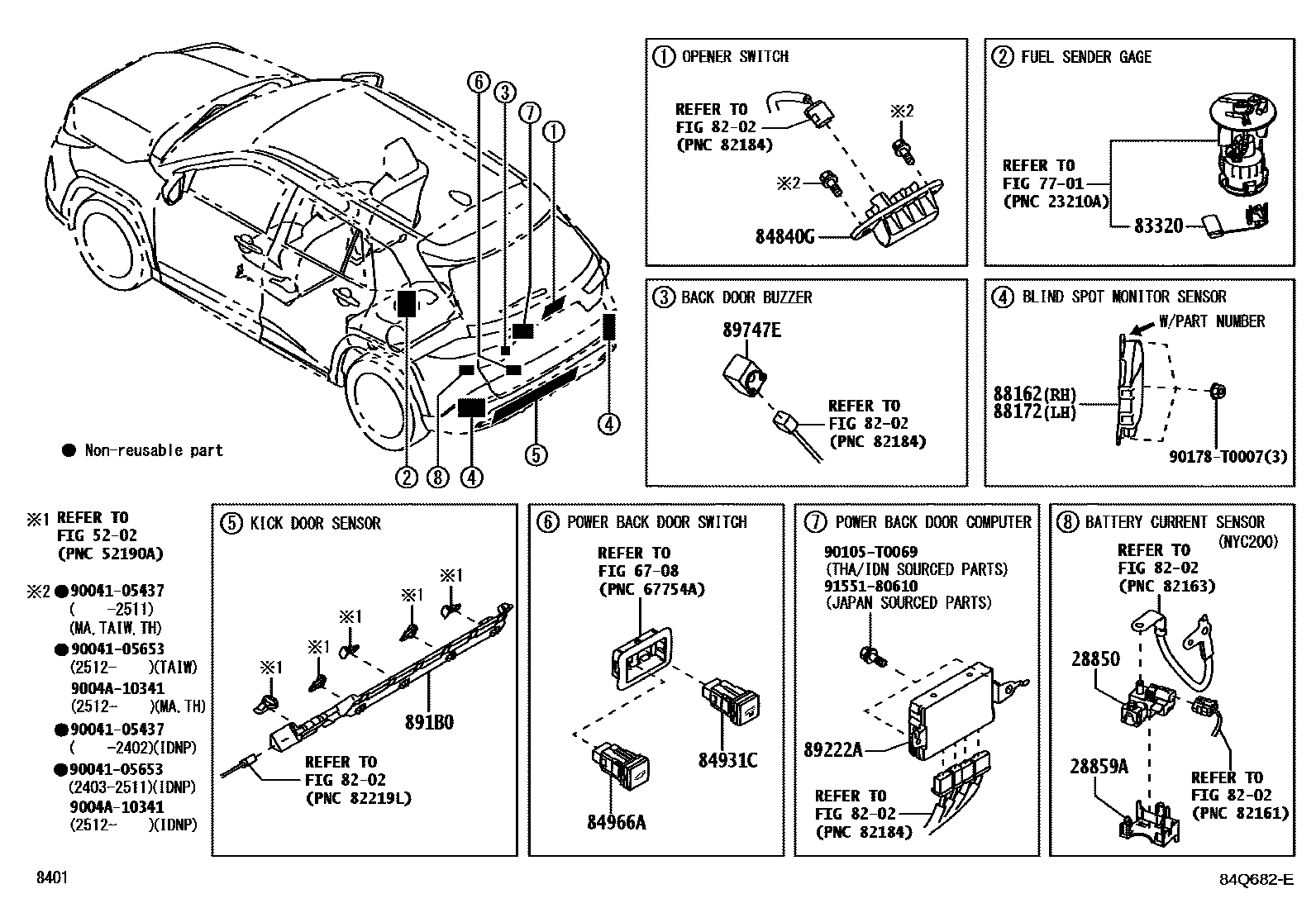

| 28850 | Battery current sensor assembly | 28850-B1040 · 28850-BZ030 · 28850-BZ060 |
| 28859A | Battery current sensor mount | 28859-BZ010 |

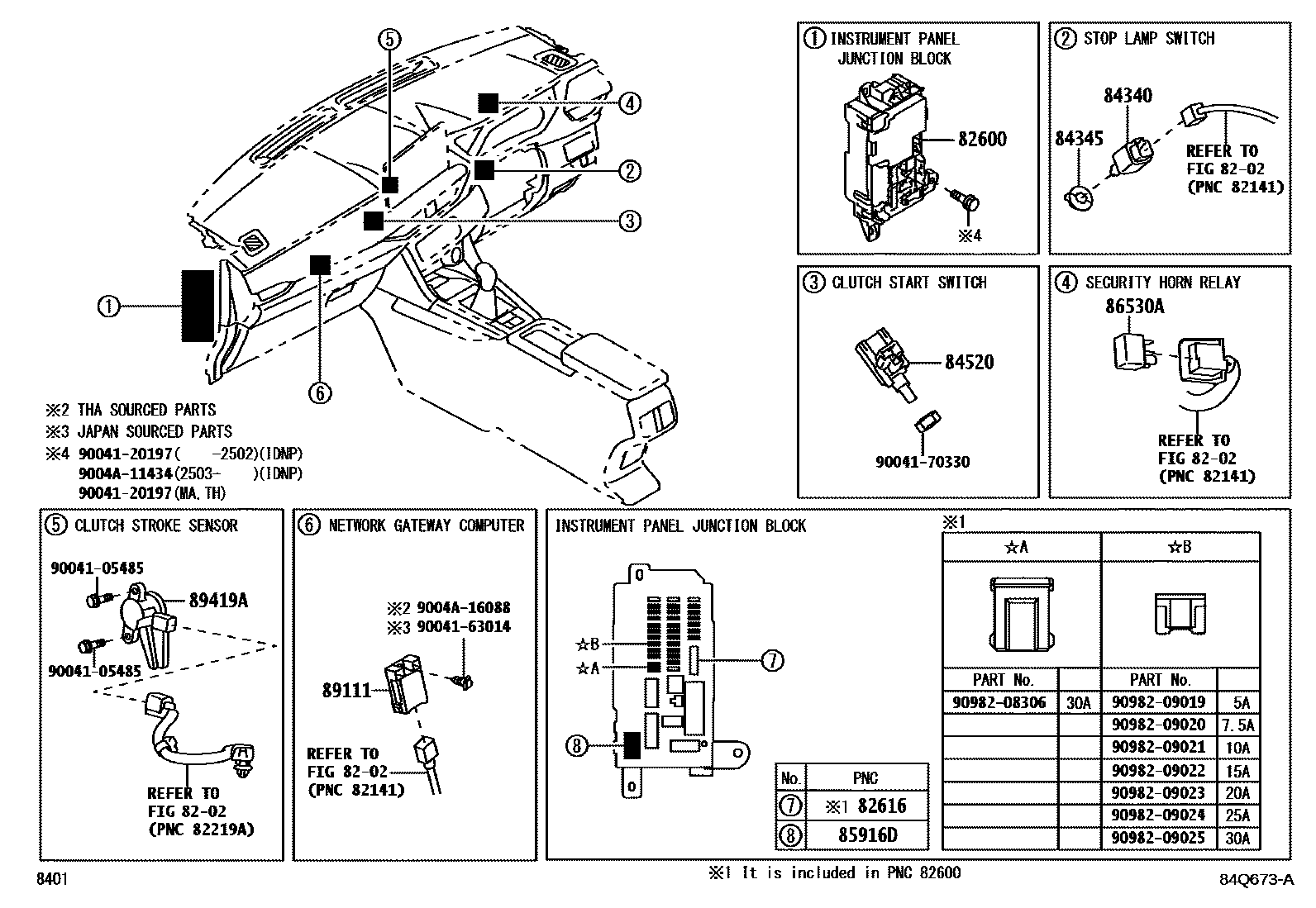

| 82600 | Fuse box assembly | 82600-BZE00 · 82600-BZE01 · 82600-BZQ40 · 82600-BZQ41 · 82600-BZQ50 · 82600-BZQ60 · 82600-BZQ61 · 82600-BZQ70 · 82600-BZR10 · 82600-BZR11 · 82600-BZR20 · 82600-BZR21 · 82600-BZR30 · 82600-BZR31 · 82600-BZR60 · 82600-BZR61 · 82600-BZR70 · 82600-BZT30 · 82600-BZT31 · 82600-BZT50 · 82600-BZT51 · 82600-BZT60 · 82600-BZT61 · 82600-BZT70 · 82600-BZT71 · 82600-BZT80 · 82600-BZT81 · 82600-BZU00 · 82600-BZU01 · 82600-BZU20 · 82600-BZU21 · 82600-BZV80 · 82600-BZV81 · 82600-BZV90 · 82600-BZV91 |
| 82616 | fuse puller | 82616-58010 |
| 82616A | No.2 fuse puller | 82616-58010 |

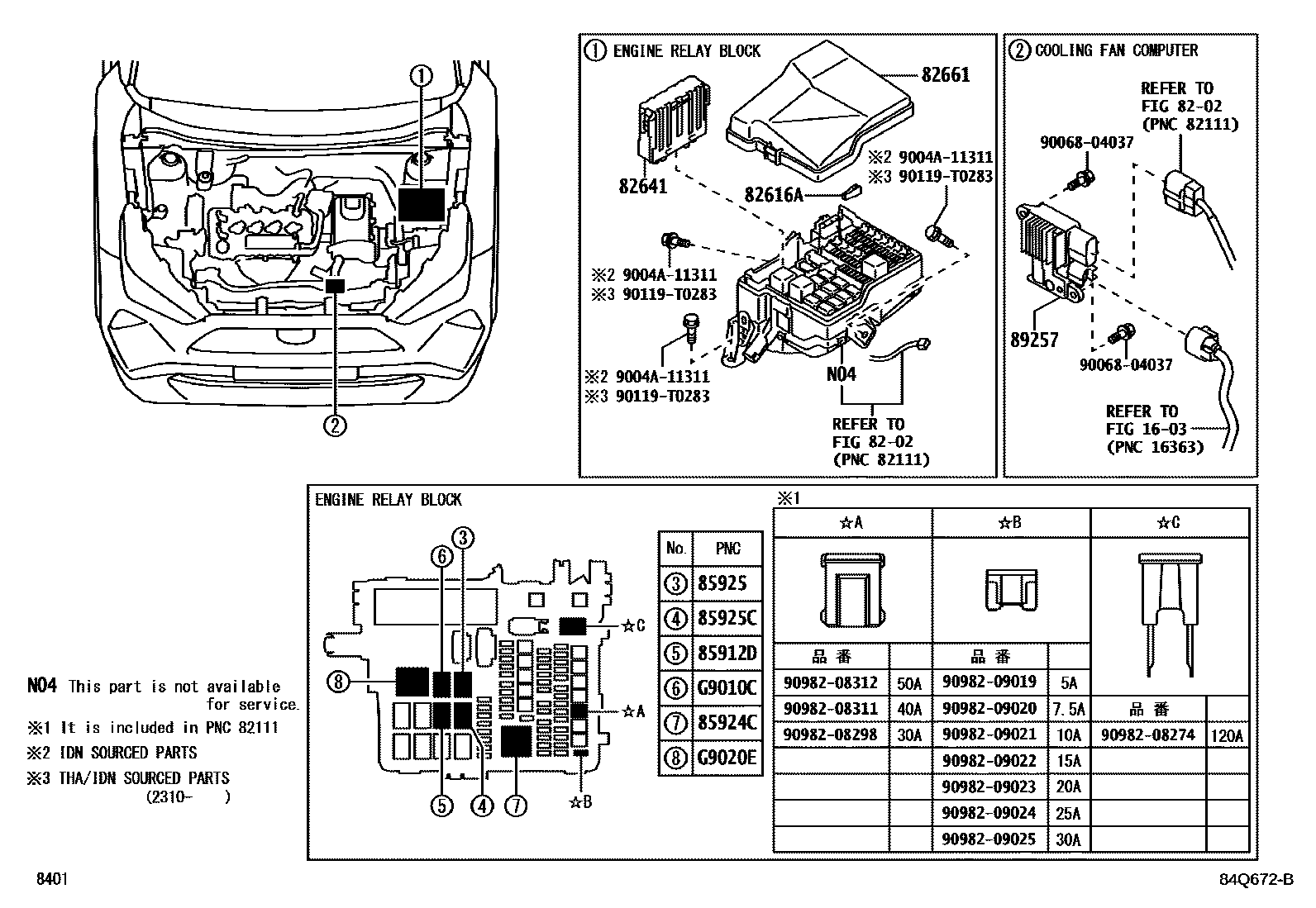

| 82641 | Integrated relay No. 1 | 82641-BZ040 |
| 82661 | No. 1 relay box cover | 82661-B1490 · 82661-BZ310 |
| 83320 | Fuel gauge sensor assembly | 83301-BZ330 · 83301-BZ340 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-52050 |
| 83950M | Warning light assembly | 83950-BZ130 |
| 84030 | Multi-channel network switch assembly | 84030-BZ121 · 84030-BZ122 · 84030-BZ141 · 84030-BZ142 · 84030-BZ210 · 84030-BZ212 · 84030-BZ220 · 84030-BZ221 |
| 84140 | Headlight dimmer switch assembly | 84140-BZ260 · 84140-BZ261 · 84140-BZ280 · 84140-BZ281 · 84140-BZ330 · 84140-BZ331 · 84140-BZ340 · 84140-BZ341 · 84140-BZ410 · 84140-BZ411 · 84140-BZ520 · 84140-BZ521 · 84140-BZ530 · 84140-BZ531 |
| 84152 | Headlight beam height adjustment switch | 84152-BZ060 |
| 84210 | Reversing light switch assembly | 84210-BZ120 |
| 84231A | door control light switch | 84231-02040 · 84231-02070 · 84231-0D080 |
| 84248 | Central instrument cluster module switch harness clip | 84248-BZ110 |
| 84330 | Hazard warning signal switch assembly | 84332-BZ280 |
| 84340 | brake light switch assembly | 84340-B2061 |
| 84345 | Brake light switch base adjuster | 84345-BZ010 · 84345-BZ040 |
| 84390B | Electric parking brake switch assembly | 84390-BZ030 |
| 84490H | Angle rod sensor switch assembly | 84490-BZ090 |
| 84520 | Clutch start switch assembly | 84520-97202 |
| 84540 | Neutral start switch assembly | 84540-B2040 |
| 84545 | neutral position switch | 84545-BZ010 |
| 84650 | Windshield wiper switch assembly | 84652-BZ440 · 84652-BZ441 · 84652-BZ450 · 84652-BZ451 |
| 84740B | Air purifier switch assembly | 84740-BZ010 |
| 84810 | Electric window lift switch assembly | 84810-BZ190 |
| 84810D | Rear electric window lift switch assembly | 84810-BZ190 |
| 84820 | Electric window lift main switch assembly | 84820-BZ450 · 84820-BZ460 |
| 84840G | Back door opener switch assembly | 84840-B0010 · 84840-B0020 |
| 84870A | Exterior rearview mirror switch assembly | 84870-BZ230 · 84870-BZ240 |

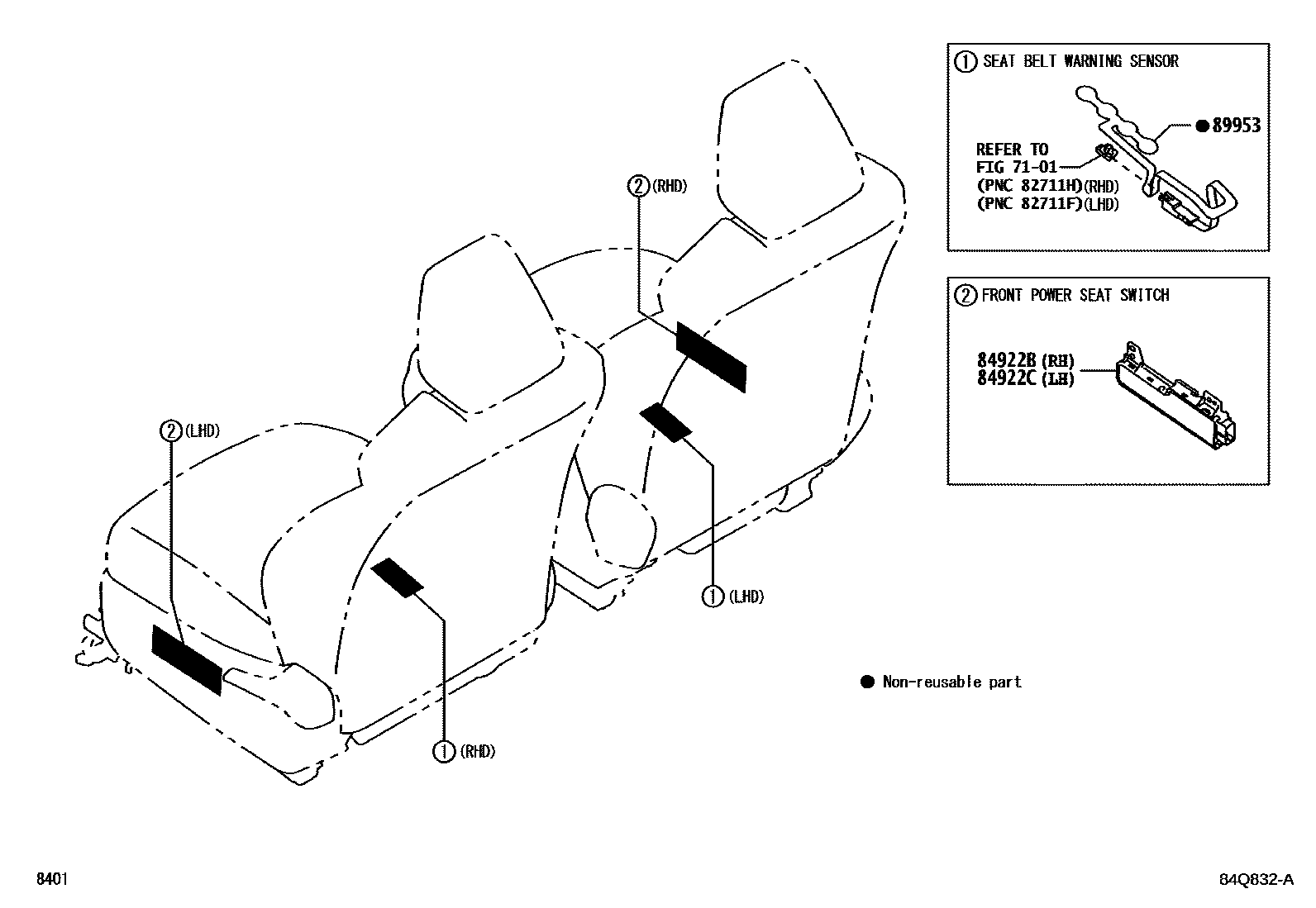

| 84922B | Front right electric seat switch | 84922-33170 |
| 84922C | Front left electric seat switch | 84922-33200 |
| 84930 | Door control switch assembly | 84930-BZ050 |
| 84931C | Back door control switch | 84966-BZ020 |
| 84941A | switch base | 84941-BZ301 · 84941-BZ302 |
| 84966 | Automatic back door control switch | 84966-BZ010 |
| 84966A | No. 1 automatic back door control switch | 84966-BZ010 |

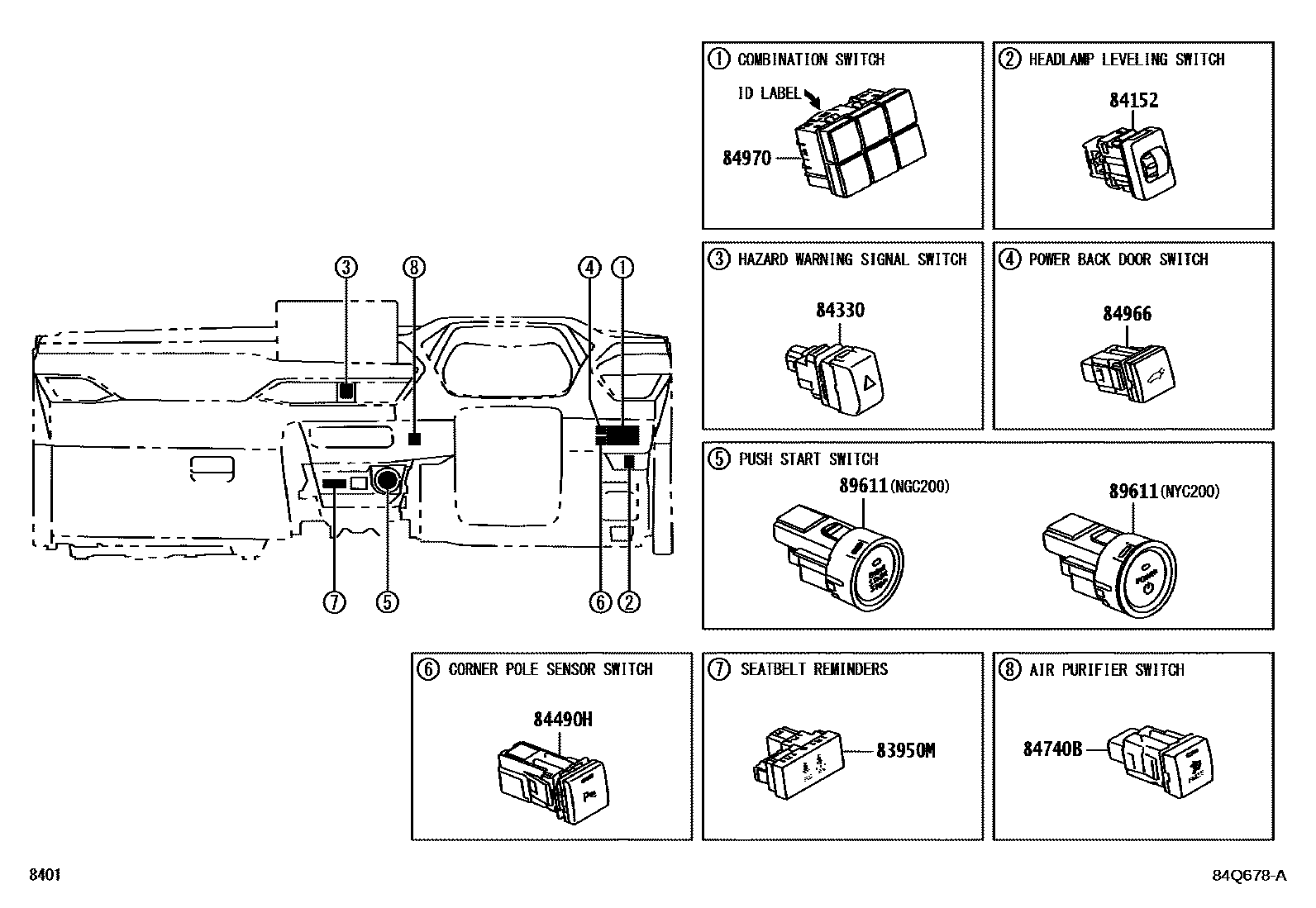

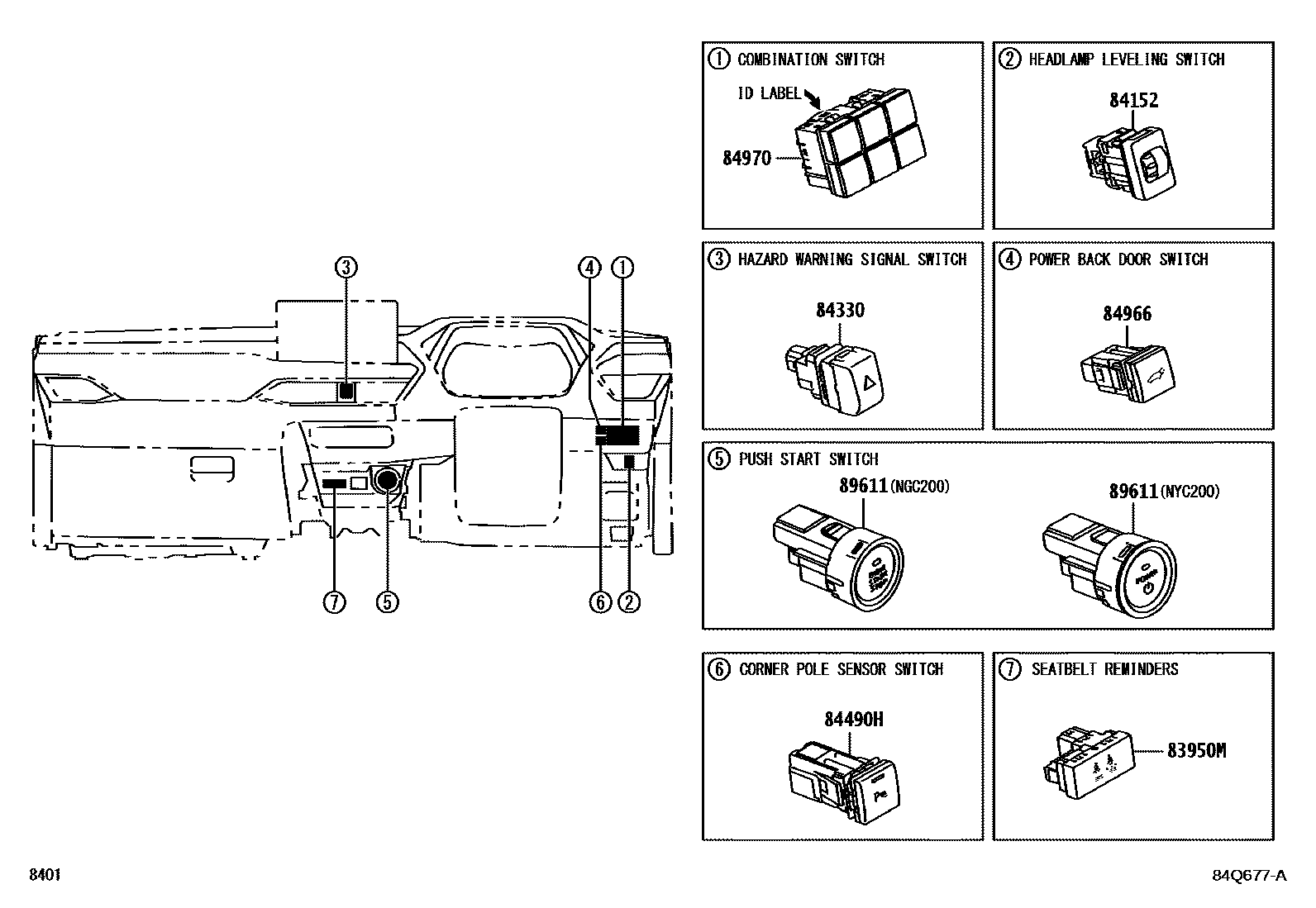

| 84970 | Combination switch assembly | 84970-BZ290 · 84970-BZ440 · 84970-BZ470 · 84970-BZ480 · 84970-BZ500 · 84970-BZ510 · 84970-BZ520 · 84970-BZ550 · 84970-BZ740 · 84970-BZ750 |

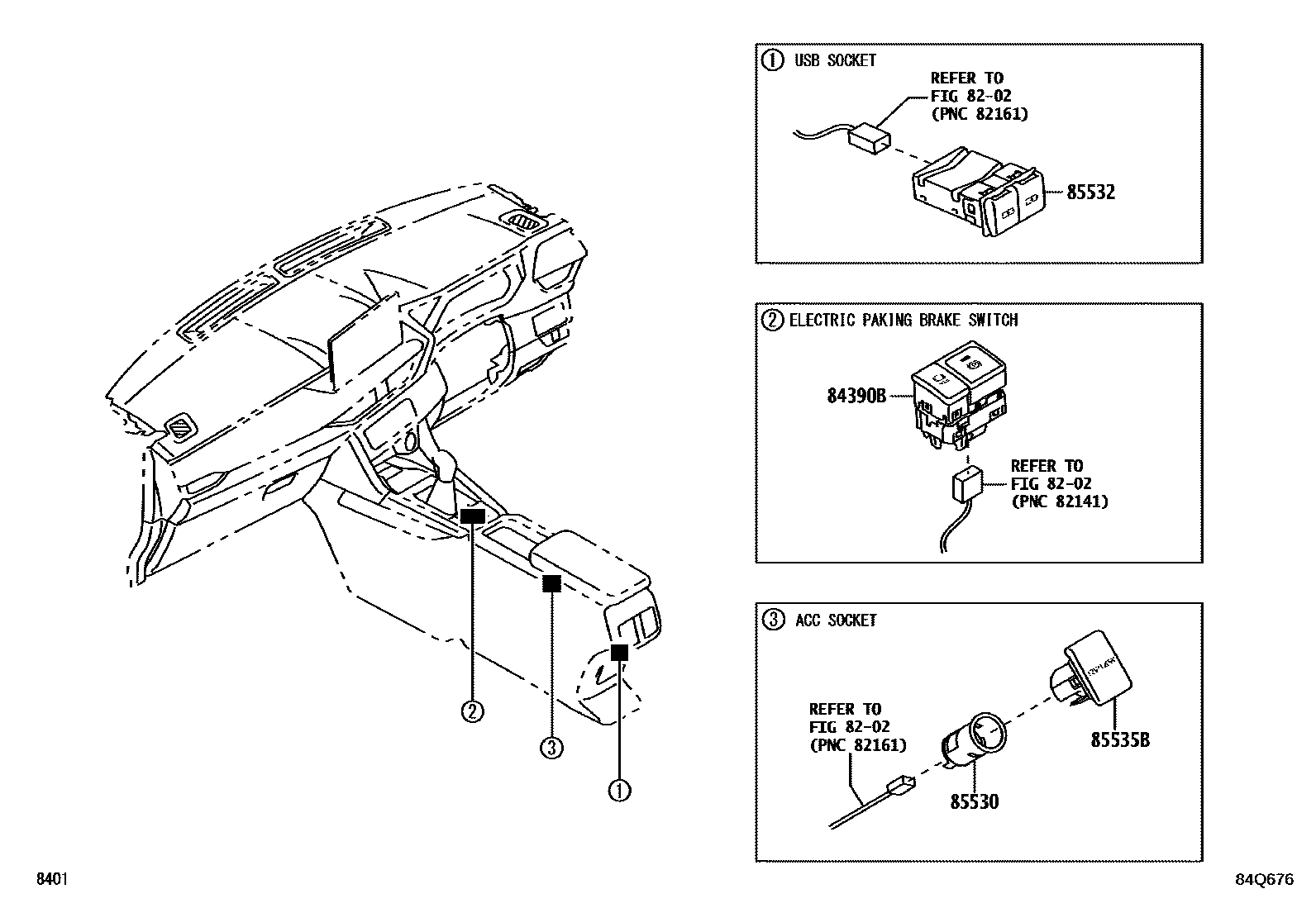

| 85530 | No. 1 power socket assembly | 85530-BZ080 |
| 85532 | USB charging socket | 85532-BZ040 |
| 85535B | No. 1 power outlet cover | 85535-BZ100 |
| 85912D | relay | 90987-T2001 |
| 85916D | fog light relay | 90987-T2001 |
| 85924C | IGCT relay | 90987-02031 |
| 85925 | Radiator fan relay | 90987-T2001 |
| 85925C | Radiator fan relay No. 2 | 90987-T2001 |
| 86530A | Horn relay | 9004A-98006 · 90987-T2001 |
| 88162 | Blind spot monitor right sensor | 88162-B1160 · 88162-B1161 |
| 88172 | Blind spot monitor left sensor | 88162-B1160 · 88162-B1161 |
| 89111 | Network gateway ECU | 89111-BZ060 · 89111-BZ070 · 89111-BZ200 |
| 891B0 | Kick control sensor assembly | 891B2-B1010 |
| 89222A | Multi-channel network door ECU | 89222-B1020 |
| 89257 | Cooling fan ECU | 89257-K0020 |
| 89419A | clutch travel sensor | 89419-BZ040 |
| 89421B | vacuum sensor | 89421-B2030 |
| 89422A | water temperature sensor | 89422-33030 · 89422-B2030 |
| 89439 | Sensor holder | 89439-BZ201 · 89439-BZ250 |
| 89439D | Sensor No. 1 Bracket | 89439-BZ210 |
| 89451A | shift lever position sensor | 89451-10010 |

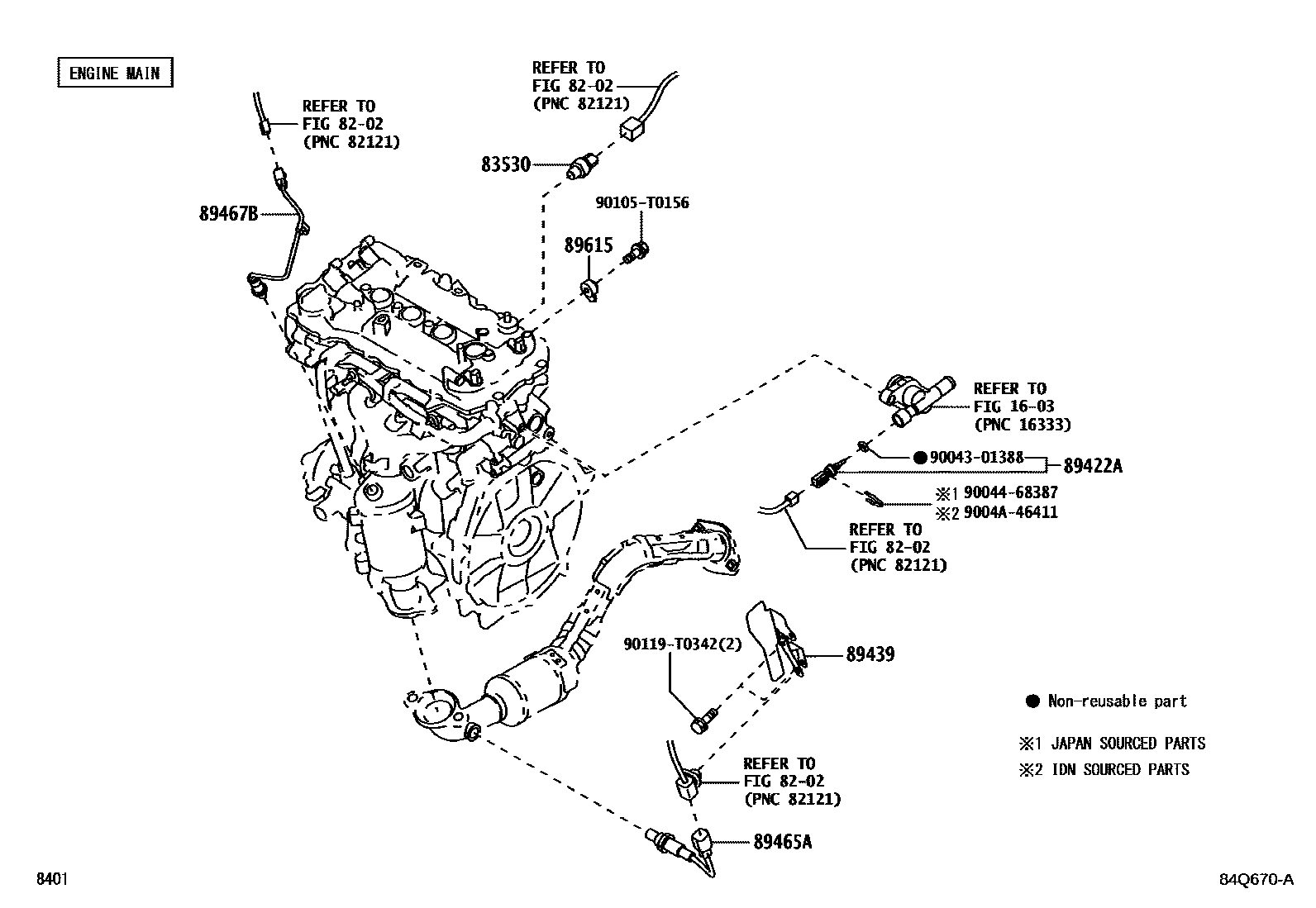

| 89465A | Oxygen sensor No. 2 | 89465-BZ610 |
| 89467B | air fuel ratio sensor | 89467-BZ020 |
| 89611 | One-button start switch | 89611-BZ030 · 89611-BZ040 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-BZ490 · 89650-BZ500 · 89650-BZ510 · 89650-BZ520 · 89650-BZ530 · 89650-BZ540 · 89650-BZ760 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89953 | Seat Belt Warning Occupant Detection Sensor | 89953-06060 · 89953-0A010 |
| G9010C | PCU radiator fan relay | 90987-T2001 |
| G9020E | Hybrid water pump relay | 90987-02031 |
