Toyota YARIS 仪表 — Figure 8301

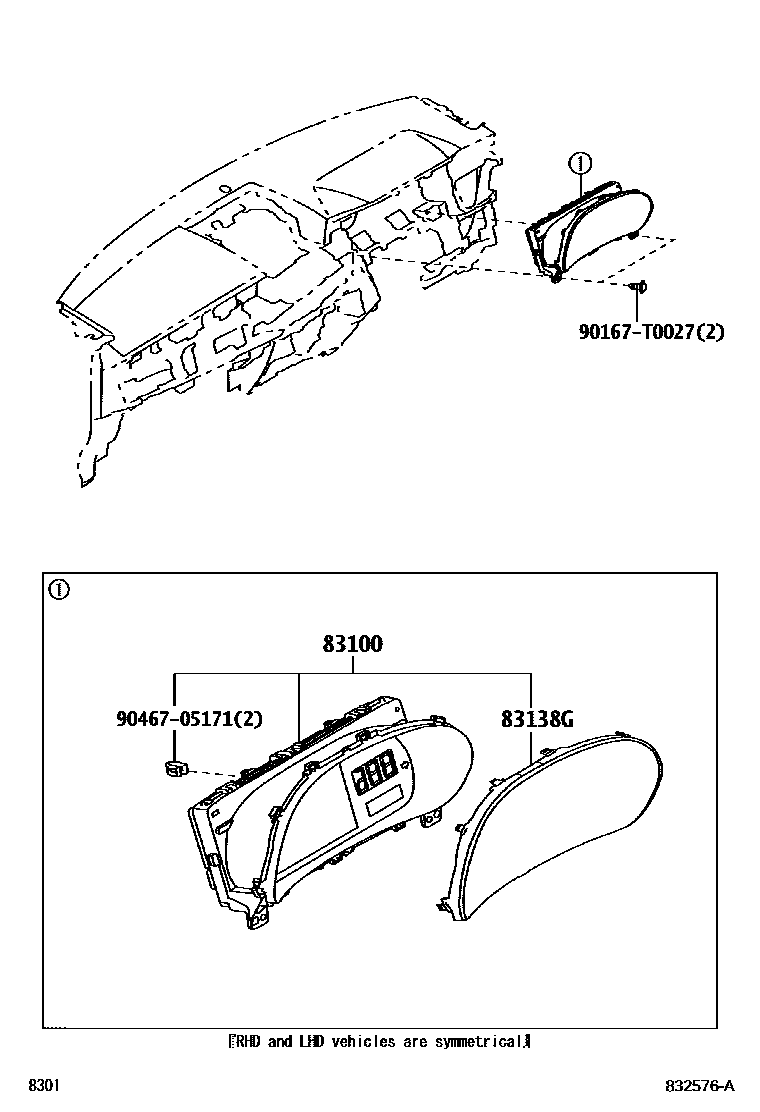

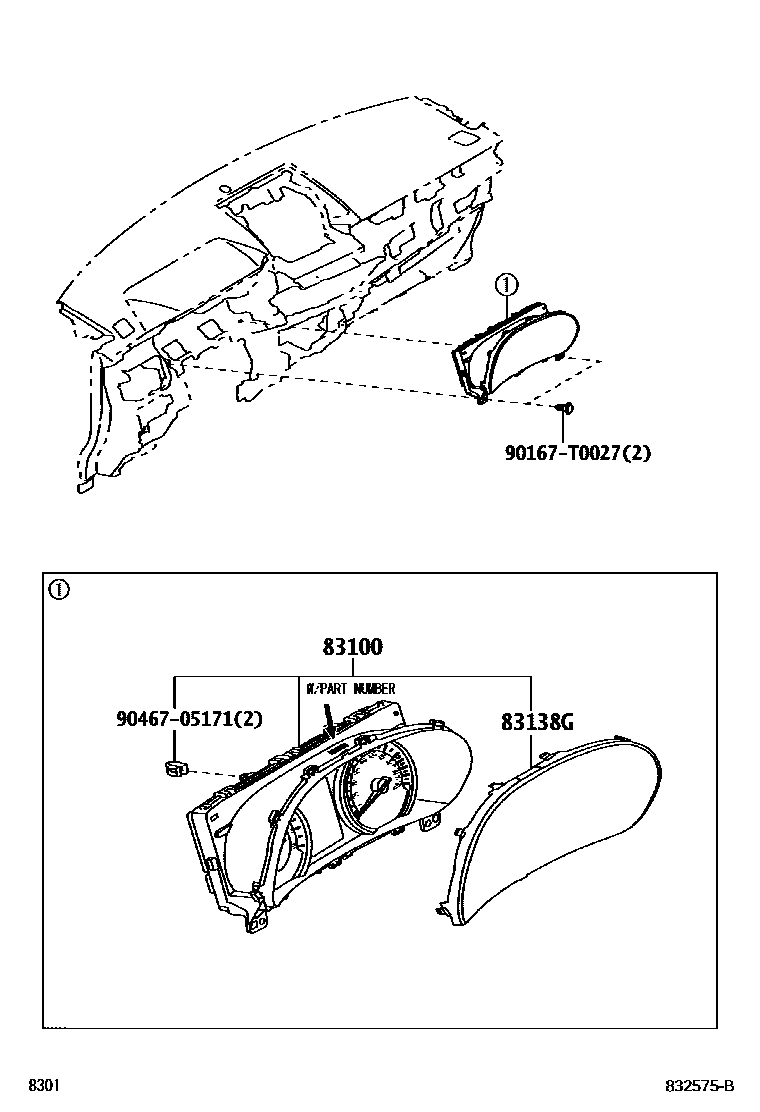

Toyota YARIS EPC diagram 8301, 仪表, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-BX310 · 83800-BX320 · 83800-BX330 · 83800-BX331 · 83800-BX340 · 83800-BX350 · 83800-BX360 · 83800-BX370 · 83800-BX380 · 83800-BX420 · 83800-BX430 · 83800-BX730 · 83800-BX731 · 83800-BYJ70 |
| 83138G | Instrument cluster glass | 83852-BZ230 · 83852-BZ250 · 83852-BZ260 |
