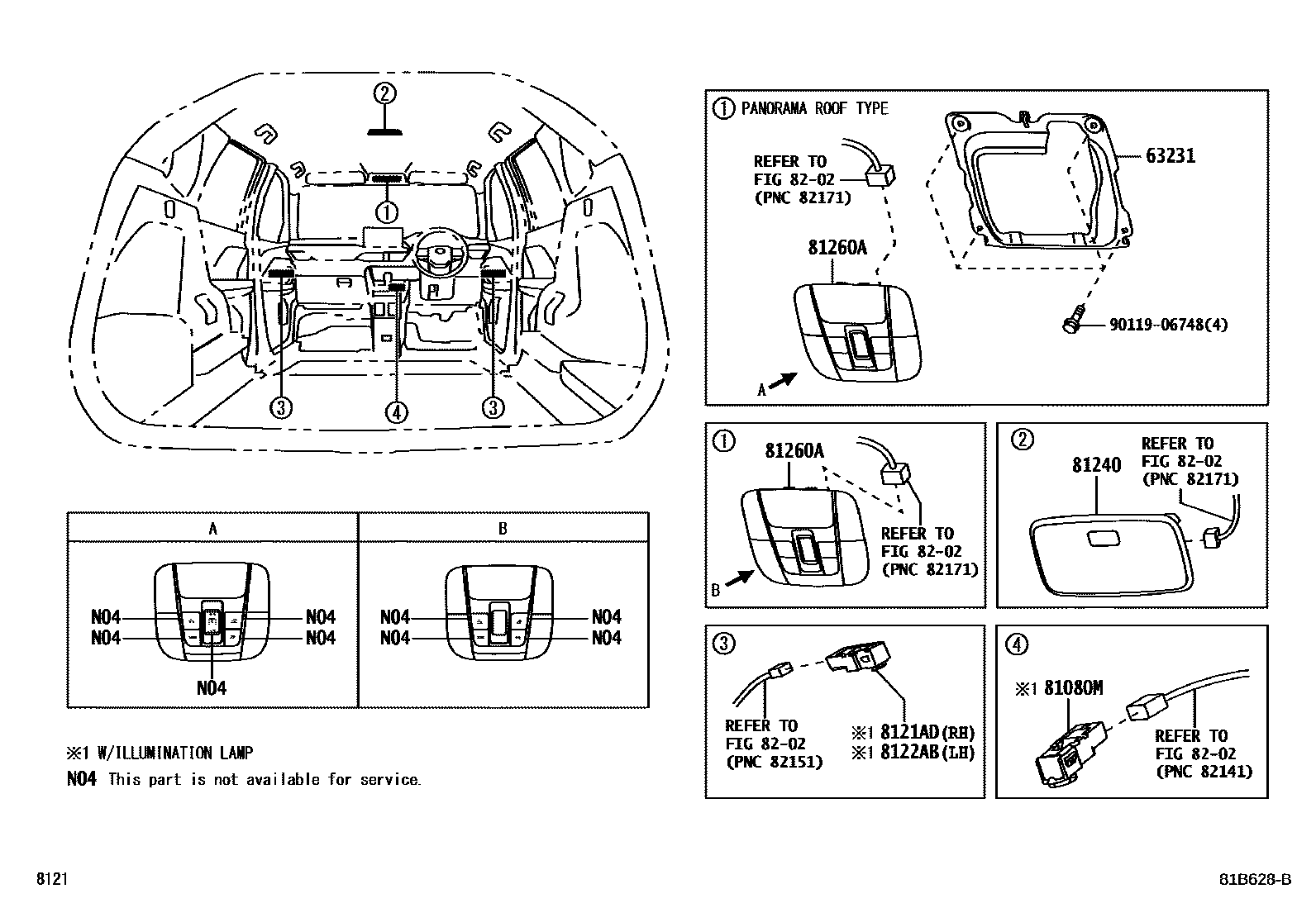

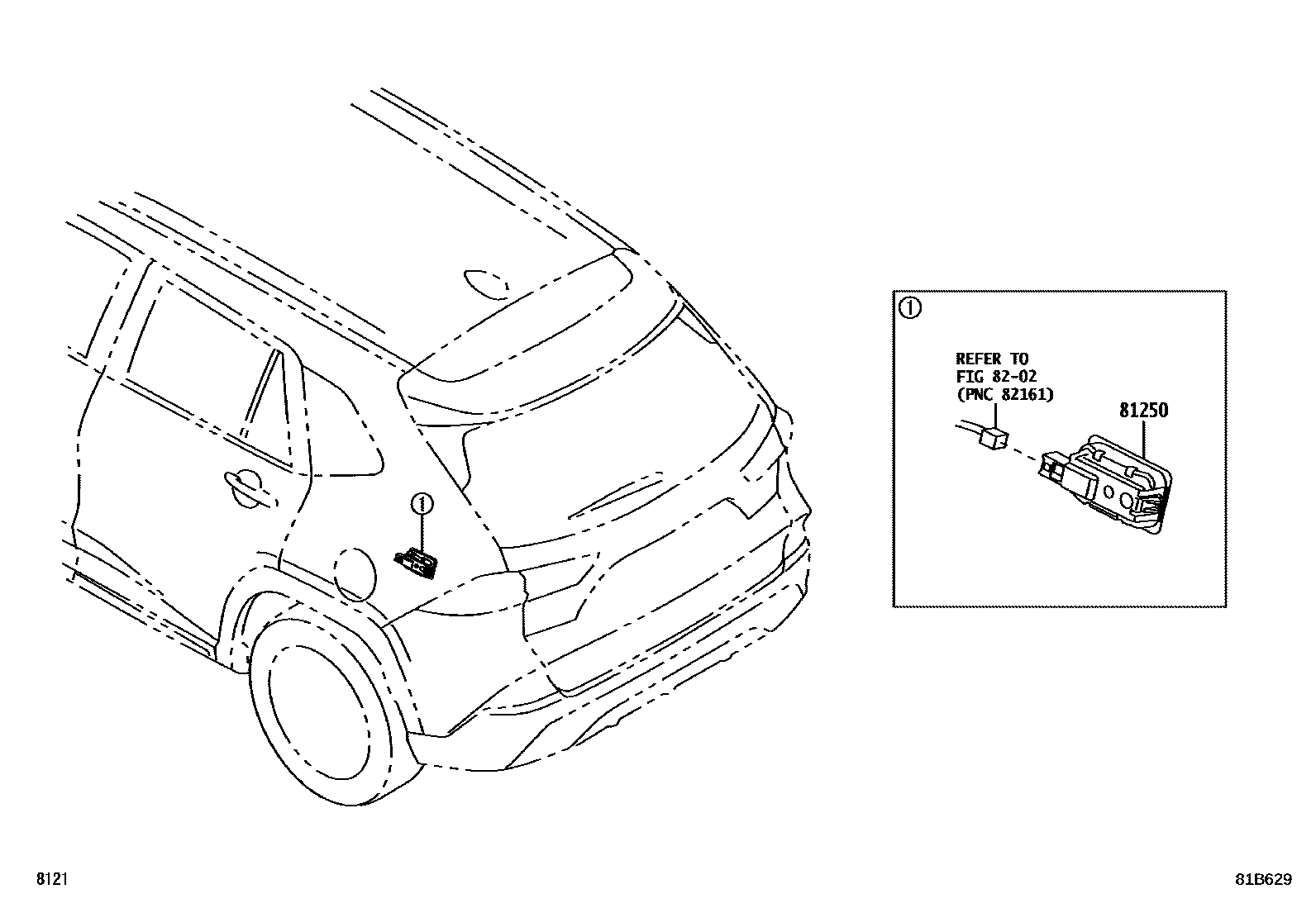

Toyota YARIS 车内灯 — Figure 8121
Toyota YARIS EPC diagram 8121, 车内灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63231 | Interior light bracket | 63231-BZ070 |
| 81080M | No. 1 interior lighting assembly | 81080-BZ040 · 81081-BZ030 |
| 8121AD | Right LED lighting | 8121A-BZ010 · 8121A-BZ020 |
| 8122AB | Left LED lighting | 8121A-BZ010 · 8121A-BZ020 |
| 81250 | No. 2 interior light assembly | 81250-BZ020 · 81250-BZ030 |
