Toyota YARIS 高位刹车灯 — Figure 8117

Toyota YARIS EPC diagram 8117, 高位刹车灯, with 2 images and 3 PNC and OE references.

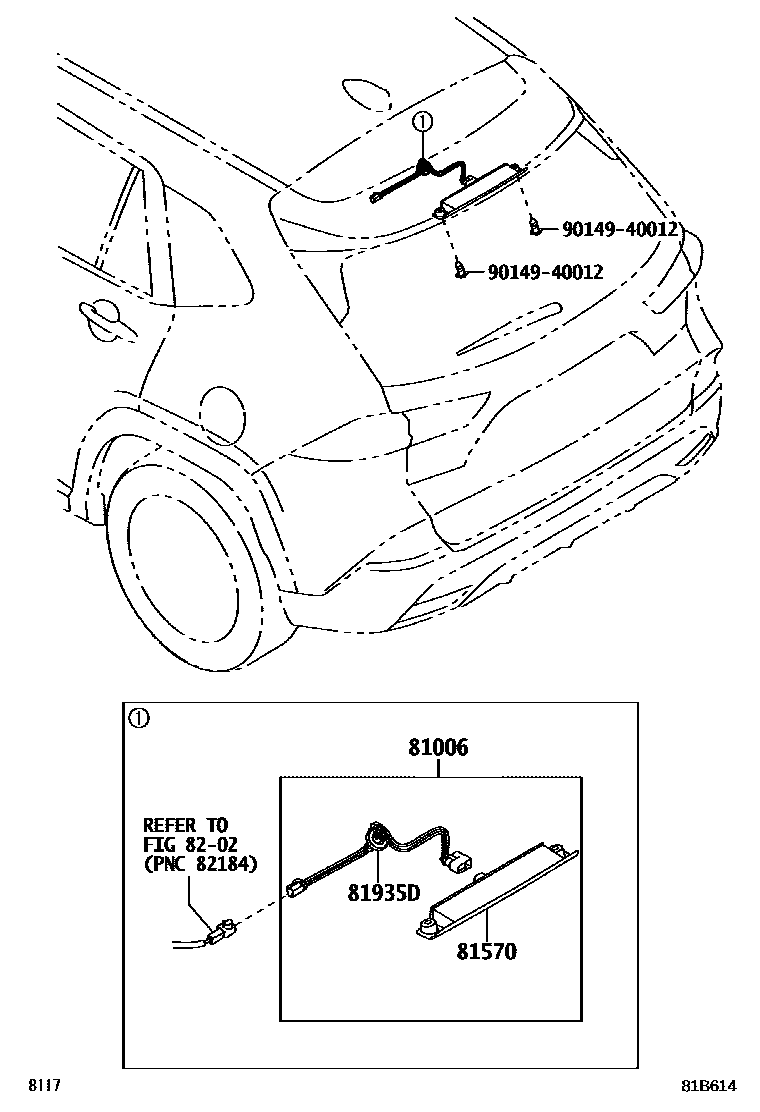

Toyota YARIS 高位刹车灯 EPC diagram — 81B614
高位刹车灯 — 81B614 (202306 – 999999)
Toyota YARIS 高位刹车灯 EPC diagram — 81B615
高位刹车灯 — 81B615 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
81006central brake light assembly81006-BZ010 · 81006-BZ060
81570Central brake light assembly81570-BZ420
81935DCentral brake light wire assembly81935-BZ060
