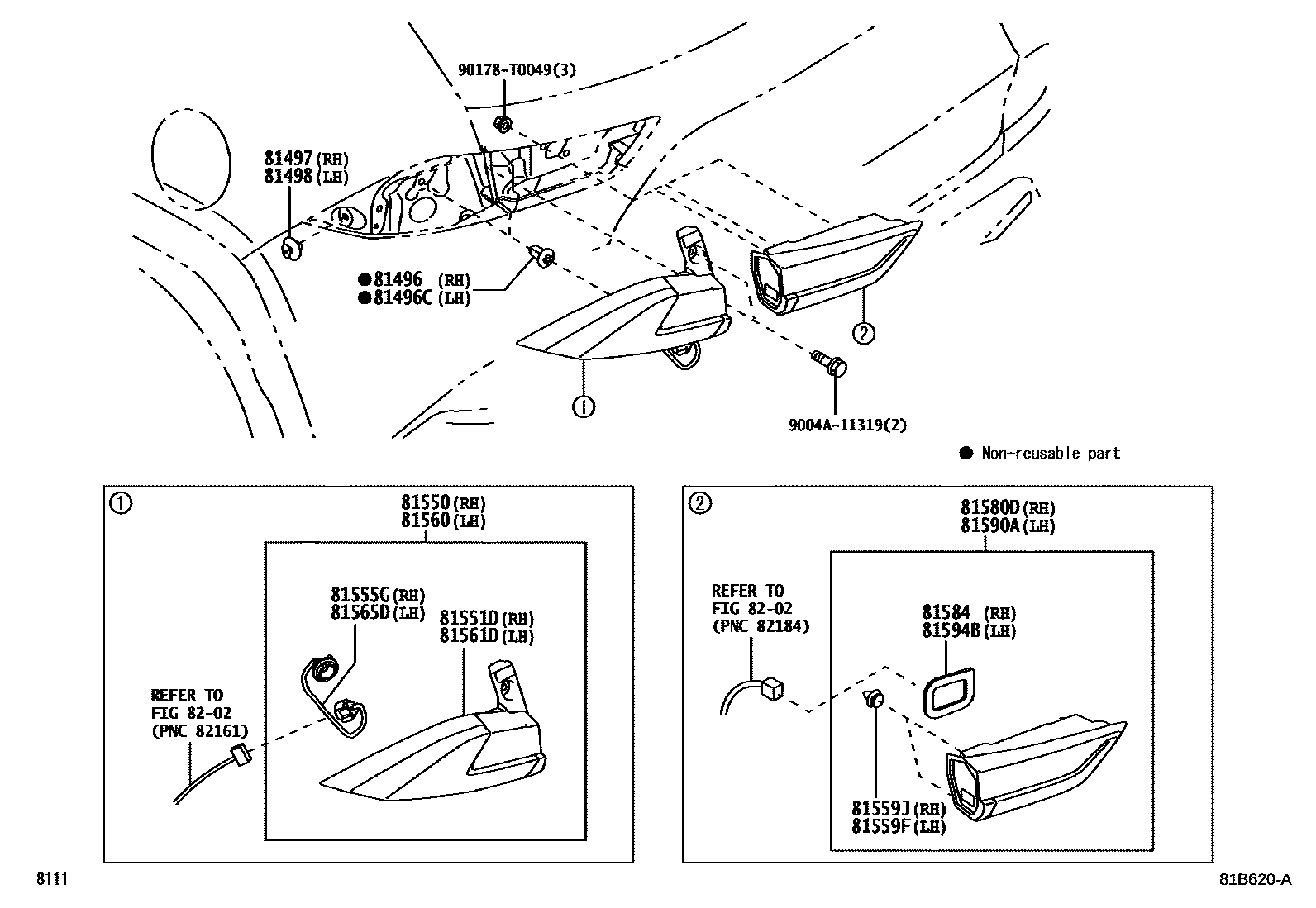

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0D040 · 81496-0D060 · 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-0D040 · 81496-0D060 · 81496-52020 |
| 81497 | Right rear combination lamp cover | 81496-0D070 · 81496-60010 · 81497-0D070 |
| 81498 | Left rear combination lamp cover | 81496-0D070 · 81496-60010 · 81497-0D070 |
| 81550 | Right rear combination light assembly | 81550-BZ790 · 81550-BZ820 · 81550-BZ850 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-BZ610 · 81551-BZ820 · 81551-BZ850 |
| 81555G | Right rear combination lamp wire | 81555-BZ320 · 81555-BZ820 · 81555-BZ850 |
| 81559F | Left rear combination light clip | 90044-67500 |
| 81559J | Right rear combination light clip | 90044-67500 |
| 81560 | Left rear combination light assembly | 81560-BZ790 · 81560-BZ820 · 81560-BZ850 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-BZ600 · 81561-BZ820 · 81561-BZ850 |
| 81565D | Left rear combination lamp wire | 81565-BZ150 · 81565-BZ820 · 81565-BZ850 |
| 81580D | Right rear light assembly | 81580-BZ200 · 81580-BZ370 · 81580-BZ400 |
| 81584 | Right rear light seal | 81582-BZ370 · 81584-BZ010 |
| 81590A | Left rear light assembly | 81590-BZ200 · 81590-BZ370 · 81590-BZ400 |
| 81594B | Left rear light seal | 81592-BZ370 · 81594-BZ010 |
