Toyota YARIS Headlamp — Figure 8101

Toyota YARIS EPC diagram 8101, Headlamp, with 3 images and 12 PNC and OE references.

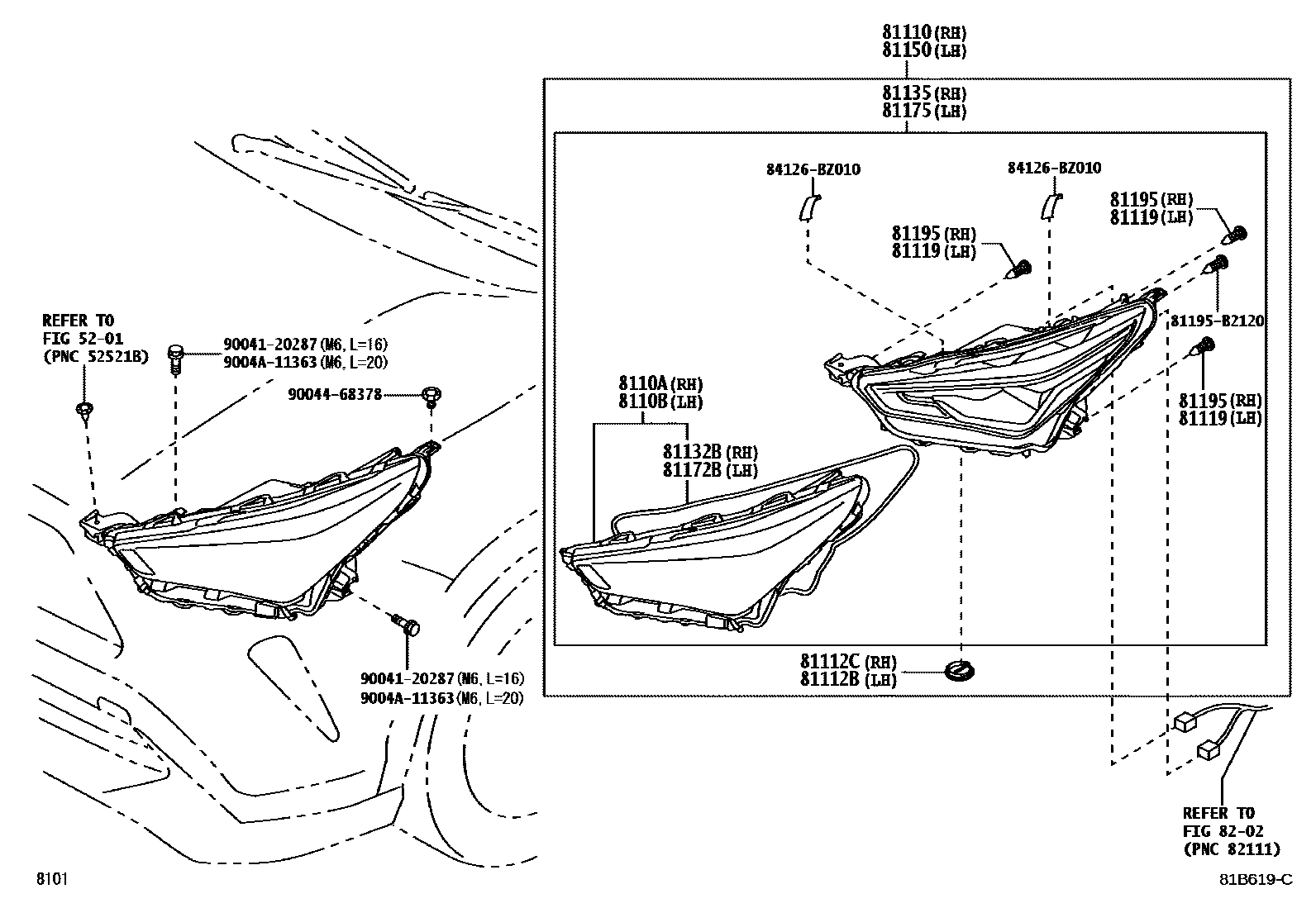

Toyota YARIS Headlamp EPC diagram — 81B619C
Headlamp — 81B619C (202306 – 999999)

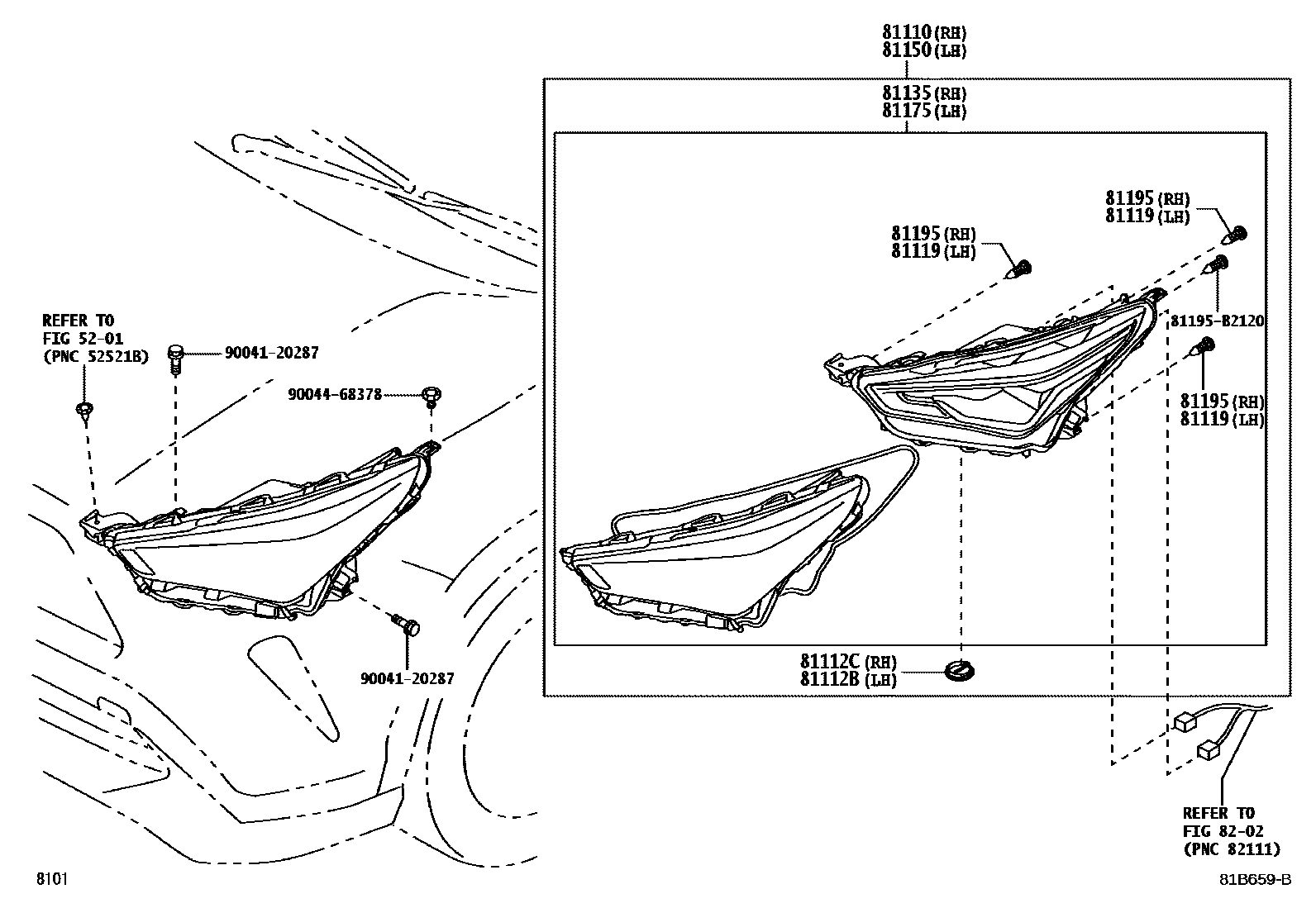

Toyota YARIS Headlamp EPC diagram — 81B659B
Headlamp — 81B659B (202310 – 999999)
Toyota YARIS Headlamp EPC diagram — 81B87RA
Headlamp — 81B87RA (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
8110ARight headlight cover sub-assembly8110A-BZ180 · 8110A-BZ190 · 8110A-BZ220 · 8110A-BZ230
8110BLeft headlight cover sub-assembly8110B-BZ180 · 8110B-BZ190 · 8110B-BZ220 · 8110B-BZ230
81110Right headlight assembly81110-BZD90 · 81110-BZE00 · 81110-BZE50 · 81110-BZE70 · 81110-BZG20 · 81110-BZG30 · 81110-BZG50 · 81110-BZG60
81112Bcover ring81112-B2010
81112CRight cover ring81112-B2010
81119headlight screw81195-B2020
81132BHeadlight cover gasket81132-B2010
81135Right headlight assembly assembly81130-BZ550 · 81130-BZ560 · 81130-BZ570 · 81130-BZ580 · 81130-BZ590 · 81130-BZ640 · 81130-BZ680 · 81130-BZ690
81150Left headlight assembly81150-BZD90 · 81150-BZE00 · 81150-BZE50 · 81150-BZE70 · 81150-BZG20 · 81150-BZG30 · 81150-BZG50 · 81150-BZG60
81172BHeadlight cover gasket81132-B2010
81175Left headlight assembly assembly81170-BZ550 · 81170-BZ560 · 81170-BZ570 · 81170-BZ580 · 81170-BZ590 · 81170-BZ640 · 81170-BZ680 · 81170-BZ690
81195headlight screw81195-B2020
