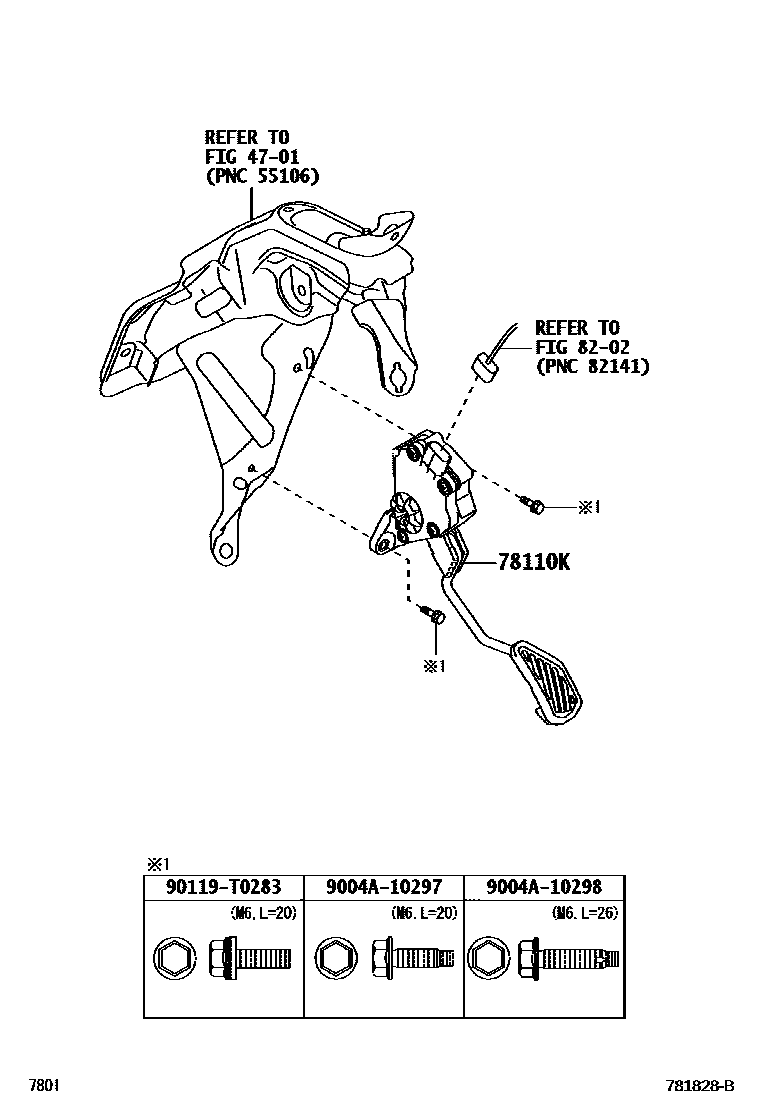

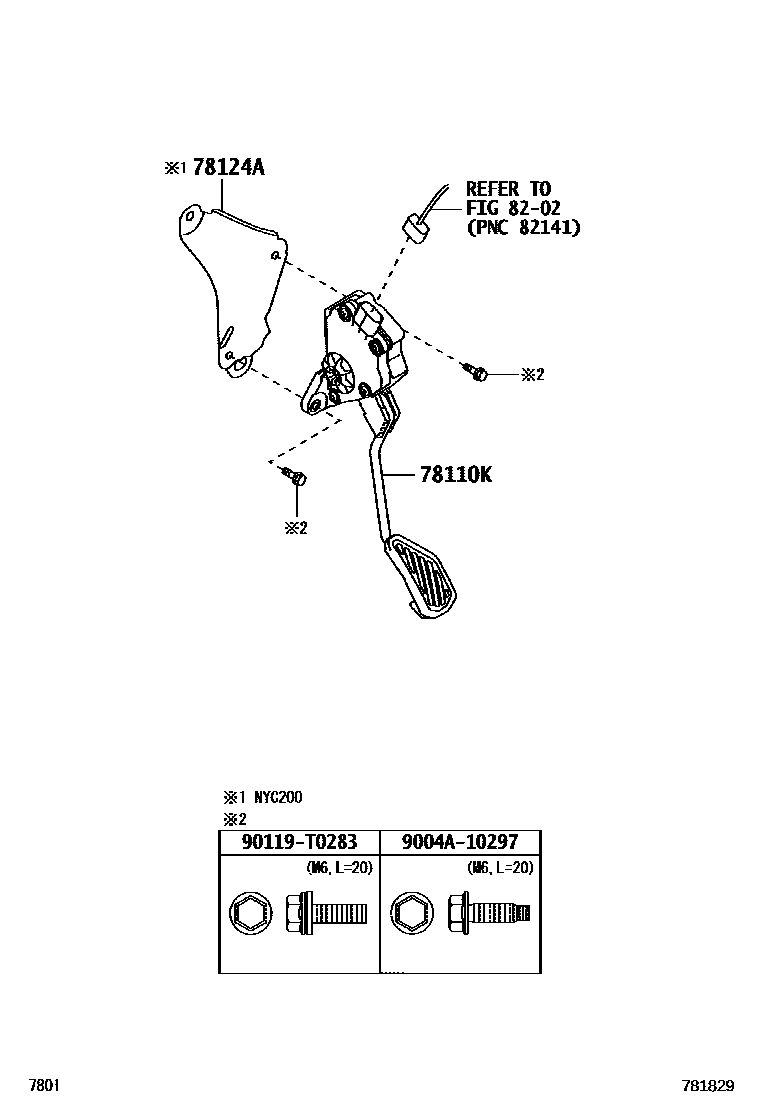

Toyota YARIS accelerator pedal connecting rod — Figure 7801
Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-BZ130 · 78110-BZ200 |
| 78124A | Accelerator pedal lever bracket | 78124-BZ310 |
