Toyota YARIS 侧防护条 — Figure 7503

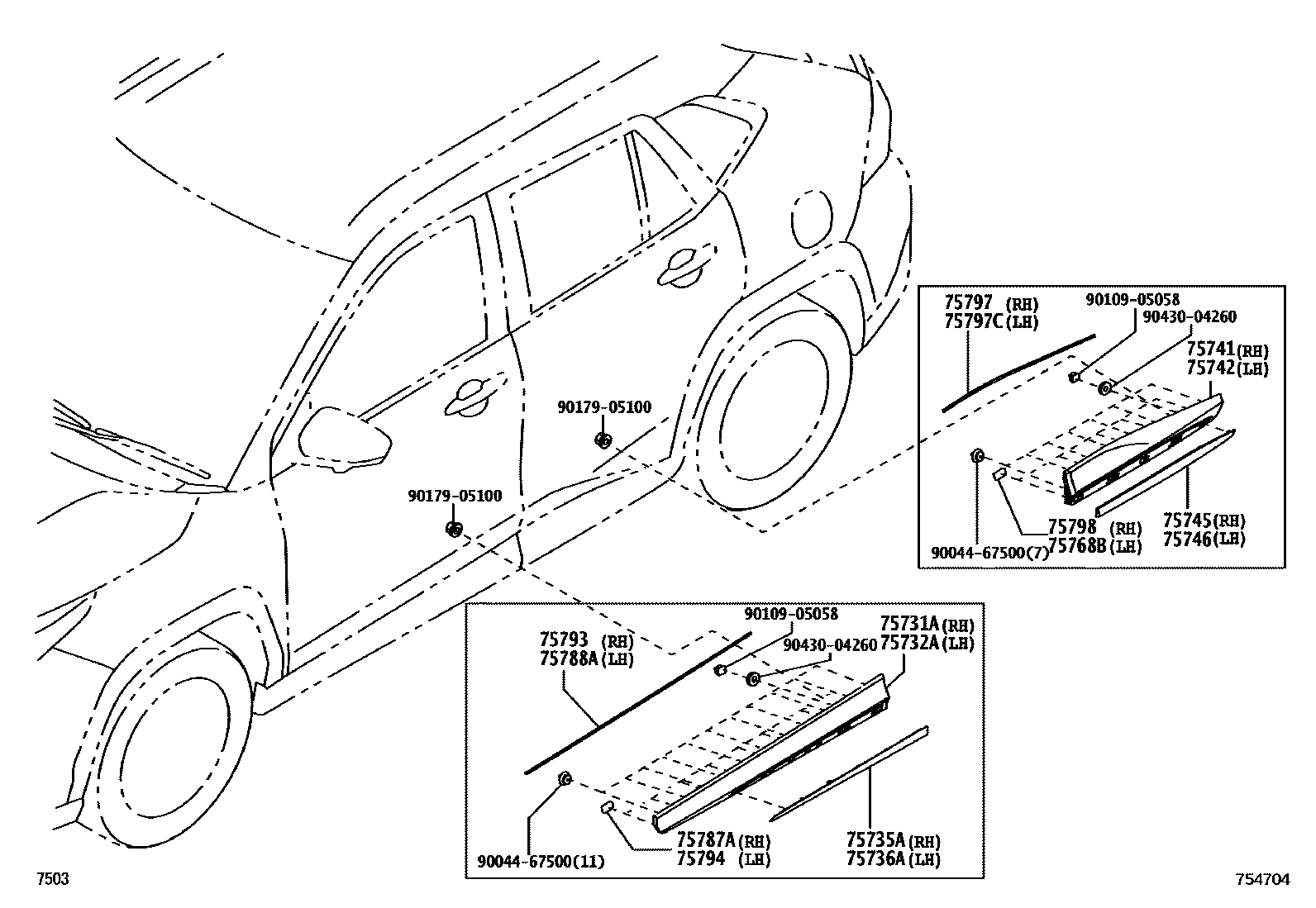

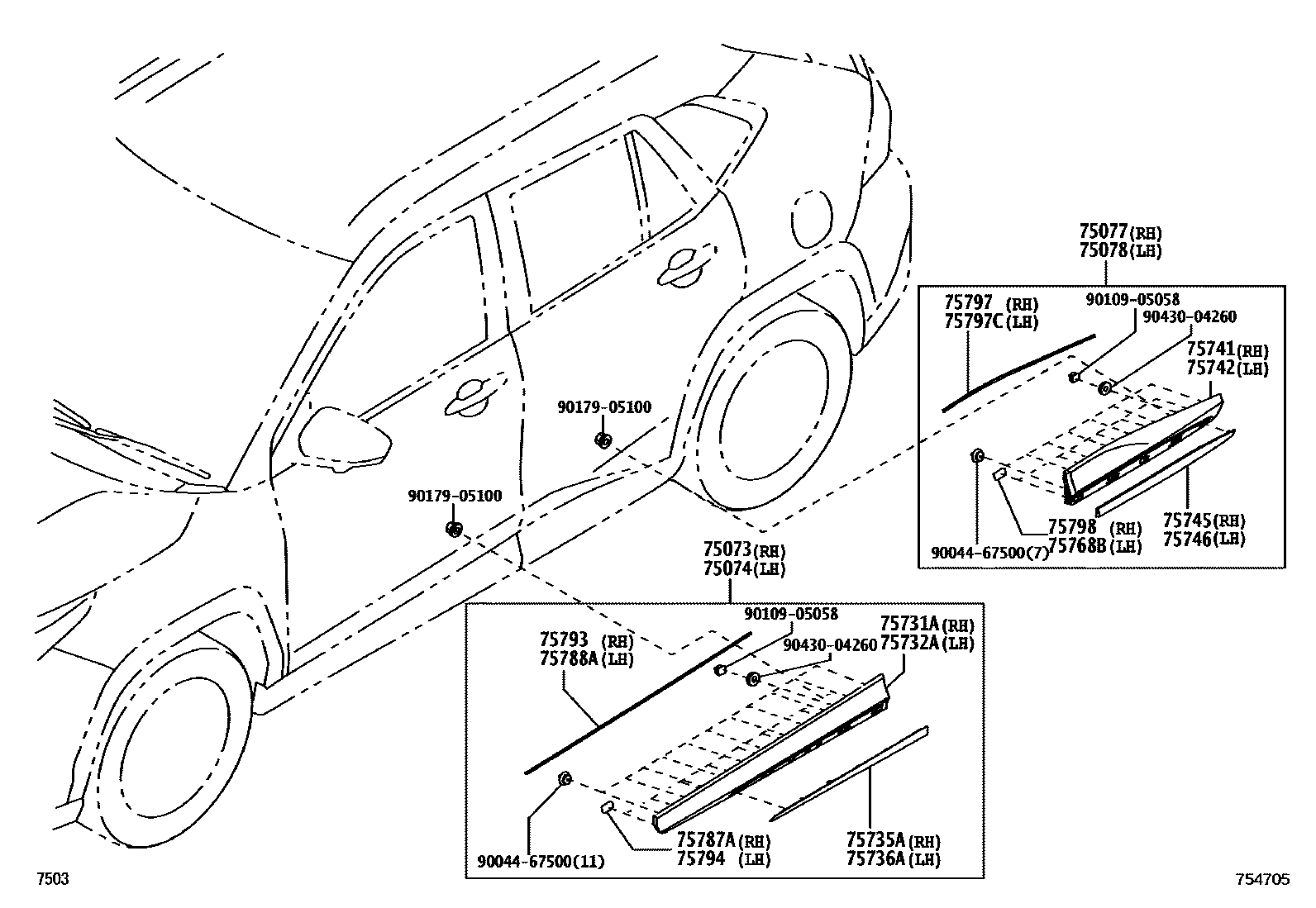

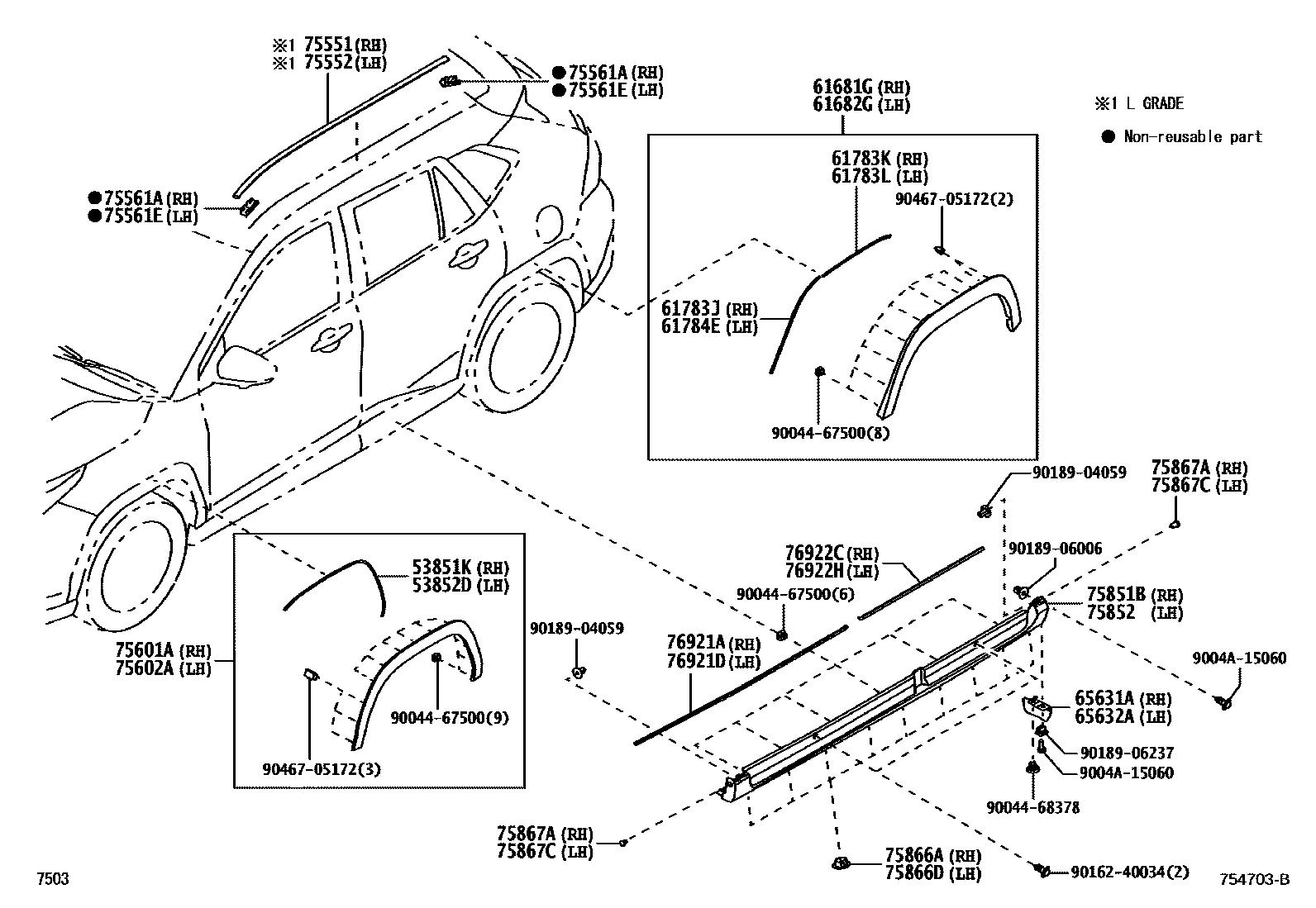

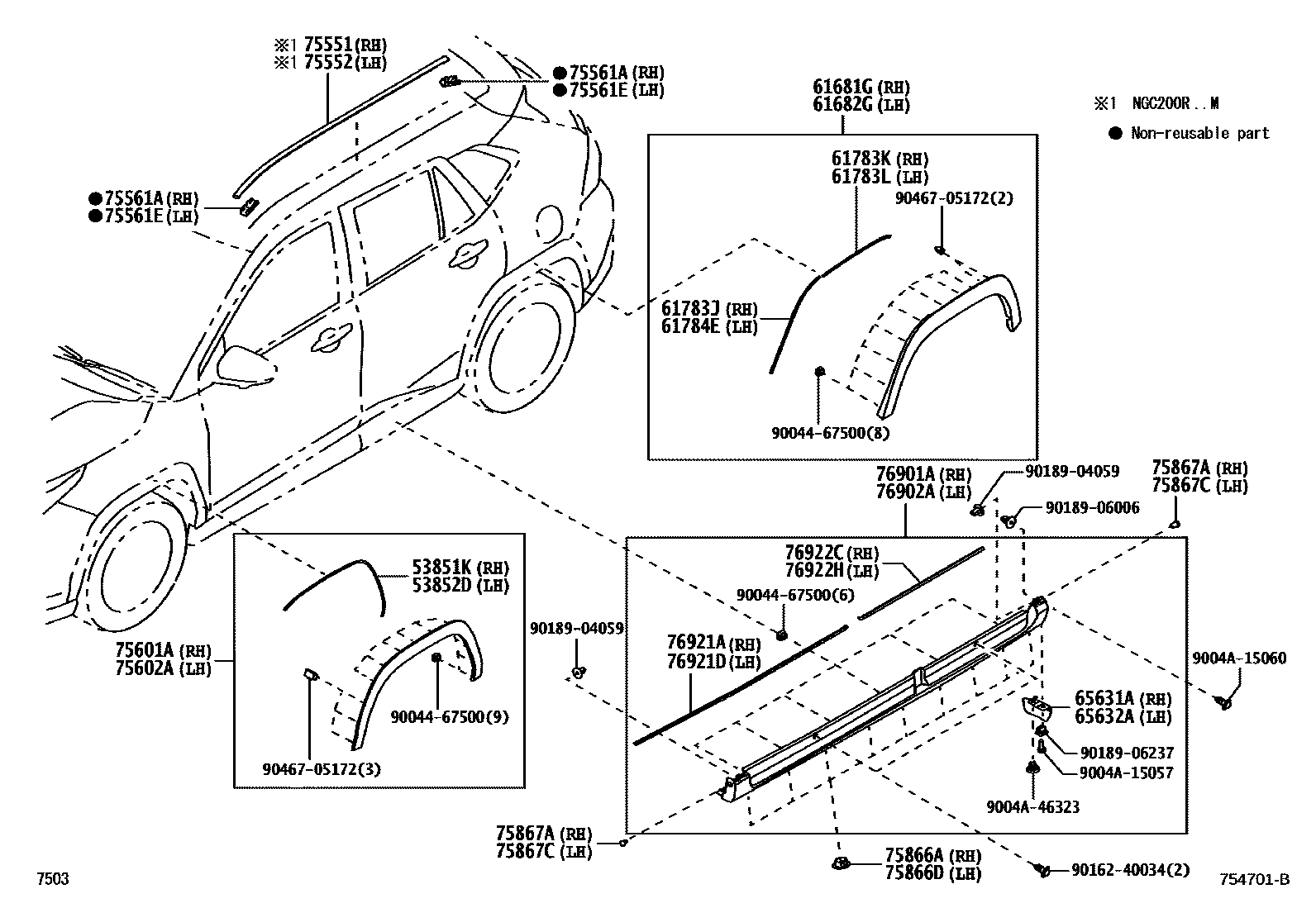

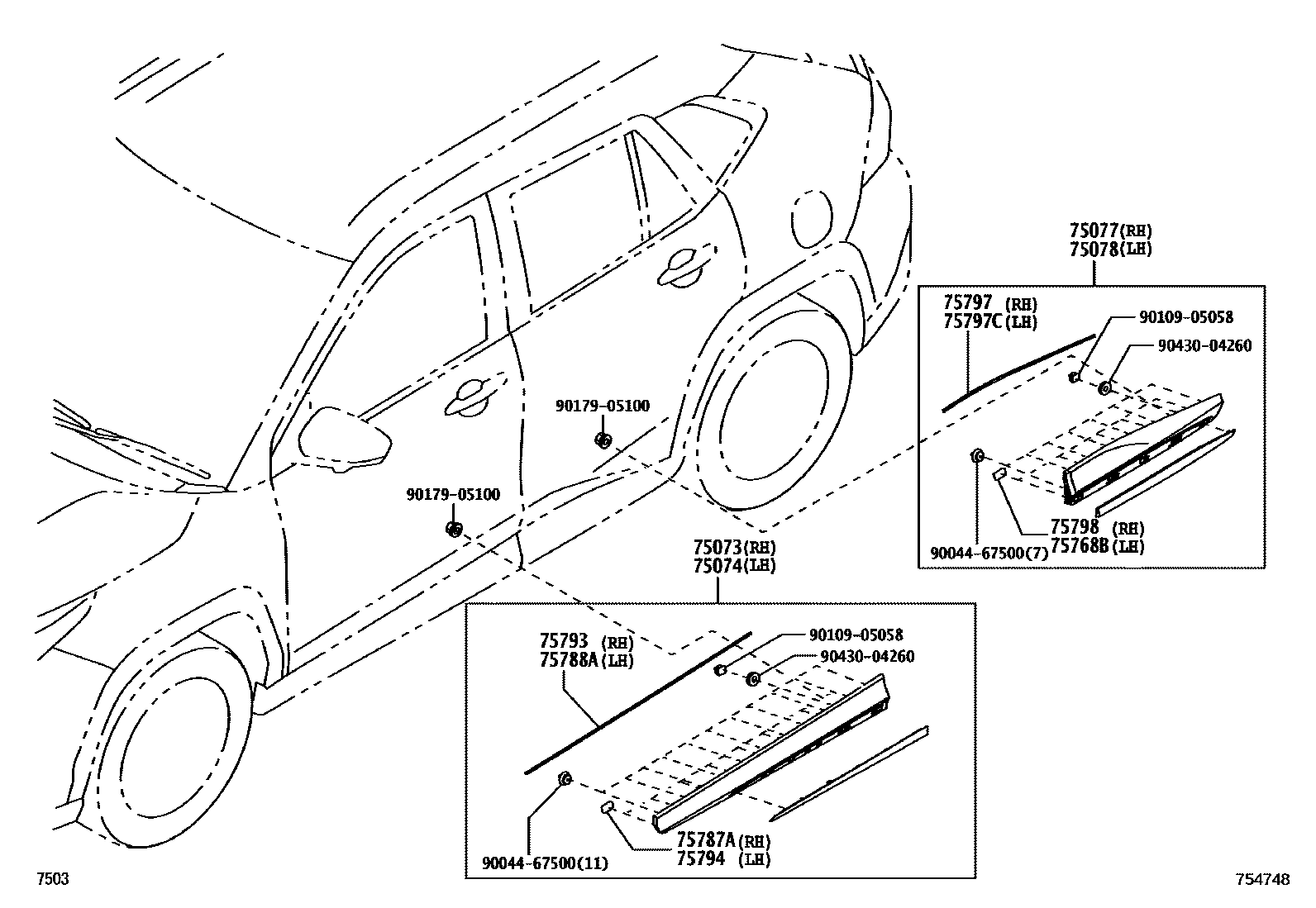

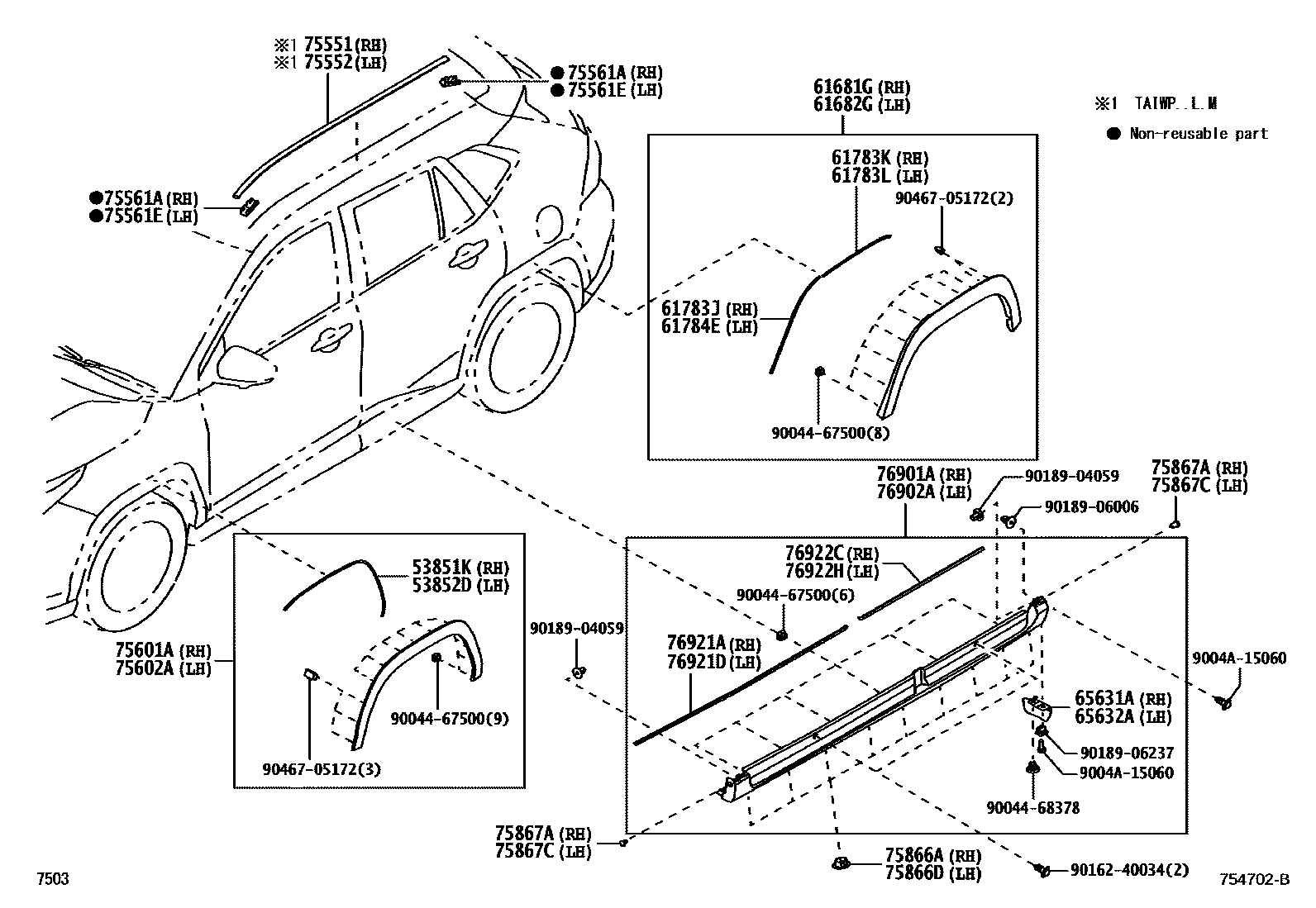

Toyota YARIS EPC diagram 7503, 侧防护条, with 6 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851K | Right front fender outer panel pad | 53851-BZ190 · 53851-BZ220 |
| 53852D | Left front fender exterior panel pad | 53851-BZ190 · 53851-BZ220 |
| 61681G | Right rear fender external panel | 61061-BZ090 · 61061-BZ110 |
| 61682G | Left rear fender external panel | 61062-BZ090 · 61062-BZ110 |
| 61783J | No. 2 rear fender outer panel pad | 61784-BZ070 · 61784-BZ140 |
| 61783K | Rear fender right side external panel pad | 61783-BZ170 · 61783-BZ210 |
| 61783L | Rear fender left side outer panel pad | 61783-BZ170 · 61783-BZ210 |
| 61784E | No. 2 rear fender outer panel pad | 61784-BZ070 · 61784-BZ140 |
| 65631A | Right rear wheel house front panel | 65631-BZ070 · 65631-BZ090 · 65631-BZ100 |
| 65632A | Left rear wheel house front panel | 65632-BZ070 · 65632-BZ090 · 65632-BZ100 |
| 75073 | Right front door outer lower protective strip sub-assembly | 75073-BZ010 · 75073-BZ030 |
| 75074 | Left front door outer lower protective strip sub-assembly | 75074-BZ010 · 75074-BZ030 |
| 75077 | Right rear door outer lower protective strip sub-assembly | 75077-BZ020 · 75077-BZ040 |
| 75078 | Left rear door outer lower protective strip sub-assembly | 75078-BZ020 · 75078-BZ040 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-BZ320 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-BZ310 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75561E | Drainage groove side decorative strip clip on the left side of the roof | 75561-33030 |
| 75601A | Right front fender protection strip sub-assembly | 75601-BZ090 · 75601-BZ110 |
| 75602A | Left front fender protection strip sub-assembly | 75602-BZ090 · 75602-BZ110 |
| 75731A | Right front door outer protective strip | 75731-BZ250 · 75731-BZ260 |
| 75732A | Left front door outer protective strip | 75732-BZ250 · 75732-BZ260 |
| 75735A | Right front door outer lower protective strip | 75735-BZ080 · 75735-BZ090 · 75735-BZ100 · 75735-BZ110 |
| 75736A | Left front door outer lower protective strip | 75736-BZ080 · 75736-BZ090 · 75736-BZ100 · 75736-BZ110 |
| 75741 | Right rear door outer protective strip | 75741-BZ250 · 75741-BZ260 |
| 75742 | Left rear door outer protective strip | 75742-BZ260 · 75742-BZ270 |
| 75745 | Right rear door outer lower protective strip | 75745-BZ090 · 75745-BZ100 · 75745-BZ110 · 75745-BZ120 |
| 75746 | Left rear door outer lower protective strip | 75746-BZ090 · 75746-BZ100 · 75746-BZ110 · 75746-BZ120 |
| 75768B | Left rear door protective strip lining | 75798-BZ020 · 75798-BZ040 · 75798-BZ050 |
| 75787A | Right front door outer protective strip lining | 75794-BZ020 · 75794-BZ040 · 75794-BZ050 |
| 75788A | Left front door outer protective strip lining | 75793-BZ020 · 75793-BZ040 · 75793-BZ050 |
| 75793 | Front door outer upper protective strip lining | 75793-BZ020 · 75793-BZ040 · 75793-BZ050 |
| 75794 | Front door outer rear protective strip lining | 75794-BZ020 · 75794-BZ040 · 75794-BZ050 |
| 75797 | Rear door outer upper protective strip lining | 75797-BZ020 · 75797-BZ040 · 75797-BZ050 |
| 75797C | Rear door outer upper protective strip lining | 75797-BZ020 · 75797-BZ040 · 75797-BZ050 |
| 75798 | Rear door outer rear protective strip lining | 75798-BZ020 · 75798-BZ040 · 75798-BZ050 |
| 75851B | Right body door sill panel protection strip | 75851-BZ670 |
| 75852 | Left side door sill panel protective strip | 75852-BZ660 |
| 75866A | Door sill panel protective strip fixings | 76924-BZ010 |
| 75866D | Door sill panel protective strip fixings | 76924-BZ010 |
| 75867A | Door sill panel protective strip clip | 9004A-46403 |
| 75867C | Door sill panel protective strip clip | 9004A-46403 |
| 76901A | Right fender sub-assembly | 76901-BZ180 · 76901-BZ200 |
| 76902A | Left fender sub-assembly | 76902-BZ170 · 76902-BZ190 |
| 76921A | No. 1 side fender protection strip | 76921-BZ380 · 76921-BZ410 · 76921-BZ420 |
| 76921D | No. 1 side fender protection strip | 76921-BZ380 · 76921-BZ410 · 76921-BZ420 |
| 76922C | Side fender No. 2 protective strip | 76922-BZ150 · 76922-BZ180 · 76922-BZ190 |
| 76922H | Side fender No. 2 protective strip | 76922-BZ150 · 76922-BZ180 · 76922-BZ190 |
