Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

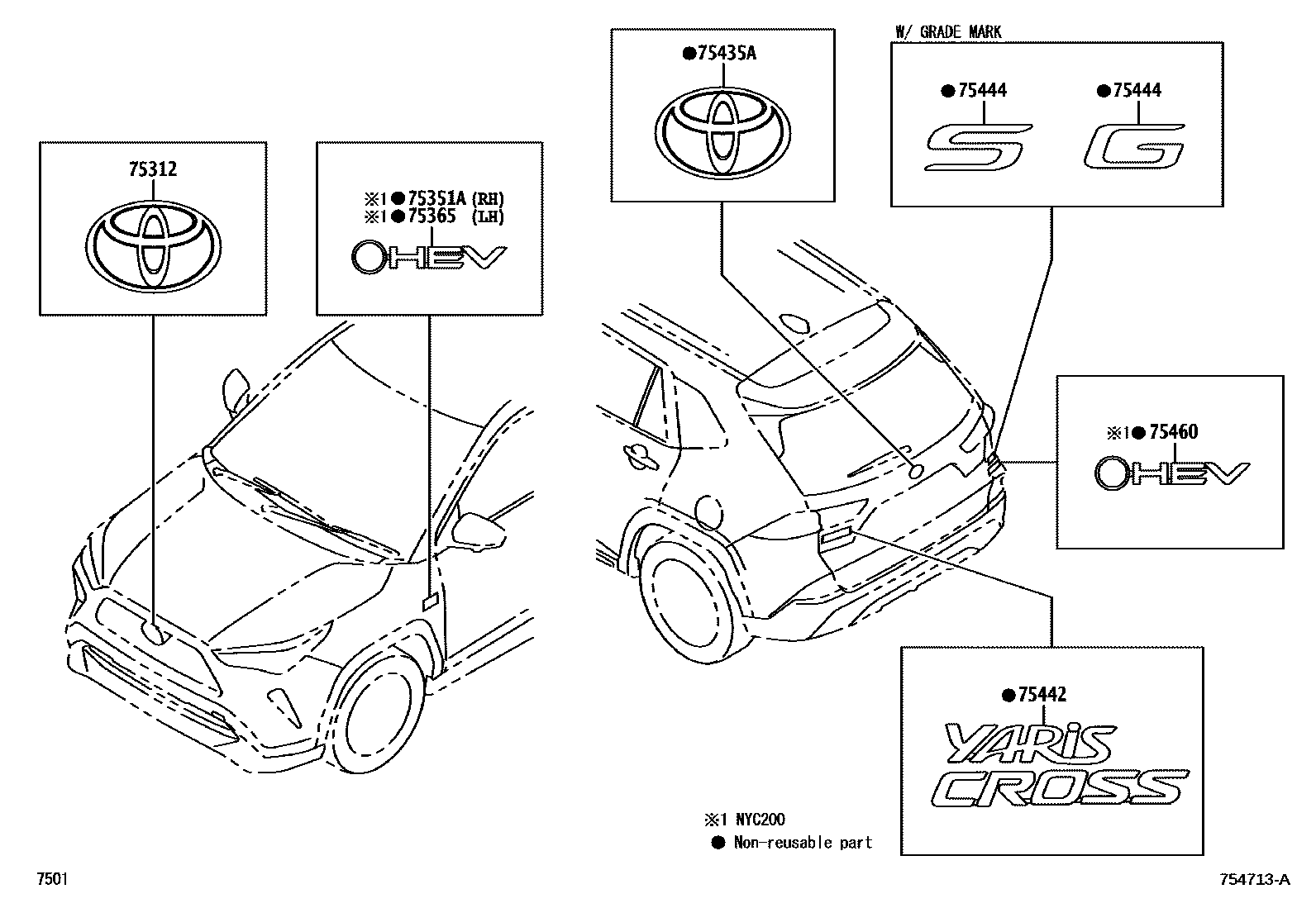

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 754713A
丰田徽标和铭牌(车外和车内) — 754713A (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
75312Radiator grille plate base75312-BZ150 · 75312-BZ160
75351AFront fender label75440-47010
75365Front fender label75440-47010
75435ARear door trim75432-BZ010 · 75432-BZ030 · 75432-BZ040
75442Trunk door number plate No. 275442-BZ370
75444Trunk door No. 4 nameplate75444-BZ800 · 75444-BZ810
75460Rear sign assembly75440-BZ010
