Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 8 images and 11 PNC and OE references.

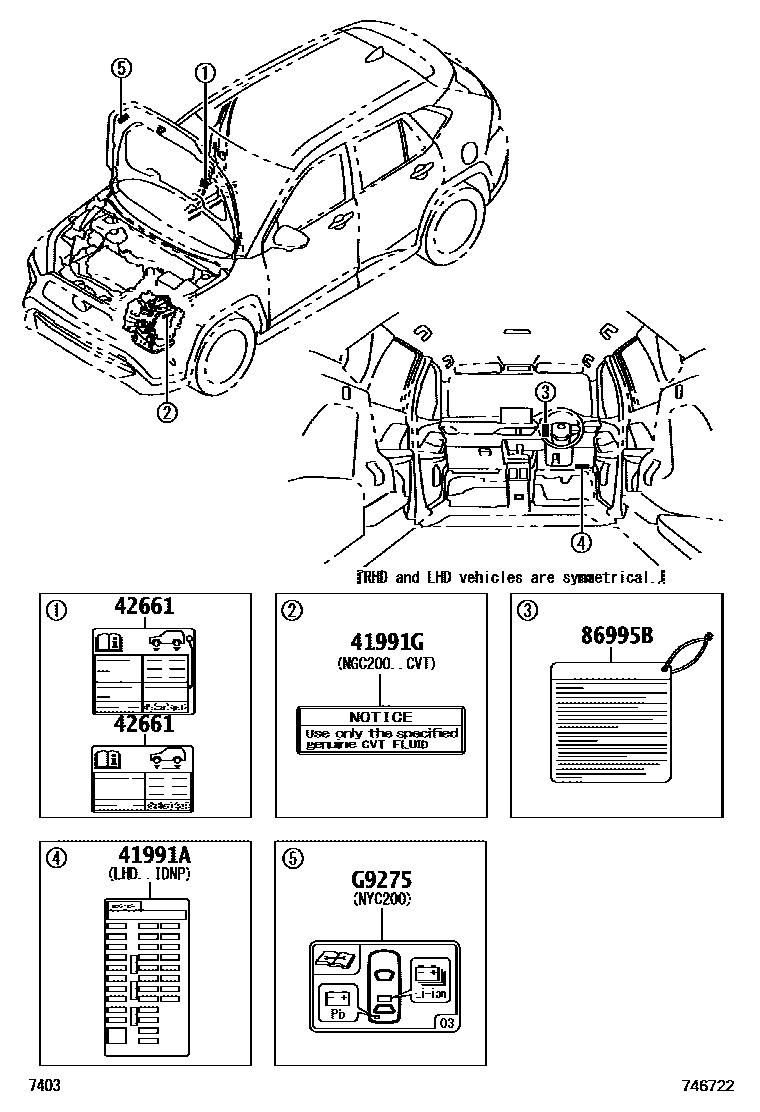

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746722
警示铭牌(车外和车内) — 746722 (202306 – 999999)

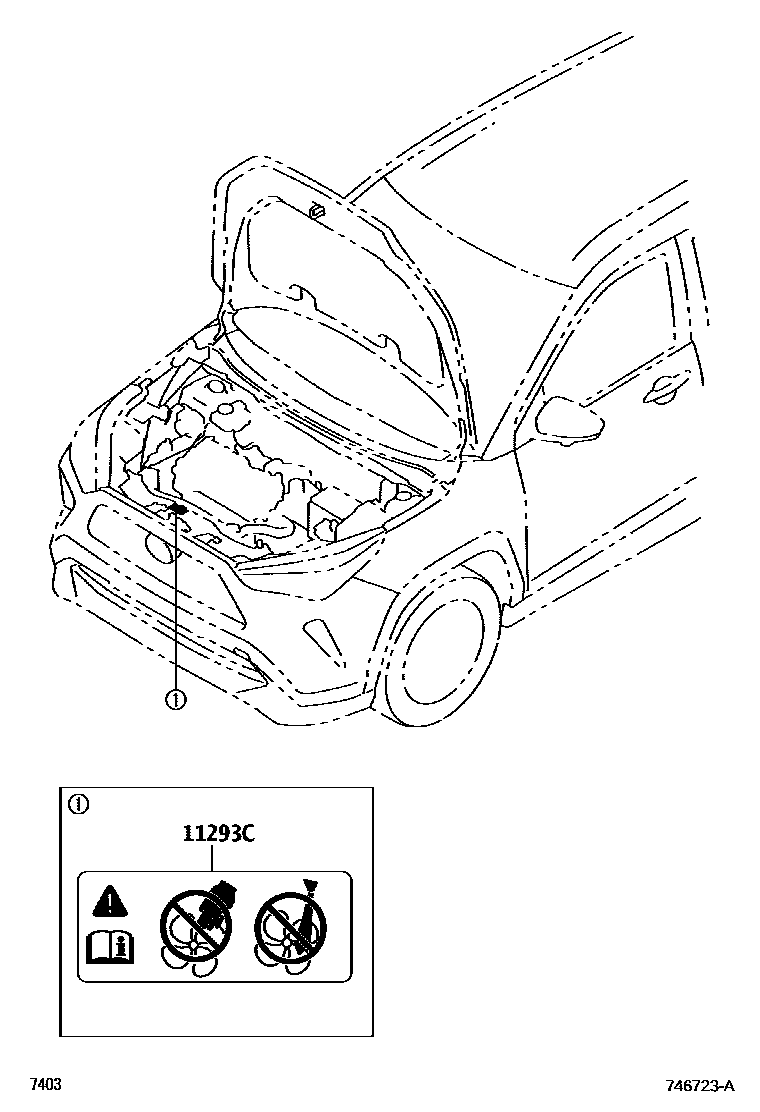

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746723A
警示铭牌(车外和车内) — 746723A (202306 – 999999)

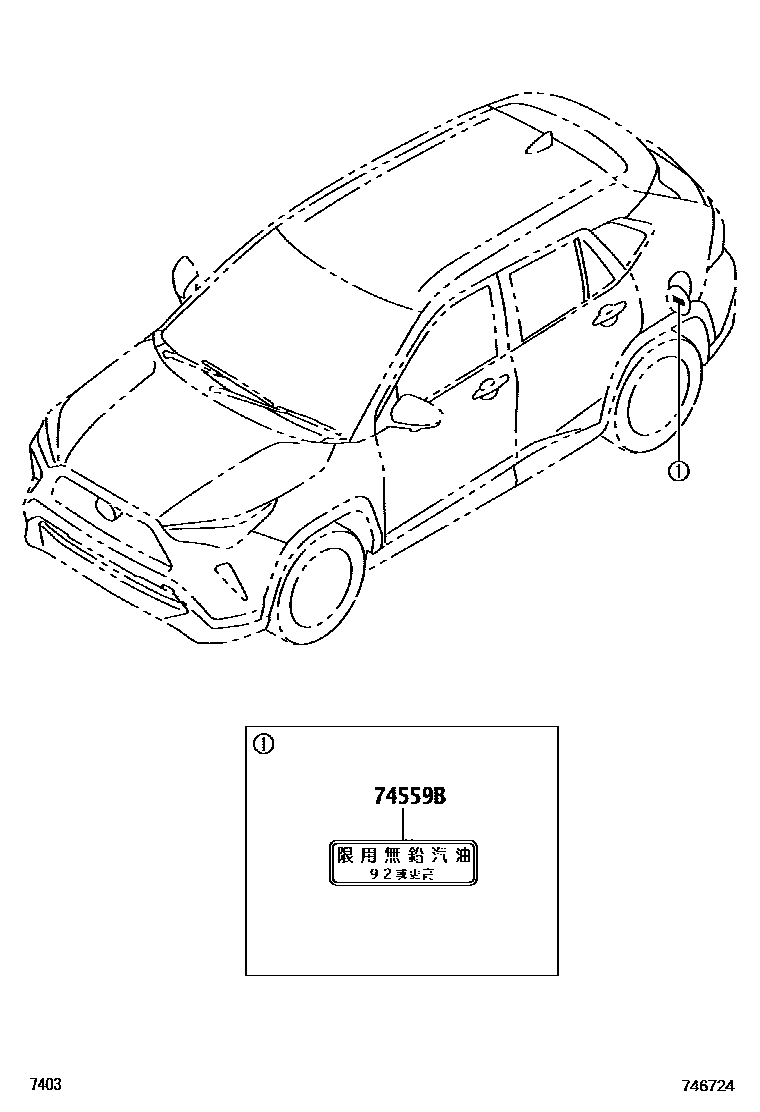

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746724
警示铭牌(车外和车内) — 746724 (202310 – 999999)

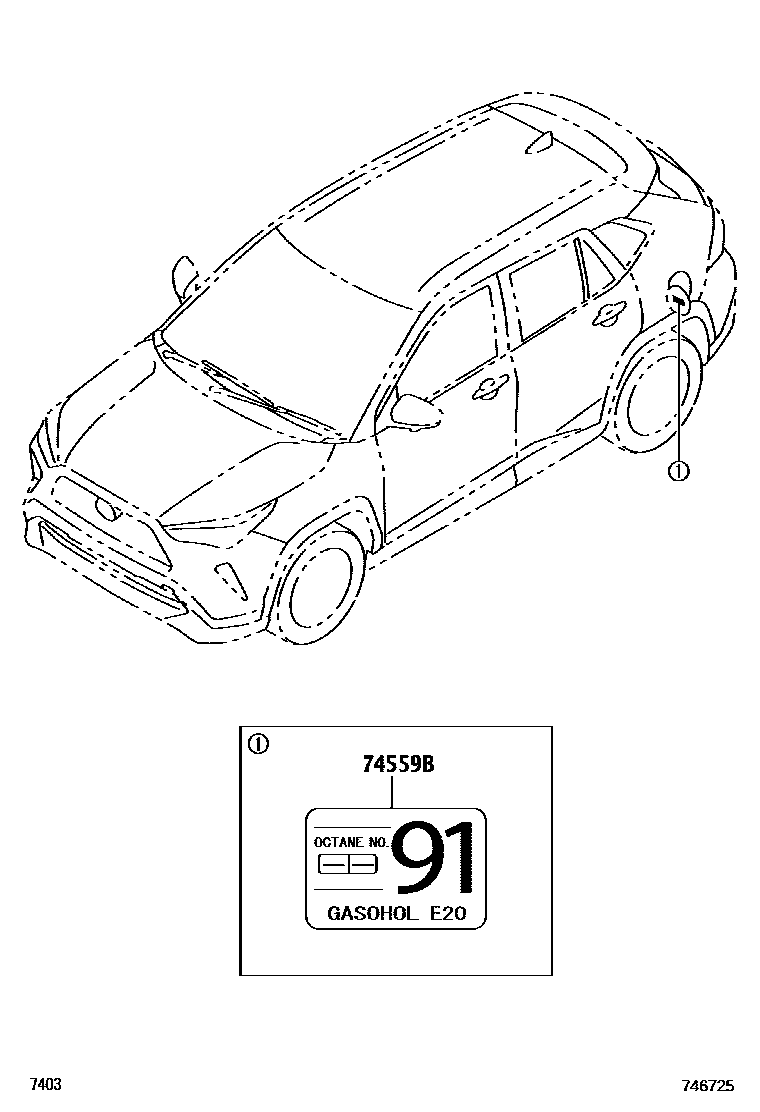

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746725
警示铭牌(车外和车内) — 746725 (202310 – 999999)

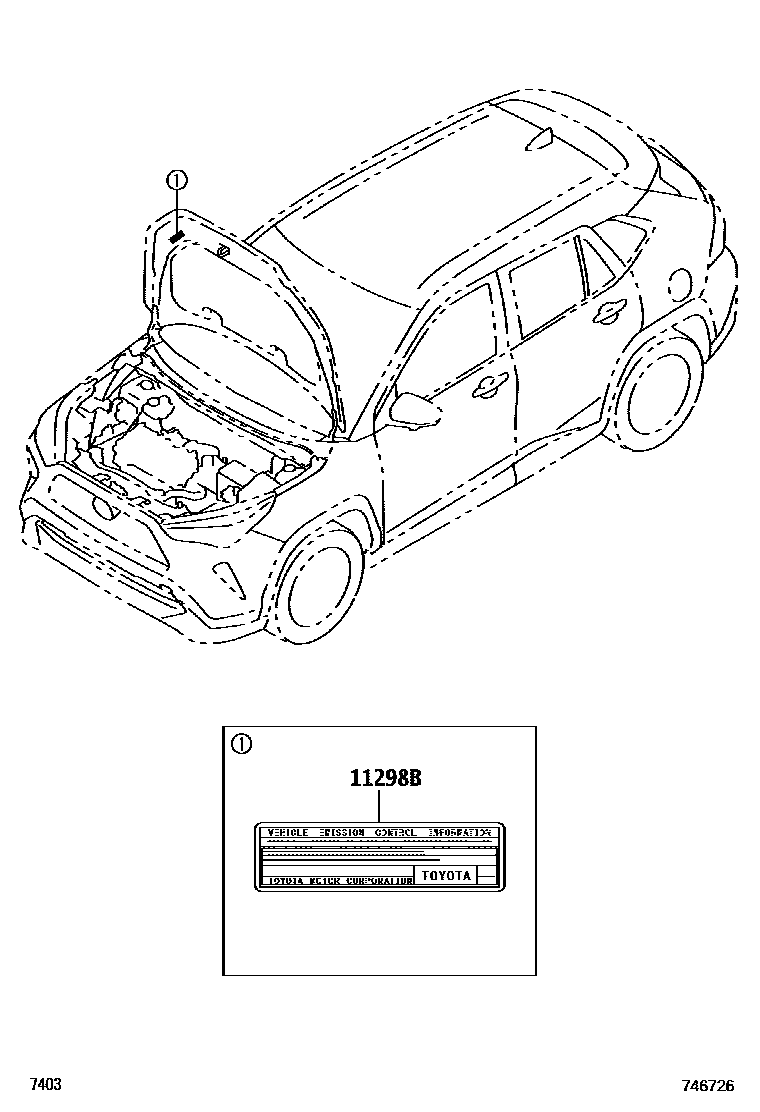

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746726
警示铭牌(车外和车内) — 746726 (202306 – 999999)

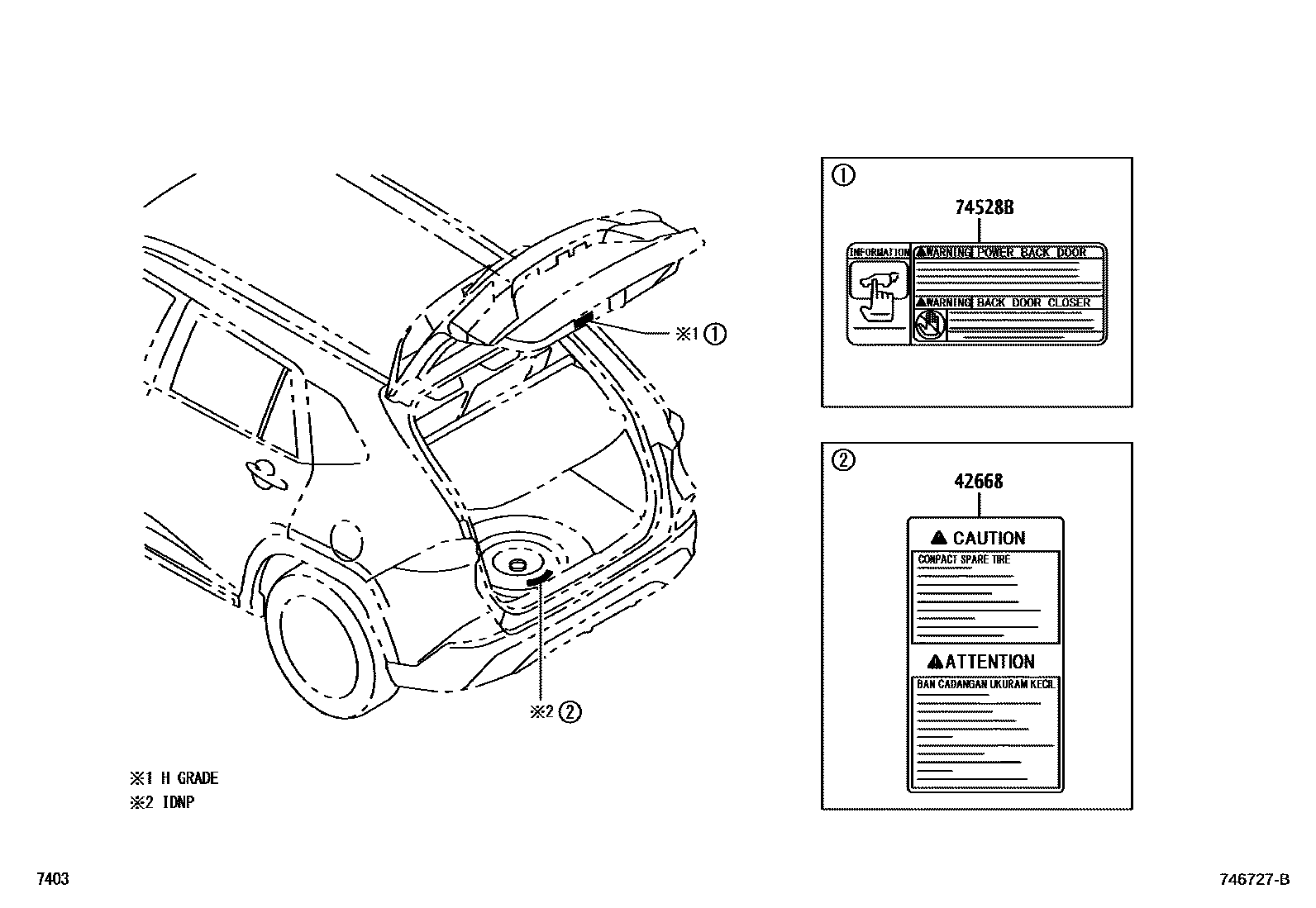

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746727B
警示铭牌(车外和车内) — 746727B (202306 – 999999)

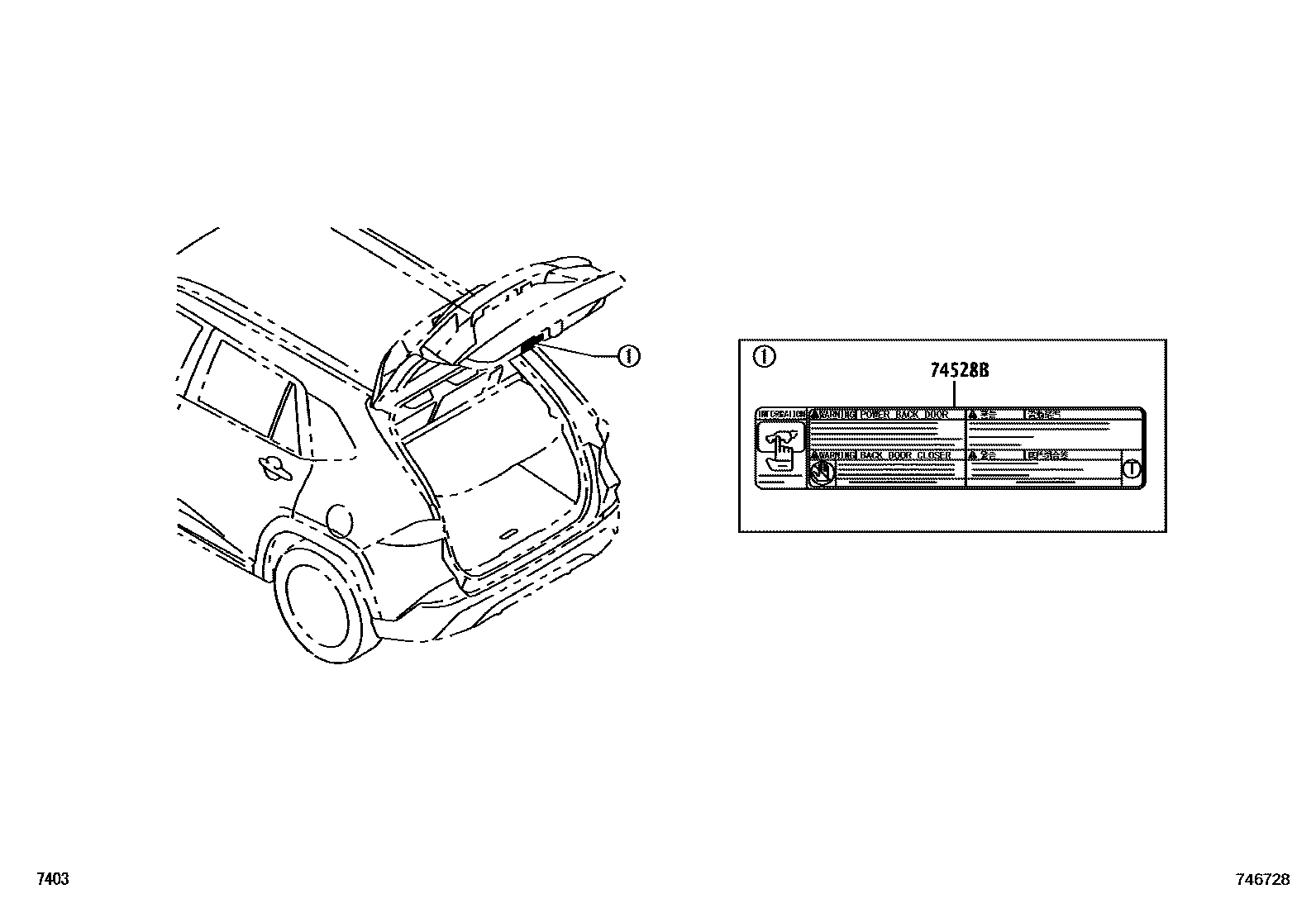

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746728
警示铭牌(车外和车内) — 746728 (202310 – 999999)

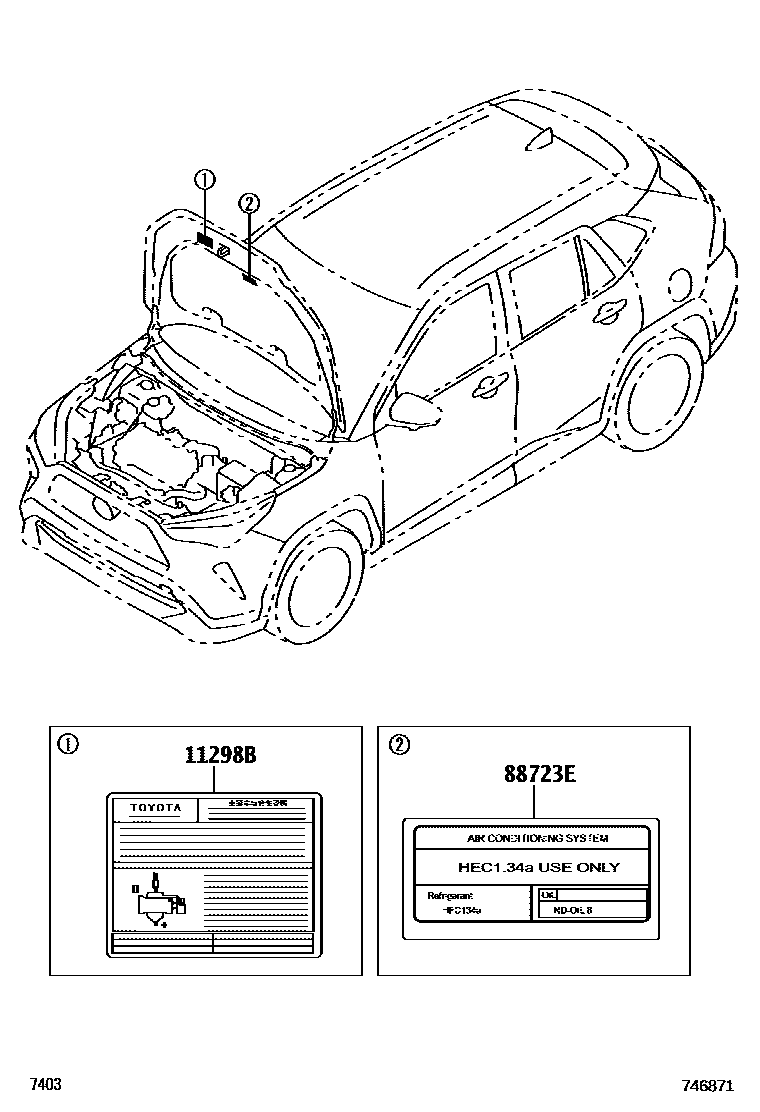

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746871
警示铭牌(车外和车内) — 746871 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
11293CAdjust specification information label11293-BZ870 · 16793-36030
11298BEmission Control Information Label11298-BZ140 · 11298-BZ260 · 11298-BZ270
41991Awarning nameplate41991-BZ260
41991GWarning Label No. 133621-B2010
42661tire pressure information label42661-BZ850 · 42661-BZF20 · 42661-BZG10 · 42661-BZG20 · 42661-BZG30
42668Small spare tire warning label42668-BZ060
74528BBack door warning label74528-16010 · 74528-BZ010
74559Bfuel information label74559-02050 · 74579-0B010
86995Bwarning nameplate86995-BZ070 · 86995-BZ090 · 86995-BZ110
88723ECooler maintenance warning label88723-BZ020
G9275No. 1 battery warning labelG9275-BZ010
