Toyota YARIS 扶手和遮阳板 — Figure 7401

Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 6 images and 2 PNC and OE references.

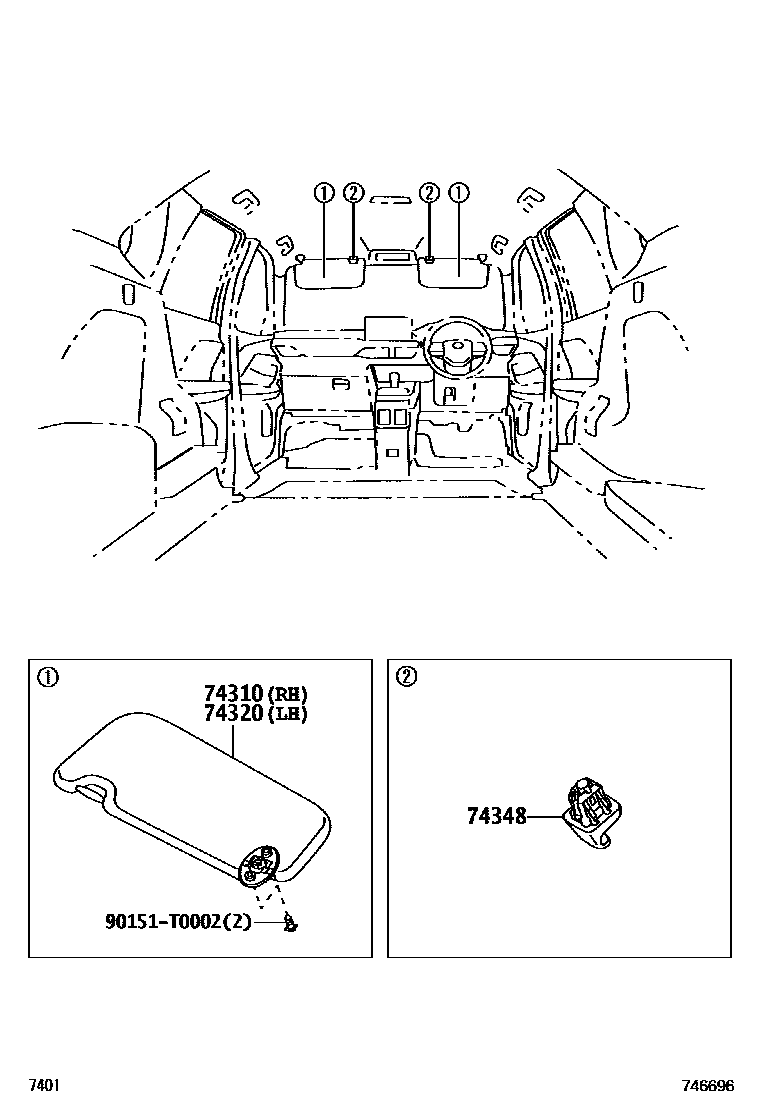

Toyota YARIS 扶手和遮阳板 EPC diagram — 746696
扶手和遮阳板 — 746696 (202306 – 999999)

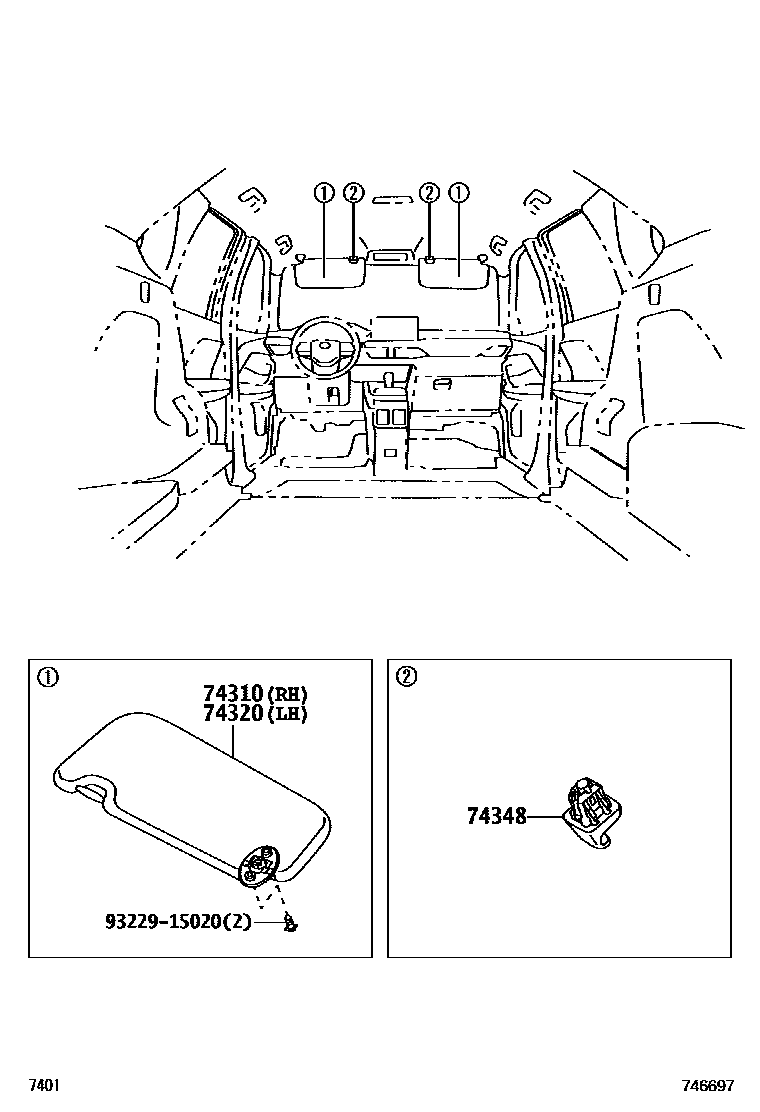

Toyota YARIS 扶手和遮阳板 EPC diagram — 746697
扶手和遮阳板 — 746697 (202310 – 999999)

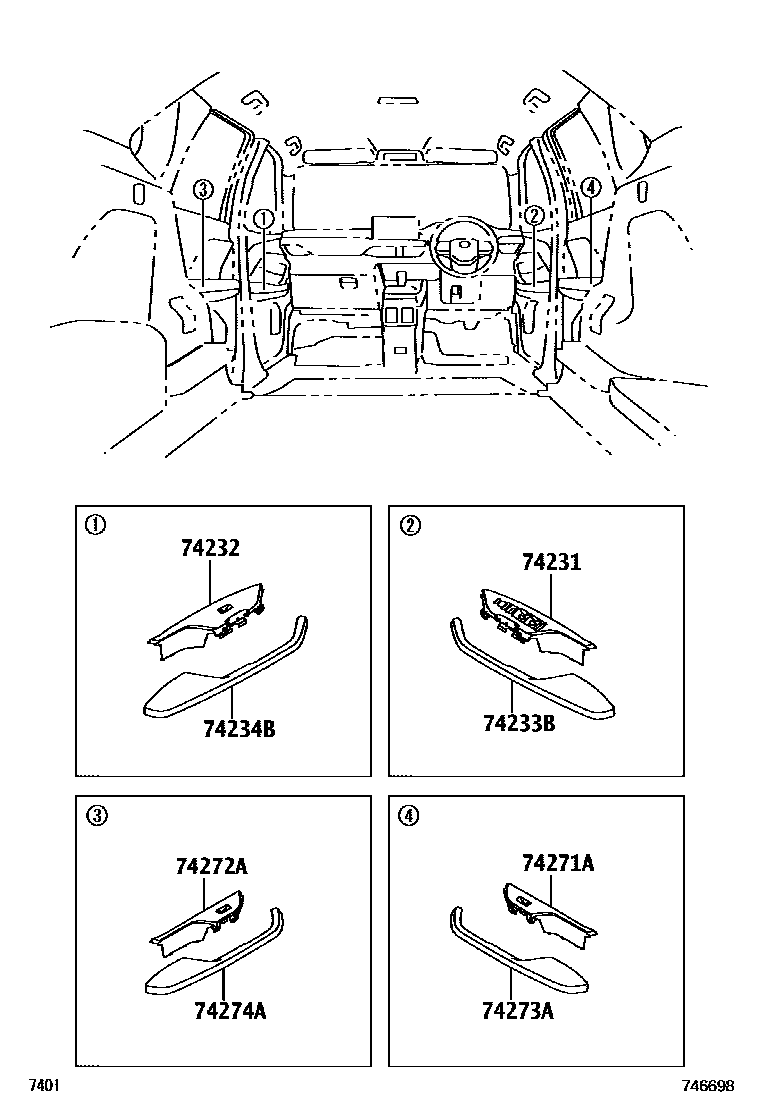

Toyota YARIS 扶手和遮阳板 EPC diagram — 746698
扶手和遮阳板 — 746698 (202306 – 999999)

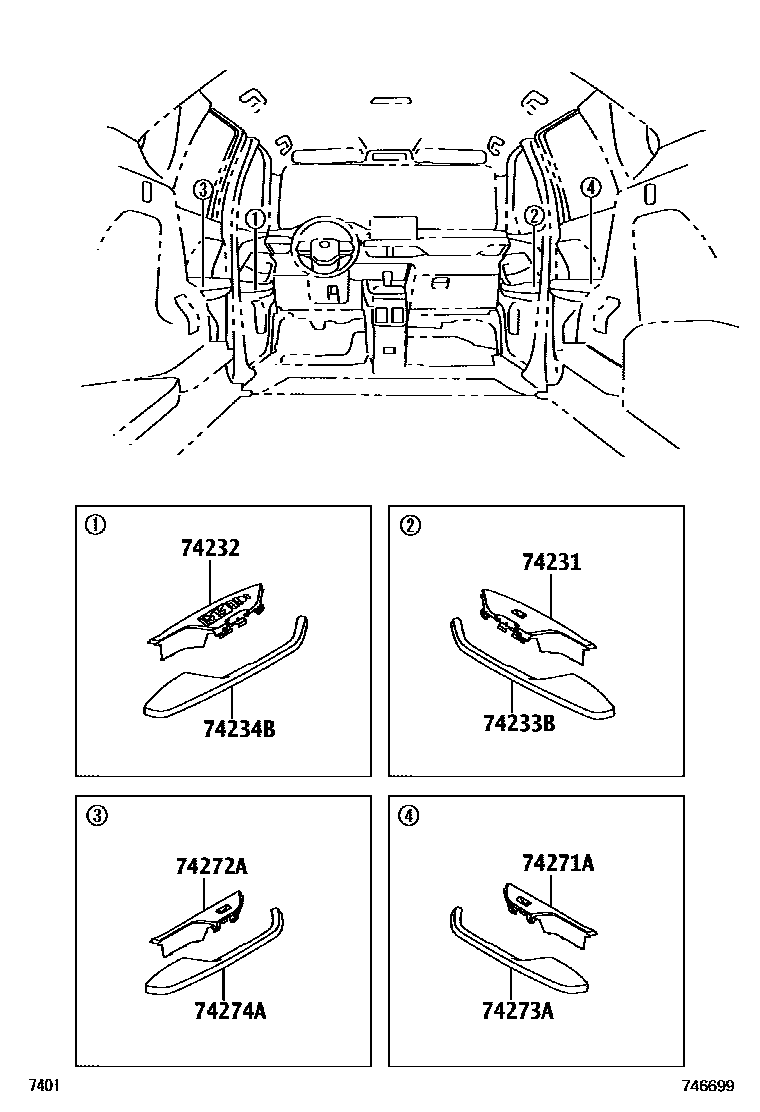

Toyota YARIS 扶手和遮阳板 EPC diagram — 746699
扶手和遮阳板 — 746699 (202306 – 999999)

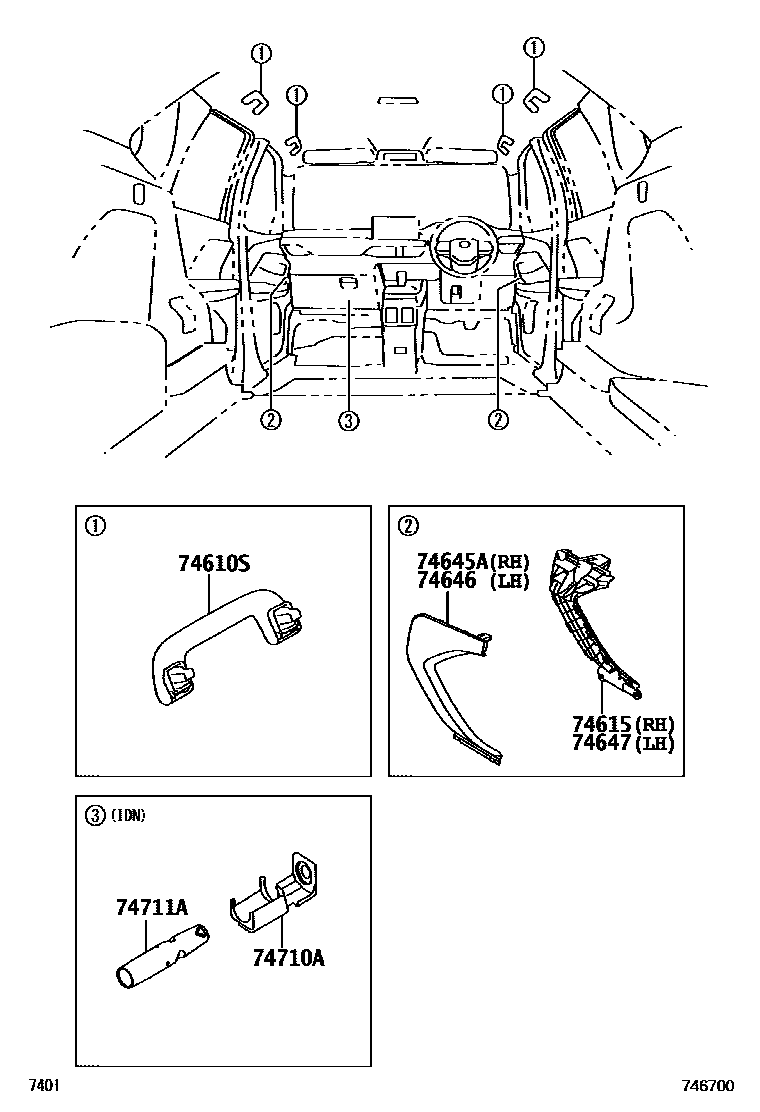

Toyota YARIS 扶手和遮阳板 EPC diagram — 746700
扶手和遮阳板 — 746700 (202310 – 999999)

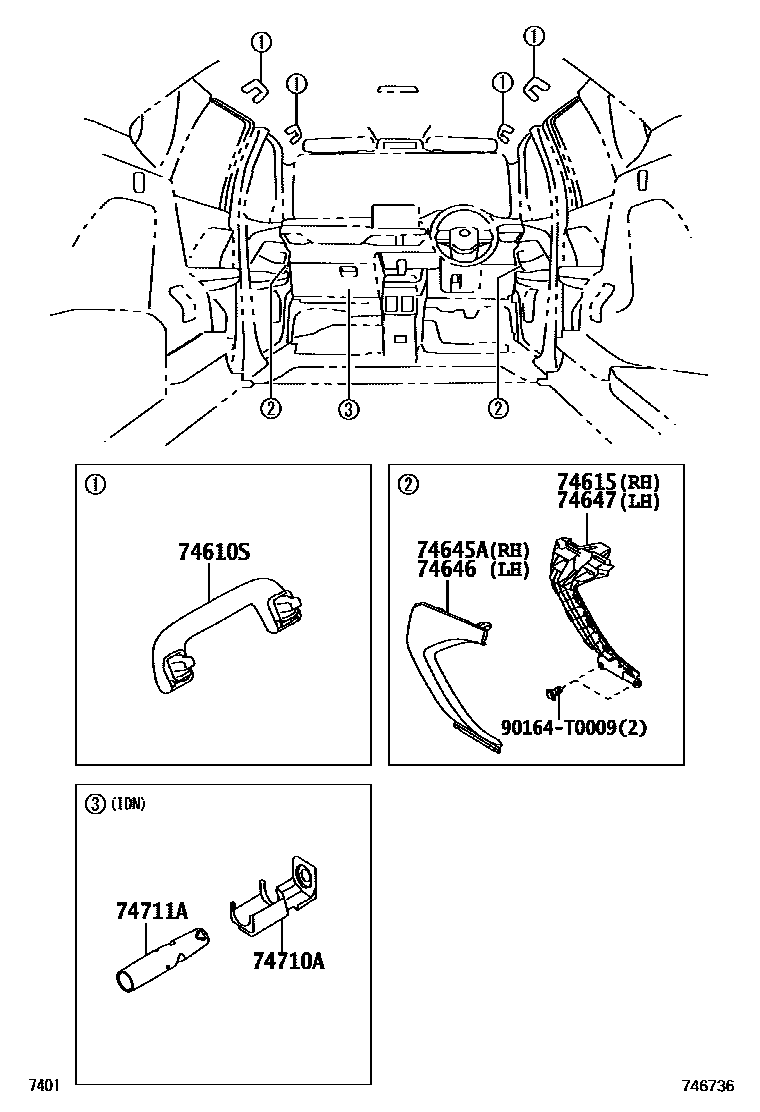

Toyota YARIS 扶手和遮阳板 EPC diagram — 746736
扶手和遮阳板 — 746736 (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
74710Afire extinguisher holder74712-BZ040
74711Afire extinguisher74711-BZ030 · 74711-BZ070
